Shanghai Power Plant Valve Factory Co., Ltd. (SDF) provides Control Valve solutions for industrial process systems that require stable regulation of flow, pressure, temperature, and operating conditions. As an industrial valve manufacturer and supplier founded in 1966, we serve power generation, chemical processing, oil and gas, petrochemical, metallurgy, nuclear energy, natural gas, pharmaceutical, marine, and renewable energy projects. With deep experience in high-temperature and high-pressure power station valves, our team supports buyers from selection and engineering consultation to manufacturing, testing, and after-sales service.
For project teams, the right industrial control valve is more than a pipeline component. It supports process stability, energy efficiency, safety, and automation. SDF offers electric and pneumatic solutions and can support custom engineering for complex working conditions, special media, and project-specific requirements.
SDF supplies industrial control valves for process regulation in steam, water, gas, chemical, and other media systems. Selection can be based on actuator type, valve body style, lining requirement, pressure and temperature conditions, and required control accuracy.
Our portfolio includes pneumatic diaphragm control valves, electric control valves, and PTFE lined butterfly/control valve options for corrosive media applications. Final specifications should be confirmed according to the selected model, medium, pressure, temperature, pipe standard, and control system requirements.
| Control Valve Type | Typical Use | Key Selection Considerations |
|---|---|---|
| Pneumatic diaphragm control valve | Responsive process control for steam, water, gas, and chemical systems depending on configuration | Actuator action, control signal, air supply, valve size, pressure rating, material, leakage requirement |
| Electric control valve | Automated flow or pressure regulation where electric actuation is preferred | Voltage, signal type, control system compatibility, operating speed, torque, installation environment |
| PTFE lined control valve | Corrosive or aggressive media in chemical and process applications | Media composition, concentration, temperature, pressure, lining compatibility, sealing structure |

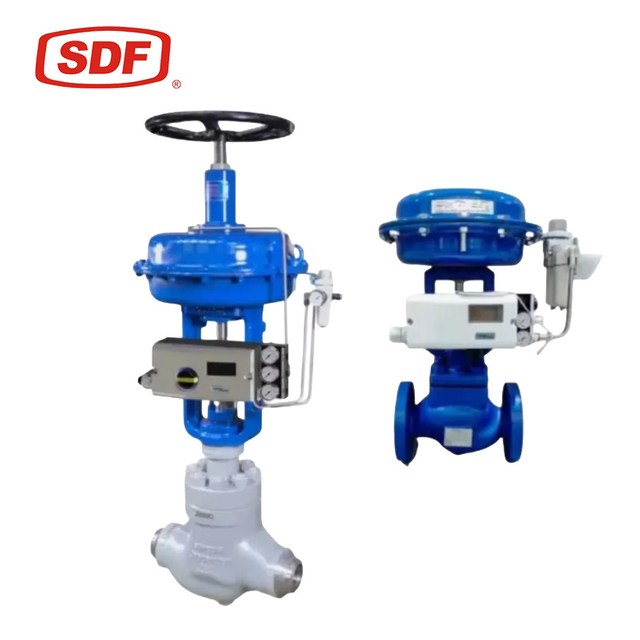

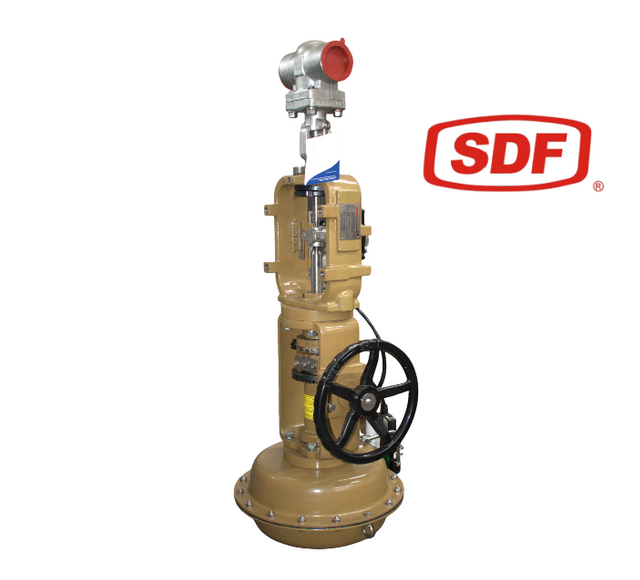

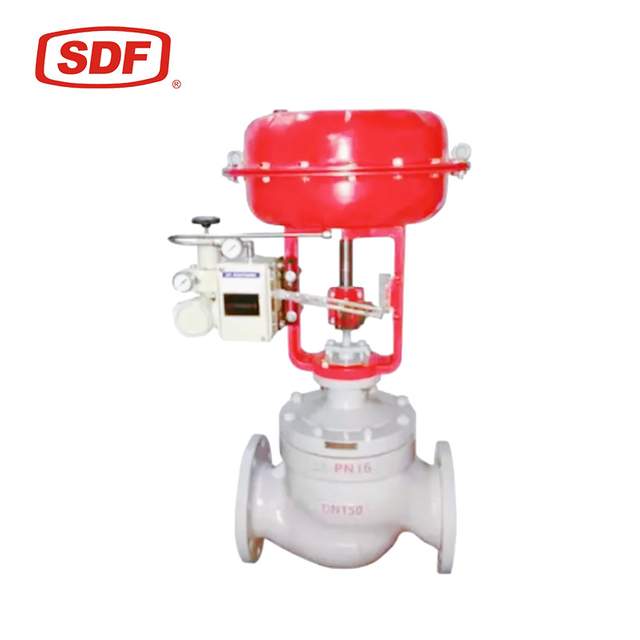

Pneumatic diaphragm control valves are widely used where stable, responsive, and repeatable process regulation is required. They are suitable for many industrial loops, including flow, pressure, and temperature-related duties in steam, water, gas, and chemical process systems. Material and configuration should be confirmed for each service condition.
When specifying a pneumatic model, buyers should provide actuator action, control signal, available instrument air supply, valve size, pressure rating, medium, temperature, and leakage class. These details help SDF evaluate the structure, actuator configuration, and suitability for the intended service.

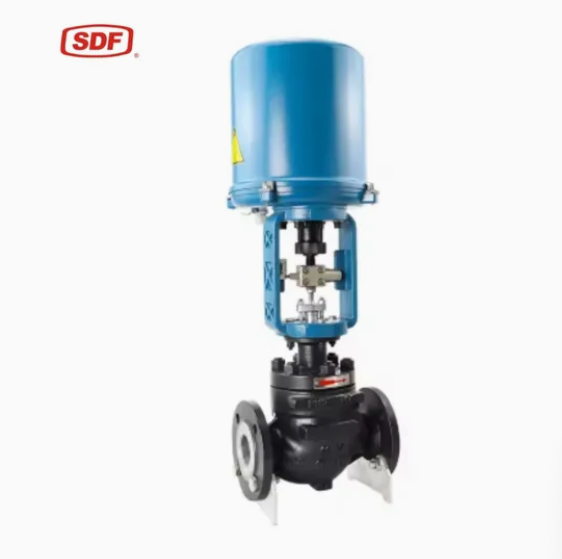

Electric control valves are suitable for automated regulation where plant design or the process control system prefers electric actuation. They can support flow or pressure duties in industrial pipeline systems, especially when remote operation or automation integration is required.
For quotation and model selection, customers can provide voltage, signal type, operating conditions, installation location, valve size, connection standard, medium, pressure, and temperature. SDF will review these requirements and recommend a configuration aligned with the project.
PTFE lined control valves and lined butterfly/control valve options are used where corrosive or aggressive fluids require lining protection. These selections are relevant when the medium may attack standard body materials, or when cleanliness and corrosion resistance are important.
Lining performance depends on the exact media composition, concentration, operating temperature, pressure, and flow conditions. SDF recommends confirming all process data before final material selection. This helps ensure the lining, valve body, sealing components, and actuator match the working environment.
SDF specializes in high-temperature and high-pressure industrial valves for mission-critical applications, especially in power station systems. In severe service, careful selection is required for throttling performance, material strength, sealing reliability, pressure testing, pressure drop, and temperature cycling.
Across our broader industrial valve portfolio, SDF covers pressure ranges from 1.6 MPa to 80.0 MPa, Class 150 to Class 4500, nominal sizes from DN10 to DN4000, and temperatures from -196°C to 1100°C. Exact control valve specifications vary by model and application. Project engineers should confirm the final rating, size, material, and trim selection according to actual working conditions.
Severe-service applications may involve superheated steam, high differential pressure, cavitation, flashing, erosion, noise, corrosive media, or critical shutoff requirements. SDF can support technical review for power station, steam, and other industrial process systems where standard selection methods may not be sufficient.
SDF industrial control valves are used in process systems that require accurate and reliable regulation of fluid movement and operating conditions. Depending on the project, they may support flow control, pressure control, temperature regulation, steam service, or automated process adjustment.
The industries we serve include power generation, chemical processing, oil and gas, petrochemicals, metallurgy, nuclear energy, natural gas, pharmaceutical production, renewable energy projects, and marine and shipbuilding. Each application has different requirements for pressure rating, media compatibility, sealing performance, actuator type, and control response.
Power generation facilities require dependable valve performance in steam, feedwater, condensate, bypass, and auxiliary systems. SDF has a long-standing background in power station valves and high-temperature, high-pressure valve engineering. This experience supports steam and power station control valve selection.
For power and steam applications, buyers should provide detailed operating data. Key information includes steam pressure, temperature, flow rate, pressure drop, system function, and required shutoff performance. These parameters help determine whether special materials, severe-service trim, welded connections, or additional engineering review are needed.
Chemical, petrochemical, and oil and gas systems often handle liquids, gases, steam, corrosive media, and hazardous process fluids. Valve selection should consider material compatibility, sealing structure, actuator selection, safety standards, and expected process fluctuations.
In these industries, operating reliability and specification accuracy are essential. SDF supports project teams by reviewing the medium, pressure, temperature, corrosion potential, flow characteristic, end connection, and control signal before recommending a suitable solution.
Metallurgy, nuclear energy, marine, shipbuilding, natural gas, pharmaceutical, and renewable energy projects also require stable valve operation and dependable technical support. These applications may involve high temperature, high pressure, corrosive fluids, special installation conditions, or strict project documentation requirements.
As an industrial control valve supplier, SDF supports project-based selection and custom engineering when standard configurations may not fully match operating conditions. Final recommendations are made according to the actual specification, applicable standards, and confirmed service environment.
Selecting the correct control valve requires more than matching the pipeline size. Accurate sizing and configuration depend on the medium, flow rate, pressure conditions, temperature, control purpose, actuator preference, leakage requirement, and installation environment.
SDF recommends that engineers, procurement teams, and project buyers provide detailed operating data at the inquiry stage. This allows our technical team to evaluate Cv/Kv requirements, actuator type, valve material, end connection, pressure rating, and control characteristics before preparing a quotation.
Control valve sizing is closely related to actual process conditions. If the valve is oversized, it may become unstable at low openings. If it is undersized, it may not provide the required flow capacity. Cv/Kv calculation is a standard part of selection when sufficient operating data is available.
| Parameter | Why It Matters |
|---|---|
| Medium | Determines material, sealing, lining, and corrosion resistance requirements |
| Flow rate | Supports Cv/Kv calculation and valve capacity selection |
| Inlet and outlet pressure | Defines pressure drop, pressure class, cavitation or flashing risk, and actuator force |
| Operating temperature | Affects body material, trim material, sealing structure, and actuator suitability |
| Valve size and pipe standard | Ensures installation compatibility with the pipeline system |
| Material requirement | Supports safe operation with steam, water, gas, chemical, or corrosive media |
| Leakage class and flow characteristic | Determines shutoff performance and control behavior |
| Actuator type and control signal | Ensures compatibility with plant utilities and automation systems |
Pneumatic and electric actuation each has advantages depending on site utility, response requirement, control system, and maintenance preference. Pneumatic control valves are often selected where instrument air is available and fast, stable response is required. Electric control valves may be preferred when electrical control integration is more practical.
Material and connection selection should also match the process conditions. Common considerations include carbon steel, stainless steel, alloy steel, lined construction, flanged ends, welded ends, and project-specific standards. For high-pressure, high-temperature, corrosive, or critical service, SDF recommends engineering confirmation before final ordering.
SDF provides integrated capabilities covering R&D, manufacturing, testing, and after-sales service for industrial valves. For complex process systems, custom control valve manufacturing can help address special media, high-pressure service, high-temperature operation, non-standard installation requirements, or project-specific standards.
As part of our industrial valve manufacturing capability, SDF supports engineering review and technical communication before production. Depending on product and project requirements, inspection and testing may include pressure testing, sealing inspection, material checks, dimensional inspection, and functional testing.
SDF holds quality and industry credentials including ISO 9001, ISO 14001, ISO 45001, China Special Equipment Manufacturing Licenses Levels A1, A2, and B, API 6D, API 607, and EU CE. These credentials support our role as a modern industrial valve manufacturer serving global process industries.
Choosing the right control valve supplier is important for long-term process reliability, project coordination, and technical support. SDF combines more than five decades of valve industry experience with specialization in high-temperature and high-pressure applications for demanding industrial systems.
Our company exports to more than 30 countries across Europe, North America, Southeast Asia, the Middle East, and South Asia. For international buyers, SDF supports product selection, technical documentation, project communication, manufacturing, testing, and after-sales service through our global service network.
| SDF Capability | Buyer Benefit |
|---|---|
| Founded in 1966 | Long-term valve industry experience and manufacturing background |
| High-temperature and high-pressure specialization | Relevant support for power station, steam, and mission-critical process applications |
| Integrated R&D, manufacturing, testing, and service | More coordinated support from inquiry to after-sales assistance |
| Custom design and engineering | Better fit for complex media, severe service, and project-specific requirements |
| Certifications and licenses | Supports quality management, safety, and international project documentation needs |
| Exports to over 30 countries | Experience serving global industrial valve buyers and project contractors |
If you need selection, sizing, customization, or pricing, contact SDF with your project requirements. As a Control Valve supplier and industrial valve manufacturer, we can review your process data, recommend suitable configurations, and provide quotation support for standard and custom applications.
To help our technical team respond efficiently, please provide the medium, flow rate, inlet pressure, outlet pressure, operating temperature, valve size, material requirement, actuator preference, connection type, quantity, applicable standards, and any drawings or datasheets. SDF can also support project specifications, technical drawings, installation guidance, and after-sales service requirements.
Please provide the medium, flow rate, inlet and outlet pressure, temperature, valve size, pipe connection, material requirements, actuator type, and control signal. Our engineers use these parameters to confirm sizing, structure, and quotation details.
Yes. SDF offers electric and pneumatic control valve solutions, including pneumatic diaphragm models for industrial process applications.
Yes. SDF specializes in high-temperature and high-pressure industrial valves, especially for power station and mission-critical applications. Exact specifications should be confirmed according to the model and working conditions.
Our control valves can be applied in power generation, chemical processing, oil and gas, petrochemical, metallurgy, nuclear energy, natural gas, pharmaceutical, marine, and related industrial projects.
Yes. SDF provides custom design, engineering support, manufacturing, testing, and after-sales service for complex industrial valve applications.
