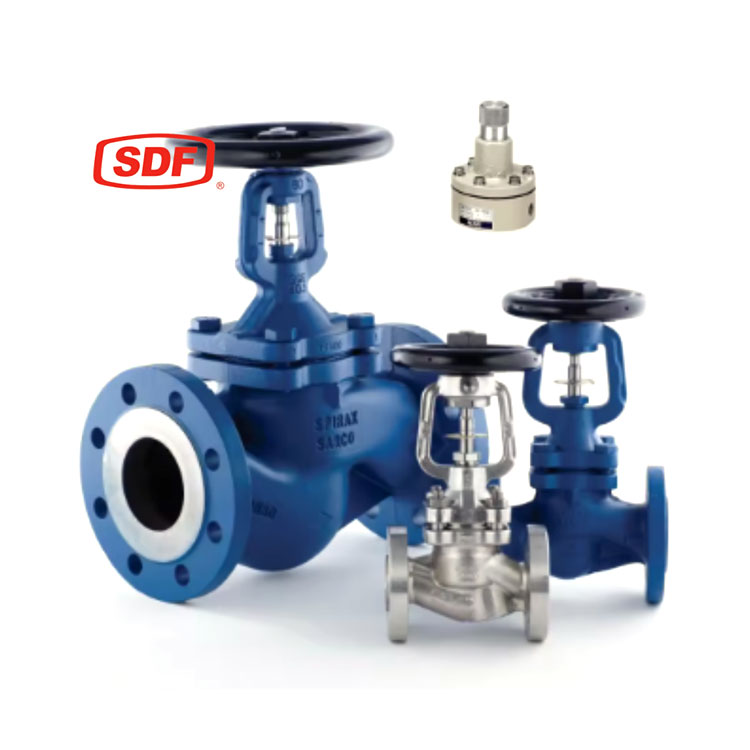

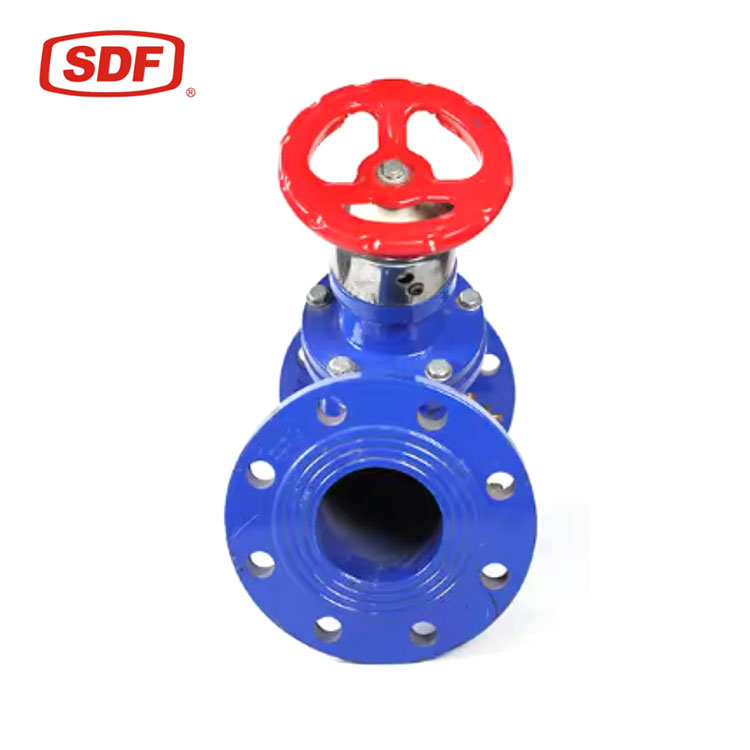

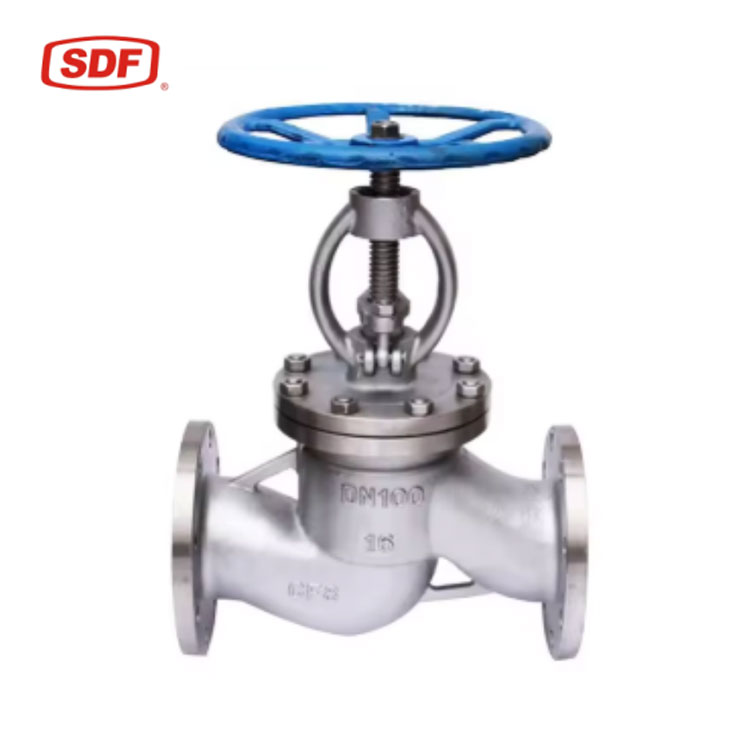

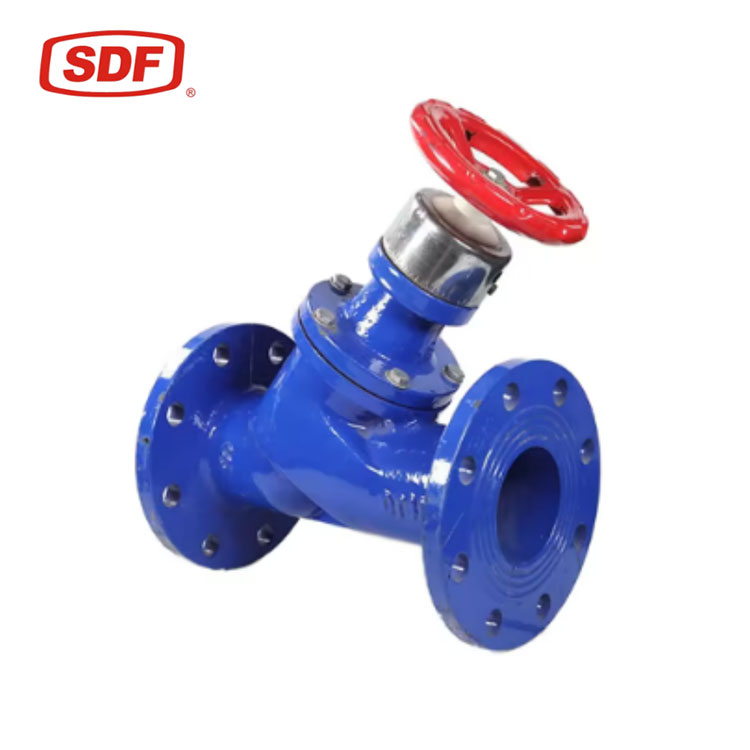

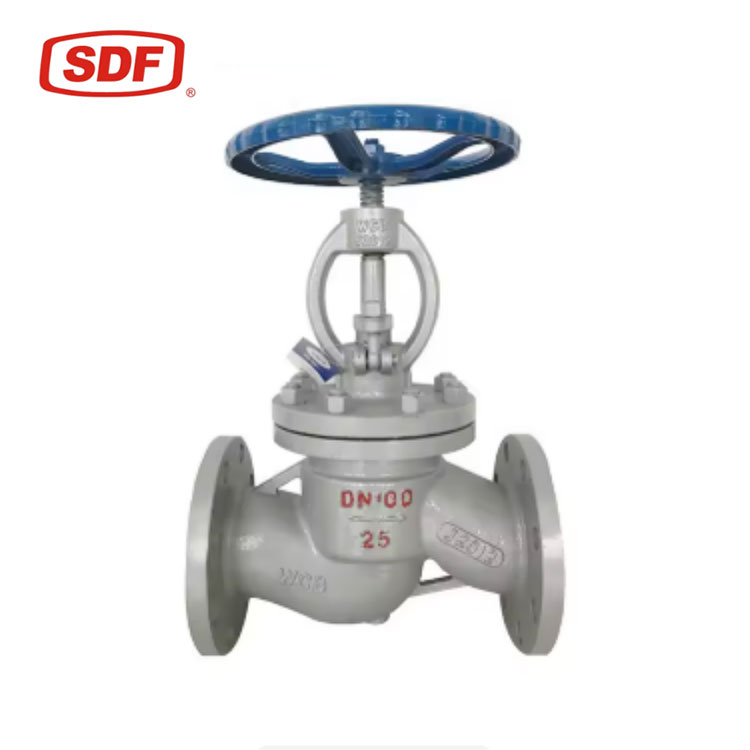

| The SDF High-Precision Manual Control Valve is an elite, industrial-grade flow-regulation component engineered specifically for process loops where manual adjustment is preferred over automated systems. In modern manufacturing and fluid-processing complexes, automated control loops are common; however, critical applications still exist where the nuanced, steady control of a human operator provides superior safety, system simplification, and extreme reliability without the risk of electronic signal loss or pneumatic failure. The SDF manual control valve is designed exactly for these severe throttling duties. It acts as a specialized instrument capable of delivering repeatable, fractional adjustments to fluid flow rates under intense industrial pressures and velocities. | |||||||||
SDF
The foundational engineering of standard globe or gate isolation valves makes them ill-suited for continuous throttling operations. When an isolation valve is opened only partially, high-velocity fluid concentrates through a narrow aperture, generating severe localized turbulence, cavitation, and aggressive erosive wear known as "wire-drawing" that rapidly degrades the valve seats.

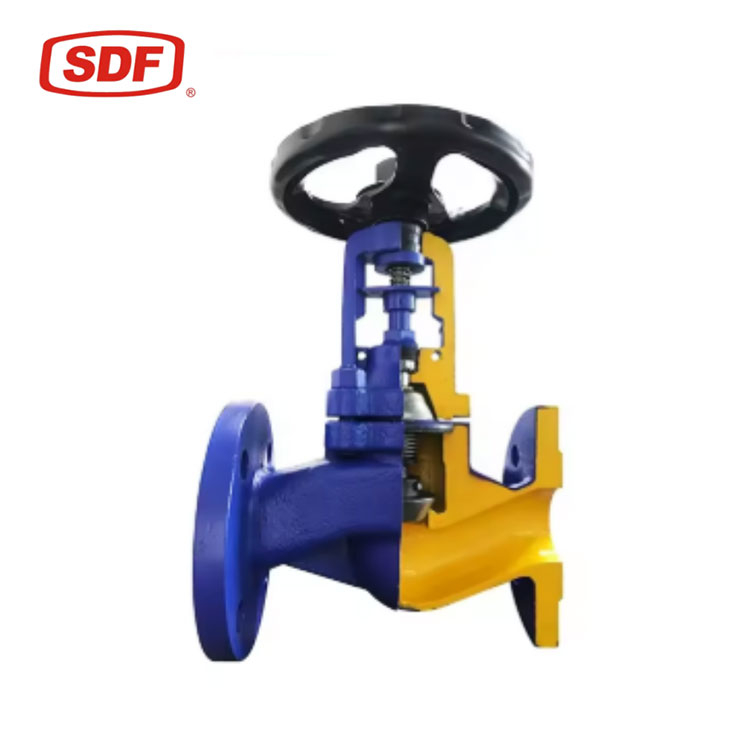

The SDF series eliminates this operational risk by integrating an optimized globe-style flow channel paired with specialized internal trims. The valve features either a precision-machined micro-throttling needle or a contoured regulating plug design. This internal architecture guides the fluid through smooth directional transitions, distributing the pressure drop across the entire trim surface rather than concentrating mechanical stress at a single point. This design substantially mitigates cavitation pitting, dampens acoustic noise, and minimizes turbulent vibration, delivering linear and highly predictable flow control across the complete stroke range.
At the core of the valve’s control accuracy is its finely threaded heavy-duty stem coupled with an ergonomic, graduated handwheel. The fine thread pitch configuration ensures that a full rotation of the handwheel translates into only a fraction of a millimeter of vertical plug travel. This provides plant operators with the mechanical advantage needed to calibrate flow rates with exceptional precision. The handwheel assembly includes a clear, mechanical position indicator scale, enabling technicians to document exact operational points and effortlessly replicate precise flow settings across shifts.
The pressure-retaining body shell is manufactured from premium-grade cast or forged metals—such as Carbon Steel (WCB), Stainless Steel (CF8/CF8M), or high-temperature Alloy Steel. To guarantee extended service life under high fluid velocities, the regulating plug and mating seat ring feature an ultra-hard Stellite™ cobalt-base alloy overlay. This hard-facing provides superior protection against particulate abrasion, thermal erosion, and high-velocity fluid scoring.
Precision Micro-Throttling Trim: Contoured plug and needle designs distribute pressure drops uniformly, mitigating cavitation and enabling accurate, fractional flow regulation.
Repeatable Handwheel Position Indicator: The finely threaded stem and graduated position scale allow operators to monitor, record, and reliably recreate exact flow configurations.
Severe Cavitation and Wear Resistance: Stellite™ hard-faced seating surfaces offer exceptional surface hardness, safeguarding internal components against high-velocity erosion and extending operational lifespan.
Rugged, Zero-Electronics Reliability: The fully mechanical architecture ensures dependable, fail-safe isolation and flow control in remote installations or hazardous environments lacking electrical or pneumatic infrastructure.
Technical Parameter | Specification / Standard Standard | Options / Available Upgrades |
Nominal Diameter Range | DN15 – DN300 (1/2" - 12") | Custom large bores engineered to order |
Body Material Options | Carbon Steel (WCB) / Stainless Steel (CF8, CF8M, SS316L) | Alloy Steel (WC6, WC9) for extreme temperatures |
Plug / Seat Trim Material | Stainless Steel 316 + Stellite™ Hard-Facing | Full Hastelloy® or Monel trim available |
Flow Characteristics | Linear / Equal Percentage | Specialized micro-flow trims available |
Nominal Pressure Classes | PN16, PN40, PN63, PN100 (Class 150 to Class 600) | Ultra-high pressure Class 900/1500 available |
End Connection Styles | Raised Face Flange (RF), Ring Type Joint (RTJ) | Butt-Weld (BW) / Socket Weld (SW) ends |
Leakage Class Rating | ANSI / FCI 70-2 Class IV (Standard) | Class V or Class VI (Bubble-Tight) optional |
The high-precision manual control valve is engineered specifically for bypass lines, manual calibration loops, and continuous throttling utility lines:
Bypass Loops for Automated Stations: Installed in parallel bypass lines surrounding automated control valves, allowing plant engineers to maintain manual process regulation during actuator maintenance or power interruptions.
Boiler Blowdown and Feedwater Calibration: Safely manages high-pressure, high-velocity flashing water discharged from steam boilers to maintain optimal Total Dissolved Solids (TDS) levels.
Chemical Dosing and Sampling Systems: Delivers precise calibration of chemical additives or process media introduced into blending vessels and analytical sampling systems.
High-Pressure Gas Throttling: Manages pressure reduction and flow rates across natural gas, nitrogen, and process gas supply headers.
Incorporate these technical selection criteria into your piping design to maximize the service life and operational accuracy of your manual control valve:
A frequent error in selecting manual control valves is matching the valve size directly to the existing pipe diameter. Oversizing forces operators to run the valve nearly closed (e.g., under 10% open) to achieve target flow rates. Operating near the seat creates high-velocity fluid jets that erode the trim via wire-drawing and induce system instability. Always calculate the required flow coefficient ($C_v$) based on actual minimum, normal, and maximum flow conditions, selecting a valve size where standard operations fall within 30% to 70% of total stroke travel.
For standard water, steam, and non-hazardous media below $200^\circ\text{C}$, PTFE V-ring packing provides low-torque, leak-free stem sealing.
For high-temperature steam or hazardous hydrocarbon service exceeding $250^\circ\text{C}$, specify die-formed flexible graphite packing sets equipped with braided carbon anti-extrusion rings to prevent dangerous stem leaks.
Control valves regulate flow by introducing localized restriction, which generates severe turbulence downstream of the seat. To prevent this turbulence from causing pipe vibration or interfering with instrumentation, maintain a straight, uninterrupted pipe run of at least 10 pipe diameters (10D) downstream and 5 pipe diameters (5D) upstream of the valve body.
Small manual control valves (under DN50) can be installed in varied orientations; however, larger valves equipped with heavy bonnets and large handwheels should be installed with the stem positioned vertically upward in horizontal pipelines. Mounting valves horizontally or at an angle introduces cantilevered weight from the handwheel assembly, creating side-loads on internal guide bushings, accelerating packing wear, and increasing operating torque.
Clear Visual Tracking Indicator: Equipped with a graduated stroke scale or dial indicator for effortless monitoring and precise logging of valve positioning.
100% Fail-Proof Independence: Operates completely independent of electrical power or compressed air supplies, guaranteeing total operational availability.
Erosion-Resistant Dynamic Trims: Hardened alloy overlays on plugs and seats prevent wire-drawing and surface degradation during prolonged throttling.
Ergonomic, Low-Effort Adjustments: Precision-machined stem threading and optimized handwheel dimensions reduce manual operating torque.
Ideal for automated control valve bypass lines, testing and calibration loops, manual boiler blowdown systems, and fluid balancing networks.
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given top priority.
Yes. We support OEM and customized valve manufacturing according to your drawings, technical specifications, and specific operating conditions.
Normally, production is completed within 15 working days after order confirmation, depending on the product type and quantity.
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other major international standards.
Pressure: Class 150 – 3500 | Size: DN10 – DN3000 | Temperature: -196ºC to 610ºC
We are ISO 9001 and CE certified, and we provide third-party inspection and material test reports upon request.
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, or other terms by mutual agreement.
Yes. We offer 24/7 technical support and maintain a supply of spare and consumable parts for long-term service.
