Advanced Structural Dynamics & Custom Trim Engineering

The core architecture of the valve body is designed to minimize internal flow turbulence while optimizing hydrodynamic performance. Conventional globe valves subjected to continuous throttling are particularly vulnerable to localized erosion, severe cavitation, and acoustic noise. The SDF series resolves these severe-service challenges by offering multiple, application-specific trim configurations:

• Top-Guided Single-Seated Trim: Ideal for standard utility lines, offering a streamlined flow path and exceptional tight-shutoff capabilities.

• Double-Seated Balanced Trim: Engineered to handle high differential pressures by balancing axial fluid forces, significantly reducing actuator thrust requirements.

• Cage-Guided Modulating Trim: The premier choice for severe-service, high-pressure-drop applications. The sleeve cage encircles the plug, completely shielding the valve walls from high-velocity jet erosion, dampening acoustic vibration, and dramatically improving cavitation resistance under high-frequency cycling.

Smart Digitized Actuation & Mechanical Fail-Safe

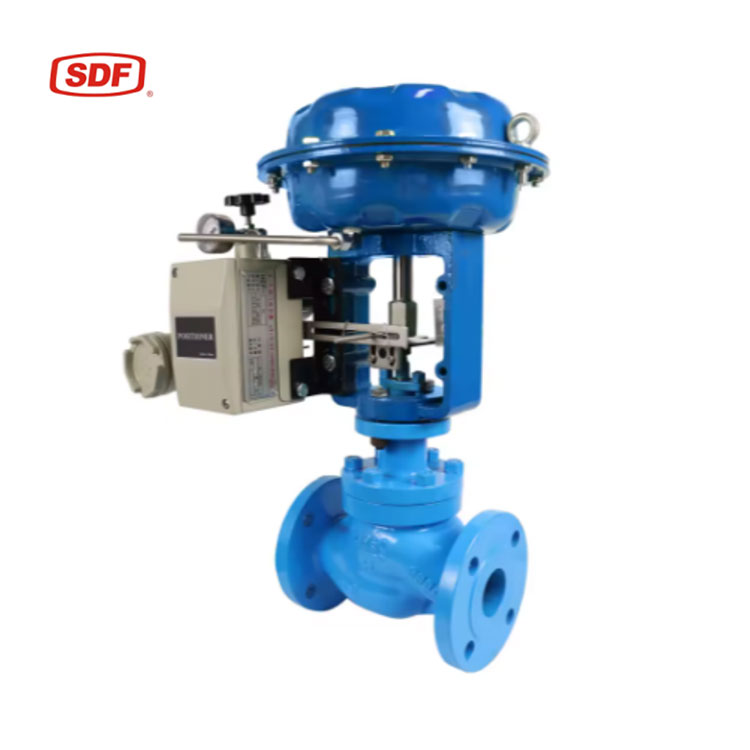

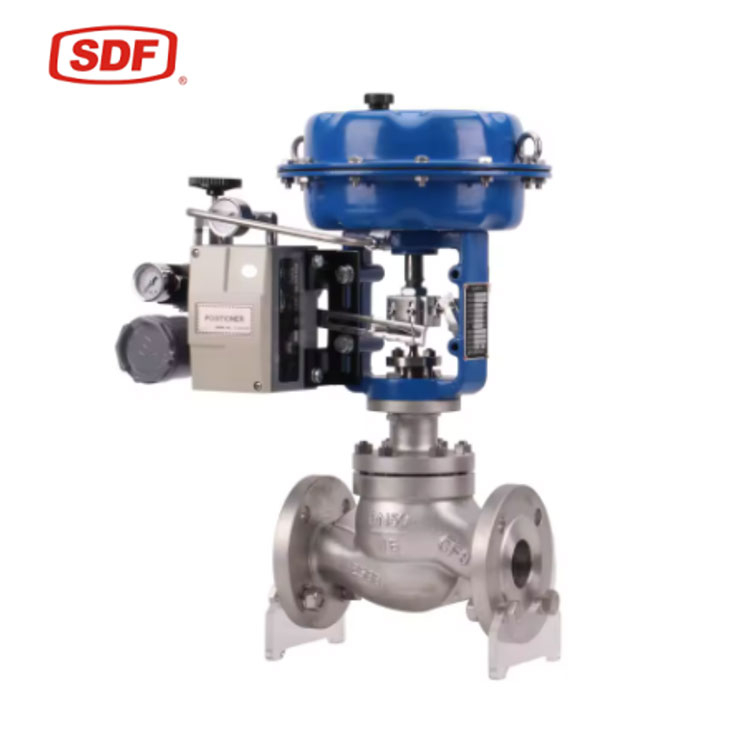

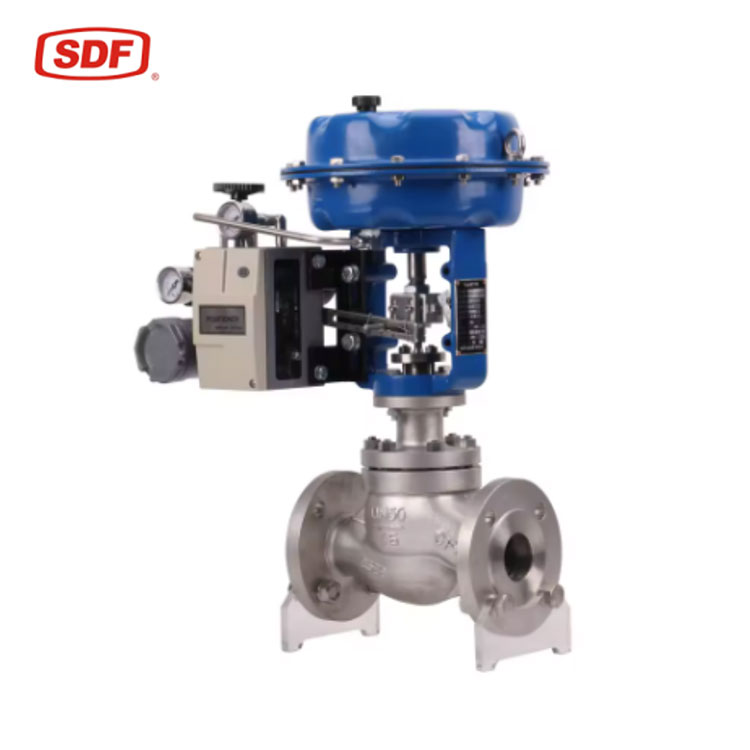

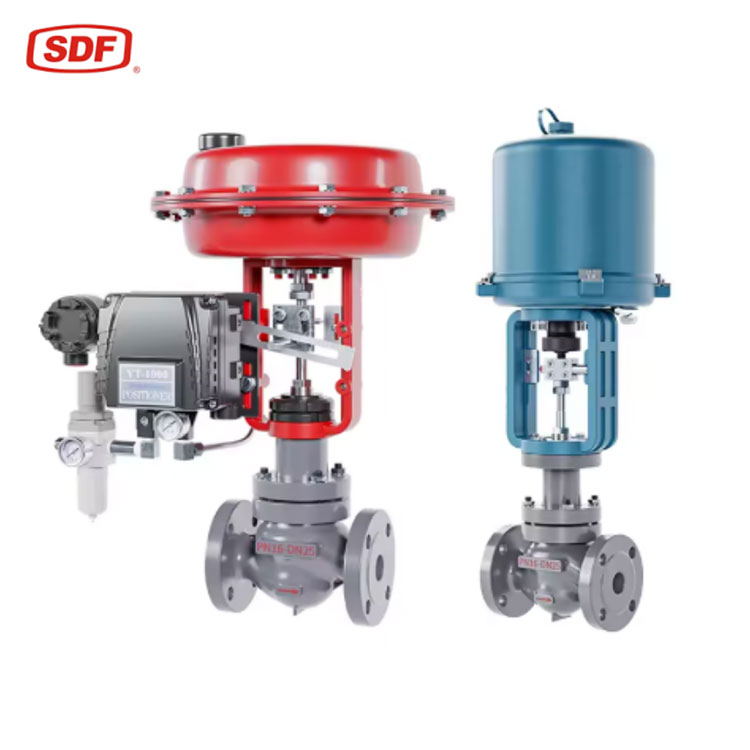

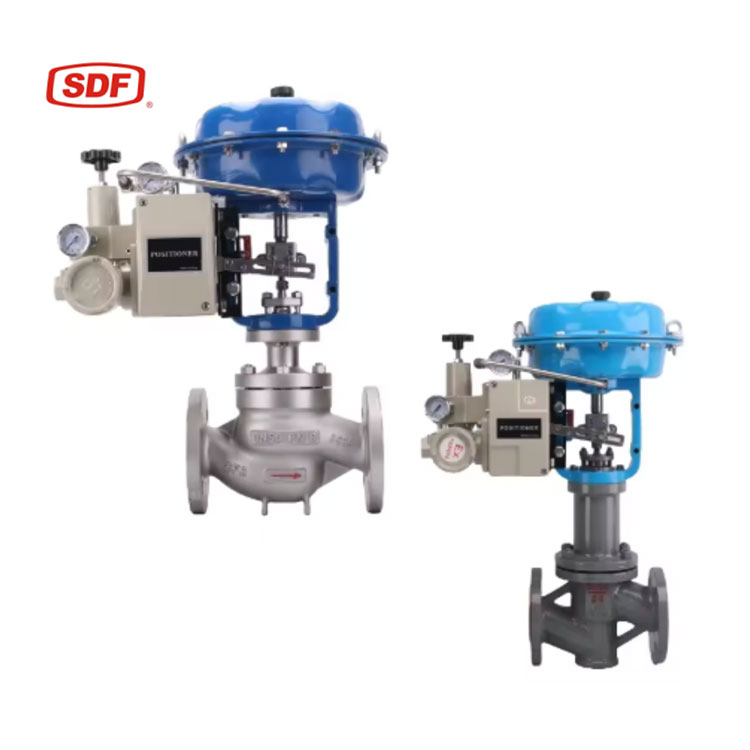

Surmounting the valve is a heavy-duty, multi-spring pneumatic diaphragm actuator engineered for low hysteresis and linear stroke movement. This mechanical system interfaces directly with a smart digital positioner compatible with standard 4-20mA / HART, Foundation Fieldbus, or Profibus communication protocols. The intelligent positioner continuously measures stem displacement via a non-contact magnetic sensor, making real-time micro-adjustments to the air pressure inside the diaphragm chamber. This feedback mechanism eliminates friction-induced "stick-slip" errors common in traditional mechanical positioners.

Furthermore, the mechanical spring arrangement serves as an uncompromised safety feature. In the event of a total plant power outage or loss of instrument air pressure, the internal heavy-duty springs instantly engage, driving the valve assembly into a pre-designated Fail-Close (Air-to-Open) or Fail-Open (Air-to-Close) safety position to prevent catastrophic pressure surges upstream or downstream.

Core Advantages: Engineering Highlights

• Millisecond Dynamic Response Times: The low-inertia multi-spring diaphragm actuator paired with a digital processing chip delivers rapid, highly linear positioning to keep automated loops tightly controlled.

• Fail-Safe Mechanical Integrity: Can be natively configured to Fail-Closed or Fail-Open modes via spring orientation, guaranteeing automated plant safety during an emergency power loss.

• Erosion-Shielded Cavitation Resistance: Optional cage-guided trims isolate the high-velocity throttling zone within the center of the cage, preventing wall erosion and suppressing fluid noise.

• Smart Digital Diagnostics (HART): The onboard smart positioner supports full digital calibration, step-response performance logging, and predictive maintenance diagnostics via asset management software.

Technical Specifications Matrix

Strategic Application & Working Conditions

The automated velocity management and rugged design of this pneumatic control valve make it a premier control component across high-performance process loops:

• Chemical & Refinery Throttling Loops: Managing continuous chemical feed adjustments, fractional distillation columns, and product blending lines.

• Power Plant Steam Utilities: Auxiliary boiler feedwater regulation, continuous desuperheater water dosing, and low-pressure steam extraction throttling.

• Pulp & Paper Process Lines: Handling black liquor lines, bleaching agents, and main plant steam distribution headers.

• Industrial Water & Wastewater Treatment: Continuous pH-balancing acid/base dosing loops and main pump discharge pressure-sustaining stations.

Engineering Selection & Field Installation Advice

To ensure precise control looping, long seat life, and stable actuator performance, implement these standard selection guidelines:

1. The Imperative of Flow Coefficient Sizing

Never select a pneumatic control valve based solely on matching the pre-existing pipeline diameter. Oversizing a control valve forces the plug to operate very close to the seat (below 10% to 15% open) during normal operation. This causes the fluid to enter a high-velocity jet stage, leading to "seat hunting," severe control cycling oscillations, and rapid trim erosion via cavitation. Always size the valve so that the nominal, day-to-day operating flow rate falls comfortably between 30% and 70% of the valve's total stroke.

2. Matching Flow Characteristics to the Process

• Equal Percentage: Select this characteristic for pressure control loops, heat exchangers, or long piping lines where the system differential pressure drops significantly across the line as flow increases. It provides proportional, stable control at lower openings.

• Linear: Select this profile for liquid level control loops or systems where the differential pressure across the control valve remains relatively constant across all flow conditions.

3. High-Temperature Isolation (Fin Bonnets)

If the process media temperature exceeds $250^\circ\text{C}$, do not use a standard plain bonnet. Specify an extended radiating fin bonnet. The integrated cooling fins dissipate heat via natural convection before it can travel up the stem, shielding the stem packing from drying out and protecting the precision electronics inside the smart positioner from thermal degradation.

4. Orientation and Actuator Support

Mount the pneumatic control valve vertically in horizontal pipelines with the diaphragm actuator pointing straight up.

• Technical Alignment Note: If layout constraints require the valve to be installed horizontally or at an angle, the massive weight of the actuator casing will induce a constant cantilever load on the internal guide bushings. This side-loading scores the stem and causes premature packing leaks. For any non-vertical installations, external structural steel supports must be clamped to the actuator yoke to absorb the weight.

Key Advantages

• Millisecond Response Times: Provides rapid, highly linear, and accurate positioning to maintain stable, automated process control parameters.

• Fail-Safe Mechanical Function: Easily configured for Fail-Close (Air-to-Open) or Fail-Open (Air-to-Close) modes to maximize plant safety during power loss.

• Advanced Cage Trim Protection: Heavy-duty internal cage minimizes body vibration, lowers aerodynamic noise, and distributes fluid forces to prevent cavitation.

• High-Thrust Compact Actuator: Multi-spring actuator design provides high closing thrust in a compact layout, ensuring tight shut-off against back-pressure.

Applications

Crucial for automated process loops in chemical manufacturing, oil refineries, pulp and paper lines, power generation, and large-scale water treatment plants.

FAQ

1. When can I get a quotation?

We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given top priority.

2. Do you support customized valves?

Yes. We support OEM and customized valve manufacturing according to your drawings, technical specifications, and specific operating conditions.

3. What is the production lead time?

Normally, production is completed within 15 working days after order confirmation, depending on the product type and quantity.

4. What standards do your valves comply with?

Our products comply with GB, ANSI, API, JIS, DIN, BS, and other major international standards.

5. What pressure, size, and temperature ranges can you supply?

Pressure: Class 150 – 3500 | Size: DN10 – DN3000 | Temperature: -196ºC to 610ºC

6. What certifications do you hold?

We are ISO 9001 and CE certified, and we provide third-party inspection and material test reports upon request.

7. What delivery and payment terms do you offer?

Delivery terms: EXW, FOB, CFR, CIF

Payment terms: T/T (30% deposit + 70% balance), L/C, or other terms by mutual agreement.

8. Do you provide technical support and spare parts?

Yes. We offer 24/7 technical support and maintain a supply of spare and consumable parts for long-term service.
