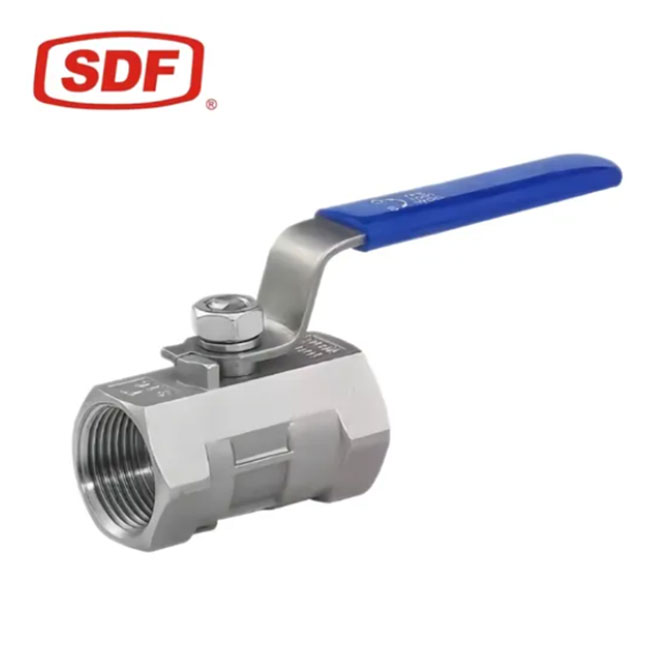

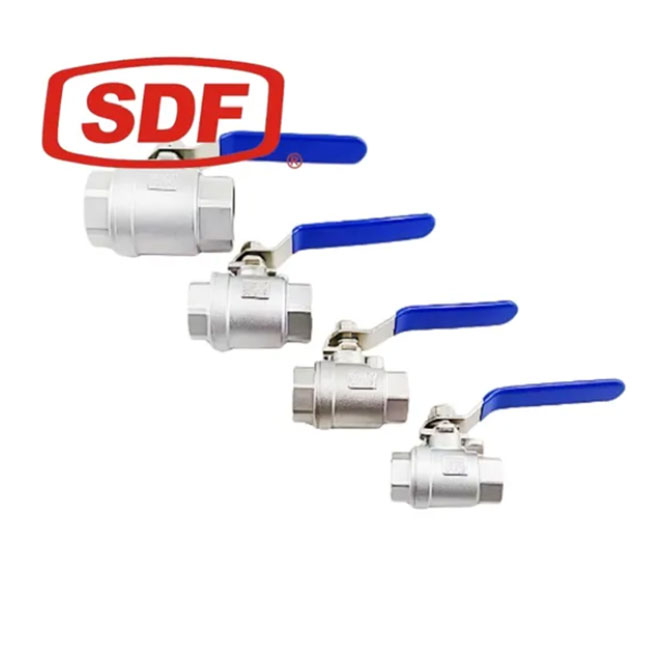

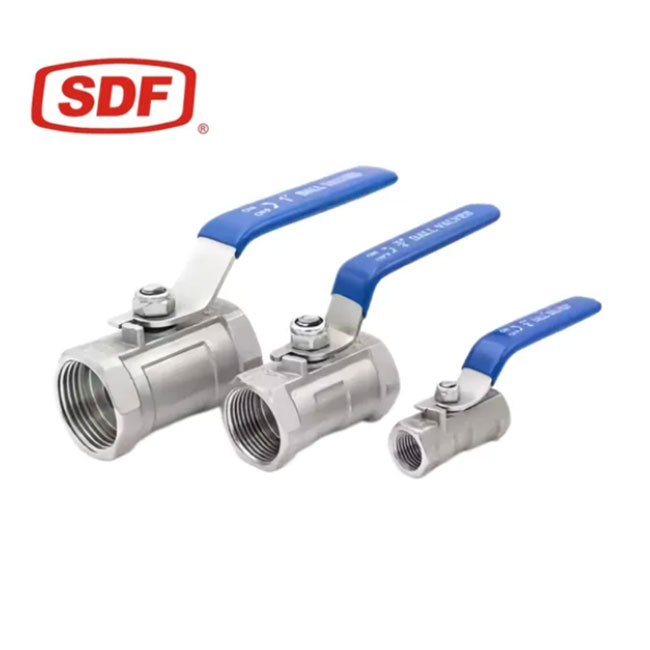

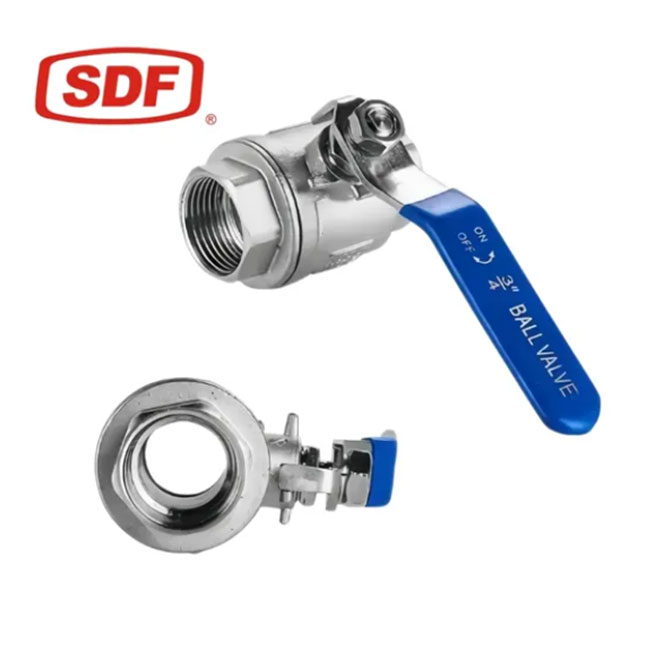

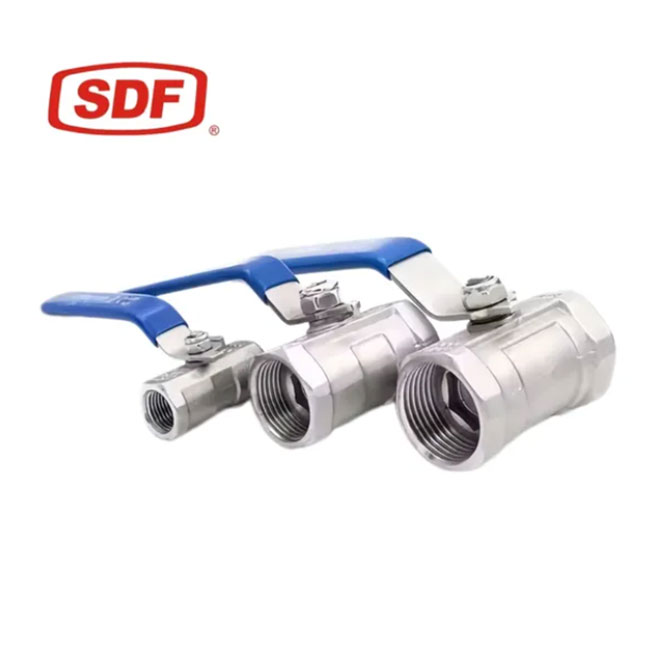

Core Advantages & Technical Features
Full-Port Fluid Dynamics: The internal bore aligns perfectly with the pipe ID, entirely eliminating turbulence, scaling tendencies, and parasitic frictional energy losses within the line.
Blowout-Proof Stem & Safety Sealing: The stem is inserted from the inside of the valve body with an integral shoulder, preventing the stem from being ejected even under extreme internal pressure spikes or packing gland relaxation.
Premium Investment Casting Structure: Utilizing automated investment casting processes (lost wax method), the valve body exhibits dense walls, a smooth internal surface finish, and zero casting defects like macro-porosity or inclusions.
Live-Loaded Adjustable Stem Packing: Features an adjustable packing gland nut coupled with Belleville washers that automatically compensate for thermal expansion and mechanical wear, drastically lowering maintenance downtime.
Reinforced Sealing Compounds: Standard configurations are fitted with premium reinforced PTFE (RPTFE) or TFM1600 seats. This achieves true bubble-tight, zero-leakage bidirectional isolation and exceptional anti-galling performance over extended cycle life.
Target Applications & Operating Conditions
This versatile threaded ball valve is specifically built to handle high-velocity liquid and gas mediums across light and heavy engineering environments:
Industrial Pneumatic & Compressed Air Infrastructure: Serves as the primary main header or localized drop-point isolation valve for pneumatic machinery, air compressors, and factory air rings.
Water Treatment & Commercial Building Utilities: Manages reverse osmosis (RO) systems, water purification setups, cooling water circulation loops, and municipal plumbing arrays.
Chemical & Petrochemical Processing Lines: Perfectly suited for handling non-aggressive or mildly corrosive chemical media, solvents, lubricants, and process utility fluids in refining facilities.
Low-Pressure Steam & Thermal Utility Distribution: Safely regulates low-pressure saturated steam lines and condensate return networks in commercial kitchens, laundries, and production lines.
Selection & Engineering Guidelines
When implementing the SDF threaded ball valve into process loops, procurement teams should strictly adhere to the following selection parameters:
Seat Material & Temperature Mapping: For standard applications below 150°C (such as water, air, or oils), standard PTFE or RPTFE is recommended for lower operating torque. For saturated steam or thermal oils up to 200°C, high-performance carbon-filled PTFE or TFM1600 seats must be explicitly specified.
Thread Form Standardization: Ensure the valve end connection specification precisely matches the regional piping infrastructure. Specify NPT (National Pipe Taper) per ASME B1.20.1 for North American installations, or BSPT / BSPP per ISO 7-1 / ISO 228-1 for European and Asian regional networks.
Body Structure Configuration Selection: Select the Two-Piece configuration for cost-effective, compact general isolation. For process lines requiring regular inline seat cleaning, seal replacements, or maintenance without unscrewing the end fittings from the pipe, the Three-Piece swing-out design must be specified.
Standard Technical Specifications
Technical Parameter | Standard Specification Value / Compliance |
Design & Manufacturing Standards | ASME B16.34, API 608, MSS SP-110, EN 12516-1 |
Nominal Size Range (NPS / DN) | NPS 1/4" to NPS 4" / DN8 to DN100 |
Pressure Ratings & Working Pressure | 1000 PSI (63 Bar) WOG (Water, Oil, Gas) / Class 400 |
Thread Connection Formats | NPT (ASME B1.20.1), BSPT (ISO 7-1), BSPP (ISO 228-1) |
Main Body Materials | Stainless Steel 316 (ASTM A351 CF8M), SS304 (CF8), Carbon Steel (WCB) |
Ball & Stem Metallurgy | Stainless Steel 316 (SUS316) / Stainless Steel 304 (SUS304) |
Seat & Body Seal Compounds | PTFE, RPTFE (Reinforced PTFE), TFM1600 |
Operator Configuration | Heavy-Duty Lever Handle with Vinyl Sleeve & Locking Device |
Anti-Static Device (Optional) | Built-in grounding spring between stem, ball, and body |
Pressure & Leakage Verification | API 598, ISO 5208 Rate A (Zero-bubble fluid shutoff) |
Applications
Extensively used in commercial water treatment, HVAC piping loops, compressed air lines, light chemical utilities, and manufacturing plant machinery skids.
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
