SDF butterfly valves are designed for shutoff, isolation, and flow control in industrial pipeline systems. They are suitable where compact structure and efficient operation are important.
Founded in 1966, Shanghai Power Plant Valve Factory Co., Ltd. supports demanding sectors such as power generation, petrochemical, oil & gas, chemical processing, metallurgy, and marine applications. We can configure these valves for manual or automated operation based on pipeline layout, media conditions, and project control requirements.
Compared with many general-purpose flow control valves, industrial butterfly valves offer quarter-turn operation and compact installation. They are also practical for large-diameter pipeline applications when the model is selected correctly.
Contact SDF for butterfly valve selection, technical review, and project support based on your operating conditions.
SDF supplies several butterfly valve configurations for different installation styles, media conditions, actuation needs, and maintenance requirements. The right choice depends on pipeline standards, pressure, temperature, shutoff expectations, chemical compatibility, and control requirements.
| Butterfly Valve Type | Typical Use | Key Selection Notes |
|---|---|---|
| Wafer butterfly valves | Compact installation between pipeline flanges | Suitable for space-saving isolation and flow control where the pipeline supports wafer mounting |
| Lug butterfly valves | Industrial pipeline isolation with bolted installation flexibility | Often considered when maintenance access and flange bolting arrangement are important |
| PTFE lined butterfly valves | Corrosive or chemically aggressive media | Material compatibility should be reviewed for chemical, petrochemical, and pharmaceutical service |
| Pneumatic butterfly valves | Automated open-close or process operation | Selected when compressed air control, remote operation, or plant automation is required |
| Electric and motorized butterfly valves | Remote control and electrically actuated systems | Useful for electric actuation, signal integration, or centralized operation |
| Gear operated butterfly valves | Manual operation with torque assistance | Commonly used when larger sizes or operating conditions require easier local operation |
Wafer butterfly valves are commonly selected for compact installation between pipeline flanges. Their space-saving structure supports reliable shutoff or general flow control without a long valve body.
A wafer configuration should be selected according to flange standard, pressure rating, media, temperature, sealing requirements, and installation orientation. SDF can review project conditions and confirm whether this type suits the intended pipeline system.
Lug butterfly valves are used where flange bolting arrangement and installation flexibility are important. This configuration can support industrial pipeline isolation and maintenance-oriented layouts, depending on service conditions.
When specifying a lug type, buyers should consider pipe size, flange compatibility, pressure class, body material, seat or lining material, and actuation method. SDF supports selection based on engineering data and project standards.

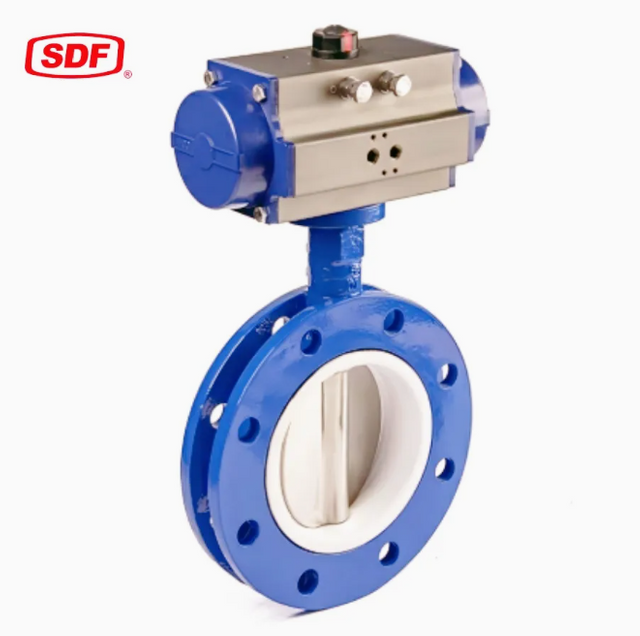

PTFE lined butterfly valves are often considered for corrosive or chemically aggressive media. In these applications, lining compatibility is a major selection factor.
For chemical processing, petrochemical, pharmaceutical, and related fluid handling applications, lined designs can help address corrosion resistance needs. They must be matched correctly to the process medium.
Because chemical service conditions vary widely, SDF recommends confirming media concentration, operating temperature, pressure, cleaning procedures, and compatibility requirements before final specification.

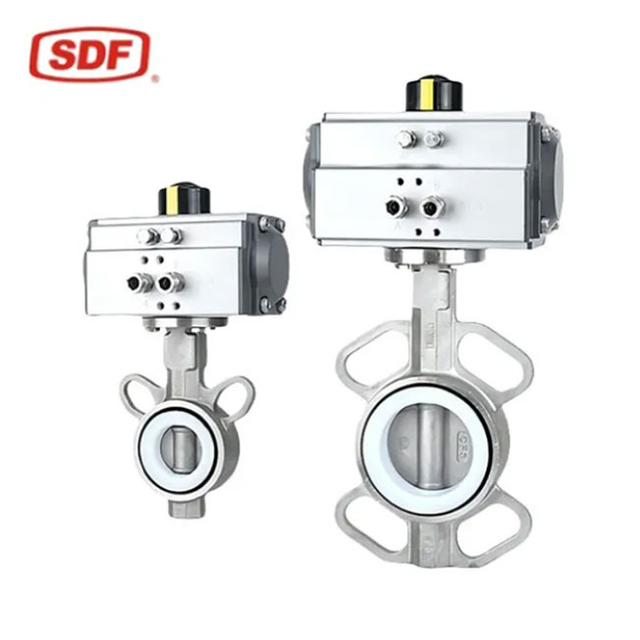

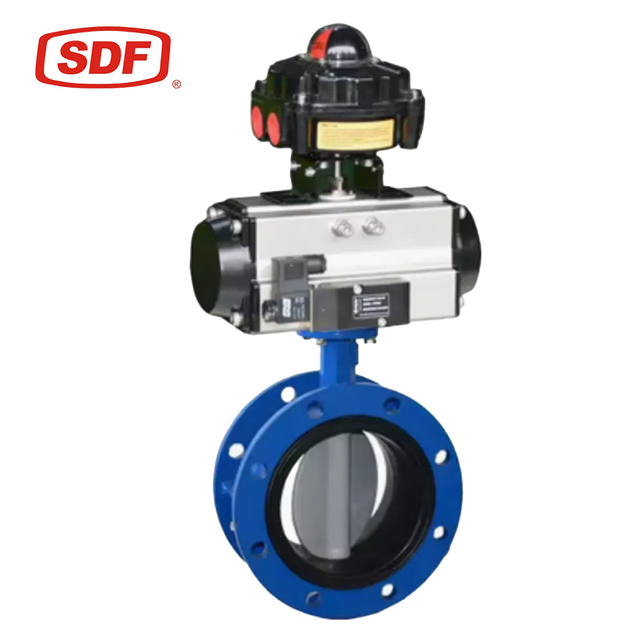

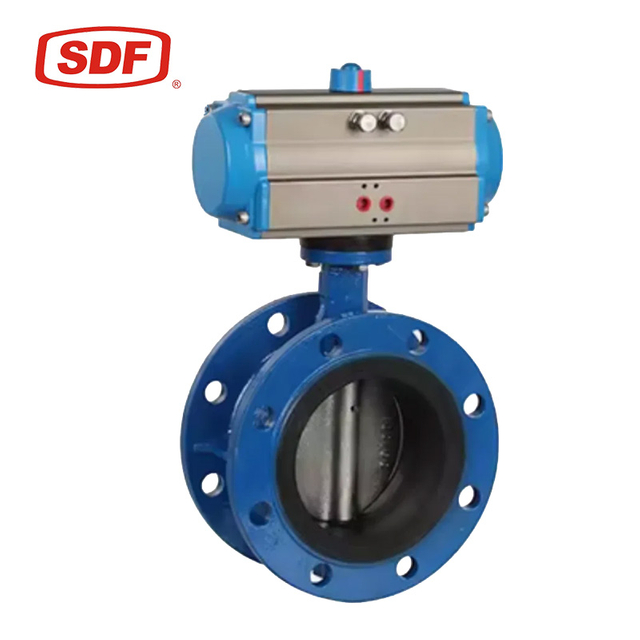

Pneumatic and electric butterfly valves are used when remote operation, automated switching, or plant control integration is required. SDF supports pneumatic, electric, motorized, gear operated, and manual actuation based on project needs.
For automated valves, actuator selection should consider operating frequency, available power source, control signal, opening and closing time, installation environment, and fail-safe requirements. Sharing these details helps our team recommend a more suitable configuration.
SDF butterfly valves are developed for industrial buyers who need dependable performance, project support, and manufacturing capability beyond standard catalog supply. They support compact pipeline isolation, efficient quarter-turn operation, and practical flow control in industrial service.
As an industrial butterfly valve supplier and manufacturer with more than five decades of experience, SDF integrates valve engineering, manufacturing, testing, and after-sales service. Our broad portfolio includes more than 2,000 valve models, helping buyers source butterfly valves with other industrial valve categories for complete project procurement.
Butterfly valve materials and actuation choices should match the actual media, pressure, temperature, pipeline size, corrosion risk, control requirement, and installation environment. SDF manufactures a wide industrial valve portfolio covering DN10 to DN4000, 1.6 MPa to 80.0 MPa, Class 150 to Class 4500, and -196°C to 1100°C.
Final butterfly valve specifications must be confirmed by model, design, and application. The following table summarizes common selection directions for inquiry preparation.
| Selection Item | Available or Common Direction | Buyer Consideration |
|---|---|---|
| Body material | Stainless steel, carbon steel, cast steel, alloy steel, ductile iron where applicable | Match material to pressure, temperature, corrosion exposure, and plant standards |
| Seat or lining | PTFE lined configurations where applicable | Review chemical compatibility, media concentration, temperature, and shutoff expectations |
| Connection style | Wafer and lug butterfly valve configurations | Confirm flange standard, bolting arrangement, installation space, and maintenance needs |
| Actuation | Manual, gear operated, pneumatic, electric, motorized | Select according to operating frequency, automation level, power source, and control system |
| Pressure and size | SDF valve portfolio covers broad industrial ranges; final data depends on model | Provide design pressure, nominal size, flange rating, and project standard |
| Temperature | SDF valve portfolio covers cryogenic to ultra-high-temperature applications; final suitability depends on model | Confirm normal, minimum, and maximum operating temperature |
Material selection is an important step in industrial butterfly valve specification. Stainless steel may be considered where corrosion resistance is important.
Carbon steel, cast steel, alloy steel, or ductile iron may be selected depending on pressure, temperature, media type, and project standards. For corrosive service, PTFE lined options may be reviewed when media compatibility is a primary concern.
SDF recommends providing complete process data. This helps our team evaluate body, disc, stem, seat, and lining requirements together.

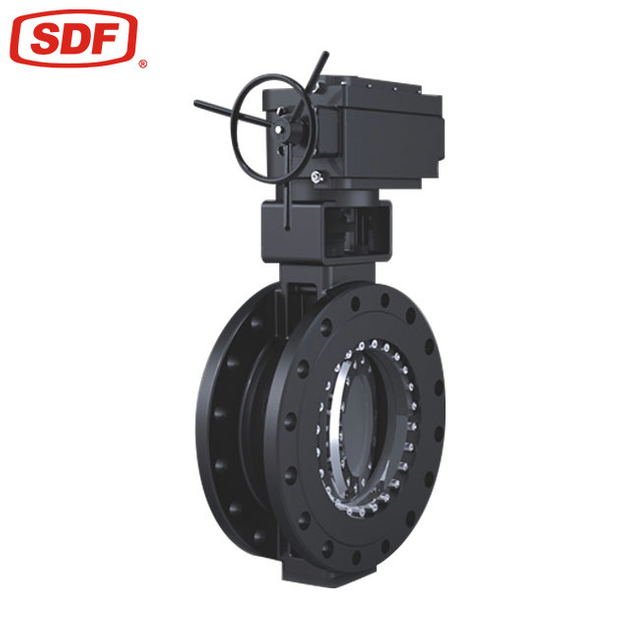

Manual butterfly valves are typically suitable for local operation where frequent remote control is not required. Gear operated types can provide easier local operation, especially when size or torque makes direct manual operation less practical.
Pneumatic and electric butterfly valves are better suited to automated systems, remote operation, and process control integration. To support actuator selection, buyers should share the control signal, function, power source, fail-safe preference, cycle frequency, and installation environment.
SDF supports butterfly valve selection for industrial systems requiring reliable isolation and flow control under demanding conditions. We serve sectors including power generation, chemical processing, oil & gas, petrochemicals, metallurgy, nuclear energy, pharmaceuticals, renewable energy, natural gas, and marine/shipbuilding.
Each application has different concerns. Power plant buyers may focus on temperature, reliability, and system availability. Chemical and petrochemical users often prioritize corrosion resistance and sealing compatibility. Oil, gas, and marine projects may require attention to installation efficiency, large-diameter suitability, material selection, and maintenance access.
SDF has long-standing experience in power station valve manufacturing. This background allows us to support butterfly valves for power plants where suitable.
These valves may be considered for auxiliary systems, water systems, cooling circuits, and other plant pipelines requiring dependable shutoff or flow control. For power plant projects, SDF can review pipeline size, temperature, pressure, media, operating frequency, and installation conditions.
Butterfly valves for chemical and petrochemical systems must be selected with careful attention to media compatibility, corrosion resistance, sealing performance, and operating temperature. PTFE lined types may be considered for chemically aggressive media where lining compatibility is required.
Automated operation may also be important in chemical plants, especially when valves are integrated into process control systems. SDF can support pneumatic or electric selection based on control requirements, site environment, and project documentation.
Butterfly valves for oil and gas, natural gas, and marine pipelines are often selected with attention to reliability, installation space, material suitability, and operating conditions. Marine applications may also require review of the shipbuilding environment, pipeline layout, corrosion exposure, and maintenance access.
SDF supports industrial buyers in evaluating wafer, lug, gear operated, pneumatic, and electric options for project-specific pipeline systems. Final selection should be based on engineering data, project standards, and service conditions.
Butterfly valve selection should begin with clear operating data. A suitable valve is not determined by size alone.
It also depends on pressure rating, temperature range, media characteristics, shutoff requirements, flange standard, actuation method, and installation environment. When comparing wafer vs lug, PTFE lined vs metal body, or manual vs automated operation, consider how the valve will be installed, operated, and maintained.
SDF can review drawings, datasheets, or operating conditions to support industrial butterfly valve specification.
| Selection Question | Why It Matters | Information to Provide |
|---|---|---|
| What is the pipeline size? | Determines valve dimension, connection, and operating torque direction | DN or NPS size, pipe schedule if relevant |
| What are the pressure and temperature conditions? | Affects body material, seat design, sealing, and model suitability | Design pressure, operating pressure, minimum and maximum temperature |
| What media will pass through the valve? | Impacts corrosion resistance and lining or seat compatibility | Fluid name, concentration, solids content, viscosity, corrosiveness |
| What connection standard is required? | Ensures proper installation between pipeline flanges | Flange standard, pressure class, wafer or lug preference |
| How will the valve be operated? | Determines manual, gear, pneumatic, electric, or motorized actuation | Local or remote operation, control signal, cycle frequency, power source |
| What shutoff or control function is expected? | Helps define valve type and actuator configuration | On-off isolation, flow control, automation requirement, leakage expectation |
SDF operates as a modern industrial valve manufacturer integrating R&D, manufacturing, testing, and after-sales service. For complex industrial applications, we can provide custom design and engineering support based on project conditions, valve function, installation requirements, and applicable standards.
Quality and technical support are important for industrial buyers, EPC contractors, and plant maintenance teams. SDF holds ISO 9001, ISO 14001, ISO 45001, China Special Equipment Manufacturing Licenses A1, A2, B, API 6D, API 607, and EU CE certifications.
Our products are exported to more than 30 countries across Europe, North America, Southeast Asia, the Middle East, and South Asia. SDF also promotes intelligent manufacturing through investment in smart valve factory development.
This manufacturing direction supports production capability, testing coordination, and long-term service for customers requiring custom butterfly valve solutions and broader industrial valve procurement.
Choosing the right butterfly valve supplier is especially important for demanding industrial systems. SDF combines experience, product breadth, technical support, and application knowledge to help buyers select valves that match real operating conditions.
Founded in 1966, SDF has more than five decades of valve manufacturing experience. The company specializes in high-temperature and high-pressure power station valves.
Our broader product range includes more than 2,000 valve models across gate valves, globe valves, check valves, ball valves, butterfly valves, control valves, and cryogenic valves.
| SDF Capability | Verified Strength |
|---|---|
| Company history | Founded in 1966 with over five decades of valve manufacturing experience |
| Industrial focus | Specialized in high-temperature and high-pressure power station valves and industrial valve solutions |
| Product portfolio | More than 2,000 valve models across major industrial valve categories |
| Technical range | Broad valve portfolio covering DN10 to DN4000, 1.6 MPa to 80.0 MPa, and -196°C to 1100°C, depending on model |
| Service capability | R&D, manufacturing, testing, after-sales service, and technical support from selection to installation guidance |
| Global supply | Products exported to over 30 countries across multiple regions |
| Certifications | ISO 9001, ISO 14001, ISO 45001, China Special Equipment Manufacturing Licenses, API 6D, API 607, and EU CE |
If you need industrial butterfly valves for a new project, plant maintenance, system upgrade, or EPC procurement package, contact SDF for model selection, technical documentation, pricing, and delivery information.
As a Butterfly Valve manufacturer and industrial valve supplier, SDF supports standard selection and custom engineering review for complex applications.
To receive an accurate quote, please provide the following information when available:
Send your technical requirements to SDF. Our team will help review butterfly valve selection, custom designs, testing needs, and after-sales service support.
SDF supplies industrial butterfly valves in wafer, lug, PTFE lined, pneumatic, electric, motorized, and gear operated configurations. Final availability depends on size, pressure, material, actuation method, and application.
Wafer butterfly valves are often selected for compact installation between flanges. Lug butterfly valves provide more flexible bolting and maintenance-oriented installation options.
Our team recommends choosing based on pipeline design, isolation needs, flange standard, and project requirements.
Yes. SDF can support butterfly valve selection for chemical and petrochemical applications. PTFE lined options may be considered when corrosion resistance and media compatibility are important.
Yes. SDF offers pneumatic, electric, motorized, gear operated, and manual actuation options. Actuator selection should consider control requirements, operating frequency, power source, fail-safe preference, and installation environment.
Please provide valve type, size, pressure rating, operating temperature, media, materials, flange or connection standard, actuation method, quantity, and testing or certification requirements. Drawings or datasheets help our team recommend a suitable butterfly valve solution.
