1. Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Butterfly Valve / Double-Eccentric Throttling Valve |
Actuation Architecture | High-Performance Pneumatic Actuator / Multi-Turn Electric Actuator |
Design Standards | API 609, ASME B16.34, ISO 5752, EN 593 |
Sealing Geometry Profile | Double-Eccentric / Double-Offset Sealing Structure |
Nominal Size Range | DN50 to DN2400 / 2 Inch to 96 Inch |
Pressure Ratings | ASME Class 150, Class 300 / PN10, PN16, PN25, PN40 |
Body Metallurgy Options | ASTM A216 WCB (Carbon Steel), ASTM A351 CF8 (SS304) / CF8M (SS316) |
Disc Configuration | Stainless Steel 304 / 316 (Streamlined Hydrodynamic Profile) |
Seat Lining Options | High-Temperature RPTFE, PEEK, or Fire-Safe Metal-to-Metal Seats |
End Connection Interface | Butterfly Valve With Flange (ASME B16.5 / EN 1092-1) / Wafer / Lug Type |
Control Signal Options | 24V DC / 220V AC Power, 4-20mA Throttling Input, Limit Switch Feedback |
Working Temperature Scope | Engineered High Temperature Performance |
2. Key Features and Engineered Advantages
1. Friction-Free Double-Eccentric Kinematics: The double-offset shaft design ensures the disc travels along a cam-like path. This eliminates seal squeezing and localized scraping against the seat ring during mid-stroke throttling, lowering the operating torque requirement and allowing for more compact actuator pairings.
2. Robust Actuator and Position Feedback Package: Outfitted with a heavy-duty anodized aluminum pneumatic actuator, the valve opens or closes rapidly in response to system changes. The integrated top limit switch box features highly durable internal micro-switches inside a weatherproof housing, ensuring reliable automated plant interlocking.
3. Superior High-Temperature Stability: The valve trim components are precision-machined from high-grade stainless steel matrices. Paired with reinforced technical polymer or hard-metal seating rings, the assembly maintains tight sealing structure without binding or warping during severe high-temperature fluid operations.
4. Streamlined Hydrodynamic Disc Profile: The thin, structurally reinforced stainless steel disc is mathematically optimized to ensure clean fluid flow. This minimizes drag and turbulence through the valve bore, delivering excellent flow coefficients ($C_v$) and lowering total system pumping costs.
5. Heavy-Duty Protective Outer Coating: The external valve housing features an electrostatically applied epoxy resin thermo-setting finish. This thick protective coat provides superior outdoor weathering durability, preventing atmospheric oxidation and chemical corrosion in harsh manufacturing plants.
3. Typical Industry Applications

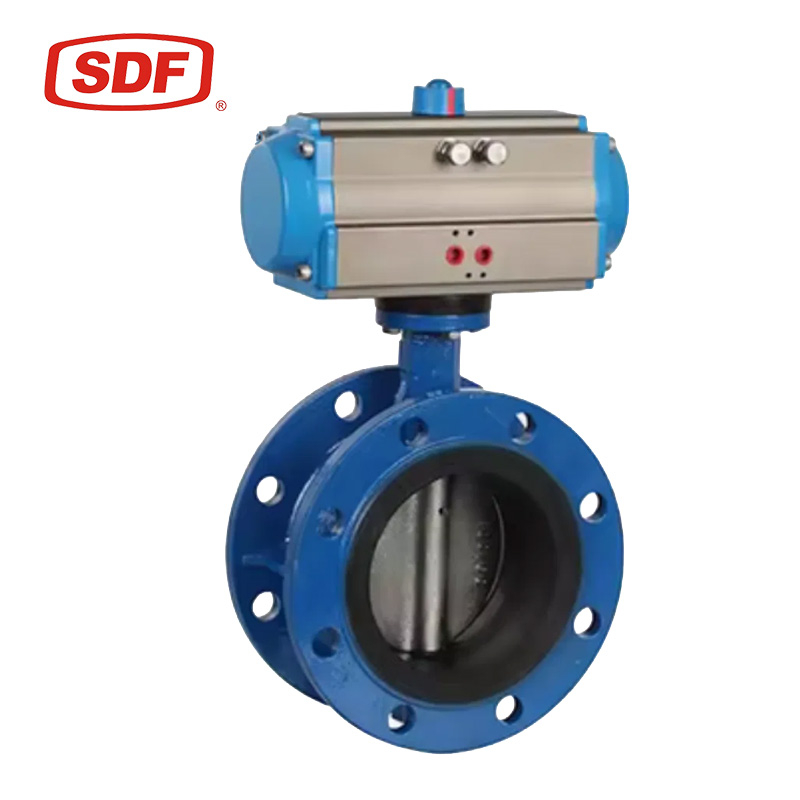

The SDF flanged actuated double-eccentric butterfly valve delivers long-term process automation across severe utility networks:
1. Water Treatment & Municipal Utility Loops: Automated filtration backwash systems, high-volume cooling water distribution headers, desalination plant intake nodes, and municipal pumping networks.
2. HVAC & Commercial Chilled Water Infrastructure: Main district heating distribution lines, building chiller plant automation, automated cooling tower manifolds, and primary condenser loops.
3. Power Generation Utilities & Air Service: Low-pressure steam extraction lines, turbine cooling water loops, flue gas desulfurization (FGD) processing, and plant utility compressed air distribution headers.
4. Chemical & General Processing Utilities: Non-aggressive chemical solution handling, bulk material storage isolation loops, tank farm transfer manifolds, and wastewater neutralization treatment plants.
5. Quality Assurance and Precision Pre-Shipment Compliance Testing
To guarantee high operational uptime inside automated process systems and ensure true plug-and-play installation, every SDF actuated butterfly valve clears strict validation:
Hydrostatic Body Shell Integrity Diagnostics: Every cast pressure-retaining body is hydrostatically pressure-tested at $1.5 \times$ its maximum nominal rating to ensure material density and completely rule out any subsurface structural defects.
API 598 Dual-Direction Leakage Verification: Seating boundaries are subjected to rigorous high-pressure fluid and low-pressure pneumatic closures to ensure tight shutoff performance prior to leaving the assembly line.
Dynamic Actuator Loop Functional Diagnostics: The fully integrated valve, actuator, and limit switch assembly undergoes multi-cycle operational testing. This step validates precise 90-degree mechanical stroke positioning, tight electrical terminal tracking, and smooth, non-binding stroke kinematics before final packing.
