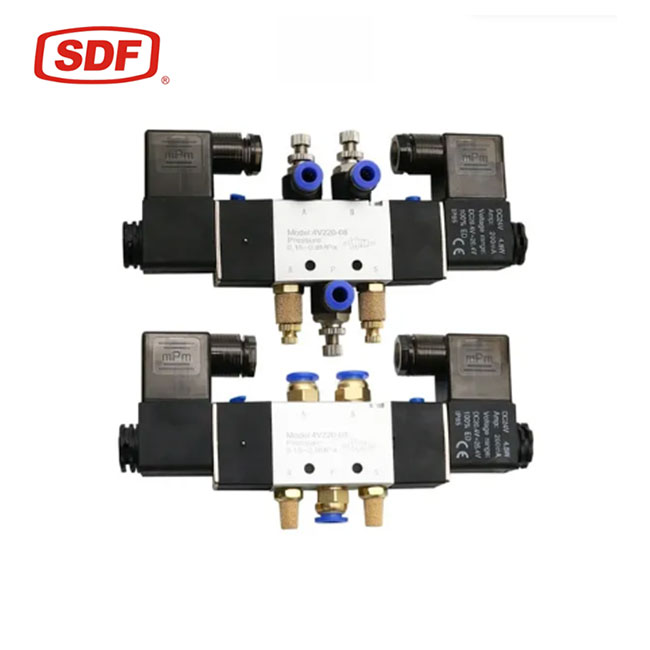

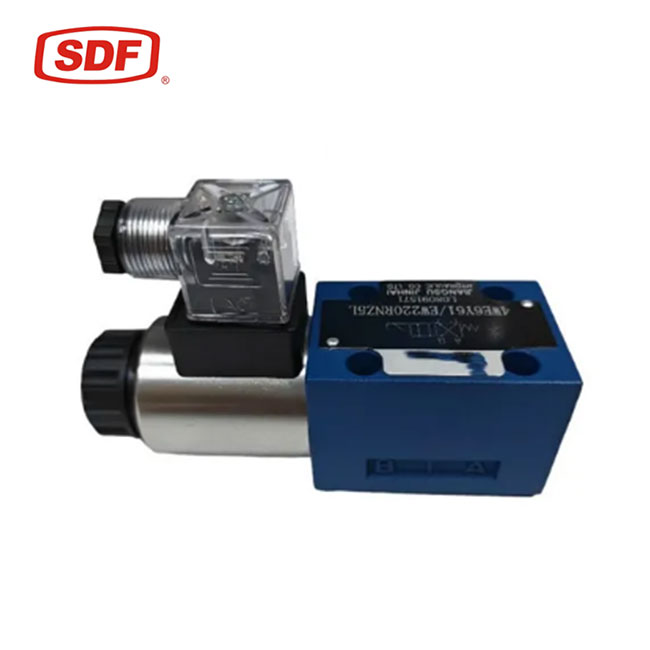

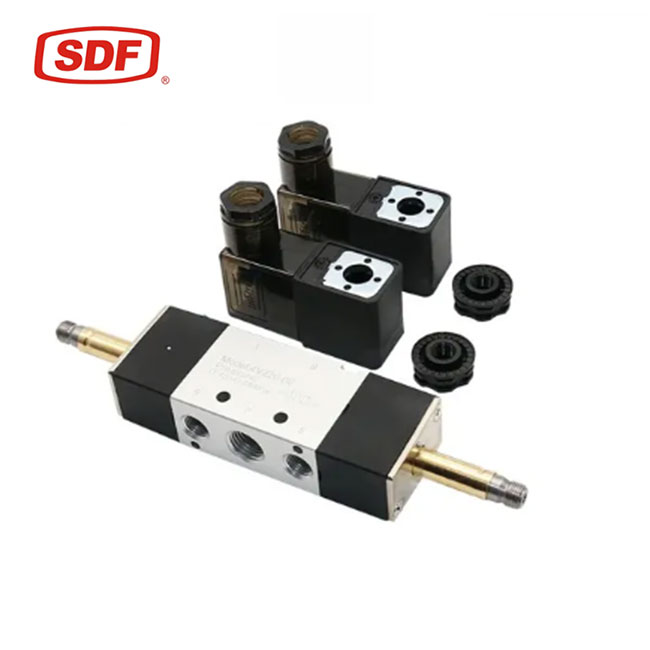

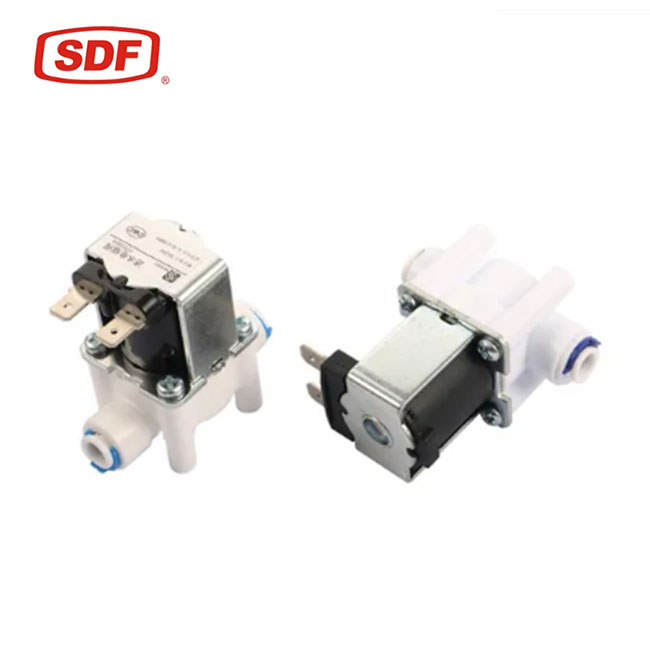

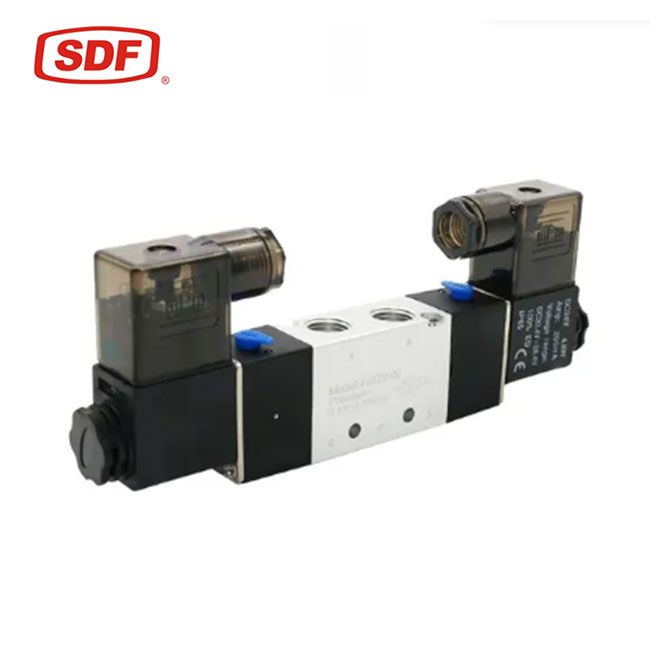

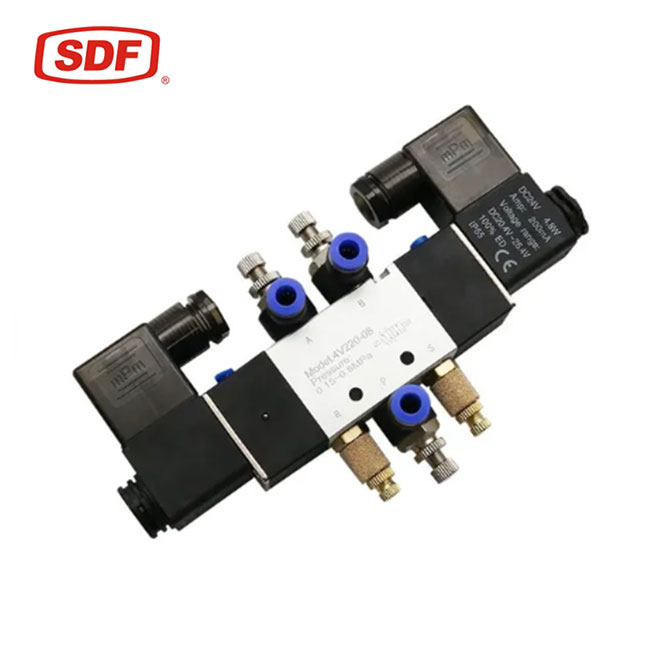

Core Advantages: Engineering Highlights
Sub-Millisecond Rapid Response: The advanced electromagnetic circuit lowers eddy current losses and dramatically accelerates the acceleration curve of the internal plunger, enabling opening and closing cycles within 10 to 30 milliseconds.
High-Durability Coil Encapsulation: Coils are wound with high-grade copper wire and protected by high-temperature thermosetting epoxy or nylon molding. This provides excellent insulation (Class H or Class F), ensuring safe continuous 100% duty cycle operations without thermal degradation.
Zero-Leakage Sealing Systems: Standardized with high-performance elastomer sealing elements (such as Viton/FKM or NBR). The precision-molded seating geometry eliminates internal fluid bypass and micro-leakage even under low differential pressure states.
Robust Mechanical Fatigue Resistance: Internal dynamic springs and impact washers are chosen from fatigue-resistant stainless steel. This mechanical optimization guarantees an extended service life exceeding millions of clean fluid operating cycles.
Modular & Compact Geometry: The compact structural envelope allows direct manifold mounting, minimizing the installation footprint and reducing internal dead volume, which further eliminates pressure lag in critical pilot systems.
3. Target Applications & Operating Conditions
The SDF Fast-Acting Solenoid Valve provides reliable control over clean liquids, compressed air, neutral gases, and low-viscosity light oils in various complex industrial landscapes:
Pneumatic Automation & Sorting: High-speed packaging machinery, automated sorting headers, and material handling systems where precise, repeatable multi-cycle operations are essential.
Fluid Pilot Systems: Serving as the fast-acting pilot mechanism for larger process valves, such as heavy-duty pneumatic angle seat valves, large diaphragm valves, and process actuators.
Automotive & Fuel Testing Lines: Controlled fluid dosage systems, fuel test rigs, and high-frequency spray systems requiring stable pulse-width modulation (PWM) control capability.
Environmental Engineering: Pulse jet dust collector systems, automated reverse-osmosis backwash loops, and exact chemical dosing processes.
4. Selection & Engineering Guidelines
To ensure optimal system longevity and prevent premature failure, plant design engineers should closely follow these application guidelines during model selection:
Fluid Medium Cleanliness (System Protection): Solenoid valves are extremely sensitive to solid particles. It is critical to note that an upstream Y-strainer or micro-filter must be installed to prevent foreign particulate matter—such as welding slag, pipe scale, or rust—from clogging the delicate internal orifices and jamming the armature.
Voltage & Power Configuration: Match the control system's electrical outputs (e.g., 24VDC, 110VAC, or 220VAC) exactly with the coil rating. For high-speed switching loops, 24VDC is highly recommended due to faster magnetic decay and safer low-voltage integration.
Pressure Differential Requirements: Verify whether the application demands a direct-acting or pilot-operated configuration. Direct-acting types operate down to 0 bar differential pressure, whereas pilot-operated models require a minimum fluid delta-P to actuate reliably.
Standard Technical Specifications
Technical Parameter | Standard Specification Value / Compliance |
Design & Testing Standards | IEC 60529, ISO 4400, DIN 43650, CE Compliance |
Nominal Orifice Diameters | DN1.5 to DN25 (Depending on specific body layout) |
Working Pressure Range | 0 to 10 Bar (Direct-acting) / 0.5 to 16 Bar (Pilot-operated) |
Response Time (Open / Close) | ≤ 20 ms / ≤ 30 ms (Fast-acting performance) |
Seal & Diaphragm Materials | Viton (FKM) / NBR / EPDM (Application specific) |
Body Materials | Anodized Aluminum / Brass / Stainless Steel 316 |
Coil Insulation Class | Class H (180°C) / Class F (155°C) |
Electrical Connections | DIN 43650 Form A / Form B Connector with IP65 Protection |
Voltage Tolerances | ±10% of Nominal Rated Voltage |
