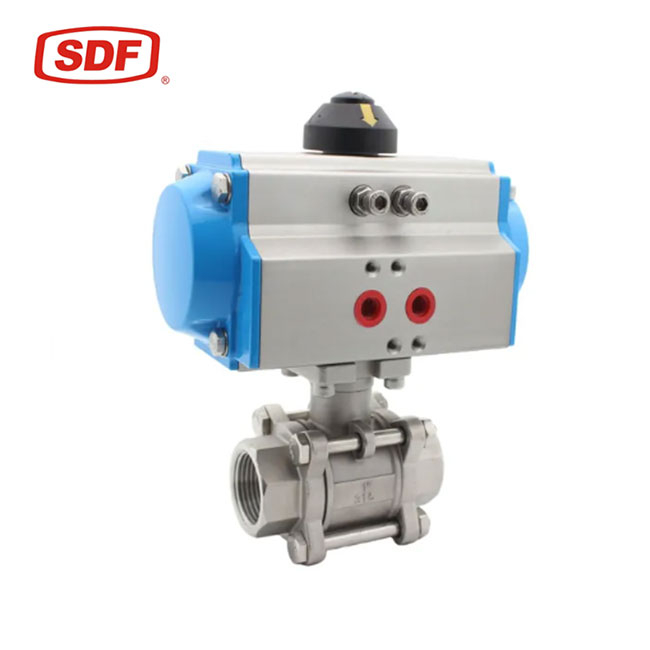

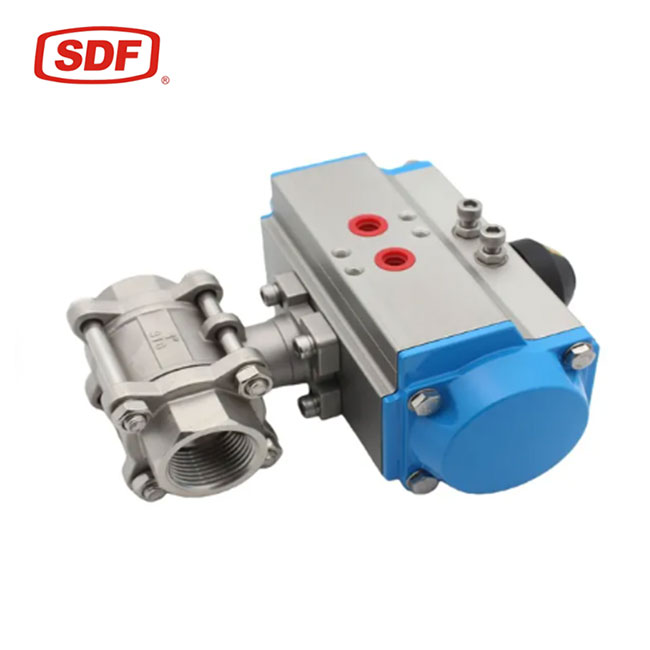

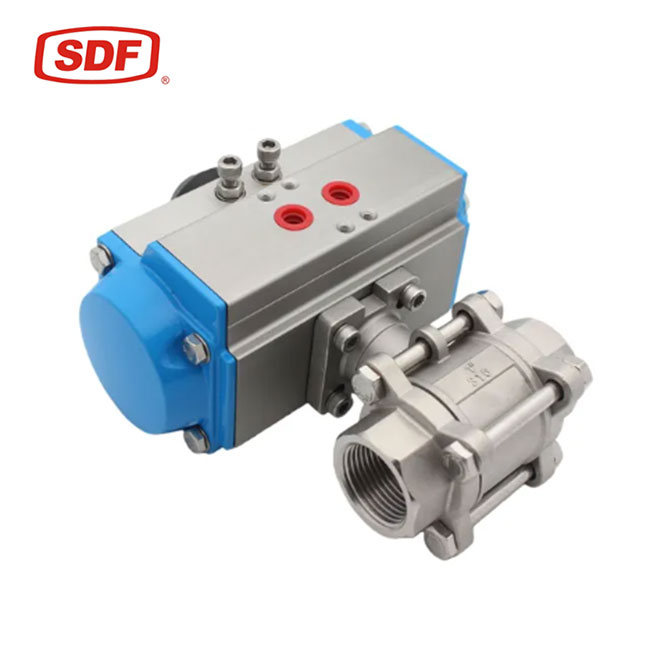

| The SDF Hygienic Sanitary Ball Valve represents an elite echelon of fluid control engineering, meticulously designed to satisfy the rigorous, zero-compromise demands of high-purity processing sectors. In biotechnology, active pharmaceutical ingredient (API) synthesis, semiconductor manufacturing, and advanced food processing, fluid isolation requires much more than simply stopping flow. It demands absolute sterile containment. Traditional full-bore ball valves inherently suffer from a critical design vulnerability: the residual dead space located between the exterior surface of the rotating ball and the interior casting of the valve body. When a standard valve cycles, process media becomes trapped within this stagnant pocket, forming a permanent baseline for microbial proliferation, bacterial bio-burden growth, and cross-batch contamination. The SDF series completely eliminates this operational risk by utilizing an advanced encapsulated, cavity-filled seating architecture. Manufactured from FDA-compliant, high-density Virgin PTFE or TFM™ 1600 material, these precision-machined seats are extended to wrap completely around the ball. By filling the entire internal body cavity, the valve leaves absolutely zero stagnant zones or dead spaces where product media can accumulate. Every internal millimeter of the flow path is continuously swept by the passing process stream, ensuring a truly self-cleaning and easily sanitizable fluid environment. | |||||||||
SDF
Zero-Dead-Zone Cavity Filling: Precision-engineered, full-encapsulation PTFE seats completely occupy the internal body shell, leaving no interstitial gaps or stagnant zones where organic media can settle and decompose.
ASME BPE Compliant Surface Finish: Electropolished internal contact surfaces achieving $Ra \le 0.38\,\mu\text{m}$ prevent chemical adhesion, optimize passivation, and substantially shorten overall sterilization cycles.
Robust SIP & CIP Thermal Cycling Resilience: The live-loaded stem seal system utilizes pre-compressed chevron V-rings and Belleville springs that continuously self-adjust. This guarantees a bubble-tight atmospheric seal, even under severe thermal shocks from alternating chilled product streams and $134^\circ\text{C}$ superheated steam sterilization.
Full-Bore Unrestricted Flow Profile: The inner diameter of the ball precisely aligns with the connecting sanitary tubing. This full-bore geometry delivers an exceptional flow coefficient ($C_v$), minimizing line pressure drop, eliminating fluid turbulence, and allowing unhindered passage of high-viscosity slurries or pigging systems.
Technical Parameter | Specification / Standard | Notes / Options |
Nominal Diameter Range | DN15 – DN100 (1/2" – 4") | Larger sizes up to DN150 available upon request |
Body Material | ASTM A351 CF3M (SS316L) / Forged 1.4404 | Forged bodies recommended for biopharma applications |
Ball / Stem Material | SS316L (Electropolished) / Hastelloy® C276 | High-hardness stem prevents galling |
Seat / Seal Compound | Virgin PTFE / TFM™ 1600 / UHMW-PE | All compounds FDA 21 CFR 177.1550 compliant |
Internal Surface Finish | Mechanical + Electropolished | Meets ASME BPE SF4 requirements |
Nominal Pressure Rating | PN10 to PN16 (150 psi to 250 psi) | Dependent on operating temperature and size |
End Connections | Sanitary Tri-Clamp, Butt-Weld, Extended Tube | Threaded configurations available for non-wetted utilities |
Compliance & Certification | FDA, 3-A Sanitary, ASME BPE, CE-PED, ISO 9001 | Full material heat traceability certificates (EN 10204 3.1) |
The ultra-clean architecture and automated reliability of the SDF Hygienic Ball Valve make it the premier choice for handling high-purity process fluid lines and critical sterile loops:
Biopharmaceutical Production: Fermentation vessel harvesting loops, nutrient feed systems, purification skid isolation, and bulk API (Active Pharmaceutical Ingredient) crystallization lines where zero cross-contamination is required.
Vaccine & Blood Fractionation: Sterile filtration suites, ultrafiltration systems, media preparation networks, and ultra-pure distribution lines handling sensitive biological formulations.
High-Purity Water Utilities: WFI (Water for Injection) storage tank loops, USP Purified Water distribution grids, and pure steam generation networks requiring constant thermal stability.
Advanced Dairy & Brewing Operations: Automated pasteurization units, yeast propagation loops, aseptic filling line headers, and flavor concentrate dosing skids where fast and complete cleanability is essential.
Personal Care & Cosmetics Processing: High-viscosity lotion transfer pumps, shampoo emulsifier lines, and gel filling machine manifolds where manual valve cleaning is highly labor-intensive.
To ensure optimized performance, automated precision, and extended seat longevity within your high-purity processing line, consider these technical selection parameters:
When sizing the pneumatic actuator for an encapsulated sanitary ball valve, always apply a minimum torque safety factor of 30% to 40% above the manufacturer’s baseline torque rating. Cavity-filled PTFE seats wrap tightly around the ball to eliminate dead zones, generating significantly higher frictional resistance compared to standard, non-filled industrial ball valves. Furthermore, continuous CIP chemical flushes can strip the ball surface of fluid lubrication, increasing dry breakaway torque.
For standard food, beverage, and utility processes operating under $120^\circ\text{C}$, Virgin PTFE offers reliable sealing and cost-effective performance.
For lines undergoing frequent, aggressive SIP steam sterilization or high-vacuum processing, specify TFM™ 1600. TFM™ features a denser molecular structure that dramatically reduces cold flow (deformation under load), offers lower permeability to steam molecules, and maintains its sealing elasticity over twice as long as standard PTFE under severe thermal cycling.
To comply with strict 3-A and ASME BPE self-draining mandates, the valve must be installed in a specific orientation within horizontal lines. Never position the valve stem completely vertical. Instead, the valve body should be inclined at an angle along the horizontal pipe axis. This inclination repositions the internal crescent gap of the ball opening, allowing process fluids to drain fully by gravity when the valve is opened and preventing liquid pooling along the pipe bottom.
If you select the extended butt-weld end configuration to achieve a seamless, zero-leak permanent joint, the internal valve components must be completely disassembled prior to welding. Leaving the valve fully assembled during welding will allow the intense heat of the TIG torch to conduct directly through the stainless steel shell, instantly melting or warping the cavity-filled PTFE seats and destroying the stem seals before the system is ever pressurized. Always remove the body center section, weld the end caps smoothly to the pipeline, passivate the weld joints, and reassemble the valve body with clean components.
Zero Contamination Risk: Cavity-filled seats and high-gloss interior polishing prevent fluid entrapment and bacterial colonization, ensuring absolute product purity.
True FDA Compliance: All sealing components and body materials meet FDA, USP Class VI, and 3-A sanitary standard specifications.
Full-Bore Streamlined Flow: Provides an unrestricted fluid path that permits effortless passage of highly viscous fluids or particulate products without shear damage.
Easy-to-Disassemble Design: 3-piece clamp structures allow rapid, tool-free breakdown for manual cleaning, inspection, or seal replacement.
Indispensable for processing lines in the pharmaceutical, biotechnology, food & beverage, dairy, brewery, and fine cosmetics industries.
