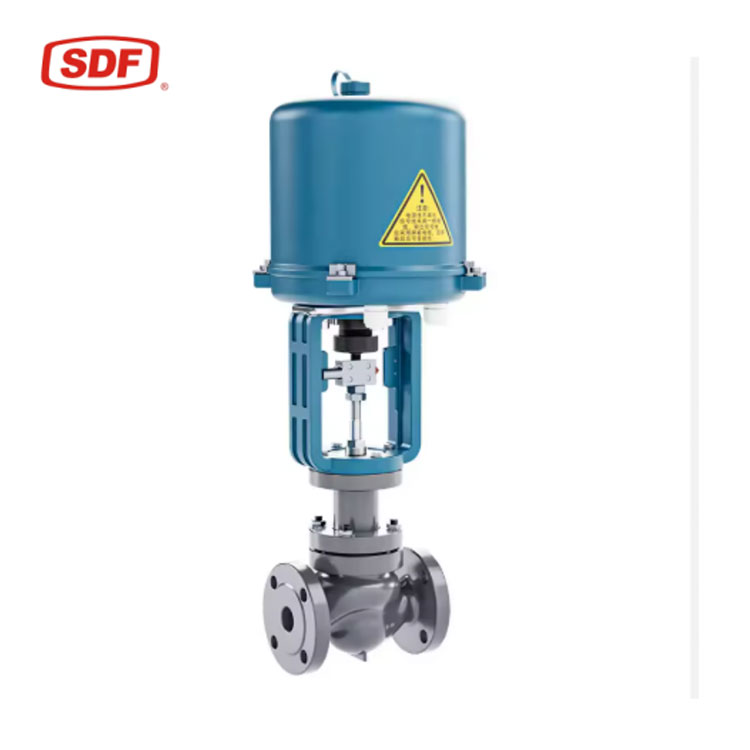

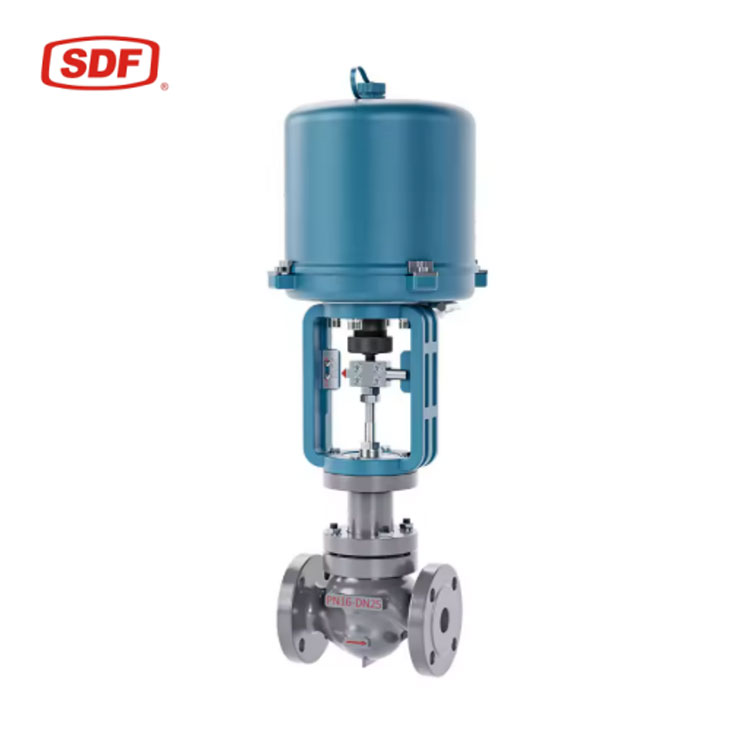

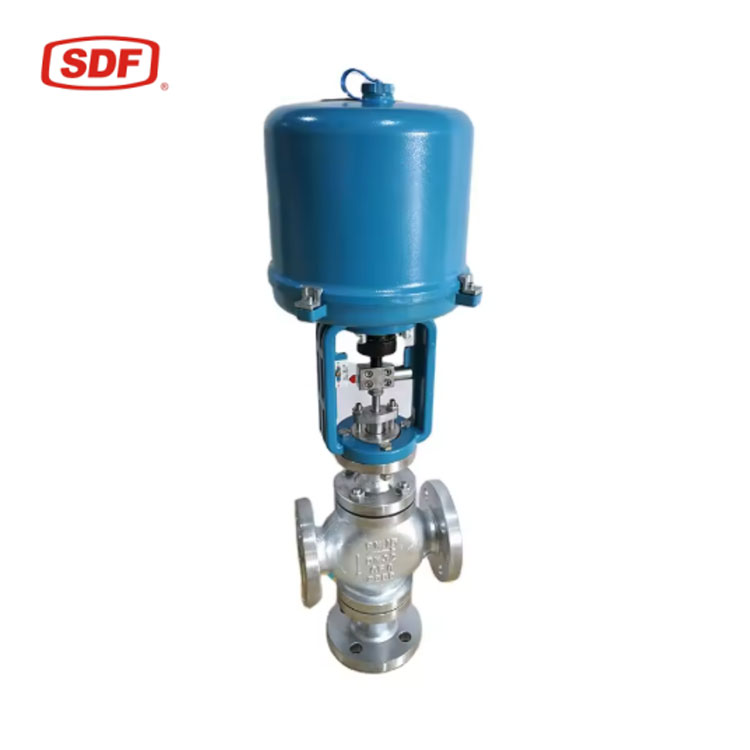

| The SDF Motorized Electric Control Valve represents a milestone in standalone, automated flow-regulation technology, engineered specifically to deliver highly precise, linear, or equal-percentage process modulation without relying on complex external pneumatic lines or central compressor networks. In modern, sprawling industrial processing facilities—as well as remote pipeline tap stations—installing dedicated instrument air infrastructure is often logistically impractical or prohibitively expensive. This electric control valve series resolves these infrastructure barriers completely. Driven by a high-torque, microprocessor-controlled smart actuator, it operates as a fully independent, self-contained throttling unit that interfaces directly with centralized computer control architectures via simple analog signals or digital fieldbus networks.The SDF Motorized Electric Control Valve represents a milestone in standalone, automated flow-regulation technology, engineered specifically to deliver highly precise, linear, or equal-percentage process modulation without relying on complex external pneumatic lines or central compressor networks. In modern, sprawling industrial processing facilities—as well as remote pipeline tap stations—installing dedicated instrument air infrastructure is often logistically impractical or prohibitively expensive. This electric control valve series resolves these infrastructure barriers completely. Driven by a high-torque, microprocessor-controlled smart actuator, it operates as a fully independent, self-contained throttling unit that interfaces directly with centralized computer control architectures via simple analog signals or digital fieldbus networks. Our Electric Control Valves provide an intelligent, standalone solution for precise process modulation without the need for an external compressed air infrastructure. Driven by a high-torque, smart electronic actuator, this valve accepts standard analog control signals (4-20mA, 0-10V) or digital fieldbus protocols (Modbus, Profibus). Featuring precision-machined internal plugs and linear or equal-percentage flow characteristics, it delivers exceptionally smooth fluid regulation with low power draw and quiet operation. | |||||||||
SDF
Plug-and-Play Electric Operation: Powered entirely by electricity, completely eliminating the need to install or maintain complex, costly air compression systems.
High Positioning Precision: Features high-precision internal gear trains and real-time electronic position feedback to prevent valve hunting and control overshoot.
Integrated Digital Diagnostics: Equipped with an on-board digital display screen and an intelligent processor for rapid parameter calibration and instant performance monitoring.
Eco-Friendly Energy Efficiency: The smart actuator draws power exclusively while adjusting the valve plug position, significantly reducing standby power consumption.
Technical Parameter | Standard Specification | Options / Upgrades |
Size Range | DN15 – DN300 ($1/2" - 12"$) | Larger sizes customized on demand |
Body Materials | Carbon Steel (WCB) / Stainless Steel (CF8, CF8M) | Alloy Steel for extreme thermal loops |
Input / Control Signals | 4-20mA, 0-10V DC, Modbus RTU, Profibus DP | Digital smart protocol integration |
Flow Characteristics | Equal Percentage, Linear | Quick-Opening configurations |
Pressure Ratings | PN16, PN40, PN63 (Class 150 to Class 300) | Higher ratings available upon request |
The high-precision electric control valve is ideally engineered for automated fluid loops and remote installations:
Remote or Decentralized Piping: Ideal for remote field locations, substations, or off-grid loops lacking dedicated compressed air infrastructure.
HVAC & District Energy Loops: Delivers continuous, automated temperature and flow modulation in commercial chilled and hot water distribution lines.
Industrial Chemical Blending: Ensures reliable, automated metering of non-corrosive chemical feeds and liquid additive streams.
Automated Water Filtration Plants: Regulates backwash flow rates and system inlet feed pressures in municipal and industrial clean water facilities.
Incorporate these engineering guidelines into your system design to maximize operational efficiency and valve longevity:
Select the control signal protocol that aligns with your site control architecture. Utilize analog 4-20mA signals for standard standalone PID loops due to their superior noise immunity over long cable runs. Specify digital protocols like Modbus RTU or Profibus DP when your system demands advanced remote diagnostics, real-time telemetry, and simplified bus networking.
Avoid sizing the control valve based solely on nominal pipe diameter. Always calculate the required flow coefficient ($C_v$) using your system's maximum, nominal, and minimum flow rates. Target a valve size where your normal operating point falls within 30% to 70% of total stroke travel to ensure stable process control and prevent hunting.
For process media temperatures exceeding $150^\circ\text{C}$, specify an extended yoke architecture to isolate the electronic actuator housing from the hot valve body. This thermal barrier prevents radiative heat from overheating the internal control board and compromising electrical insulation.
Mount motorized valves vertically in horizontal pipelines with the electric actuator pointing straight up. Avoid inverted installations (upside down), as packing leaks or condensed ambient moisture can drip directly into the actuator casing, causing electrical short circuits and electronic failure.
Plug-and-Play Electric Operation: Powered entirely by electricity, eliminating the capital and maintenance costs of air compressors and pneumatic tubing.
Integrated Digital Diagnostics: Outfitted with an intuitive digital screen and smart processor for simplified calibration, real-time feedback, and direct PLC/DCS integration.
High Positioning Precision: Advanced electronic feedback systems and precision gearing eliminate control hunting and overshoot, maintaining tight process tolerances.
Eco-Friendly Energy Efficiency: The actuator draws electricity only during movement, lowering power consumption and reducing overall plant operating costs.
Widely deployed in commercial HVAC networks, urban district heating grids, municipal water infrastructure, and automated industrial manufacturing lines.
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given top priority.
Yes. We support OEM and customized valve manufacturing according to your drawings, technical specifications, and specific operating conditions.
Normally, production is completed within 15 working days after order confirmation, depending on the product type and quantity.
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other major international standards.
Pressure: Class 150 – 3500 | Size: DN10 – DN3000 | Temperature: -196ºC to 610ºC
We are ISO 9001 and CE certified, and we provide third-party inspection and material test reports upon request.
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, or other terms by mutual agreement.
Yes. We offer 24/7 technical support and maintain a supply of spare and consumable parts for long-term service.
