A power station valve is an industrial valve designed for steam, water, gas, and auxiliary media in power generation plants. These valves are selected for isolation, throttling, non-return protection, flow control, and critical pipeline protection. They are used where pressure, temperature, sealing performance, and operational reliability are essential.
SDF specializes in high-temperature and high-pressure valve applications, especially for the power industry. We supply power plant valves for thermal power plants, boiler systems, main steam pipelines, turbine-related systems, condensate lines, and other critical services. For high-pressure steam valves and boiler valves, our team supports selection, manufacturing, testing, installation guidance, and after-sales service.
Power generation systems require reliable valve performance for isolation, pressure resistance, flow regulation, and backflow prevention. A properly selected power station valve helps protect boilers, turbines, pumps, pipelines, and auxiliary systems. That protection reduces risks linked to unstable flow, reverse pressure, leakage, and unplanned shutdowns.
SDF power generation valves are used in steam systems, boiler feedwater systems, condensate systems, high-pressure pipelines, turbine bypass systems, drain lines, and plant utility systems. Depending on service conditions, we can support the selection of gate valves, globe valves, check valves, control valves, ball valves, and butterfly valves.
Steam and boiler systems often involve high pressure, high temperature, rapid load changes, and strict sealing requirements. Main steam, reheated steam, boiler feedwater, and high-pressure steam service require robust structures. Suitable materials must also match the medium and working conditions.

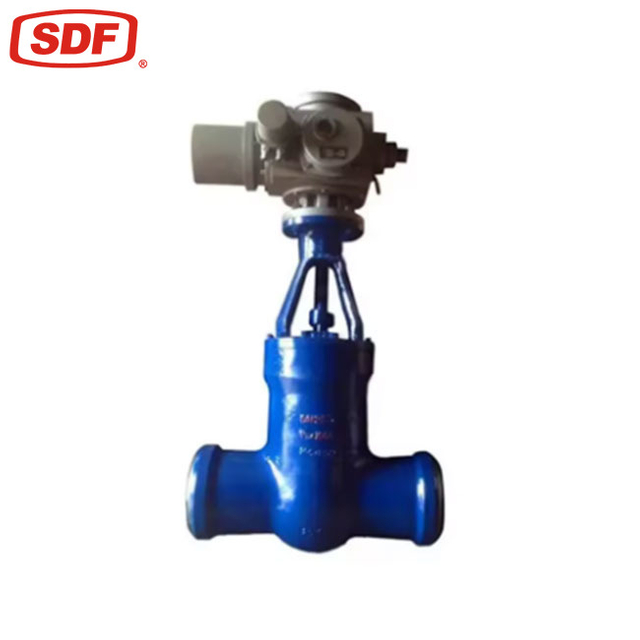

For these applications, SDF supplies main steam gate valves, globe valves, check valves, and pressure seal valves. These power station valves are used where dependable shutoff, stable flow direction, and resistance to demanding steam conditions are required.
Turbine-related lines, condensate handling systems, drain systems, and auxiliary plant equipment require valves that support stable operation. Selection depends on whether the line requires shutoff, throttling, non-return protection, or automatic regulation.
Control valves, check valves, and isolation valves help manage flow, prevent reverse flow, and maintain operating stability. SDF can review operating data and recommend suitable valve types, actuation methods, and materials for these power plant services.
SDF offers a broad range of power station valves for procurement teams, engineering contractors, EPC projects, and plant maintenance teams. Our product range supports steam pipelines, boiler feedwater, condensate return, auxiliary utilities, and general power plant process lines.
Different valve designs serve different functions. Gate valves are typically used for isolation, globe valves for shutoff and throttling, check valves for non-return protection, and control valves for automated regulation. Ball valves and butterfly valves may be selected for auxiliary systems when the medium, pressure, temperature, and operating requirements are suitable.
Power station gate valves are mainly used as isolation valves in high-pressure steam, water, and power plant pipeline systems. They are suitable where the valve is normally fully open or fully closed. They are also selected when low flow resistance is required.
SDF supplies gate valve types relevant to power industry use. Options include API 600 gate valves, pressure seal gate valves, forged alloy steel gate valves, knife gate valves where applicable, and main steam gate valves. For demanding steam service, body material, pressure class, sealing design, and connection standard are especially important.
Power station globe valves are used for shutoff, throttling, and flow regulation in steam lines, water systems, and process pipelines. Their design supports more controlled flow adjustment than standard isolation valves.
SDF offers bellows seal globe valves and Y type globe valves. Bellows seal designs can be considered where leakage control is important. Y type globe valves may be selected for flow efficiency and pressure drop considerations in suitable conditions.
Power station check valves prevent reverse flow in boiler feedwater systems, condensate lines, pump discharge pipelines, and high-pressure circuits. They help protect pumps, boilers, turbines, and connected equipment from backflow-related damage or operating instability.
Available check valve types include swing check valves, pressure seal swing check valves, dual plate wafer check valves, and lift check valves. The correct configuration depends on pipeline layout, medium properties, flow direction, pressure rating, and installation position.
Power station control valves regulate pressure, flow, and temperature in power generation systems. They are used where automated control is needed to maintain process stability. They also help improve system response and coordinate with plant control systems.
SDF supplies electric control valves, pneumatic control valves, and pneumatic diaphragm control valves for industrial applications. Selection should consider the control function, medium, differential pressure, operating temperature, actuator type, and automation requirements.
Ball valves and butterfly valves can be used in auxiliary systems, cooling water lines, gas service, plant utilities, and general industrial pipelines. They are often selected for convenient operation, compact installation, and efficient shutoff in suitable systems.
SDF product coverage includes trunnion mounted ball valves, fully welded ball valves, eccentric semi-ball valves, wafer butterfly valves, lug butterfly valves, and PTFE lined butterfly or control valves. Final selection should be based on pressure, temperature, medium compatibility, pipeline size, sealing requirements, and actuation needs.
Technical qualification is a key step when sourcing a high-pressure Power Station Valve. Engineers and buyers should confirm valve type, pressure rating, temperature range, size, material, end connection, and operating method before inquiry.
SDF’s technical scope covers pressure ratings from 1.6 MPa to 80.0 MPa, Class 150–4500. It also covers nominal sizes from DN10 to DN4000 and operating temperatures from -196°C to 1100°C. Final specifications depend on the medium, working pressure, design temperature, connection standard, leakage requirements, and project requirements.
| Specification Item | Available Scope or Options | Buyer Notes |
|---|---|---|
| Valve types | Gate valves, globe valves, check valves, ball valves, butterfly valves, control valves, cryogenic valves, power station valves | Select according to function: isolation, throttling, control, or non-return |
| Pressure rating | 1.6 MPa to 80.0 MPa; Class 150–4500 | Match pressure class to design pressure, working pressure, and pipeline standard |
| Nominal size | DN10 to DN4000 | Confirm DN or NPS size and connection requirements during inquiry |
| Operating temperature | -196°C to 1100°C | Material and sealing selection must match cryogenic, normal, or ultra-high-temperature service |
| Body materials | Carbon steel, stainless steel, forged steel, alloy steel, ductile iron | Choose according to pressure, temperature, corrosion, erosion, and medium properties |
| Actuation options | Manual, gear operated, electric or motorized, pneumatic | Consider operating frequency, automation level, torque, and site conditions |
| Typical applications | Steam pipelines, boiler systems, feedwater systems, condensate systems, turbine systems, auxiliary power plant systems | Provide system data so SDF can recommend a suitable valve configuration |
Material selection for power plant valves must account for pressure, temperature, corrosion, erosion, steam conditions, and pipeline standards. SDF supplies valve products using carbon steel, stainless steel, forged steel, alloy steel, and ductile iron. Material choice depends on the operating environment and valve application.
High-temperature steam service and high-pressure water service often require careful review of body material, trim material, sealing structure, pressure class, and connection type. Where leakage control, thermal cycling, or severe service conditions are important, our team can support engineering evaluation. We base recommendations on the customer’s operating data and technical specifications.
Operation methods include manual operation, gear operation, electric or motorized actuation, and pneumatic actuation. Manual valves are commonly used for standard isolation. Gear operation supports larger sizes or higher torque requirements. Electric or pneumatic actuators are selected for remote control, automation, or frequent operation.
Selecting the right Power Station Valve begins with understanding its function in the system. Gate valves are commonly selected for isolation, globe valves for throttling and shutoff, check valves for backflow prevention, and control valves for process regulation. Ball valves and butterfly valves may suit auxiliary lines when pressure, temperature, and medium conditions allow.
Buyers should provide clear operating data so SDF can recommend the proper valve type, material, pressure class, size, sealing structure, connection standard, and actuation method. Complete technical information helps us prepare a more accurate selection and quotation.
| Selection Factor | Why It Matters | Typical Information to Provide |
|---|---|---|
| Medium | Determines material compatibility and sealing requirements | Steam, water, gas, oil, chemical fluid, condensate, feedwater |
| Pressure | Defines pressure rating and valve structure | Design pressure, working pressure, pressure class |
| Temperature | Affects body material, trim, sealing design, and service life | Design temperature and operating temperature |
| Valve function | Determines the correct valve category | Isolation, throttling, control, non-return |
| Pipeline size and connection | Ensures correct installation compatibility | DN or NPS, flange standard, welded end, other connection requirement |
| Operation method | Matches site operation and automation needs | Manual, gear operated, electric, pneumatic |
For faster selection, include the following details in your inquiry:
SDF has been engaged in the valve industry since 1966. We focus on high-temperature and high-pressure industrial valve applications, with particular strength in power industry service. As a modern enterprise, we integrate R&D, manufacturing, testing, and after-sales service. We support customers from product selection to installation guidance and long-term service support.
The company offers a diversified portfolio with over 2,000 valve models. Our range covers gate valves, globe valves, check valves, ball valves, butterfly valves, control valves, cryogenic valves, and power station valves. These products serve power generation, oil and gas, petrochemicals, chemical processing, metallurgy, nuclear energy, pharmaceuticals, renewable energy, natural gas, and marine or shipbuilding applications.
Power generation projects often require valves matched to specific process parameters, pressure classes, temperature ranges, material requirements, connection standards, and actuation methods. Standard catalog selection may not be enough for high-pressure steam systems, boiler lines, turbine services, or critical industrial environments.
SDF provides custom design and engineering support for demanding industrial valve applications. We can assist with engineering review, valve configuration, manufacturing, testing, documentation, installation guidance, and global after-sales service. Buyers can send drawings, project specifications, operating data, or valve lists for technical review and quotation support.
If you are sourcing high-pressure power station valves for a power plant, boiler system, steam pipeline, turbine system, or auxiliary equipment, contact SDF with your operating conditions. As a Power Station Valve manufacturer, we can recommend suitable valve types, pressure classes, materials, sizes, and actuation methods for your application.
To receive a more accurate quotation, please provide the valve type, quantity, size or DN/NPS, pressure rating or class, operating temperature, medium, material requirement, end connection, actuation method, applicable standard, and project location. Our technical team supports procurement, engineering, and maintenance teams with practical selection guidance for critical service valves.
A Power Station Valve is an industrial valve used in power generation systems for isolation, throttling, flow control, pressure regulation, or backflow prevention. It is commonly used in steam, boiler, feedwater, condensate, and auxiliary systems.
Common power plant valves include gate valves, globe valves, check valves, control valves, ball valves, butterfly valves, high-pressure steam valves, and pressure seal valves. Our team recommends the correct type based on the medium, pressure, temperature, and required function.
Yes. SDF focuses on high-temperature and high-pressure valve applications. Our technical range covers 1.6 MPa to 80.0 MPa, Class 150–4500, and operating temperatures from -196°C to 1100°C.
Please provide the medium, pressure, temperature, valve size, connection standard, material requirement, valve function, and actuation method. Drawings or technical specifications help our engineers recommend a suitable valve solution.
Yes. SDF provides custom design and engineering support for complex industrial applications. We support product selection, manufacturing, testing, installation guidance, and after-sales service.
