An industrial check valve, also called a non-return valve or backflow prevention valve, allows media to flow in one direction. It helps stop reverse flow when pressure conditions change. This function protects pumps, compressors, boilers, pipelines, and process equipment from water hammer risk, equipment damage, contamination, and operating instability.
SDF manufactures check valves for industrial flow-control environments where pressure, temperature, media characteristics, installation position, and sealing reliability must be reviewed together. Our products are used in power generation, oil and gas, chemical processing, petrochemicals, metallurgy, nuclear energy, natural gas, pharmaceutical production, renewable energy projects, and marine and shipbuilding applications.
SDF supplies multiple industrial check valve types for different flow conditions, installation spaces, pressure classes, and project standards. Selection can be based on valve type, nominal size, pressure rating, body material, connection type, application, and applicable standards. These may include API, ASME, ANSI, DIN, GB, CE, or project-specific requirements.
Available specifications depend on the selected model and project conditions. Across the SDF industrial valve portfolio, available ranges include pressure ratings from 1.6 MPa to 80.0 MPa, Class 150–4500, nominal sizes from DN10 to DN4000, and temperature capability from -196°C to 1100°C. The final configuration should be confirmed according to the operating medium, temperature, pressure, and installation requirements.
| Check Valve Type | Typical Application | Common Selection Factors | Connection Options |
|---|---|---|---|
| Swing Check Valve | General industrial pipelines, pump discharge systems, water, oil, gas, petrochemical, and power plant service | Flow resistance, sealing requirements, pressure class, material, installation direction | Flanged, welded, or project-specified connection |
| Pressure Seal Swing Check Valve | High-pressure and high-temperature systems, especially power station pipelines | Pressure seal structure, high-pressure sealing reliability, temperature, medium, standards | Welded, flanged, or project-specified connection |
| Dual Plate Wafer Check Valve | Compact industrial piping systems where space and weight reduction are important | Wafer installation, pipeline space, flow rate, material, pressure rating | Wafer type or project-specified installation |
| Lift Check Valve | Steam, water, oil, gas, and process media applications requiring guided disc movement | Installation orientation, disc guidance, sealing performance, pressure and temperature | Flanged, welded, or project-specified connection |

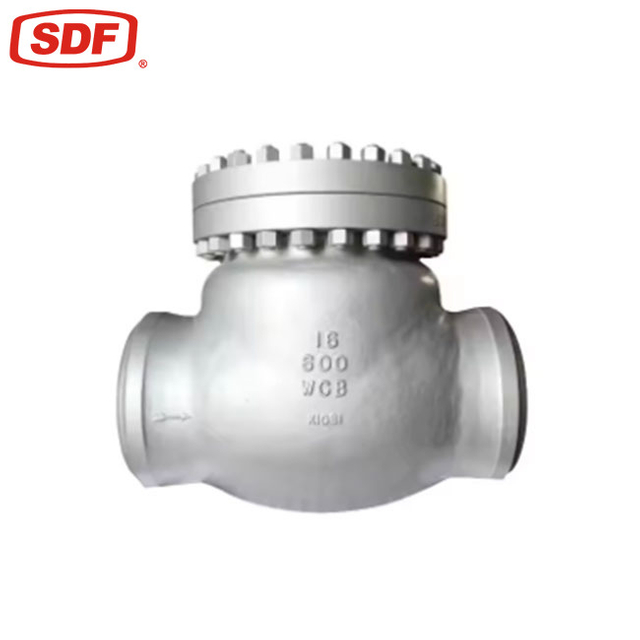

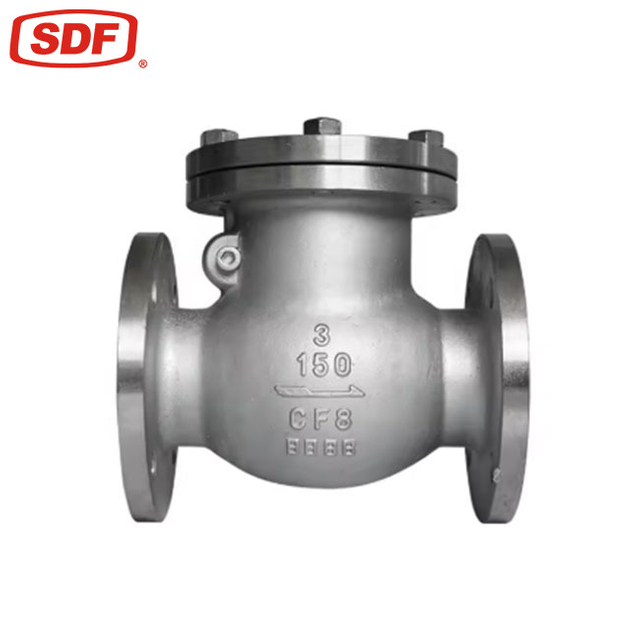

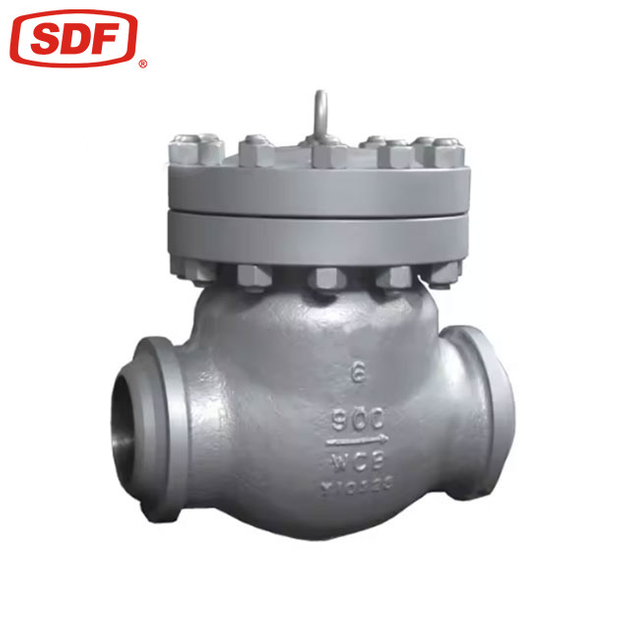

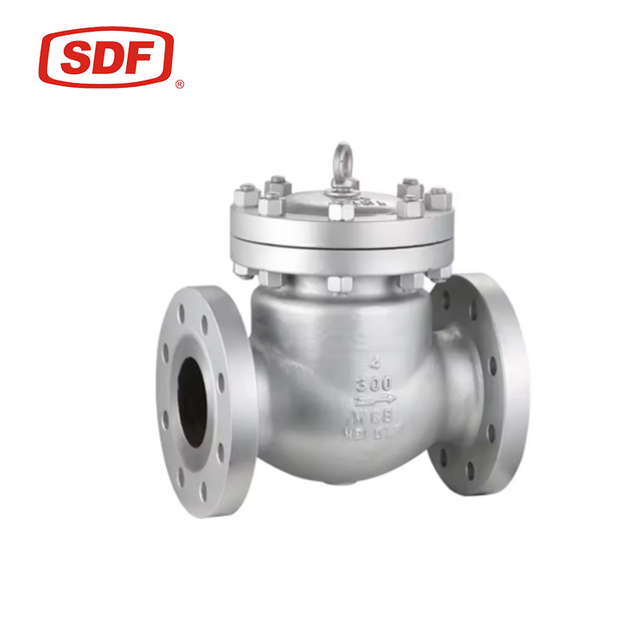

A swing check valve helps prevent reverse flow in pipelines while maintaining relatively low flow resistance. The disc swings open under forward flow and closes when reverse flow occurs. This design is suitable for many power plant, petrochemical, water system, oil and gas, and general industrial applications.
SDF swing check valves can be selected according to medium, pressure rating, temperature, material, sealing requirements, and installation conditions. For project supply, buyers may specify carbon steel, stainless steel, alloy steel, or other required materials. Final material selection should reflect corrosion conditions and the service environment.
A pressure seal swing check valve is commonly selected for high-pressure and high-temperature applications where sealing reliability is critical. The pressure seal structure is especially relevant in power station systems, steam lines, feedwater pipelines, and other demanding services.
SDF has a stated specialization in high-temperature and high-pressure power station valves. This makes pressure seal valve engineering an important part of our industrial capability. For critical service, our team can review pressure class, temperature, media conditions, installation direction, and project standards before recommending a suitable configuration.

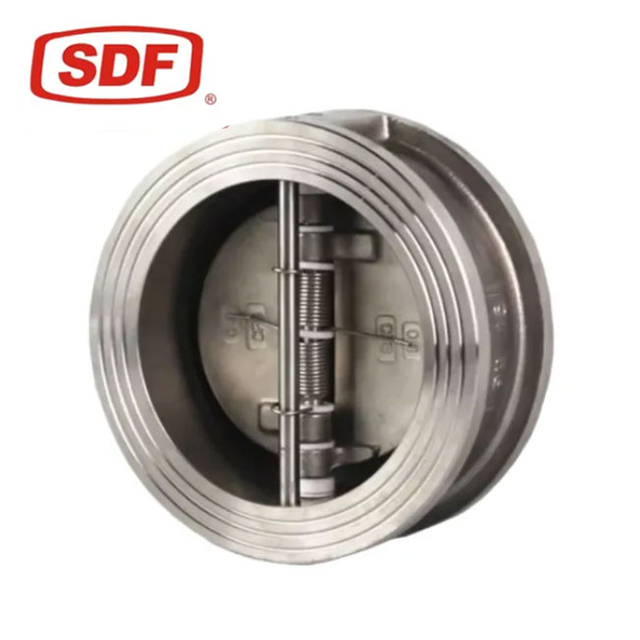

A dual plate wafer check valve is a compact non-return design for pipelines where installation space and weight are important. Compared with many full-body valve designs, the wafer structure can support more compact piping layouts. It still provides reverse-flow protection for industrial systems.
SDF dual plate wafer check valves are suitable for projects requiring project-based material and pressure selection. They are often considered for industrial piping, process systems, utility lines, and applications where compact design and reliable protection are both required.
A lift check valve uses guided disc movement to open under forward flow and close when reverse flow occurs. This design can be suitable for steam, water, oil, gas, and process media. Suitability depends on valve structure, material selection, installation orientation, and operating conditions.
Before selecting this type, buyers should confirm flow direction, pipeline orientation, pressure rating, temperature, medium, and applicable standards. SDF can support technical selection for high-pressure, high-temperature, corrosive, or critical industrial applications.
SDF was founded in 1966 and has decades of experience as an industrial valve manufacturer and supplier. We integrate R&D, manufacturing, testing, and after-sales service. This allows us to support industrial valve projects from product selection through supply and service support.
For check valve buyers, SDF offers particular value in high-temperature and high-pressure applications, especially power station valve projects. The company also provides a broad valve portfolio with more than 2,000 models. These include gate valves, globe valves, check valves, ball valves, butterfly valves, control valves, and cryogenic valves.
SDF’s overall industrial valve portfolio covers broad pressure, size, and temperature requirements. Available ranges include pressure ratings from 1.6 MPa to 80.0 MPa, Class 150–4500, nominal sizes from DN10 to DN4000, and temperatures from -196°C to 1100°C. Specific model capability should always be confirmed according to the project datasheet and operating environment.
Check valves are used wherever reverse flow may damage equipment, interrupt process stability, or create safety risks. In industrial projects, they are not simple plumbing components. They are engineered flow-control valves selected according to pressure class, temperature, medium, pipeline layout, and operational duty.
SDF products support power generation, oil and gas, chemical processing, petrochemical plants, metallurgy, nuclear energy, natural gas facilities, pharmaceutical production, renewable energy projects, and marine systems. Different applications may require different designs, materials, connection types, and inspection documentation.
Power generation systems require dependable reverse-flow protection in steam, feedwater, condensate, boiler auxiliary, and balance-of-plant pipelines. In these environments, pressure, temperature, vibration, start-stop conditions, and system safety all influence valve selection.
Pressure seal swing designs and other high-pressure options are often relevant for power station service. SDF’s specialization in high-temperature and high-pressure power station valves allows our team to support technical review for demanding power plant applications.
Oil, gas, chemical, and petrochemical projects use non-return valves in process pipelines, transfer lines, pump discharge systems, utility lines, and media handling systems. These applications may involve flammable, corrosive, high-temperature, or high-pressure media. Material and sealing selection are therefore especially important.
For these industries, selection should consider carbon steel, stainless steel, alloy steel, or project-specified materials. The choice should reflect medium composition, corrosion allowance, pressure rating, and applicable standards. SDF can review project specifications and recommend a suitable industrial design.
Metallurgy, nuclear energy, marine, pharmaceutical, renewable energy, and natural gas systems may require check valves for demanding environments. These projects often involve strict requirements for pressure class, temperature range, medium compatibility, installation space, and documentation.
Final valve selection should consider the complete operating condition, not only nominal size. Buyers are encouraged to provide standards, piping specifications, installation drawings, and media data. This helps SDF support accurate selection and manufacturing review.
Industrial check valve material selection should match the medium, corrosion conditions, operating temperature, pressure rating, and service life expectations. Common material choices may include carbon steel, stainless steel, alloy steel, and project-specified materials. Trim, disc, and seat materials should be selected based on sealing performance and media compatibility.
SDF’s wider valve portfolio supports pressure classes from 1.6 MPa to 80.0 MPa, Class 150–4500, sizes from DN10 to DN4000, and temperature conditions from -196°C to 1100°C. These ranges demonstrate broad industrial valve capability. Each model must still be confirmed according to its design, material, pressure class, and project conditions.
As claimed by the company, SDF holds ISO 9001/14001/45001 certifications. The company also claims China Special Equipment Manufacturing Licenses including A1, A2, and B, API 6D, API 607, and EU CE certifications. Buyers can provide required standards such as API, ASME, ANSI, DIN, GB, CE, or project-specific specifications for technical review.
| Specification Item | Information to Confirm | Why It Matters |
|---|---|---|
| Valve type | Swing, pressure seal swing, dual plate wafer, lift | Determines flow behavior, installation space, and operating suitability |
| Nominal size | DN or NPS requirement | Ensures pipeline compatibility and correct flow capacity |
| Pressure rating | MPa, Class rating, or project pressure class | Supports safe operation under design pressure |
| Temperature range | Operating and design temperature | Influences material, sealing structure, and valve design |
| Body and trim material | Carbon steel, stainless steel, alloy steel, or specified material | Matches corrosion, erosion, strength, and media requirements |
| Connection type | Flanged, welded, wafer, or special connection | Ensures installation compatibility with the piping system |
| Applicable standard | API, ASME, ANSI, DIN, GB, CE, or project specification | Supports procurement, inspection, and documentation compliance |
| Installation orientation | Horizontal, vertical, flow direction, and space limitations | Affects valve operation and suitability of the selected design |
Selecting the right check valve depends on flow conditions, operating pressure, temperature, medium, pipeline size, flow direction, installation orientation, connection type, leakage requirement, and applicable standards. A valve that works well in one system may not suit another. Flow velocity, pressure drop, installation space, and media properties can all affect performance.
For standard industrial service, buyers may compare swing, lift, and dual plate wafer designs according to application needs. For high-pressure, high-temperature, corrosive, or critical service applications, SDF recommends technical review before finalizing valve type, material, and pressure class.
Swing check valves are commonly used for general pipeline backflow prevention where relatively low flow resistance is desired. They are often suitable for larger pipelines and industrial systems with stable flow conditions.
Lift check valves are suitable where guided disc movement and reliable sealing are needed under appropriate flow and installation conditions. Dual plate wafer designs are compact options for projects where space, weight, and installation efficiency are important.
| Valve Type | Best Used When | Selection Notes |
|---|---|---|
| Swing Check Valve | General industrial pipelines need dependable reverse-flow protection | Confirm pressure class, installation position, and media conditions |
| Pressure Seal Swing Check Valve | High-pressure or high-temperature power station service is required | Review design pressure, design temperature, and applicable power plant standards |
| Dual Plate Wafer Check Valve | Compact installation and reduced weight are priorities | Confirm wafer connection compatibility and pipeline layout |
| Lift Check Valve | Guided disc movement and sealing performance are required | Confirm flow direction and horizontal or vertical installation suitability |
Accurate technical information helps SDF recommend the most suitable industrial check valve for your project. When sending an inquiry, please include as much of the following data as possible:
Drawings, piping specifications, or project datasheets are especially useful for high-pressure, high-temperature, or corrosive service applications.
SDF provides custom design and engineering support for complex industrial valve applications. For check valves, customization may involve pressure class, nominal size, material selection, sealing structure, connection type, operating temperature, inspection documentation, and project-specific standards.
With integrated R&D, manufacturing, testing, and after-sales service, SDF supports buyers from early technical selection through manufacturing review and installation guidance. This is valuable for power station, oil and gas, chemical, petrochemical, nuclear, marine, and other critical systems. In these applications, standard catalog selection may not fully address operating demands.
If your project requires a custom check valve for high-pressure, high-temperature, corrosive, or special media service, send your datasheet or technical requirements to SDF for review. Our team can help evaluate valve type, material, structure, and standard requirements before quotation.
Quality control is essential for industrial check valve supply, especially in critical backflow prevention systems. In these applications, failure can affect equipment safety and process reliability. SDF integrates manufacturing and testing capabilities to support industrial valve projects that require dependable performance and documentation.
Depending on project requirements and valve type, quality activities may include manufacturing inspection, pressure testing, sealing performance checks, material verification, and documentation support. SDF’s claimed ISO 9001/14001/45001 certifications, China Special Equipment Manufacturing Licenses, API 6D, API 607, and CE certifications are important trust signals for industrial buyers evaluating supplier capability.
Contact SDF for industrial check valve selection, customization, quotation, and technical support. As a Check Valve manufacturer and industrial valve supplier, Shanghai Power Plant Valve Factory Co., Ltd. supports global projects that require reliable backflow prevention valves for demanding pressure, temperature, and media conditions.
To request a quote, please provide valve type, nominal size, pressure rating, temperature, medium, material, connection type, quantity, required standards, and project location. You may also send drawings, datasheets, or piping specifications. Our team can then review the application more accurately.
SDF supplies industrial valve projects globally and provides after-sales support for critical industrial environments. Discuss your requirements with our team. We can help you select the right swing, pressure seal swing, dual plate wafer, lift, or custom non-return valve for your application.
A check valve allows flow in one direction and helps prevent reverse flow. Our customers commonly use these valves to protect pumps, compressors, pipelines, boilers, and process equipment from backflow damage.
For high-pressure applications, pressure seal swing check valves or other engineered high-pressure designs may be suitable. SDF recommends confirming pressure class, temperature, medium, flow conditions, and applicable project standards before final selection.
SDF’s check valve category can include swing check valves, pressure seal swing check valves, dual plate wafer check valves, and lift check valves. Availability and specifications should be confirmed according to project requirements.
Please provide the valve type, nominal size, pressure rating, temperature, medium, material, connection type, quantity, and required standards. Drawings or project datasheets help our team recommend a more accurate solution.
Yes. SDF offers custom design and engineering support for complex industrial applications. Customization may cover pressure rating, material, structure, connection, temperature range, and project-specific standards.
