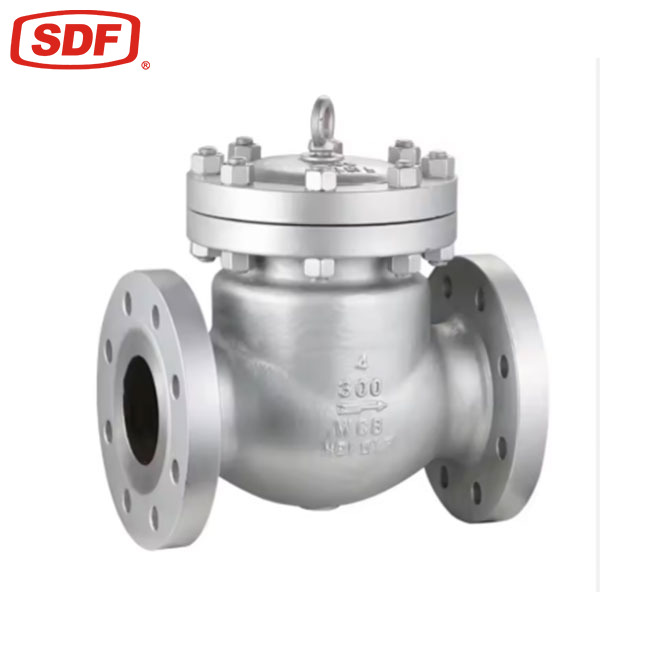

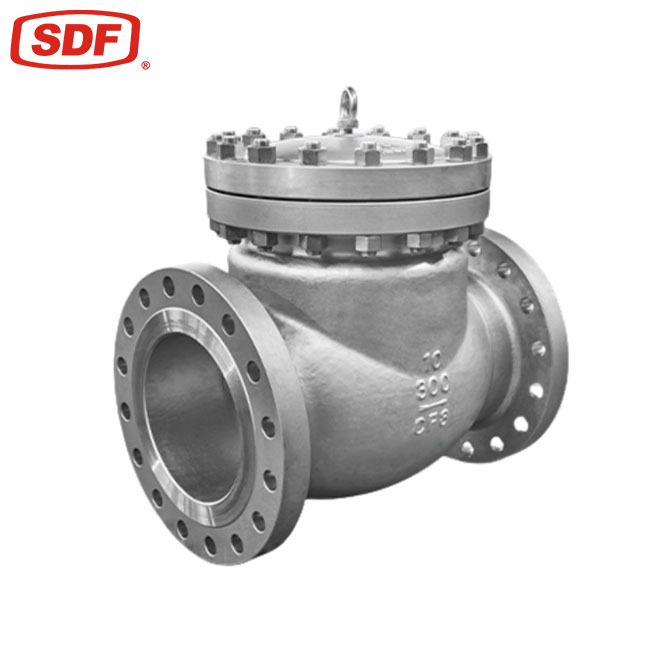

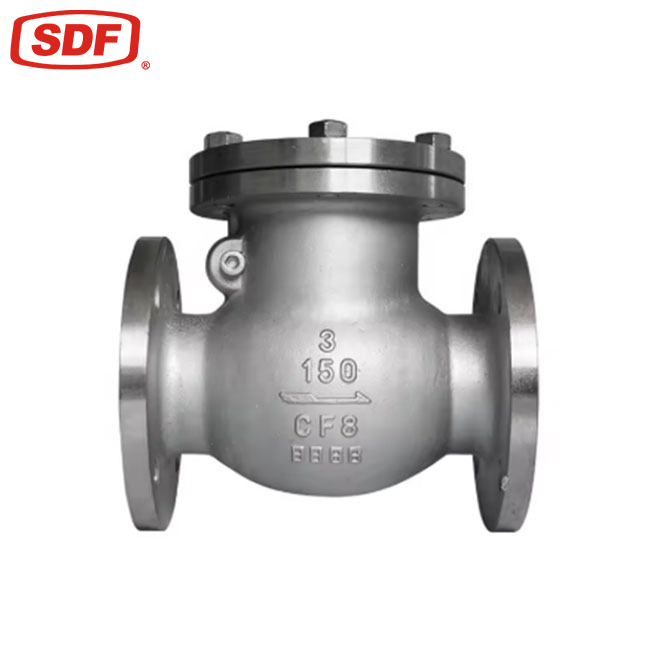

| The SDF High-Performance Stainless Steel Swing Check Valve is engineered to deliver exceptional reliability, uncompromising safety, and superior long-term performance in high-pressure and high-temperature pipeline systems. Designed to effectively prevent backflow and protect critical components like pumps, compressors, and pressure vessels from catastrophic water hammer or process reversals, this industrial-grade check valve features a robust, heavy-duty body construction cast from premium CF8/CF8M stainless steel. With a streamlined internal flow path, it minimizes turbulence and minimizes pressure drops across the valve, ensuring optimum hydrodynamic efficiency and steady flow control even in demanding fluid handling environments. Built to comply with strict international quality and design standards including API 594, API 6D, and ASME B16.34, the valve offers a versatile flanged body connection designed to ensure a tight, leak-proof seal under extreme thermal fluctuations and continuous operational vibrations. The self-aligning, heavy-duty disc is precision-machined to ensure a secure, uniform seating face that guarantees a reliable shut-off under low or backpressure conditions. For superior wear resistance and extended operating life, the internal seat rings and disc seating surfaces can be stellite-faced or precision-lapped to mitigate mechanical friction and erosive wear from corrosive or abrasive media. This swing check valve is highly responsive to media flow variations. It features a fully contained hinge pin mechanism that eliminates external leakage points, eliminating fugitive emissions in compliance with modern environmental standards. Its bolted bonnet configuration provides easy, unhindered access to internal components, ensuring fast, cost-effective in-line maintenance and inspection routines without disconnecting the valve body from the pipeline. Whether deployed in demanding petrochemical processing, power generation, water treatment, or marine piping networks, the SDF Swing Check Valve provides robust durability and stable operations under the most severe working conditions. Furthermore, the advanced metallurgical structure of the SDF series guarantees long-term resistance to crystallization and chemical degradation. Every single valve undergoes rigorous pressure boundary and seat integrity testing prior to dispatch, ensuring that it meets the exact drop-tight standards demanded by international engineering procurement corporations. The exterior finish is meticulously blasted and treated to withstand harsh outdoor environment exposures, maintaining structural integrity and clear operational identification markings over decades of service. By combining superior fluid dynamics with heavy-duty structural engineering, this product stands out as an indispensable asset for maximizing system uptime and protecting high-value industrial capital equipment. | |||||||||
SDF
Premium Material Integrity: Cast from high-grade CF8 / CF8M stainless steel, offering outstanding resistance to uniform corrosion, localized pitting, and oxidation in highly aggressive chemical environments.
Advanced Flow Dynamics: Optimized full-port internal cavity configuration dramatically lowers flow resistance, resulting in a minimal pressure coefficient and enhanced energy efficiency for the entire pipeline system.
Zero-Leakage Sealing: Precision-lapped metal-to-metal or resilient soft-sealing options ensure uniform contact pressure across the seating face, providing excellent tight shut-off capabilities under fluctuating pressures.
Robust Non-Return Response: The perfectly balanced, gravity-assisted swing mechanism responds smoothly to slight pressure differentials, closing swiftly to prevent destructive reverse flow and water hammer effects.
Low Maintenance Design: Features a bolted bonnet design that enables streamlined inspection, effortless internal component replacement, and minimal downtime during scheduled operational turnarounds.
High Temperature & High Pressure Applications: Superheated steam lines, power generation utilities, and thermal oil distribution networks.
Corrosive Chemical Processing: Acidic and alkaline media transport, fertilizer production, chemical refining, and pharmaceutical processing.
Oil, Gas & Petrochemical Industries: Crude oil transportation, natural gas pipelines, hydrocarbons, and refinery processes where fugitive emissions must be strictly controlled.
Water & Wastewater Treatment: Industrial water desalination, heavy-duty municipal pumping stations, and high-pressure cooling water systems.
Parameter / Specification | Standard Configuration Details |
Design & Manufacturing Standard | API 6D / API 594 / ASME B16.34 |
Face-to-Face Dimensions | ASME B16.10 |
Flange Connection Dimensions | ASME B16.5 |
Inspection & Pressure Testing | API 598 |
Nominal Diameter Range | DN50 to DN600 (2" to 24") |
Nominal Pressure Rating | Class 150, Class 300, Class 600 / PN16 to PN100 |
Body & Bonnet Material | ASTM A351 CF8 (304), CF8M (316), CF3, CF3M |
Disc & Hinge Material | ASTM A351 CF8 / CF8M / Precision Lapped |
Seat Ring Material | Integral Stainless Steel / Stellite Hardfacing Option |
Applicable Mediums | Water, Steam, Crude Oil, Natural Gas, Nitric Acid, Acetic Acid |
Working Temperature Range | -196°C to +538°C (Depending on material configuration) |
Important Operational Note: Swing check valves should typically be installed in horizontal pipelines. They may also be installed in vertical pipelines, provided that the media flow is moving strictly in an upward direction to allow gravity to assist the disc in closing properly.
Pressure & Temperature Rating Matching: Always verify that the maximum pipeline operational pressure and temperature fall comfortably within the ASME B16.34 pressure-temperature rating curve for the selected body material (CF8 or CF8M).
Media Compatibility Selection: For general water, steam, and light oil applications, standard CF8 (SS304) is highly recommended. For highly corrosive environments containing chlorides, acids, or marine elements, specify CF8M (SS316) or low-carbon versions (CF3M) to mitigate intergranular corrosion.
Flow Velocity & Sizing Considerations: Ensure that the normal operating flow velocity is sufficient to lift the swing disc fully open into the bonnet cavity. Operating a swing check valve in a low-velocity line can cause disc fluttering, which leads to premature wear of the hinge pin and seat chatter.
Pre-Installation Inspection: Prior to bolt tightening, clean the pipeline internally to eliminate welding slag, debris, and scale. Verify that the flow arrow cast on the valve body perfectly aligns with the actual media flow direction in the system.
