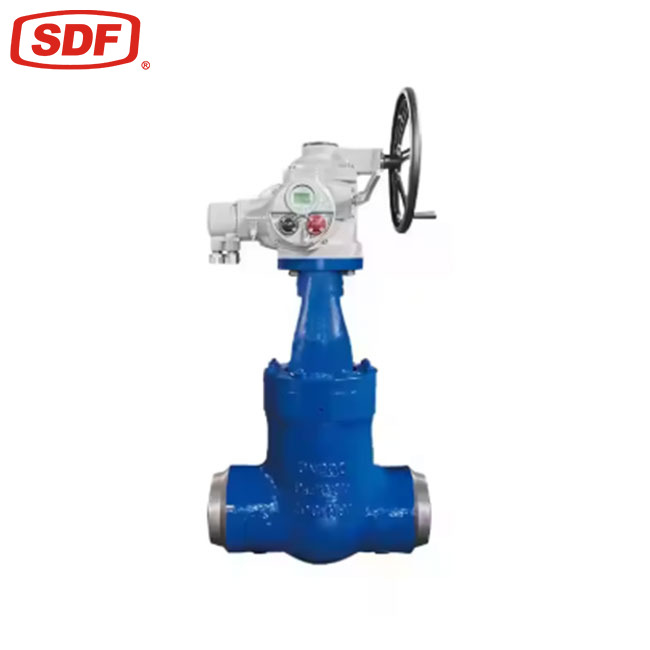

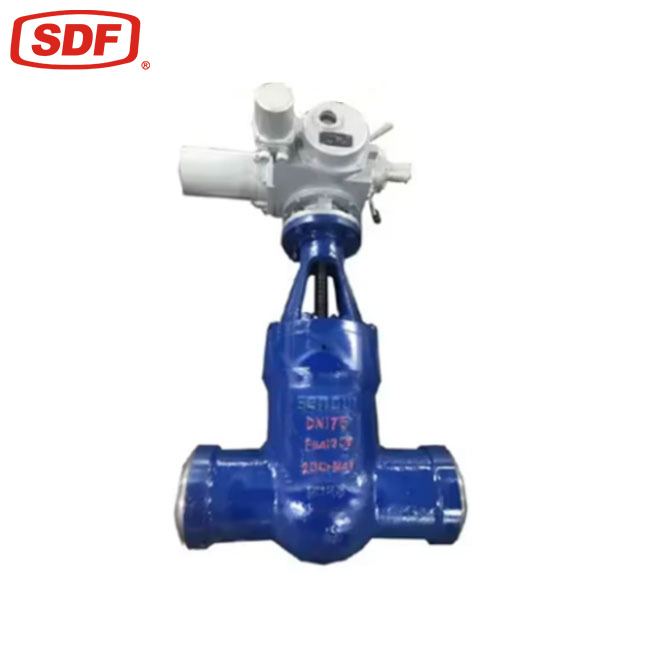

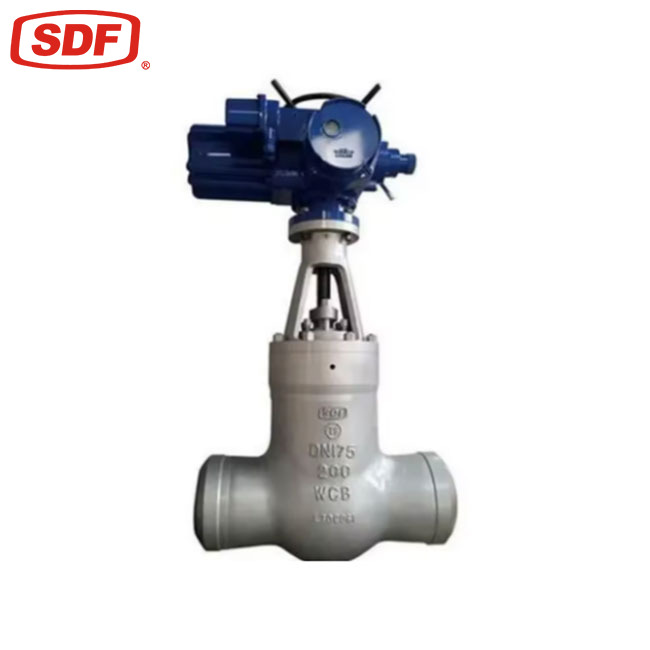

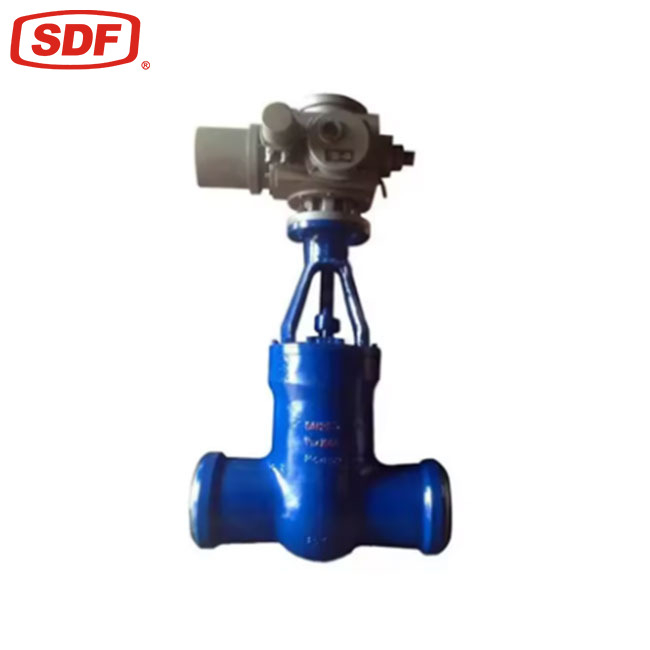

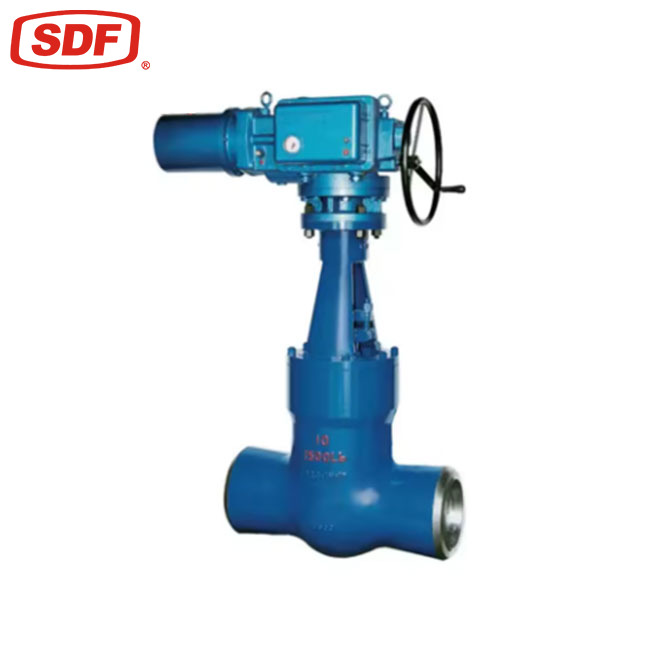

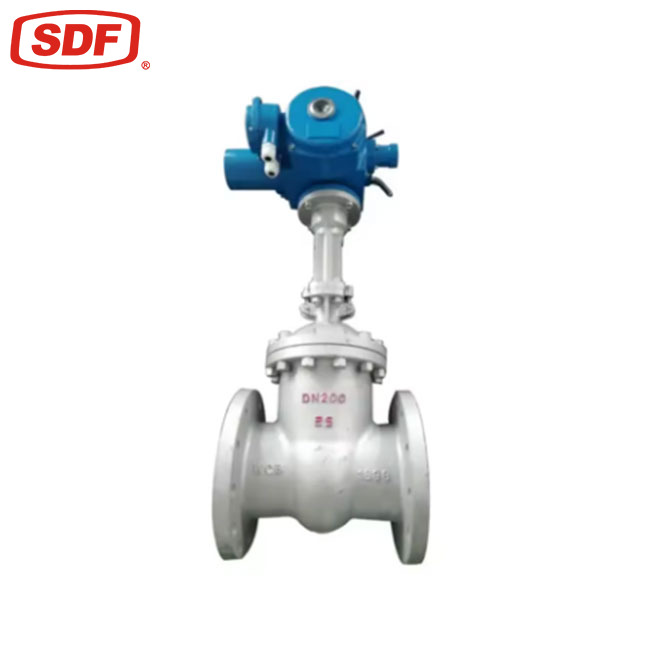

Main Steam Gate Valve

1. Product Introduction & Overview

The SDF Hygienic Sanitary Ball Valve For High Purity Use represents a premium fluid control solution specifically engineered for sterile, high-purity, and contamination-sensitive process loops. In standard industrial ball valves, small gaps and empty spaces naturally exist between the rotating spherical ball and the outer body casting. When processing biological, dairy, or chemical fluids, these internal cavities act as "dead zones" where stagnant fluid can easily settle and accumulate. Over time, this trapped medium spoils, promotes rapid bacterial colonization, and forms sticky biofilms that cause severe cross-contamination between product batches.

The valve assembly features a three-piece bolt-on body design that provides superior structural rigidity and allows for easy maintenance directly on the line. For seamless integration into modern automated plant layouts, the valve is equipped with a rugged, anodized aluminum pneumatic rack-and-pinion rotary actuator. Driven by compressed air via integrated control ports, this top-mounted actuator delivers rapid, high-torque quarter-turn ($90^\circ$) opening and closing actions. The matching stem utilizes a live-loaded, self-adjusting chevron packing arrangement to maintain an absolute exterior seal against volatile media or clean steam. Whether configured with quick-release Tri-Clamp ends, orbital butt-weld ends, or clean sanitary threads, the SDF Hygienic Ball Valve stands as a dependable, highly secure flow control node for processing plants committed to the highest product purity standards.

2. Core Engineering Advantages

• Zero-Crevice Cavity-Filled Seats: Full-encapsulation food-grade PTFE seats completely isolate the body cavity, leaving no dead zones for bacteria to grow or media residues to accumulate.

• Ultra-Smooth Mirror Finish : Electropolished internal pathways minimize product adhesion, drop flow friction coefficients, and ensure maximum cleaning efficiency during washdown cycles.

• Full CIP/SIP Sterilization Compliance: Built to easily handle continuous exposure to caustic chemical detergents and superheated steam sterilization cycles up to $+150^\circ\text{C}$.

• Pre-Engineered Automation Interface: Comes integrated with a high-speed pneumatic rotary actuator, allowing for precise automated remote control within complex distributed process networks.

3. Universal Technical Specifications Matrix

4. Strategic Applications & Working Conditions

The SDF Hygienic Sanitary Ball Valve is specifically optimized for high-purity processing loops where even trace contamination can ruin a production batch:

• Biopharmaceutical and Vaccine Fluid Loops: Handles the transfer of sterile culture media, purified water for injection (WFI), cellular suspensions, and blood plasma fractions.

• Food, Beverage, and Dairy Processing: Manages clean lines for milk, cream, liquid cheeses, fruit juices, purees, and soft drink concentrates.

• Brewery and Winery Cellar Operations: Controls yeast propagation lines, fermentation tank isolation, wort filtration loops, and final automated bottling lines.

• Fine Chemical and Cosmetics Production: Safely handles high-purity skin care creams, alcohol-based lotions, liquid soaps, and volatile organic fragrance oils.

5. Technical Selection & Field Installation Advice

1. Thermal Expansion and Seat Adjustment

During initial Steam-in-Place (SIP) thermal sterilization cycles, the internal PTFE cavity-filled seats will naturally experience localized thermal expansion. This expansion can slightly increase the torque required to operate the valve.

Engineering Tip: When selecting a matching pneumatic or electric actuator, always include a safety torque factor of at least 30% to 40% above the valve's baseline ambient torque to prevent the actuator from stalling during high-temperature cycles.

2. Matching End Connections to Cleaning Protocols

• Tri-Clamp Connections: Choose quick-release Tri-Clamp ends if your system requires frequent manual teardowns, visual inspections, or mechanical brush cleaning.

• Orbital Butt-Weld Connections: If the valve is going into a fully automated biopharmaceutical loop that relies entirely on automated CIP/SIP cycles, select extended orbital butt-weld ends. Welding the valve directly into the pipeline eliminates the gaskets and potential leak paths associated with mechanical clamps.

3. Drainage and Installation Orientation

To ensure complete system drainage and prevent liquid pooling during CIP cycles, avoid installing the sanitary ball valve with the stem pointing straight up or down in a horizontal pipeline. Instead, install the valve at an angle of $15^\circ$ to $30^\circ$ off the horizontal plane. This oblique rotation aligns the lower curve of the ball port with the bottom of the piping, allowing all residual fluids to drain out completely by gravity when the valve is opened.

4. Gasket Elastomer Compatibility

When connecting flanged or clamped ends, ensure the selected connecting gaskets (such as EPDM, Silicone, or Viton) match both your product medium and your CIP cleaning agents. For example, using standard silicone seals on lines that undergo aggressive washdowns with hot nitric acid or caustic soda will cause the gaskets to rapidly degrade, contaminating your high-purity product stream with elastomer particles.

Features & Advantages

• High temperature and high pressure resistance performance

The steam parameters of the main steam system are extremely high (for example, the steam Pressure of the subcritical unit is about 16MPa, and the temperature is 540 ℃; Pressure of supercritical unit ≥ 22.1MPa, temperature ≥ 566 ℃), so the valve material must have excellent high temperature strength, oxidation resistance and creep resistance. The valve body, ram and other parts must undergo strict heat treatment (such as normalizing+tempering) to stabilize performance.

• Reliable sealing performance

The steam medium has strong permeability and the material is prone to deformation at high temperatures. The sealing surface of the gate valve needs to be precision machined and hardened. The wedge-shaped gate design can automatically compensate for the sealing gap through thermal expansion, ensuring no internal leakage (when cut off) or external leakage (at the packing) during the opening and closing process.

• Anti erosion and fatigue resistance

The main steam flow rate is high (usually 10-50m/s), and the valve passage is susceptible to steam erosion, especially at the edge of the gate and the inlet of the valve seat. It is necessary to optimize the shape of the passage (such as the flow line) and select wear-resistant materials; At the same time, the valve is subject to frequent temperature and Pressure fluctuations when starting and stopping or load changes, so it needs to have good fatigue resistance to avoid component cracking.

• Operational stability

When the gate valve is opened and closed, the gate plate and the valve seat are in face contact. When the gate valve is opened, the thrust of steam Pressure on the gate plate must be overcome, so the drive device must have sufficient output torque; When closing, it is necessary to operate slowly to avoid damage to the sealing surface caused by steam impact. Electric actuators are usually equipped with overload protection and stroke limit functions to ensure safe operation.

Technical Specifications

 FAQ

1.When can I get a quotation?

We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.

2.Do you support customized valves?

Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.

3.What is the production lead time?

Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.

4.What standards do your valves comply with?

Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.

5.What pressure, size, and temperature ranges can you supply?

Pressure: Class 150-3500  Size: DN10-DN3000  Temperature: -196ºC to 610ºC

6.What certifications do you have?

We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.

7.What delivery and payment terms do you offer?

Delivery terms: EXW, FOB, CFR, CIF

Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.

8.Do you provide technical support and spare parts?

Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
