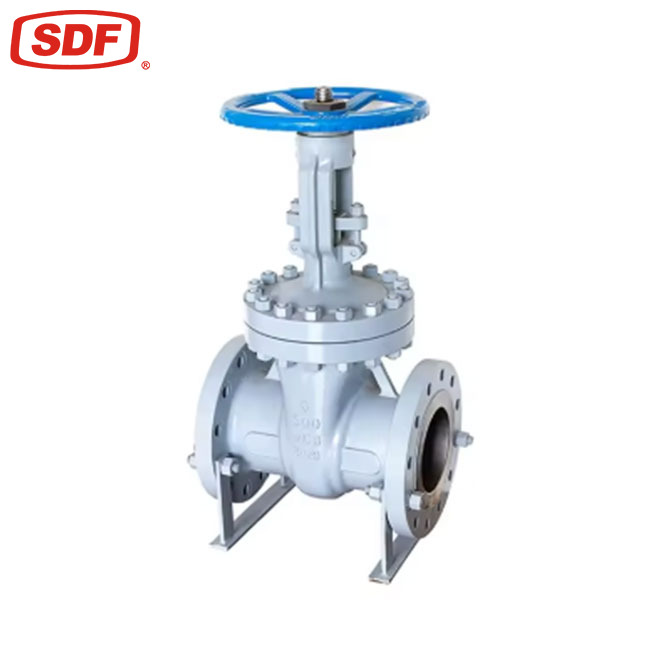

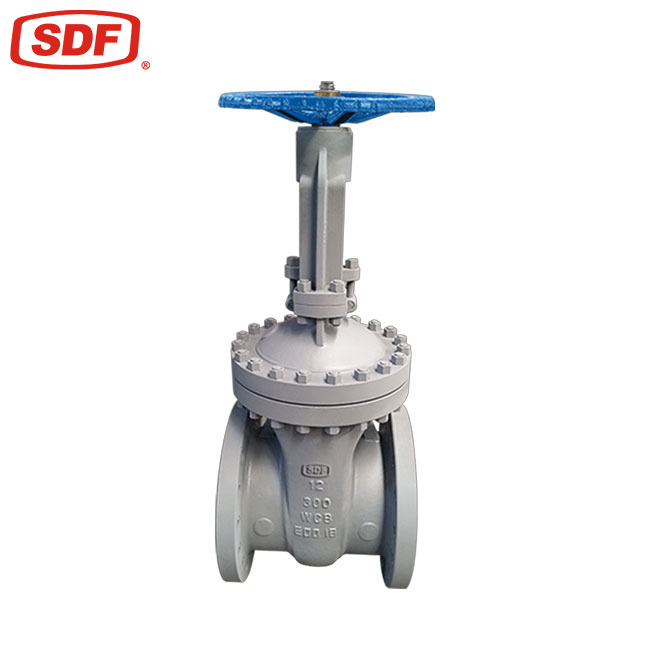

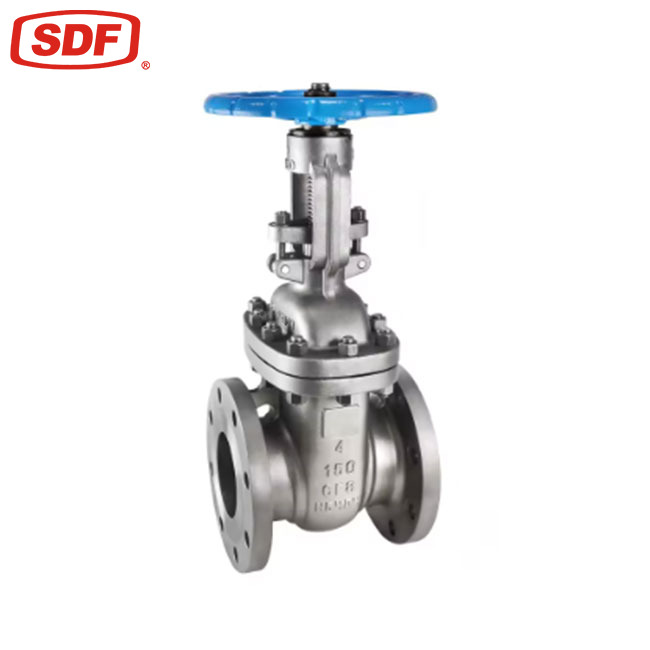

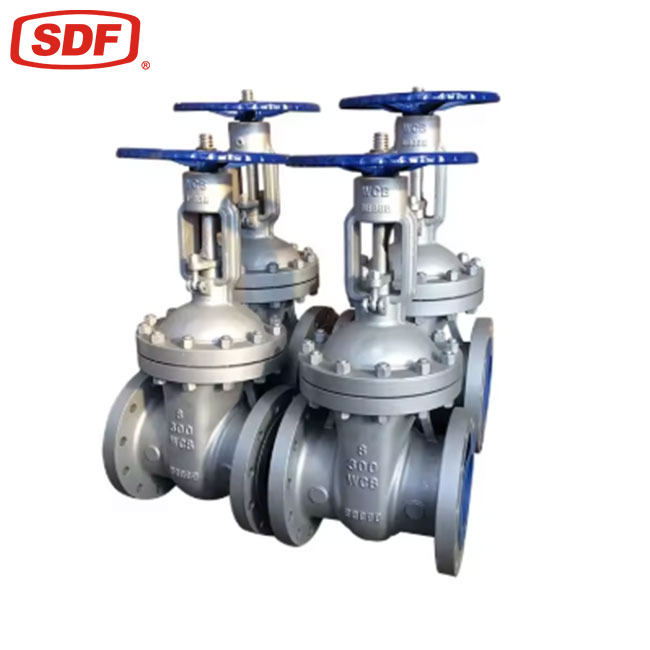

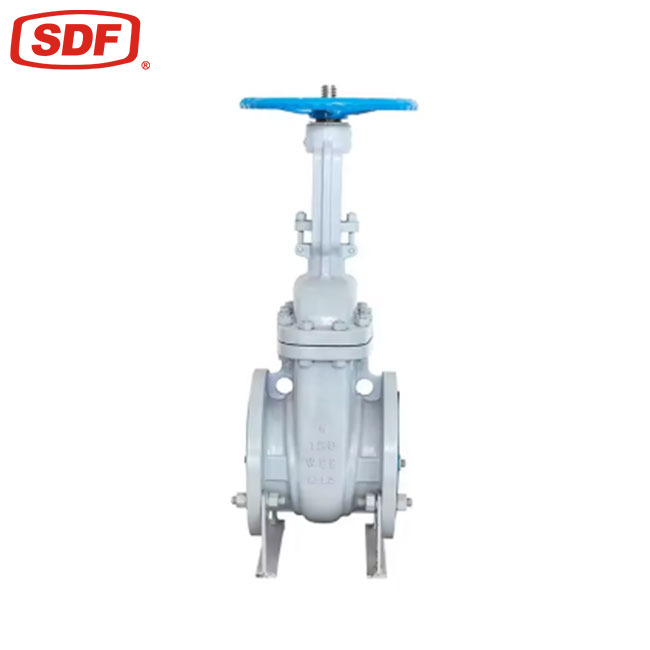

API 600 Gate Valve

Availability:

Quantity:



The API 600 gate valve is engineered for dependable isolation in demanding water, steam, oil, and gas services. Constructed from carbon steel or stainless steel (in accordance with ASTM/ASME material specifications), it features a bolted bonnet design, robust wedge gate, and metal-to-metal seating for superior sealing under high-pressure and high-temperature conditions. Available in sizes from NPS 2" to 24" and pressure classes from Class 150 to Class 600, this valve complies with API 600 and ASME B16.34 standards, and is rated for service temperatures up to 425°C. Ideal for power generation, petrochemical refineries, and critical industrial pipeline systems.The API 600 Gate Valve is engineered for dependable fluid isolation in highly demanding, high-pressure, and high-temperature industrial environments. Designed primarily for fully open or fully closed service, these heavy-duty wedge gate valves operate with minimal flow restriction and exceptionally low pressure drops. They serve as a critical safety and operational asset across heavy pipeline networks, ensuring positive shutoff under volatile operating conditions. Manufactured strictly in accordance with the American Petroleum Institute (API) 600 standard, these valves feature a robust bolted bonnet (BB) configuration, a rising stem with an outside screw and yoke (OS&Y) design, and a flexible or solid wedge mechanism. The OS&Y structure ensures that the stem threads remain isolated from the process fluid, mitigating thread corrosion, wear, and contamination, while simultaneously providing a clear visual indicator of the valve’s open or closed position.
Inquire Add to Basket

Product Description

1. Core Advantages & Technical Features

Uncompromising Leak-Tight Sealing: The precision-machined metal-to-metal seating, paired with a flexible wedge configuration, compensates for slight body distortions or thermal expansions, guaranteeing absolute bi-directional isolation.
Extended Service Life & Low Maintenance: Heavy-wall thickness designed per API 600 rules provides a generous corrosion allowance. The use of premium packing materials like flexible graphite ensures fugitive emission control and minimizes stem packing maintenance.
Fugitive Emissions Compliance: Engineered with advanced stem sealing technology to meet modern environmental criteria, effectively containing hazardous gases and volatile organic compounds (VOCs).
Backseat Design for Inline Packing Replacement: Incorporates an integral backseat arrangement allowing the stem packing to be safely isolated and repacked while the valve is in full open position under system pressure.
Smooth Operational Torque: High-precision machined stems paired with heavy-duty yoke sleeves reduce the torque required for manual handwheel actuation, allowing smooth operation even at elevated line pressures.

2. Applicable Working Conditions & Industrial Sectors

The API 600 gate valve is explicitly tailored for heavy industrial plants requiring reliable on-off control for clean, non-viscous liquids, gases, and steam. Due to its friction-resistant metal seats and robust wall construction, it thrives under high-velocity flow environments.

Primary Applications Include:

Power Generation: Main steam isolation, boiler feed-water networks, and high-temperature steam turbine bypass systems.
Petrochemical & Refining Plants: Crude oil distillation units, catalytic cracking facilities, hydrotreater isolation, and heavy hydrocarbon transfer lines.
Oil & Gas Transportation: High-pressure upstream wellhead manifolds, crude oil trunk pipelines, and natural gas distribution stations.
Chemical Processing: Process fluid isolation, utility steam lines, and chemical feedstock storage transfer networks.

3. Standard Technical Parameters

Parameter Item	Standard Specifications / Values
Design & Manufacturing Standard	API 600 / ISO 10434
Pressure-Temperature Rating	ASME B16.34
Face-to-Face Dimensions	ASME B16.10
Flange End Dimensions	ASME B16.5 (for $\le$ 24") / ASME B16.47 (for $>$ 24")
Butt-Welding End Dimensions	ASME B16.25
Inspection & Pressure Testing	API 598
Size Range Scope	NPS 2" to NPS 24" (DN50 - DN600)
Pressure Classes	ASME Class 150, Class 300, Class 600
Body Material Options	ASTM A216 WCB, A217 WC6/WC9, A351 CF8/CF8M/CF3/CF3M
Trim Material Options	API 600 Trim No. 1, No. 5, No. 8 (Half Stellite), No. 12
Operator Types Available	Handwheel, Bevel Gearbox, Electric Actuator, Pneumatic

4. Selection Recommendations & Guidelines

Material Configuration Matching: Select carbon steel (WCB) for standard non-corrosive hydrocarbons and water up to 425°C. For high-temperature steam pipelines exceeding 425°C, alloy steel (such as WC6 or WC9) must be selected to prevent creep. Use stainless steel (CF8M) for corrosive chemical mediums or low-temperature cryogenic systems.
Trim Chart Selection (API 600): For general oil and gas or high-pressure steam services, Trim 8 (F6 stem + Stellite faced seats) is the industry benchmark for standard wear resistance. For highly erosive or severe services, specify Trim 5 (Full Stellite face on both wedge and seat rings) to maximize lifespan.
Operation & Actuation: While smaller sizes (NPS 2" to 6") can be effortlessly operated via manual handwheels, larger valves (NPS 8" and above) or high-pressure classes (Class 600) should be outfitted with a heavy-duty bevel gear operator or an electric actuator to counter high differential line pressure torques.
Avoid Throttling Services: Gate valves are strictly designed for complete fluid isolation (fully open or fully closed). Operating a gate valve in a partially open position causes high-velocity fluid impingement, leading to severe seat chatter, erosion, and permanent sealing face failure.
