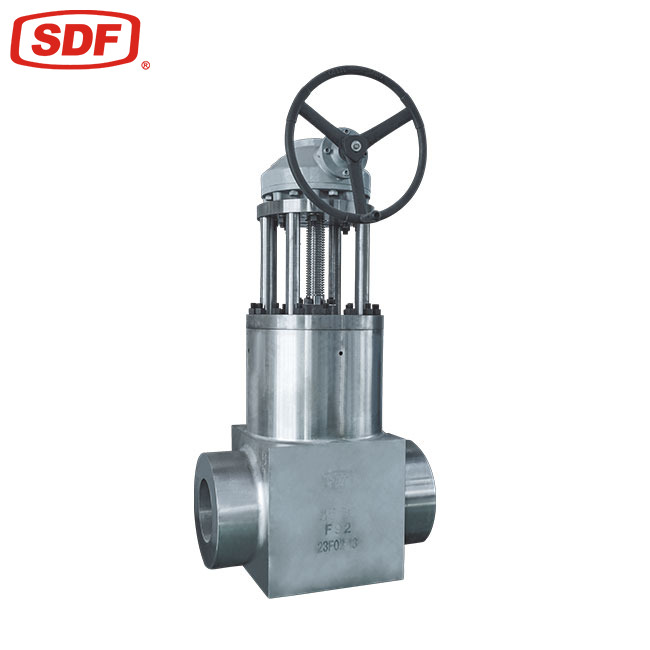

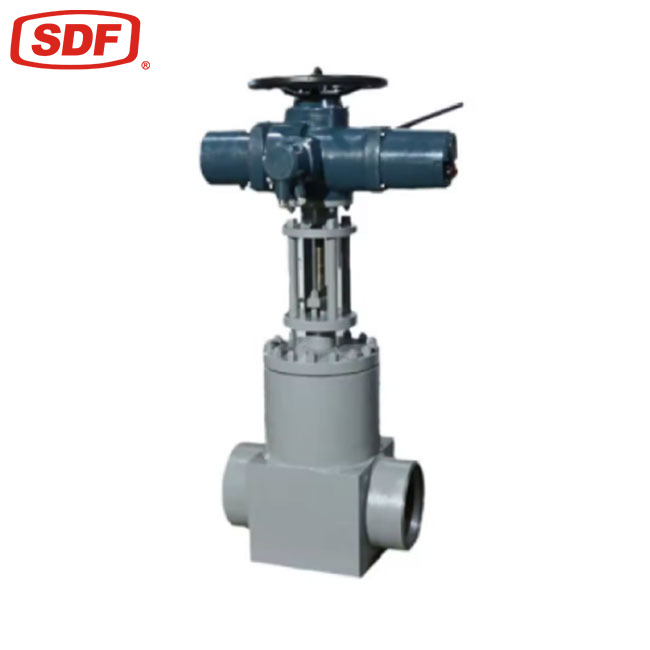

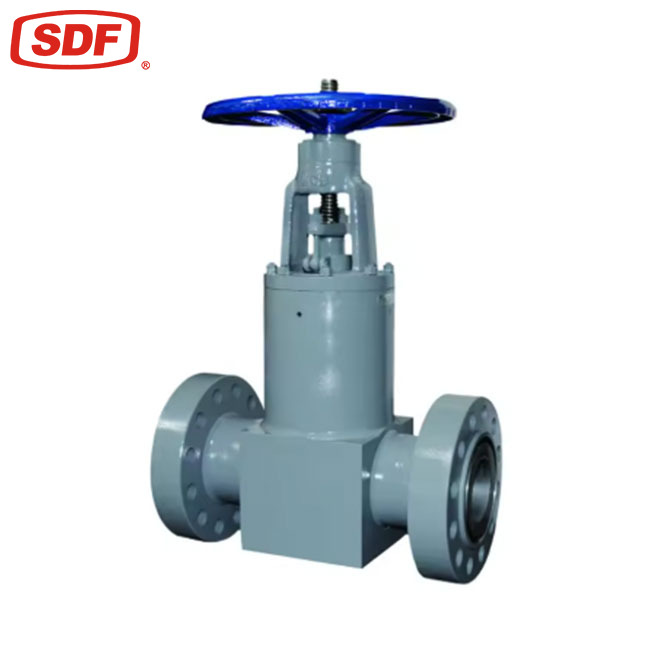

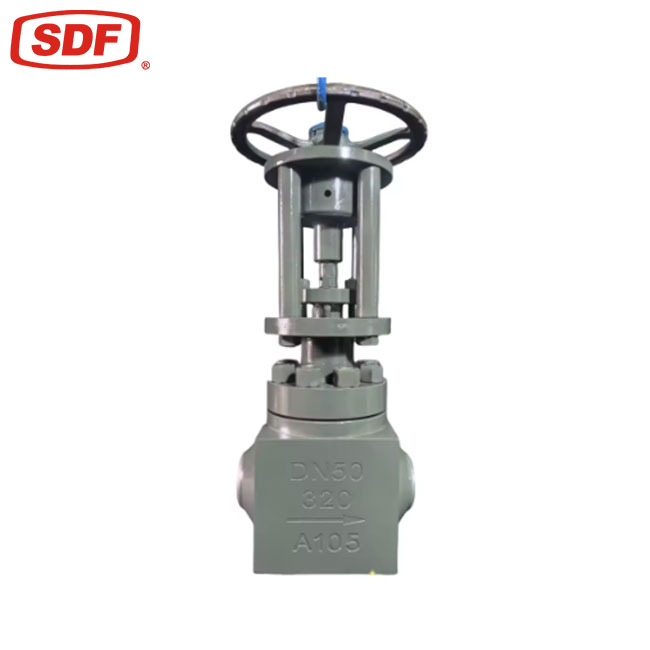

1. Core Advantages & Technical Features
Self-Tightening Pressure-Seal Design: Replaces traditional heavy bolted flanges with a compact pressure-seal mechanism, ensuring absolute body-bonnet sealing integrity at maximum plant operating pressures.
Defect-Free Forged Matrix (F92): Utilizes elite ASTM A182 F92 creep-strength enhanced ferritic (CSEF) steel, delivering exceptional mechanical properties and maintaining structural safety under thermal fatigue.
Erosion-Proof Cobalt-Base Hardfacing: Seating faces are overlay-welded with thick Stellite layers, preserving absolute tight shutoff and preventing seat wire-drawing or washing under high-velocity dry or saturated steam.
Non-Rotating Guided Stem Assembly: The rising stem moves strictly in a vertical, non-rotating linear path. This minimizes friction and wear on the high-purity die-formed graphite stem packing, dramatically reducing VOC emissions and packing maintenance.
Parallel Slide or Flexible Wedge Design: Compensates smoothly for pipeline bending moments and dramatic thermal expansions, mitigating the risk of the valve getting structurally stuck or locked in the closed position.
2. Applicable Working Conditions & Industrial Sectors
This severe-service forged gate valve is explicitly tailored for supercritical and ultra-supercritical fossil-fuel power grids, heavy industrial steam centers, and advanced clean energy infrastructures where system failure cannot be tolerated.
Primary Applications Include:
Ultra-Supercritical Main Steam Lines: Isolation of main superheated steam headers exiting the boiler grid toward the high-pressure turbine inlet.
Hot & Cold Reheat Pipelines: Critical shutoff on reheating loops connecting the intermediate-pressure steam systems.
Boiler Feed-water Systems: High-pressure high-velocity isolation on boiler input manifolds and economizer loops.
Main Steam Isolation Valves (MSIV): Fast-acting safety isolation loops on high-pressure thermal emergency networks.
3. Standard Technical Parameters
Parameter Item | Standard Specifications / Values |
Design & Manufacturing Standard | ASME B16.34 / API 600 / NB/T 47044 |
Pressure-Temperature Rating | ASME B16.34 / Standard & Special Ratings |
Face-to-Face Dimensions | ASME B16.10 / Manufacturer Standard |
Butt-Welding End Connections | ASME B16.25 (Standard matching for high-pressure pipe schedules) |
Inspection & NDT Testing | API 598 / EN 12266 / Radiographic & Ultrasonic NDT |
Nominal Size Range Scope | NPS 2" to NPS 24" (DN50 - DN600) |
Nominal Pressure Classes | ASME Class 900, Class 1500, Class 2500, Class 4500 / PN160 - PN420 |
Forged Body Material Options | ASTM A182 F92, F91, F22, F11 / Forged Stainless F304, F316 (CF8/CF8M) |
Internal Trim Configurations | API 600 Trim No. 5 (Full Stellite #6 hardfacing) |
Stem Packing Element | High-Purity Die-Formed Flexible Graphite with Inconel Wire Reinforcement |
Actuation Method Flexibility | Impact Handwheel, Heavy Bevel Gearbox, High-Torque Electric Actuator |
4. Selection Recommendations & Guidelines
Alloy Grade Verification: For modern high-efficiency power plants operating between 560°C and 620°C, ASTM A182 F92 is mandatory. It offers significantly higher allowable creep stress limits than older F91 or F22 steels, allowing for thinner wall dimensions and reducing structural thermal stress. For lower parameters below 425°C, standard stainless steel (CF8) or carbon steel forgings can be utilized.
End Connection Selection: High-pressure main steam lines must utilize Butt-Welding (BW) Ends rather than flanged connections. Butt-welding eliminates heavy, failure-prone flanged joints, provides permanent leak-free operation, and minimizes total piping system weight. Ensure the matching pipe schedule (e.g., Sch 160 or XXS) is clearly specified for exact bevel preparation.
Actuation & Bypass Valve Configuration: Large-bore main steam valves under high differential pressures experience immense force on the wedge face, making manual operation difficult. Always select a high-torque Electric Actuator with an impact-type handwheel clutch. Furthermore, a smaller Bypass Valve Loop must be installed parallel to the main valve to balance differential pressures and preheat the downstream line prior to opening the main valve.
Fugitive Emissions Control: For ultra-high temperature steam, specify flexible graphite stem packings reinforced with Inconel wire mesh and integrated with corrosion inhibitors. This configuration resists high-temperature structural oxidation and prevents stem pitting during extended plant outages.
(Technical Safety Note: When conducting system hydrostatic testing, the pressure-seal bonnet depends on internal pressure to effect a tight seal. At extremely low initial hydrostatic testing pressures, minor weeping may occur until the line reaches nominal seating pressure thresholds.)
5.FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
