The core mechanism of the SDF lift check valve relies on a heavy-duty, center-guided architecture. The valve disc features an extended guide stem that slides smoothly within a precision-machined guide bore located inside the bolted bonnet. This rigid alignment configuration ensures that the disc travels perfectly perpendicular relative to the horizontal seat port, eliminating any potential for disc tilting, rubbing, or eccentric seating wear.
Constructed from heavy-walled, high-integrity cast or forged metals—such as Carbon Steel (WCB/A105) or high-temperature Alloy Steel (15CrMo/F11/F22)—the pressure-retaining body shell is optimized to absorb severe pipeline bending moments and intense thermal shocks. The valve seat and mating disc face are hard-faced with a thick overlay of cobalt-base Stellite™ alloy, yielding an ultra-hard surface that resists wire-drawing, cavitation pitting, and high-velocity steam erosion. This guarantees that the sealing faces maintain bubble-tight, zero-leak integrity even after thousands of high-pressure seating impacts.
Dynamic Closure and Backflow Prevention
When forward fluid flow enters the valve body from beneath the seat port, the kinetic energy of the medium overcomes the weight of the disc (and optional spring pre-loads), lifting the piston smoothly along its guided center track to allow an unrestricted, laminar flow profile through the chamber. The moment upstream pump velocity drops or forward flow decelerates, gravity combined with the immediate action of the fluid back-pressure drops the guided disc squarely and instantly onto the seat port. Because the linear travel distance is short, shut-off occurs almost instantaneously, throttling the reverse flow path before the fluid can gain backward momentum, effectively neutralizing the destructive shockwaves of water hammer.
Core Advantages: Engineering Highlights
Perfect Concentric Sealing Alignment: The robust stem-guided center piston restricts the disc to linear vertical motion, guaranteeing that the mating faces always seal with perfect concentricity, completely eliminating the weeping leaks associated with worn swing-valve hinges.
Fast-Acting Shock Mitigation: The exceptionally short linear stroke profile allows the disc to react immediately to flow reversals, dropping and sealing rapidly to cushion the pipeline against downstream pressure surges.
Superior Erosion and Cavitation Resistance: Stellite™ hard-faced internal seating surfaces provide high hardness, protecting the valve internals against high-temperature steam scoring, particulate scraping, and wire-drawing.
Rugged Heavy-Duty Flanged Joints: Thicker casting walls and reinforced ASME/EN standard flanged interfaces ensure maximum structural stability under heavy thermal expansion stresses and high-pressure load envelopes.
Technical Specifications Matrix
Technical Parameter | Specification / Industrial Standard | Options / Available Upgrades |
Size Range | DN20 – DN500 ($3/4" - 20"$) | Custom large bores engineered to order |
Body / Bonnet Materials | Carbon Steel (WCB, WCC, A105) / Alloy Steel (15CrMo, WC6, F11) | Stainless Steel (CF8M/SS316) for corrosive lines |
Nominal Pressure Classes | PN16 – PN160 (Class 150 to Class 900) | Ultra-high pressure Class 1500/2500 available |
Temperature Profile | $-29^\circ\text{C}$ to $+550^\circ\text{C}$ (Alloy Steel Body) | Limited to $+425^\circ\text{C}$ for Carbon Steel versions |
Design Standards | GB/T 12236, BS 1868, ASME B16.34 | Wall thicknesses exceed minimum API mandates |
End Connections | Raised Face Flange (RF), Ring Type Joint (RTJ) | Butt-Weld (BW) ends for high-pressure headers |
Test & Inspection | API 598, GB/T 13927 | Full hydrostatic shell and high-pressure gas seat tests |
Strategic Application & Working Conditions
The high-pressure lift check valve is primarily specified for severe service, high-velocity utility loops where tight closure and mechanical reliability are paramount:
High-Pressure Steam Networks: Power plant main steam lines, turbine extraction loops, and auxiliary boiler header systems handling high-velocity superheated or saturated steam.
Boiler Feedwater Infrastructure: High-head multi-stage boiler feed pump discharge lines where fast-acting backflow prevention is critical to protect pumps from reversing.
Petrochemical Refinery Utilities: High-temperature hydrocarbon processing streams, catalyst thermal lines, and high-pressure gas distribution networks.
District Thermal Plants: High-temperature centralized water heating distribution grids subject to severe thermal cycling and pipe expansion stress.
Technical Selection & Field Installation Advice
To optimize the service life and hydraulic efficiency of your lift check valve, incorporate these professional selection parameters into your design layout:
1. Orientation Restraints (The Gravity Law)
Unlike spring-assisted dual-plate check valves, standard lift check valves are highly dependent on gravitational force to ensure proper seating alignment.
Horizontal Lines: The valve must be installed with the bonnet facing vertically upward.
Vertical Lines: A lift check valve can only be installed in a vertical pipeline if the fluid flow is traveling upward. Never install a standard lift check valve in a vertical drop line with downward flow, as gravity will hold the disc permanently open, rendering the non-return function useless.
2. Sizing for Minimum Velocity (Avoiding Disc Chattering)
Never select a lift check valve based solely on matching the pre-existing pipeline size. Lift check valves require a minimum continuous fluid velocity to keep the guided disc stable in the fully open position. If the valve is oversized for a low-flow line, the fluid velocity will be insufficient to hold the disc up. The disc will lift slightly, stall, drop, and lift again, causing violent disc chattering. This constant hammering against the guide column will gall the stem, wear out the seat prematurely, and generate loud noise. Always check the system minimum flow against the valve's minimum full-lift velocity parameter.
3. Upstream Turbulence Management
Linear lift check valves are sensitive to turbulent fluid profiles. High turbulence entering the valve chamber creates uneven lateral forces against the disc, accelerating guide stem wear. Always provide a straight run of smooth pipe equal to at least 5 to 10 pipe diameters (5D - 10D) upstream of the valve inlet, especially if positioned after a high-pressure control valve, pump discharge, or tight-radius elbow.
4. Pressure Drop Considerations
Lift check valves inherently possess a more tortuous internal flow path compared to straight-through swing check valves, resulting in a higher equivalent flow resistance. If your system is running on a very tight pressure margin or relying on a low gravity-feed head, a lift check valve may introduce too much parasitic pressure drop. In such energy-constrained cases, a dual-plate wafer check or full-port swing check valve should be considered instead.

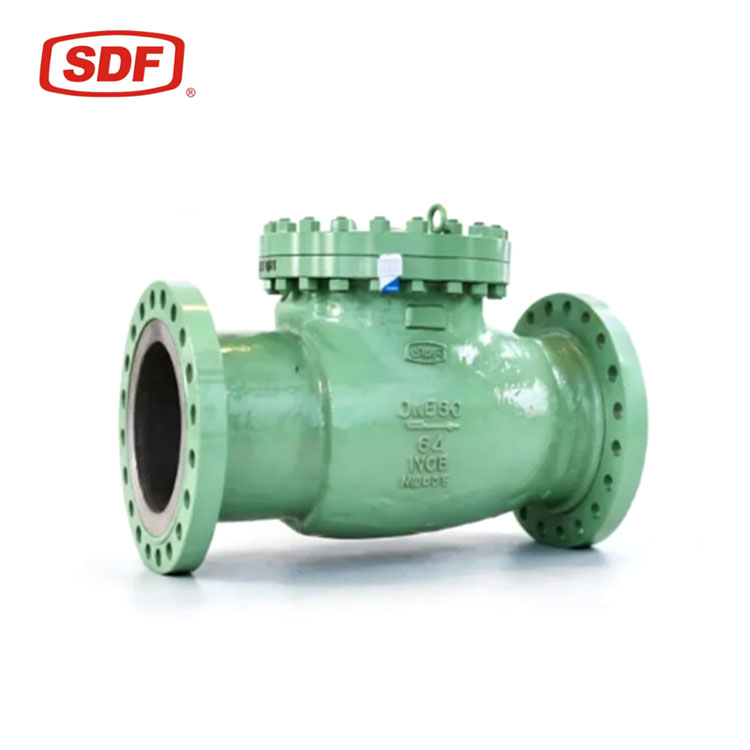

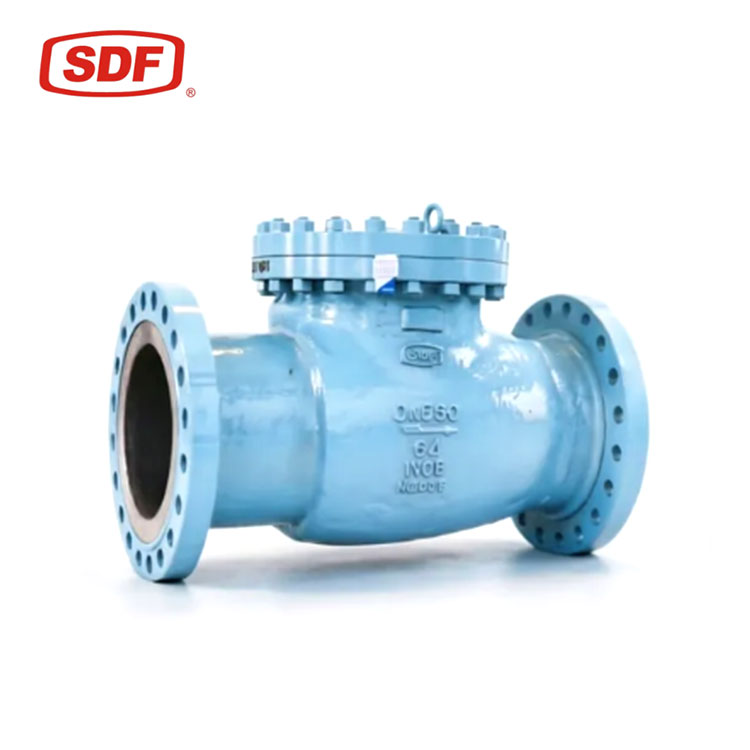

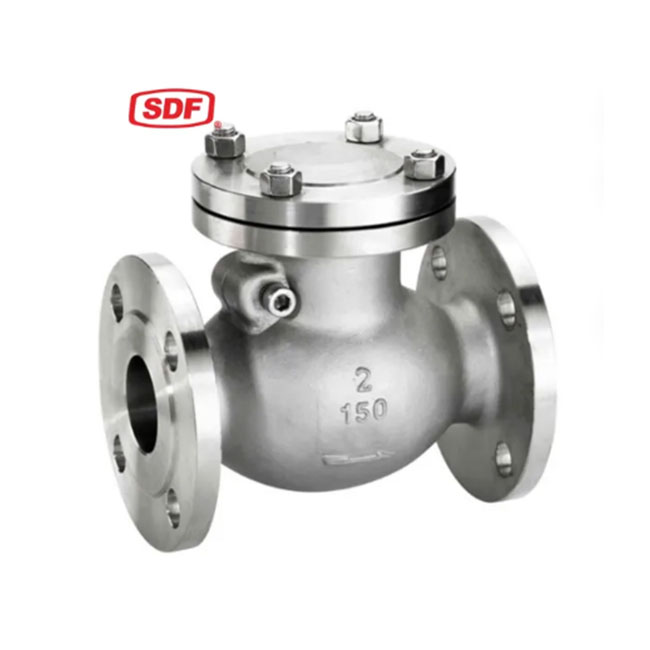

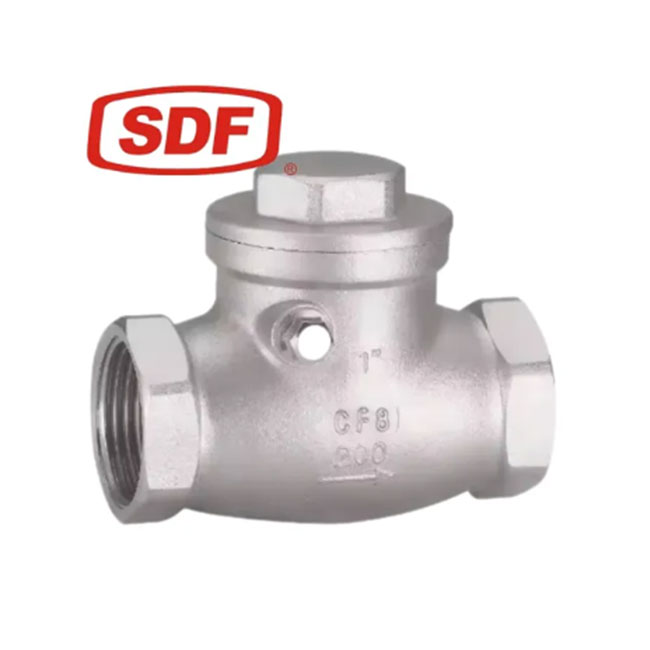

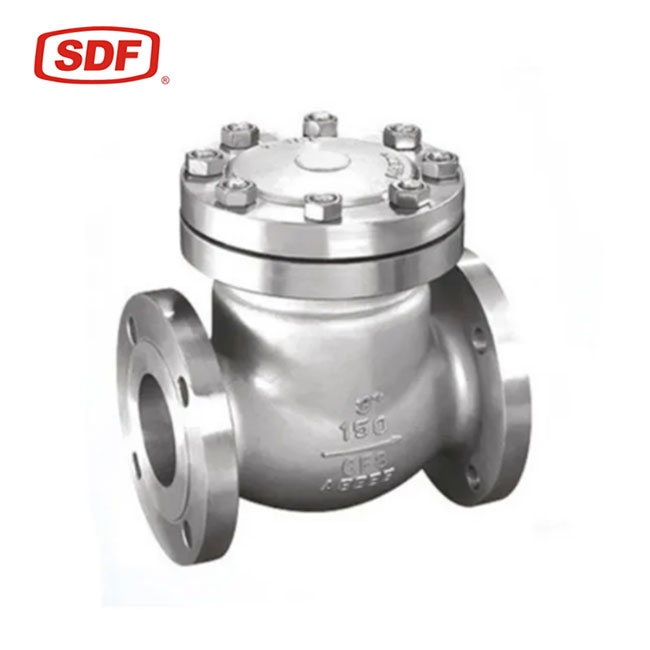

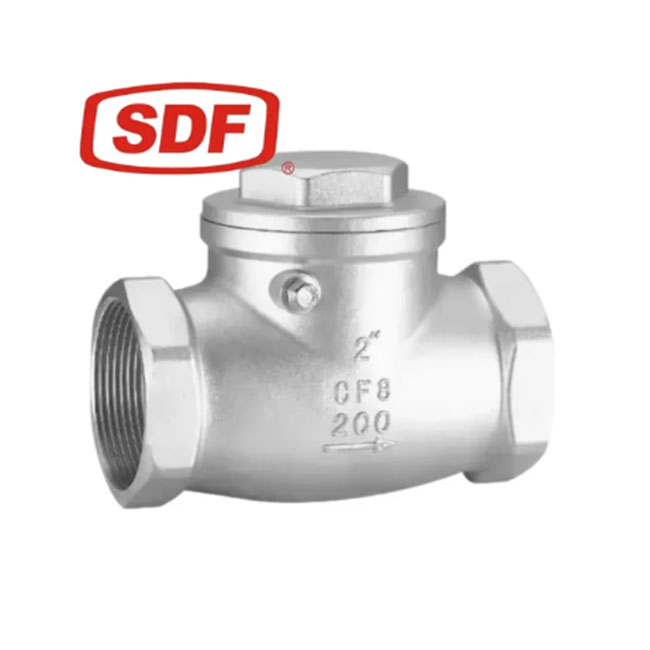

Key Advantages
Ultra-Low Fluid Resistance: Full-port, straight-through interior path provides high flow coefficients and exceptionally low pressure drops.
Self-Sustaining Mechanical Action: Requires zero external electricity, sensors, or manual interaction—operates purely on line fluid pressure and gravity.
Stellite Hard-Faced Metal Seats: Rugged metal-to-metal seating structures withstand high temperatures, thermal shock, and abrasive fluid particles.
Top-Accessible Bolted Bonnet: Bolted bonnet layout allows maintenance crews to quickly inspect or replace the disc and hinge pin online without removing the body.
Applications
Standard protection for industrial pump discharge lines, municipal water distribution networks, oil & gas transport pipelines, and cooling water loops.
