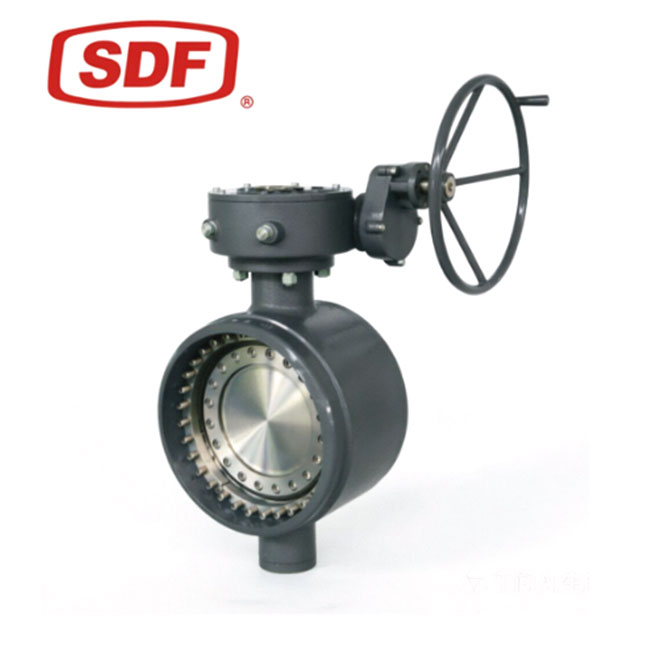

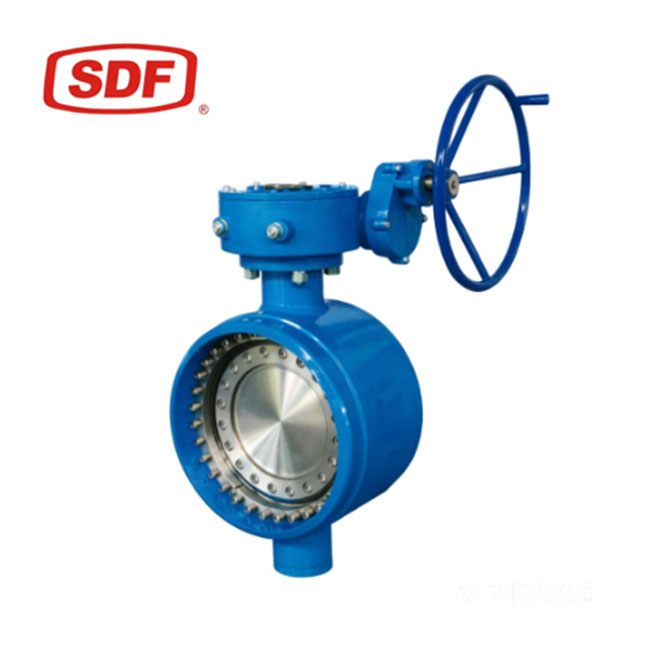

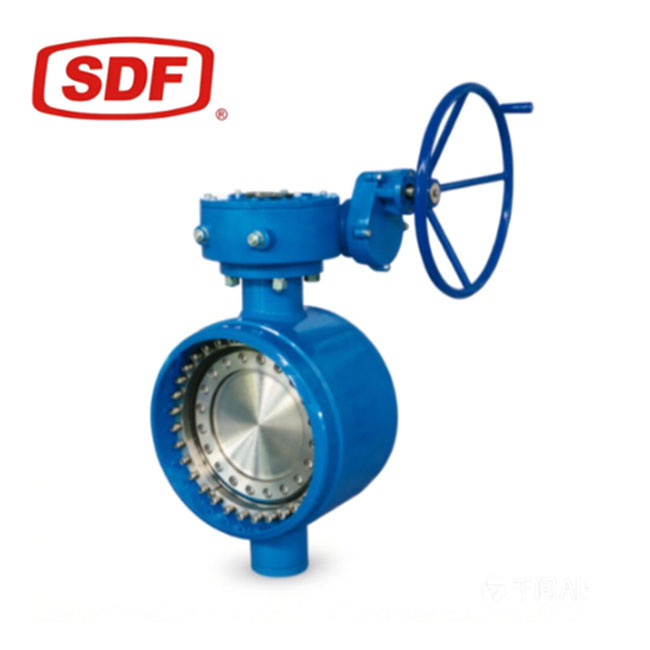

| The SDF High-Temperature Butt-Welded Butterfly Valve (as featured in image_3cdd9d.png) represents an elite milestone in high-performance isolation technology, specifically designed to conquer the most severe industrial environments. In applications handling superheated steam, high-temperature gases, and volatile refinery media, traditional soft-seated or flanged butterfly valves quickly succumb to operational failure. Soft elastomers degrade under extreme heat, while flanged connection gaskets tend to relax and develop hazardous external leaks due to constant piping thermal expansion. The SDF series completely eliminates these operational risks. By featuring a butt-weld end connection layout, the valve body is integrated directly into the pipeline network as a single monolithic entity, eliminating standard gasket connection points and potential external leak paths to the atmosphere. | |||||||||
The mechanical core of this valve is defined by a premium triple-eccentric (triple-offset) metal-to-metal sealing geometry. Traditional concentric or double-offset butterfly valves rely on structural friction and interference to establish a seal, causing the disc to scrape hard against the seat throughout its rotation cycle. This continuous friction leads to rapid seat wear, high operational torques, and premature weeping leaks.
The triple-offset architecture of the SDF series solves this by implementing three distinct geometry displacements:
Offset 1: The shaft axis is offset from the center line of the sealing surface.
Offset 2: The shaft axis is offset from the center line of the pipe/valve bore.
Offset 3: The angled axis of the seat cone profile is offset from the shaft center line.
This triple-cam configuration ensures that the laminated metal seal ring on the disc makes contact with the solid body seat only at the final millisecond of closure. The disc effectively wedges into the seat to achieve an uncompromised, friction-free mechanical seal. This drastically reduces operating wear, ensures a low breakaway torque profile, and delivers exceptional long-term durability.
Constructed to handle rapid thermal cycling and extreme pressure drops without structural distortion, the pressure-retaining body shell is cast or forged from high-integrity materials such as Carbon Steel (WCB), Stainless Steel (CF8M), or specialized Alloy Steel (WC6/WC9). The sealing seat surface is overlaid with a thick hard-facing of Stellite cobalt-base alloy, providing remarkable resistance to high-velocity fluid erosion and particulate scraping.
The laminated seal ring on the disc combines alternating layers of premium stainless steel and high-density flexible graphite sheets, creating a resilient metal-to-metal seal structure. This allows the valve to maintain strict compliance with international leakage standards even when operating continuously at temperatures reaching 550 degrees C, making it a definitive replacement for traditional, bulky gate and globe valves.
Leak-Proof Welded Boundary: The butt-weld end design removes flanged joints entirely, eliminating the need for periodic gasket maintenance and preventing fugitive emissions.
Friction-Free Triple-Offset Camming: The disc releases instantly from the seat ring upon opening, eliminating rotational scraping to maximize seal life and minimize actuator torque demands.
Extreme Temperature Resilience: Laminated stainless steel/graphite seals paired with a Stellite hard-faced body seat withstand severe thermal loops up to 550 degrees C without losing sealing elasticity.
Bi-Directional Bubble-Tight Isolation: High-precision torque seating mechanics provide bi-directional shut-off compliance matching strict industrial leakage standards.
Technical Parameter | Standard Engineering Specification | Options / Upgrades |
Size Range | DN50 to DN1200 (2 inch to 48 inch) | Custom ultra-large bores available |
Body Metallurgy | Carbon Steel (WCB) / Stainless Steel (CF8M) | Alloy Steel (WC6, WC9) for extreme heat |
Disc Material | WCB / CF8M (Matching body material) | Monel / Hastelloy overlays for chemical lines |
Seat Hard-Facing | Solid Co-Cr Stellite Alloy Overlay | Tungsten Carbide coatings for slurries |
Seal Ring Configuration | Laminated SS316 + Flexible Graphite Sheets | Solid SS316 Metal Seal ring for high abrasion |
Pressure Ratings | PN10, PN16, PN25, PN40, PN63 (Class 150 to Class 300) | High-pressure Class 600 designs available |
Continuous Temperature | -29 degrees C to +425 degrees C (WCB) / Up to +550 degrees C (Alloy Steel) | Cryogenic designs down to -196 degrees C |
End Connection Style | Butt-Weld Ends (BW) to match pipe schedule | Flanged or Lug configurations available |
Seat Leakage Rating | ANSI/FCI 70-2 Class V / ISO 5208 Rate A | Zero-leakage bubble-tight validation |
The high-temperature welded architecture makes this butterfly valve ideal for severe throttling and isolation duties across primary utility and process networks:
Power Plant Steam Utilities: Main steam isolation headers, boiler blowdown systems, desuperheater inlet loops, and turbine extraction lines.
Petrochemical Refining Processing: High-temperature hydrocarbon transfer lines, catalytic cracking systems, decoking loops, and hot gas isolation networks.
Metallurgical & Smelting Systems: Blast furnace hot gas networks, coke oven gas lines, and high-temperature waste heat recovery systems.
District Central Heating Networks: High-pressure sub-critical steam lines subject to severe pipeline thermal expansion and ground-shifting loads.
To ensure optimized flow mechanics, long seat life, and stable gear/actuator performance, incorporate these professional guidelines into your design layout:
Triple-offset butterfly valves rely on torque seating to establish a tight seal. This means the closing mechanical force applied by the handwheel gear or automated actuator directly determines the tightness of the final seal. When sizing automated pneumatic or electric actuators, always include a minimum 30% torque safety factor over the maximum differential pressure (delta P) breakaway torque. This prevents the valve from stalling short of a complete shut-off during sudden pipeline pressure spikes.
Because this valve is welded permanently into the pipe network, proper installation thermal care is absolutely critical.
CRITICAL INSTALLATION WARNING: Before executing the butt-welding process with a TIG or MIG torch, the valve disc must be rotated slightly open (5 degrees to 10 degrees) from the seat. If the valve is welded in a tightly closed state, the intense heat conducted through the stainless steel shell will distort the laminated disc seal ring and cook the graphite layers, ruining the sealing integrity before the pipeline is ever commissioned.
Butterfly valve discs act as profile restrictions within the flow stream. To prevent localized fluid turbulence from causing pipe vibration, stem fluttering, or high torque variations, always provide a straight run of smooth pipe equal to at least 8 to 10 pipe diameters (8D - 10D) upstream and 5 pipe diameters (5D) downstream from any elbows, pump discharges, or pressure-reducing control stations.
Clean Steam/Water lines: The valve can be safely installed with the shaft oriented vertically or horizontally.
Particulate-Heavy or Slurry Media: The valve must be installed with its shaft positioned horizontally. This orientation prevents bottom-settling sand, scale, or catalyst debris from sliding down the disc profile and packing inside the lower shaft bearing, which would gall the stem and lock up the valve rotation.
Zero External Leak Paths: Direct butt-weld connection eliminates standard flange gaskets and bolts, ensuring zero environmental emission risks.
Frictionless Triple-Offset Design: Disc engages the metal seat ring only at the final moment of closure, preventing seat friction, lowering torque, and maximizing lifecycle.
Extreme Temperature Range: Rugged metal-to-metal seating operates flawlessly from cryogenic temperatures up to extreme heat zones exceeding 400 degrees C.
Bi-directional Tight Shut-off: High-precision machining ensures reliable, bubble-tight isolation even under demanding differential pressures.
Primarily specified in high-temperature steam lines, oil & gas cross-country pipelines, oil refining, district heating systems, and thermal power plants.
