This valve type uses welded or fully welded body construction to help reduce external leakage paths compared with multi-bolted body designs. The structure is valuable in pipeline systems that need safe isolation, compact installation, and lower maintenance requirements.
SDF supplies welded ball valves for demanding industrial service, including high pressure ball valve applications in power generation, oil and gas, chemical processing, petrochemicals, and natural gas projects. Our integrated R&D, manufacturing, testing, and after-sales capabilities support buyers from early selection to long-term operation.
For project evaluation, buyers may request drawings, technical data sheets, inspection requirements, and quotation support. To prepare an inquiry, please share valve size, pressure rating, material, media, temperature, end connection, quantity, and applicable standards.

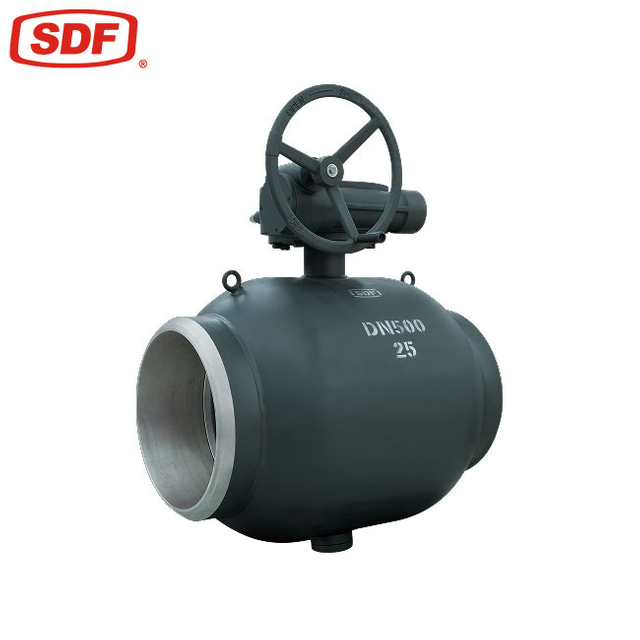

A fully welded ball valve is selected when pipeline operators need a robust shutoff valve with fewer external body joint leakage points. This body structure can suit buried pipelines, long-distance transmission lines, natural gas service, and systems with limited maintenance access.
When selected correctly, these valves can provide reliable isolation, compact installation, and stable operation. Media, pressure, temperature, materials, and sealing design should all be reviewed. Fire-safe and anti-static design requirements can also be checked against project specifications and applicable standards.
Welded construction minimizes body joint leakage risk by reducing bolted body connections exposed to line pressure. This matters in critical pipeline service, where safety, environmental protection, and reduced maintenance are key purchasing concerns.
Precision-machined balls and matched seat designs help these valves provide dependable on/off isolation. For high-pressure service, final selection should consider pressure class, size, body material, seat material, media characteristics, and operating temperature.
Welded ball valves are commonly selected for continuous operation in transmission, distribution, and process pipeline systems. Options such as extended stems, buried service configurations, gearbox operation, and actuator-ready designs can be reviewed when required.
SDF can review requirements by structure, mounting style, material, end connection, bore type, and operation method. This helps procurement engineers compare trunnion mounted, floating, carbon steel, stainless steel, and weld end designs according to real service conditions.
The correct configuration depends on pipeline pressure, size, media, flow requirements, installation location, operation frequency, and project standards. The table below summarizes common selection directions for buyers.
| Configuration | Typical Selection Purpose | Buyer Notes |
|---|---|---|
| Trunnion mounted welded ball valve | Large size, higher pressure class, pipeline isolation service | Trunnion support helps reduce operating torque and improve ball stability under pressure. |
| Floating welded ball valve | General shutoff service in suitable sizes and pressure ratings | Final suitability depends on pressure, temperature, media, and sealing requirements. |
| Carbon steel welded ball valve | General pipeline, oil and gas, and industrial utility service | Material selection should be confirmed based on corrosion conditions and project standards. |
| Stainless steel welded ball valve | Corrosive media, clean media, chemical, and process applications | Often reviewed when corrosion resistance or clean service compatibility is required. |
| Weld end ball valve | Permanent pipeline connection with reduced flange leakage points | Suitable where welded installation is preferred by pipeline design. |
| Full bore welded ball valve | Low flow resistance and piggable pipeline applications | Useful when flow capacity and pipeline cleaning requirements are important. |
| Reduced bore welded ball valve | Compact and cost-sensitive systems where flow conditions allow | Should be evaluated against flow rate and pressure drop requirements. |
A trunnion mounted design is commonly selected for larger pipeline sizes, higher pressure classes, and main isolation duties. The supported ball structure improves stability under pressure. It can also reduce operating torque compared with unsupported ball structures in demanding conditions.

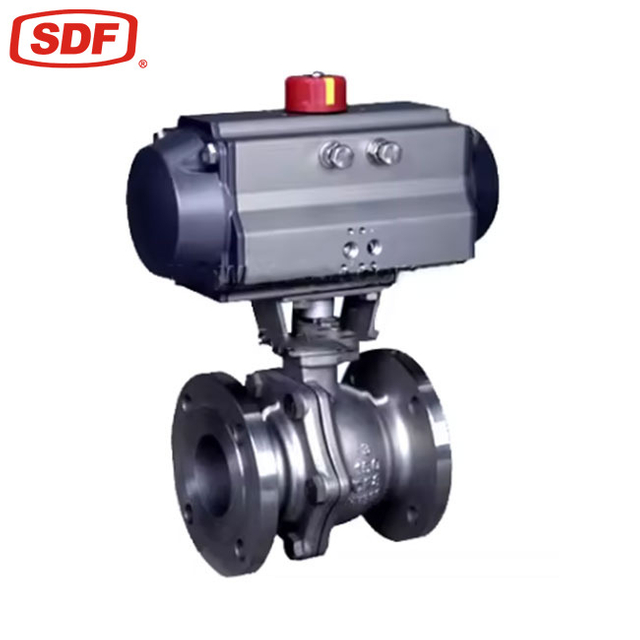

A floating design can be used for suitable sizes, pressure ratings, and general industrial shutoff services. Because performance depends on seat loading and pressure conditions, SDF recommends confirming operating pressure, media, temperature, and sealing expectations.
Carbon steel options are commonly considered for general industrial pipeline and oil and gas services. Stainless steel options are often reviewed for corrosive media, clean media, chemical processing, and applications requiring improved corrosion resistance.
Other alloy material options can be evaluated according to project conditions. This is especially important where elevated temperature, corrosive service, or special process requirements are involved.
Weld end ball valves provide permanent pipeline connections and help reduce flange-related leakage points. Depending on installation needs, project standards, and maintenance strategy, SDF can review weld end, flanged, or custom connection options.
Full bore options suit low flow resistance and pipeline systems that require pigging capability. Reduced bore designs may be selected for compact layouts or cost-sensitive projects when the process allows a smaller flow passage.
Specifications should be confirmed according to the selected model, pressure class, material, design standard, and application requirements. Across SDF’s broader industrial valve portfolio, available capabilities cover 1.6 MPa to 80.0 MPa, Class 150 to Class 4500, DN10 to DN4000, and -196°C to 1100°C.
For this category, exact values depend on construction type, material grade, seat design, end connection, and applicable standard. SDF can review API 6D fully welded ball valve projects, API 607 fire-safe considerations where applicable, and ISO or CE documentation requirements.
| Specification Item | Available / Review Options | Selection Notes |
|---|---|---|
| Valve type | Fully welded ball valve, welded body ball valve, trunnion mounted ball valve, floating ball valve | Selected according to size, pressure, torque, and pipeline duty. |
| Nominal size | Reviewed according to model and project requirements | SDF’s wider valve portfolio covers DN10 to DN4000. |
| Pressure class | Class 150, Class 300, Class 600, Class 900, Class 1500, higher-pressure selections by model | SDF’s wider valve portfolio covers Class 150 to Class 4500 and 1.6 MPa to 80.0 MPa. |
| Body material | Carbon steel, stainless steel, alloy steel options by service condition | Chosen according to media, corrosion, pressure, and temperature. |
| Ball material | Matched to body, trim, sealing, and media requirements | Final material is confirmed during technical review. |
| Seat material | Soft seat, metal seat, fire-safe sealing options where required | Selected according to temperature, pressure, shutoff, and fire-safe requirements. |
| End connection | Weld end, flanged, and project-specific connection review | Must match pipeline design and installation method. |
| Bore type | Full bore or reduced bore | Full bore supports lower resistance and piggable pipeline needs. |
| Operation method | Lever, gearbox, electric, pneumatic, or hydraulic operation where suitable | Chosen by valve size, torque, automation needs, and site conditions. |
| Applicable standards | API 6D, API 607 where applicable, CE and ISO-related quality systems | Project standards should be stated in the inquiry. |
| Testing and inspection | Pressure testing, sealing inspection, material verification, documentation by requirement | Inspection scope is confirmed according to contract and standard. |
| Suitable media | Natural gas, oil, process fluids, chemical media, industrial utilities by material compatibility | Media compatibility must be verified before final recommendation. |
Selection may include common pressure classes such as Class 150, Class 300, Class 600, Class 900, and Class 1500. High-pressure service is reviewed according to model availability and project specifications. Size and temperature capabilities must be confirmed for the exact design, material, seat type, and operating media.
Carbon steel, stainless steel, and alloy steel selections should match media compatibility, corrosion risk, operating temperature, and pressure class. Seat and sealing design may include soft seat, metal seat, or fire-safe sealing considerations when required.
SDF’s certifications and qualifications include ISO 9001, ISO 14001, ISO 45001, China Special Equipment Manufacturing Licenses A1, A2, and B, API 6D, API 607, and EU CE. Inspection records, certificates, and technical documents can be prepared according to order and project requirements.
These valves are widely used where reliable pipeline isolation, reduced external leakage paths, and long-term operation are important. Suitability depends on correct material, pressure class, seat design, temperature range, media compatibility, and installation method.
SDF serves power generation, chemical processing, oil and gas, petrochemicals, metallurgy, nuclear energy, natural gas, pharmaceuticals, renewable energy, marine, and shipbuilding industries. For regulated or safety-critical service, we recommend engineering review before final specification.
In oil and gas service, these valves may be used in transmission lines, distribution systems, isolation points, compressor stations, and storage facilities. Natural gas configurations often require careful review of bore type, buried service needs, actuator requirements, pressure class, and pipeline standards.
SDF has a strong focus on high-temperature and high-pressure power station valves. This supports project confidence for demanding industrial systems. For power plant auxiliary systems or critical pipeline sections, selection should match exact process conditions, pressure, and temperature requirements.
Chemical, petrochemical, and metallurgical applications require close attention to media compatibility, corrosion resistance, seat performance, and material selection. Stainless steel or alloy material options may be reviewed for corrosive media, high temperature, or demanding process services.
SDF also serves marine and shipbuilding, renewable energy, pharmaceutical, and nuclear-related industrial applications where qualified valve products and documentation may be required. For these projects, valve selection should be reviewed against safety requirements, installation environment, operating media, and applicable specifications.
Correct selection helps reduce project risk, improve sealing performance, and ensure compatibility with pipeline operating conditions. Before requesting a quote, buyers should prepare process data and installation requirements. This helps our engineers recommend a suitable valve configuration.
For high pressure welded ball valve, corrosive media, high-temperature, buried service, or automated pipeline applications, technical confirmation is especially important. The following checklist can help accelerate selection and quotation.
As a welded ball valve manufacturer with integrated R&D, manufacturing, testing, and after-sales service, SDF supports custom valve engineering for complex industrial applications. Customization may involve material selection, pressure class, end connection, actuator interface, stem extension, buried service configuration, sealing design, and project-specific documentation.
Buyers are encouraged to share drawings, technical data sheets, operating conditions, pipeline layout information, and applicable standards. Our team will review the application and recommend a configuration that aligns with service requirements and procurement expectations.
SDF provides technical support from product selection to installation guidance. For welded ball valve projects, our engineers can review pressure, temperature, media, corrosion conditions, pipeline layout, actuation requirements, and standards before recommending a suitable design direction.
Testing and quality control are essential for mission-critical industrial valve service. SDF can support pressure testing, sealing inspection, material verification, compliance checks, inspection records, certificates, and technical documents according to contract requirements and applicable standards.
Welded ball valves can be reviewed for lever, gearbox, electric actuator, pneumatic actuator, or hydraulic actuator operation where suitable. The operating method should match valve size, operating torque, automation needs, site utilities, installation position, and maintenance access.
Shanghai Power Plant Valve Factory Co., Ltd. is an industrial valve manufacturer and supplier headquartered in Qingpu District, Shanghai, China. Founded in 1966, SDF has more than five decades of valve manufacturing experience. We focus strongly on high-temperature and high-pressure power station valves and industrial valve solutions for critical applications.
SDF’s product portfolio includes over 2,000 valve models across gate valves, globe valves, check valves, ball valves, butterfly valves, control valves, and cryogenic valves. Featured ball valve products include stainless steel ball valves, fully welded ball valves, semi-ball valves, trunnion mounted ball valves, and threaded ball valves.
As a China welded ball valve supplier with global service experience, SDF products have been exported to over 30 countries. These markets include Europe, North America, Southeast Asia, the Middle East, and South Asia. Certifications and qualifications include API 6D, API 607, EU CE, ISO 9001, ISO 14001, ISO 45001, and China Special Equipment Manufacturing Licenses.
If you need welded, fully welded, trunnion mounted, or custom industrial ball valves, contact SDF to discuss your project requirements. As a welded ball valve manufacturer and supplier, we support product selection, technical documentation, manufacturing coordination, testing, packing, shipment, and after-sales service.
To receive a faster quote, please provide valve size, pressure class, body material, media, operating temperature, end connection, quantity, operation method, applicable standards, and drawings or data sheets. Our team will review your conditions and recommend a suitable configuration for your pipeline or process system.
It is commonly used for reliable on/off isolation in industrial pipeline systems. SDF recommends this valve type where reduced external leakage risk, compact construction, and long-term operation are important.
A fully welded design uses welded body construction to reduce body joint leakage paths. A bolted body design is easier to disassemble, but it has more potential external sealing points.
Yes. Trunnion mounted ball valves and fully welded ball valves are part of SDF’s featured ball valve offering. We confirm the final design based on size, pressure class, media, temperature, and project standards.
Please provide valve size, pressure class, material, media, operating temperature, end connection, quantity, operation method, and applicable standards. Drawings or technical data sheets help our team complete selection more efficiently.
Fire-safe design can be considered according to project requirements and applicable standards such as API 607. SDF can review your operating conditions and recommend a suitable configuration.
