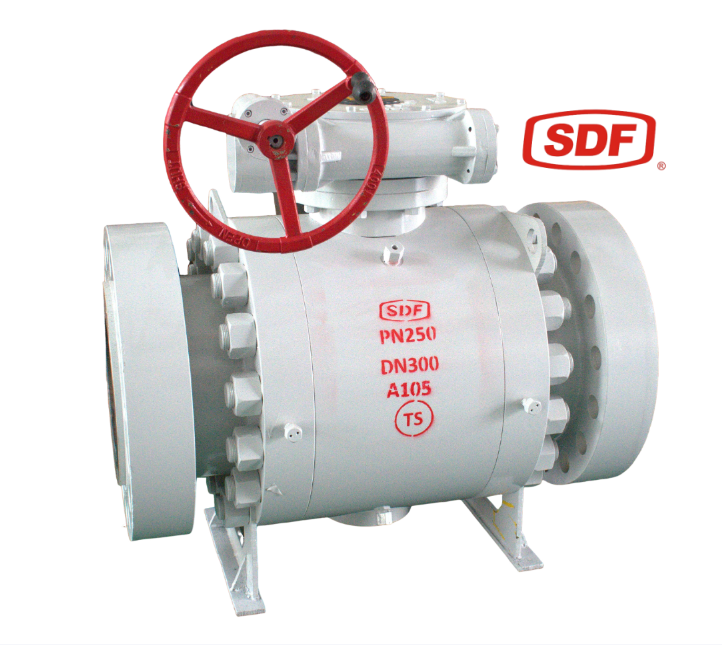

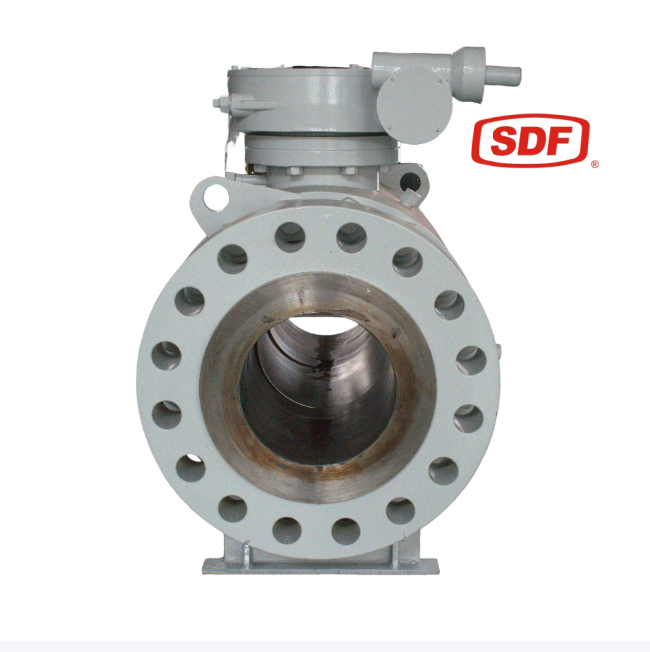

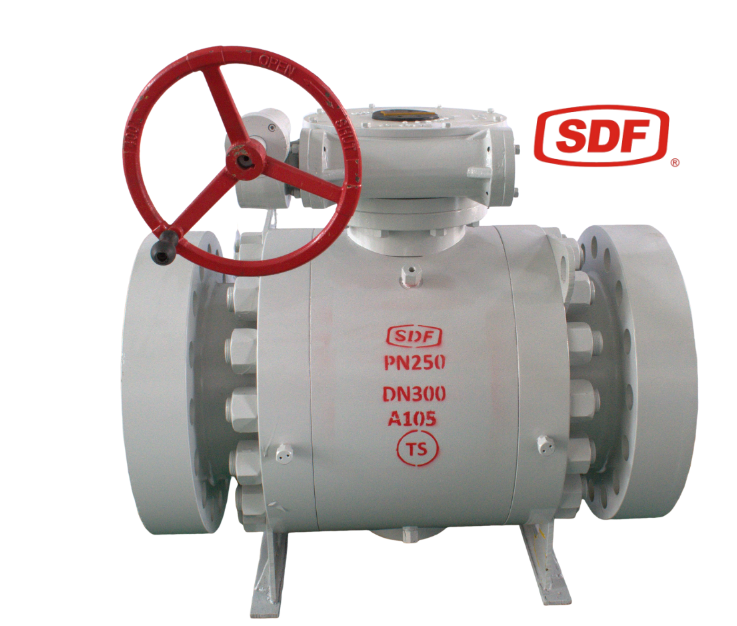

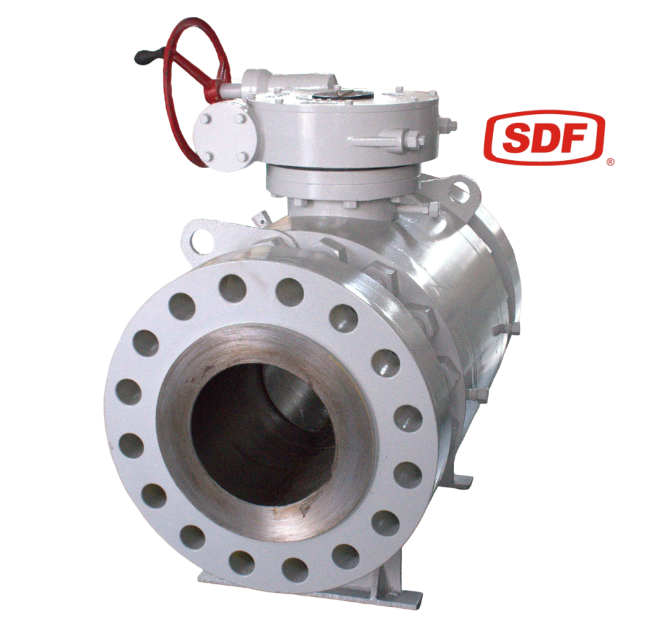

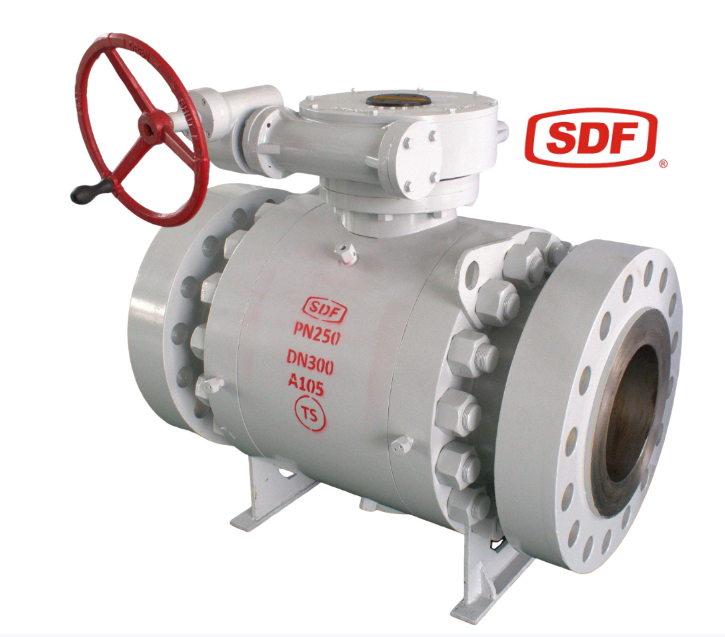

Technical Specifications (核心技术参数)
Parameter (参数) | Specification (规格值) |
Brand / Manufacturer | SDF |
Valve Type | Trunnion Mounted Ball Valve (Fixed Ball Design) |
Body Structure | 3-Piece Split Body, Full Bore (FB) |
Nominal Diameter | DN300 (12 Inch) |
Pressure Rating | PN250 (High Pressure / Class 1500 equivalent) |
Body Material | ASTM A105 (Forged Carbon Steel) |
Ball & Trim Material | A105+ENP / F304 / F316 (Customizable) |
Seat Material | Devlon / PEEK / Nylon (Hard seats for high pressure) |
Connection Type | Raised Face Flanged (RF Flange) |
Operation | Gearbox with Handwheel (Worm Gear Actuated) |
Design Standards | API 6D, ASME B16.34, BS 5351 |
Face-to-Face Standard | ASME B16.10 / EN 558 |
Flange Dimensions | ASME B16.5 / EN 1092-1 |
Key Features & Advantages
Forged Steel Reliability: Fabricated from premium ASTM A105 forged steel, eliminating the risk of porosity or casting defects, providing exceptional grain structure and impact resistance under ultra-high pressures.
Trunnion Mounted Design : The ball is fixed by top and bottom bearings, shifting the fluid load onto the valve body. This minimizes operating torque and prevents seat wear, significantly extending service life.
Double Block and Bleed : Features dual sealing seats that can block the fluid from both upstream and downstream simultaneously, allowing safe cavity venting and draining.
Fire-Safe & Anti-Static Design: Built to meet strict fire-safety standards (such as API 607/API 6FA). Includes secondary metal-to-metal seating if soft seals burn out, alongside anti-static grounding springs.
Blow-out Proof Stem : The stem is designed with an integral collar to prevent blow-out under internal pressure, ensuring maximum operator safety.
Typical Applications
Oil & Gas Transmission Pipelines
Refineries & Petrochemical Plants
High-Pressure Water and Steam Systems
Power Plant Piping
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
