2. Technical Performance & Design Matrix

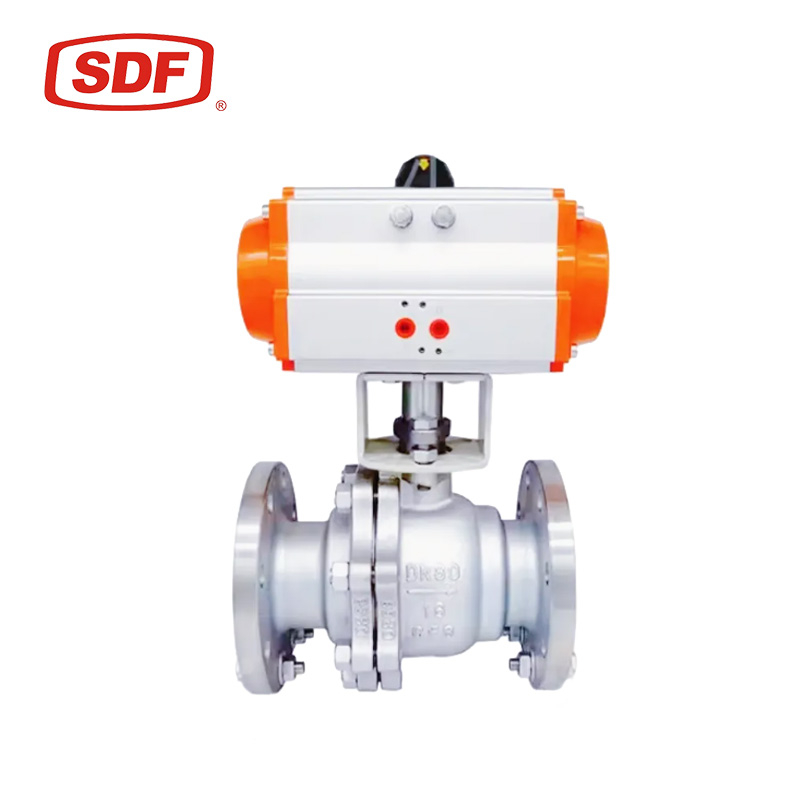

System Specification | Engineering Baseline & Available Configurations |
Manufacturer | SDF Controls |
Product Category | Pneumatically Driven Floating Ball Valve (Throttling / On-Off) |
Nominal Bore | DN100 / 4-Inch Full Port |
Body Identification | Cast Pressure Class Designation DN66/16 |
Drive Mechanism | Direct-Mounted Pneumatic Actuator (Double Acting or Spring Return) |
Manufacturing Norms | Fully Compliant with ASME B16.34, API 6D, API 608 & ASME |
Pressure Class | Class 300 / PN50 Nominal Working Rating |
Pressure Housing Material | ASTM A351 CF8 (304 Stainless) / Optional CF8M (316 Stainless) |
Core & Trim Components | Precision-Ground Mirror Polished Stainless Steel (SS304 / SS316) |
Pipeline Connection | Raised Face Flanges (RF conforming to ASME B16.5 & EN 1092-1) |
Internal Seal System | Thermally Stabilized Devlon, PEEK, or Reinforced PTFE |
Flow Control Profile | Standard Linear / Optional Equal Percentage V-Port Control |
Thermal Range | Engineered for High-Temperature Industrial Operations |
Quality Certifications | Manufactured under ISO9001, CE, RoHS, and GS Compliance |
OEM & Customization | Modular Accessory Integration (Positioners, Switches, Solenoids) |
3. Core Product Features & Architectural Advantages
Robust CF8 Stainless Steel Body Construction: The two-piece split housing is investment-cast from heavy-duty CF8 stainless steel, delivering exceptional resistance to mechanical wear, high-velocity fluid erosion, and chemical corrosion.
High-Output Pneumatic Rack-and-Pinion Drive: Powered by a dual-piston pneumatic actuator, the valve delivers rapid quarter-turn switching. Its hard-anodized aluminum housing produces a stable torque output optimized to overcome high initial seal resistance.
Self-Energized Pressure Sealing Mechanism: In the closed position, upstream line pressure pushes the polished floating ball against the downstream resilient seat ring, creating an impenetrable, zero-leakage shutoff under high working pressures.
Fully Certified ASME & PN50 Pressure Integrity: Precision-machined to stringent international standard tolerances, the heavy-wall body design safely withstands pressure spikes, water hammer, and thermal expansion up to PN50/Class 300 pressure regimes.
Elevated Temperature Operating Capability: Utilizing advanced heat-resistant polymer seats and low-friction stem packing assemblies, the assembly prevents thermal binding and maintains continuous, smooth articulation during rapid temperature cycles.
Versatile B2B Configuration Options: Tailored for automated process lines, the unit can be configured with characterized V-notch ball inserts for fine throttling control, along with smart digital positioners, limit switches, and solenoid valves.
4. Primary Field Applications
The SDF DN100 automated ball valve provides durable, precision flow management across demanding processing sectors:
Petroleum Refining & Hydrocarbon Processing: Heavy crude distribution headers, chemical blending stations, fuel transfer lines, and non-sour gas processing manifolds.
Chemical & Bulk Fluid Operations: Corrosive chemical supply lines, bulk storage isolation networks, acid-base dosing systems, and centralized processing headers.
Thermal Utilities & High-Pressure Steam Systems: Boiler feed supply loops, primary steam distribution networks, plant heat exchangers, and high-temperature condensate collection lines.
Water Management & Effluent Treatment: Municipal pump station headers, industrial filtration arrays, reverse osmosis desalination units, and secondary wastewater loops.
5. Quality Assurance & Factory Acceptance Testing
To guarantee total operational reliability and immediate field deployment, every SDF DN100 pneumatic ball valve passes a comprehensive pre-shipment quality validation protocol:
Hydrostatic Shell Integrity Verification: The cast CF8 pressure envelope is subjected to liquid proof testing at its maximum allowable working pressure to rule out micro-porosity, casting inclusions, or structural flaws.
Bi-Directional API 598 Seat Leakage Testing: Dual-direction pressure tests—using both high-pressure liquid and low-pressure air—are applied to the internal floating ball mechanism to confirm bubble-tight sealing performance.
Full-Cycle Actuation & Kinematic Diagnostics: The completed valve and actuator package undergoes rigorous multi-cycle stroke testing to confirm smooth stem rotation, precise travel alignment, zero mechanical backlash, and instant response prior to final quality approval.
