1. Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Integrated Valve Categories | Gate Valve, Globe Valve, Check Valve, Control Valve |
Primary Design Layouts | Parallel Gate, OS&Y Globe, Non-Return Swing, Diaphragm Regulating |
Design Standards Compliance | API 6D, API 600, ASME B16.34, API 594, IEC 60534 |
Nominal Size Range | DN15 to DN1200 / 0.5 Inch to 48 Inch (Full size range options) |
Pressure Class Span | ASME Class 150 to Class 2500 / PN16 to PN420 |
Body Metallurgy Options | ASTM A351 CF8 (SS304), CF8M (SS316), CF3M (SS316L), Duplex Stainless |
Drive / Actuation Modes | Manual Handwheel, Bevel Gearbox, Pneumatic Diaphragm, Electric Motorized |
Sealing System Matrix | Stellite Hard Alloy Overlay, High-Purity PTFE, Devlon, Viton |
End Connection Styles | Flanged Ends Raised Face (RF/RTJ), Butt-Weld (BW), Socket Weld (SW) |
Applicable Fluid Profile | Corrosive Acids, Hydrocarbons, Natural Gas, High-Temp Steam, Water |
Working Temperature Scope | High Temperature Standard Capabilities |
2. Key Features and Engineered Advantages
1. Unified Premium Stainless Steel Casting Platform: Every valve housing in the series is cast from certified stainless steel alloys (SS304/SS316). This provides elite protection against aggressive pitting, line oxidation, and chemical degradation, completely eliminating the fluid contamination risks associated with carbon steel or iron.

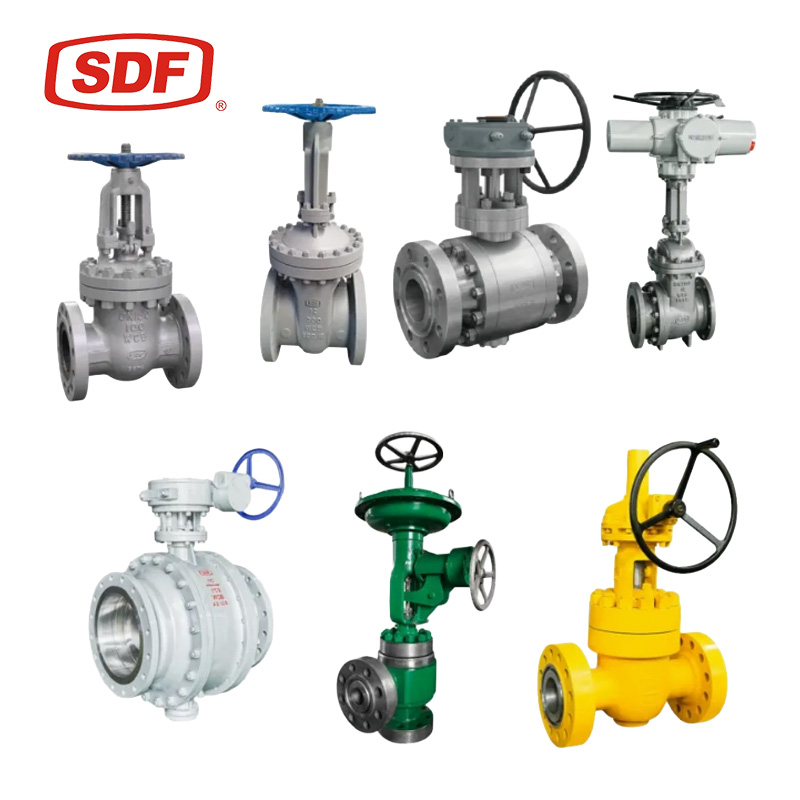

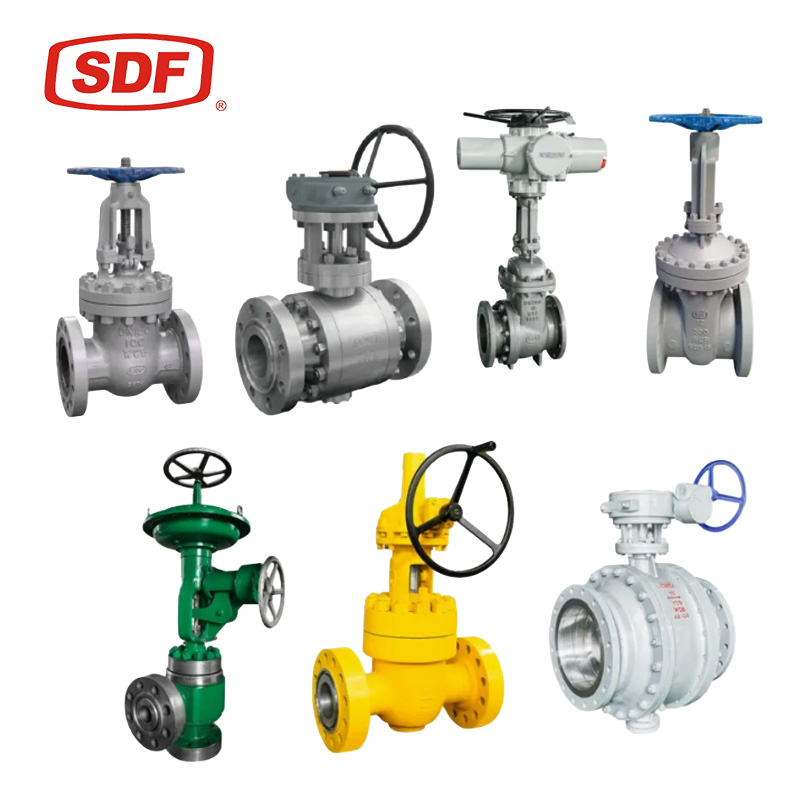

2. Diversified Drive and Automation Flexibility: The SDF series seamlessly adapts to plant automation strategies. As displayed in the product portfolio grid of "image_952425.jpg", the valves can be outfitted with low-friction manual handwheels, heavy-duty gearboxes for high-torque manual control, or top-mounted multi-spring actuators for automated remote processes.
3. Uncompromising Sealing Integrity Under Pressure: Each valve sub-type is precision-machined to ensure leak-proof isolation. Gate and globe variants utilize precision-lapped discs and Stellite hard-faced seats to prevent fluid wire-drawing under extreme differential pressures, ensuring tight shutoff across high-pressure utility grids.
4. Streamlined, Low-Resistance Internal Bowls: The internal flow paths of the parallel gate, globe, and check configurations are mathematically optimized to maximize flow capacity ($C_v$). This engineered geometry effectively minimizes fluid turbulence, reduces structural friction, and keeps localized line pressure drops exceptionally low.
5. Fully Tailored OEM Customization Support: Backed by robust engineering infrastructure, the SDF multi-valve platform supports deep technical customization. Buyers can request custom trim overlays, tailored bonnet configurations for cryogenic or superheated loops, and specialized flange drillings to meet exact project site footprints.
3. Typical Industry Applications
The SDF certified industrial stainless steel valve platform handles multi-loop isolation and control across severe process installations:
1. Chemical Processing & Acid Handling Plants: Main transport lines for nitric, sulfuric, or phosphoric acids, caustic soda distribution headers, and aggressive chemical dosing loops.
2. Petrochemical, Oil, & Gas Facilities: Hydrocarbon refinery processing manifolds, sour gas transmission grids, oil terminal loading arrays, and offshore platform fluid handling.
3. Power Generation Utilities & Boiler Circuits: High-temperature steam isolation circuits, turbine condensate manifolds, boiler feed water networks, and superheated utility lines.
4. Mining, Refining, & Pulp Bleaching: Caustic liquor wash lines in paper mills, acid leaching lines in mineral extraction operations, and industrial wastewater treatment grids.
4. Quality Assurance and Comprehensive Factory Compliance Testing
To guarantee elite reliability across critical pressure lines and ensure seamless plug-and-play field setup, every SDF stainless steel assembly undergoes rigid pre-shipment validation:
Hydrostatic Body and Shell Pressure Diagnostics: Every individual cast body is hydrostatically pressure-tested at $1.5 \times$ its nominal design pressure rating to guarantee material density and eliminate any internal micro-porosity defects.
API 598 Strict Seat Sealing Inspections: The primary fluid seals are verified via high-pressure liquid and low-pressure pneumatic closures to ensure absolute zero-leakage performance under nominal working conditions.
Dynamic Stroke and Kinematic Torque Tests: Every valve undergoes automated loop cycling to verify smooth stem movement, perfect disc-to-seat alignment, and precise positional accuracy before receiving its factory shipping tag.
