1. Comprehensive Technical Specifications

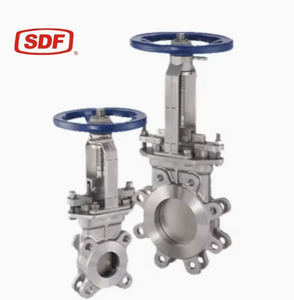

Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Knife Gate Valve / Slurry Isolation Valve |

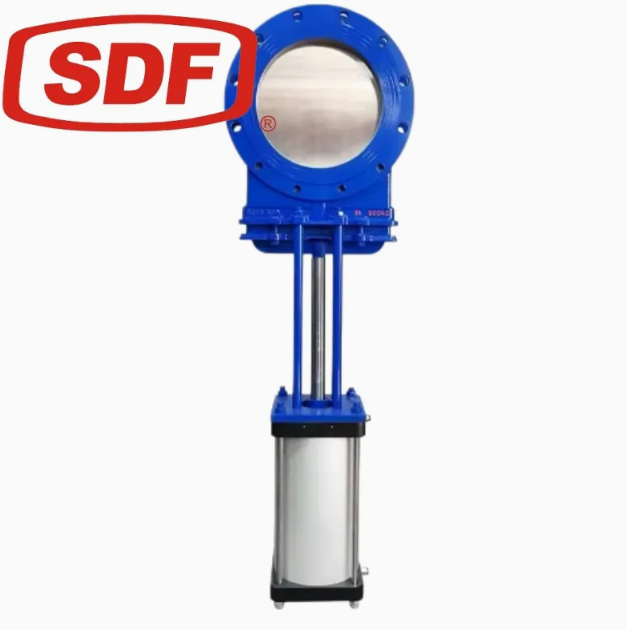

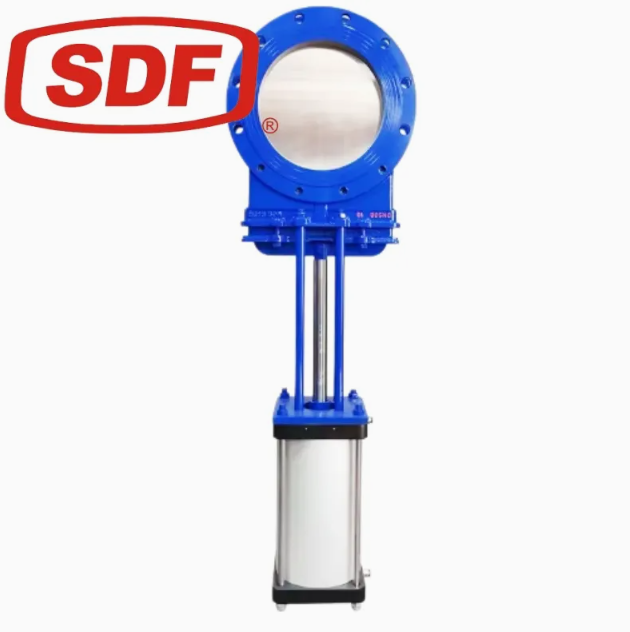

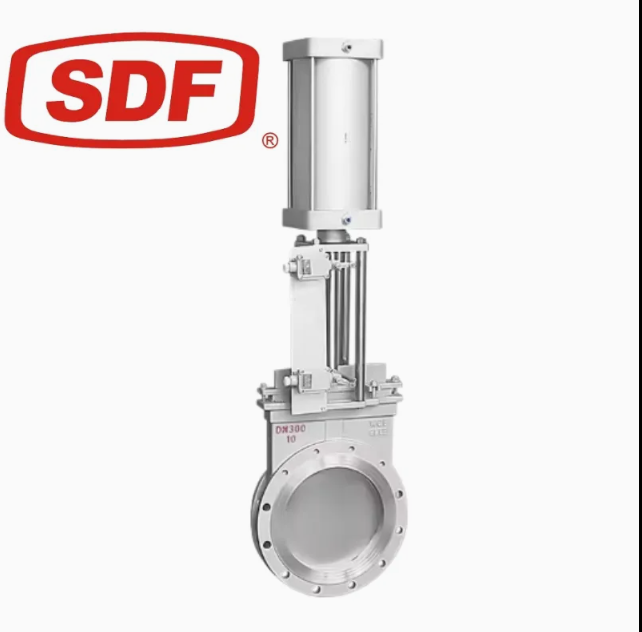

Actuation Mode | High-Thrust Pneumatic Cylinder (Double Acting / Spring Return) |
Design Standards | MSS SP-81, ASME B16.34, AWWA C520 |
Nominal Diameter Range | DN50 to DN1200 / 2 Inch to 48 Inch (Large-bore custom available) |
Pressure Rating Span | PN10, PN16 / ASME Class 150 |
Body Metallurgy | High-Strength Ductile Iron (GGG40/GGG50) |
Gate Blade Metallurgy | AISI 304 / AISI 316 / AISI 316L Stainless Steel |
Sealing Gasket Compound | EPDM, NBR, Viton, or PTFE (Resilient Sealing / Metal-to-Metal) |
End Connection Styles | Flanged Ends (RF), Lugged, or Space-Saving Wafer Type |
Applicable Media Profile | Wastewater, Slurry, Sewage, Pulp, Fly Ash, Water, Oil, Gas |
Working Temperature Scope | Standard Ambient / Ordinary Temperature |
Control Accessory Options | Solenoid Valves, Limit Switch Boxes, Proximity Sensors, Positioners |
2. Key Features and Engineered Advantages
1. High-Strength Ductile Iron Body Housing: Cast from premium ductile iron, the valve body offers significantly higher tensile strength and impact resistance than standard gray cast iron. This ensures structural durability against aggressive pipeline vibrations, bending moments, and heavy mechanical stresses common in industrial plants.
2. Straight-Through Full-Bore Architecture: When fully opened, the stainless steel knife blade retracts completely out of the pipeline flow stream. This unobstructed layout ensures minimal flow resistance, reduces pressure drop ($\Delta P$), and completely eliminates baseline sediment pockets where solids could accumulate and block closure.
3. Self-Cleaning Beveled Blade Design: The bottom edge of the high-purity stainless steel gate is precision-machined into a sharp, beveled knife wedge. During the downward closing stroke, this blade cuts directly through thick sludge, rags, or scale deposits, ensuring a positive seal against the seat matrix.
4. Dependable Bi-Directional Tight Sealing: Unlike standard uni-directional knife valves that leak when backpressure occurs, the SDF series features an advanced internal seating design that ensures tight, standard-compliant bi-directional sealing, preventing fluid bypass regardless of process flow direction.
5. High-Thrust Automated Pneumatic Actuator: Powered by standard factory compressed air, the heavy-wall pneumatic cylinder provides rapid valve cycling and excellent closing thrust. This remote automation prevents the operator strain associated with large manual wheels and enables automatic safety isolation during plant emergencies.
3. Typical Industry Applications
The SDF pneumatic flanged knife gate valve serves as a reliable automation link across severe-service waste and process lines:
1. Municipal & Industrial Wastewater Plants: Primary grit chamber inlets, activated sewage sludge transfer lines, thickener drain loops, and effluent discharge lines.
2. Mining & Mineral Beneficiation: Fine tailings disposal lines, hydrocyclone feed grids, coal washing media transport, and abrasive mineral ore slurry pipelines.
3. Pulp & Paper Manufacturing: High-density wood pulp stock lines, chemical recycling systems, waste paper processing lines, and bleaching towers.
4. Power Plant Ash Management: Dry fly ash transport lines, bottom ash sluice grids, and limestone slurry injection loops for flue gas desulfurization systems.
4. Quality Assurance and Factory Compliance Testing
Every automated assembly leaves the SDF factory only after passing three rigorous layers of mechanical and physical validation:
Body Structural Shell Verification: The cast ductile iron body housing passes a hydrostatic pressure shell test at $1.5 \times$ its maximum design working pressure rating to verify zero structural porosity and flawless material integrity.
Seat Leakage Calibration: The internal sealing perimeter passes low-pressure pneumatic and nominal hydrostatic seat leakage testing to certify true tight isolation under field pressures.
Actuator Dynamic Alignment Diagnostics: The complete valve-and-cylinder package undergoes continuous cycle verification testing to optimize travel limits, confirm smooth stem movement, and ensure immediate plug-and-play installation upon arrival at your job site.
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
