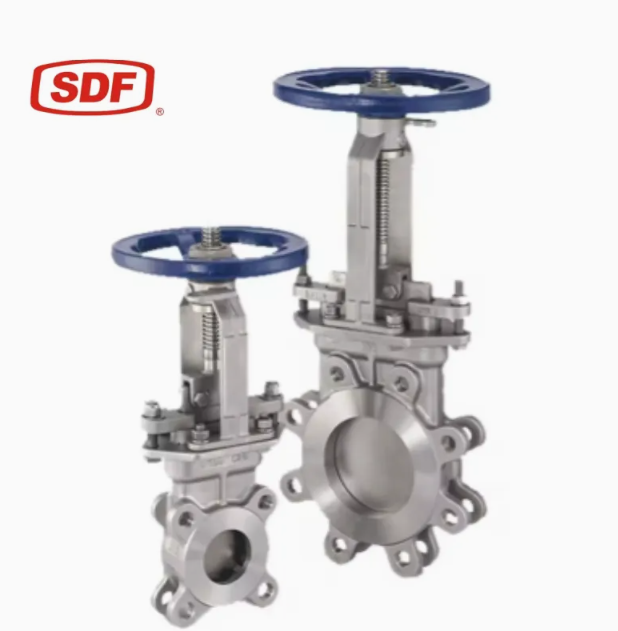

Comprehensive Technical Specifications
System Parameter / Component | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Pneumatic & Electric Knife Gate Valve / Slurry Gate Valve |
Body Structural Design | Wafer / Flanged Lugged Body with Compact Face-to-Face Profile |
Nominal Size Range | DN50 to DN1200 / 2 Inch to 48 Inch (Large-bore custom metrics available) |
Pressure Rating Span | PN10, PN16 / ASME Class 150 (Intermediate slurry low-pressure ratings) |
Body Material Options | ASTM A351 CF8, CF8M (Stainless Steel) / Ductile Iron (GGG40/50) |
Gate Blade Metallurgy | AISI 304, AISI 316 Stainless Steel (Precision Ground & Polished) |
Seat / Sealing Element | Resilient EPDM, NBR, Viton, or Hardened Metal-to-Metal Seat |
Pneumatic Drive Option | Heavy-Duty Double-Acting Air Cylinder (Aluminium or Stainless Tube) |
Electric Drive Option | Intelligent Multi-Turn Motorized Actuator with Manual Override |
Ancillary Controls Package | Solenoid Valves, Limit Switches, Positioners, Air Filter Regulators |
Design Standards | MSS SP-81, ASME B16.34, JB/T 8691 |
Inspection & Verification | MSS SP-81 Pressure Test, API 598 Shell and Seat Tightness |
Key Features and Engineered Advantages
Positive Blade Shearing Mechanism: The bottom edge of the gate blade is machined into a clean, beveled knife contour. As the actuator pushes the stem downward, the blade acts as a guillotine, effortlessly cutting through compacted solids, stringy wood pulp, or heavy wastewater sludge that would normally clog or stall a traditional valve design.
Cavity-Free Flow Path Architecture: The interior valve port features a smooth, straight-through bore design that contains no internal pockets or bottom recesses where solids can accumulate. When fully opened, the gate withdraws entirely from the flow stream, ensuring a low pressure drop and preventing line clogging or abrasive accumulation.

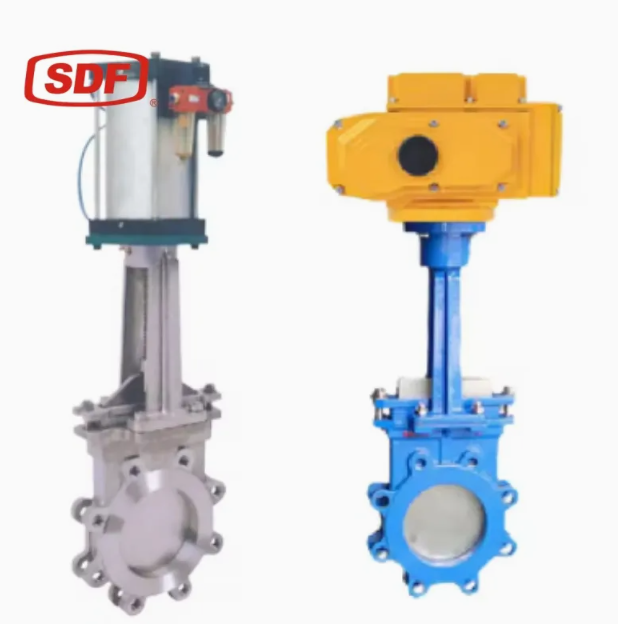

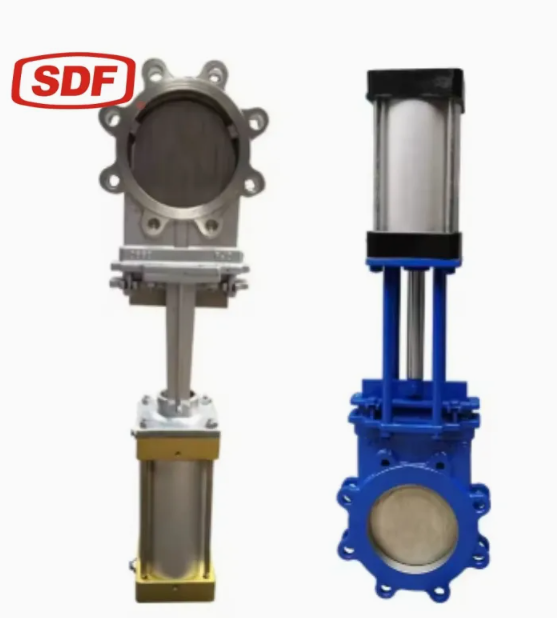

Dual Automation Modalities: As shown in the technical showcase within "image_bb2484.png", the SDF series supports versatile factory-integrated automation packages:

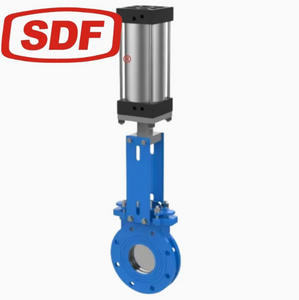

Pneumatic Cylinder Drives: Ideal for rapid-acting, high-cycle on-off isolation tasks, fully kitted out with air preparation and solenoid accessories.
Electric Motorized Drives: Designed for heavy-duty modulation or integrated fieldbus plant networks, allowing remote tracking via centralized control rooms.
Redundant Packing and Sealing Systems: The top bonnet packing gland employs premium braided PTFE or synthetic fiber arrangements reinforced by a heavy-duty adjustable gland flange. This structure compresses uniformly against the polished sides of the blade, ensuring absolute external seal integrity and preventing media from bleeding up into the yoke or actuator assembly.
Space-Saving Rugged Body Construction: Built with a slim, compact face-to-face wafer lug profile, this valve occupies a minimal structural footprint within pipe racks. This lightweight design allows for easier handling and lower overall structural stress on plastic, fiberglass, or thin-walled stainless steel pipelines.
Typical Industry Applications
The SDF automated knife gate valve is heavily relied upon to manage thick, solid-rich process lines across diverse heavy infrastructure setups:
Wastewater & Sewage Treatment: Primary sludge handling, dewatered sludge lines, grit chamber isolation, and active sewage bypass networks.
Pulp & Paper Processing: High-density pulp stock lines, wood chip handling, black liquor recovery loops, and bleaching process lines.
Mining & Mineral Beneficiation: Iron ore and copper tailing lines, coal washing slurries, cyclone feed lines, and abrasive hydrocyclone manifolds.
Bulk Materials Handling: Gravity-fed dry powder chutes, fly ash conveying, silo discharge systems, and cement slurry management.
Quality Assurance and Factory Compliance Testing
Operating within slurry networks requires reliable structural verification. SDF verifies each automated assembly through strict testing tracking:
MSS SP-81 Hydrostatic Testing: Every knife gate undergoes a mandatory pressure shell check and a seat closure test to verify zero external leakage and compliant shutoff boundaries under nominal working pressures.
Actuator Stroke Synchronization: Automated units pass multi-cycle functional testing loops to verify that limit switches, position feedback sensors, and mechanical stop limits are calibrated perfectly, ensuring immediate plug-and-play field setup.
Blade Finish Optimization: Gate plates are subjected to high-grade polishing finishes to reduce friction coefficients against the resilient seats, ensuring exceptionally smooth valve cycling and maximum seat life.
