2. Comprehensive Technical Specifications
表格
Component & System Parameter | Standard Industrial Specification & Field Options |
|---|
Brand / Manufacturer | SDF |

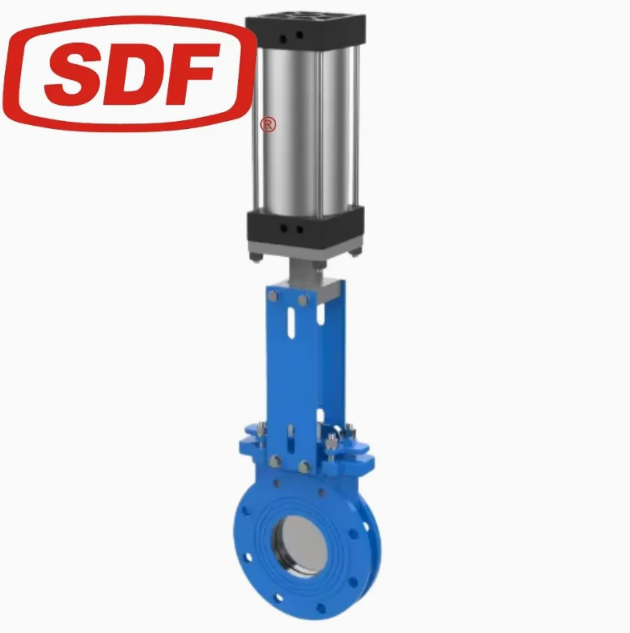

Valve Classification | Knife Gate Valve / Slurry Isolation Valve |
Actuation Mode | High-Thrust Pneumatic Cylinder (Double Acting / Spring Return) |
Design Standards | MSS SP-81, ASME B16.34, AWWA C520 |
Nominal Diameter Range | DN50 to DN1200 / 2 Inch to 48 Inch (Large-bore custom available) |
Pressure Rating Span | PN10, PN16 / ASME Class 150 |
Body Metallurgy | High-Strength Ductile Iron (GGG40/GGG50) |
Gate Blade Metallurgy | AISI 304 / AISI 316 / AISI 316L Stainless Steel |
Sealing Gasket Compound | EPDM, NBR, Viton, or PTFE (Resilient Sealing / Metal-to-Metal) |
End Connection Styles | Flanged Ends (RF), Lugged, or Space-Saving Wafer Type |
Applicable Media Profile | Wastewater, Slurry, Sewage, Pulp, Fly Ash, Water, Oil, Gas |
Working Temperature Scope | Standard Ambient / Ordinary Temperature |
Control Accessory Options | Solenoid Valves, Limit Switch Boxes, Proximity Sensors, Positioners |
3. Key Features and Engineered Advantages
1. Reinforced Ductile Iron Body Housing: Cast from premium nodular iron grades, the valve body delivers significantly higher tensile strength and impact resistance than conventional gray iron. This ensures structural durability against aggressive pipeline vibrations, bending moments, and heavy mechanical stresses encountered in industrial plants.
2. Unobstructed Full-Port Flow Path: When fully opened, the stainless steel gate blade withdraws completely clear of the flow stream. This open-barrel design ensures minimal flow resistance, reduces pressure loss, and eliminates sediment pockets where solids accumulate and impede closure.
3. Self-Cleaning Sharp-Edge Gate: The bottom edge of the high-grade stainless steel gate is machined to a keen, beveled knife profile. During the downward closing stroke, this blade shears through dense sludge, fibrous rags, or hardened scale deposits, ensuring positive seal engagement with the seat surface.
4. True Bi-Directional Bubble-Tight Sealing: Unlike ordinary single-direction knife gates that leak under reverse pressure, the SDF series incorporates an advanced internal seat design that maintains tight, standards-compliant sealing in both flow directions, preventing fluid bypass regardless of pressure orientation.
5. High-Thrust Pneumatic Power Unit: Energized by standard facility compressed air, the thick-walled pneumatic cylinder delivers rapid valve cycling and powerful closing force. This remote automation eliminates operator fatigue from large manual wheels and enables automatic emergency isolation during plant upset conditions.
4. Typical Industry Applications
The SDF pneumatic flanged knife gate valve functions as a dependable automation element across severe-service waste and process lines:
1. Municipal & Industrial Wastewater Treatment: Primary grit chamber inlets, activated sludge transfer lines, thickener drain loops, and final effluent discharge points.
2. Mining & Ore Processing: Fine tailings disposal lines, hydrocyclone feed manifolds, coal washing media transport, and abrasive mineral slurry pipelines.
3. Pulp & Paper Production: High-consistency wood pulp stock lines, chemical recovery systems, recycled fiber processing, and bleach tower isolation.
4. Thermal Power Generation: Dry fly ash conveying lines, bottom ash sluice systems, and limestone slurry injection circuits for flue gas scrubbing.
5. Quality Assurance and Factory Compliance Testing
Every automated valve assembly departs the SDF facility only after satisfying three rigorous tiers of mechanical and physical validation:
1. Body Structural Shell Verification: The cast ductile iron housing undergoes hydrostatic pressure testing at 1.5 times its maximum design working pressure rating, confirming zero structural porosity and flawless material integrity.
2. Seat Leakage Calibration: The internal sealing perimeter passes low-pressure pneumatic and nominal hydrostatic seat leakage testing to certify genuine tight isolation under actual field pressures.
3. Actuator Dynamic Alignment Diagnostics: The complete valve-and-cylinder assembly undergoes continuous cycle verification testing to optimize travel limits, confirm smooth stem movement, and ensure immediate plug-and-play installation upon delivery to site.
FAQ
Q1: How quickly can I receive a quotation? We generally issue quotations within 4 hours of inquiry receipt. Rush requests receive expedited handling.
Q2: Do you accommodate custom valve requirements? Yes. We provide OEM and bespoke valve solutions based on customer drawings, performance specifications, and special operating conditions.
Q3: What is your standard manufacturing lead time? Typically 15 working days following order confirmation, subject to product complexity and order volume.
Q4: Which industry standards do your valves conform to? Our products meet GB, ANSI, API, JIS, DIN, BS, and other recognized international standards.
Q5: What are your available pressure, size, and temperature ranges? Pressure: Class 150-3500. Size: DN10-DN3000. Temperature: -196°C to 610°C.
Q6: What quality certifications do you hold? We maintain ISO 9001 and CE certification, with third-party inspection and test reports available upon request.
Q7: What delivery and payment terms do you offer? Delivery: EXW, FOB, CFR, CIF. Payment: T/T (30% deposit + 70% balance), L/C, and other mutually agreed terms.
Q8: Do you provide aftermarket technical support and spare parts? Yes. We offer 24/7 technical assistance and maintain inventory of spare and wear parts for long-term service support.
