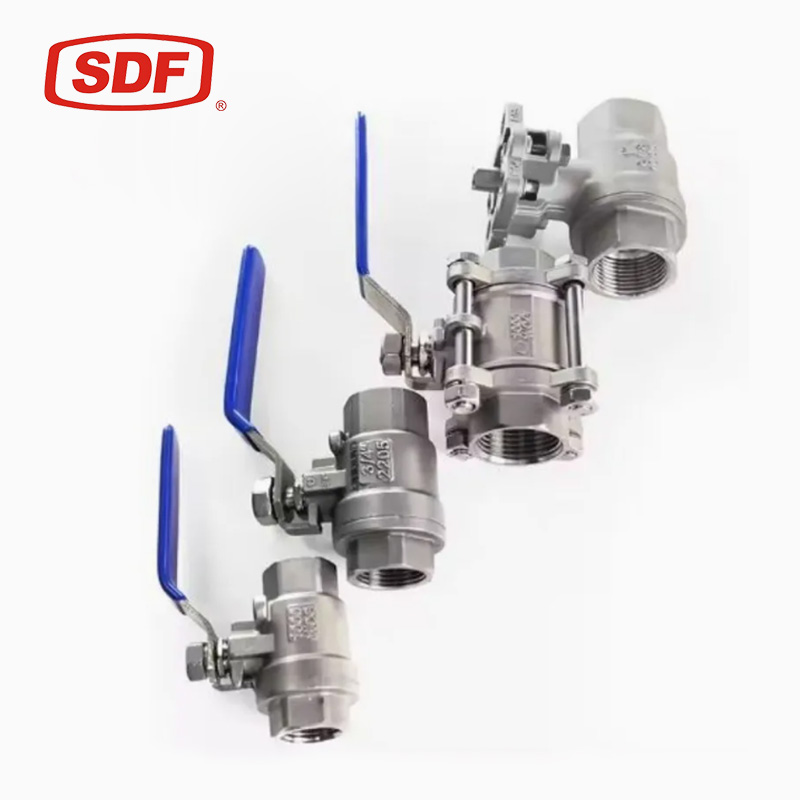

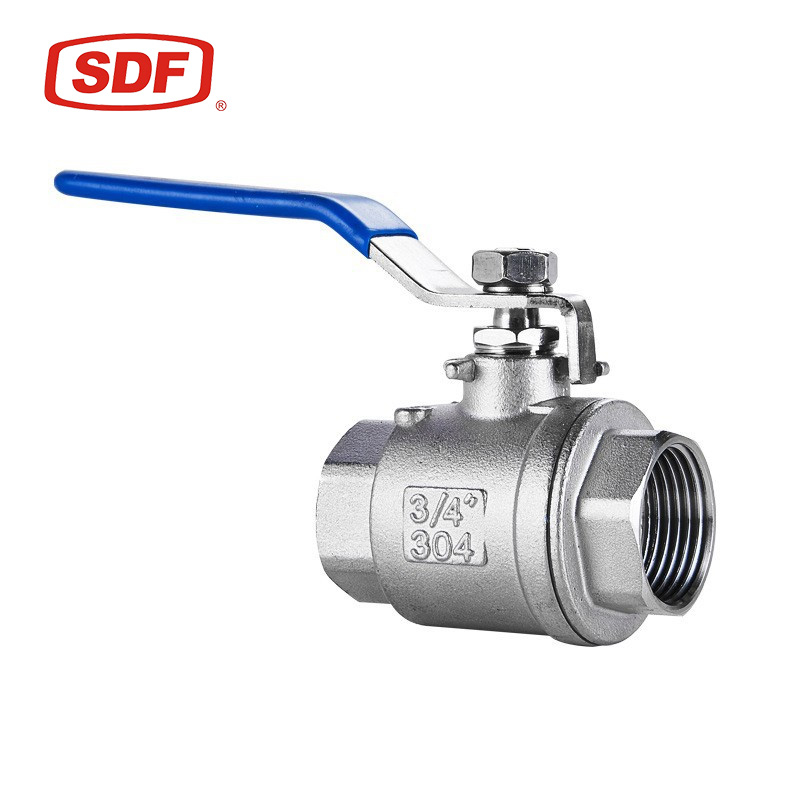

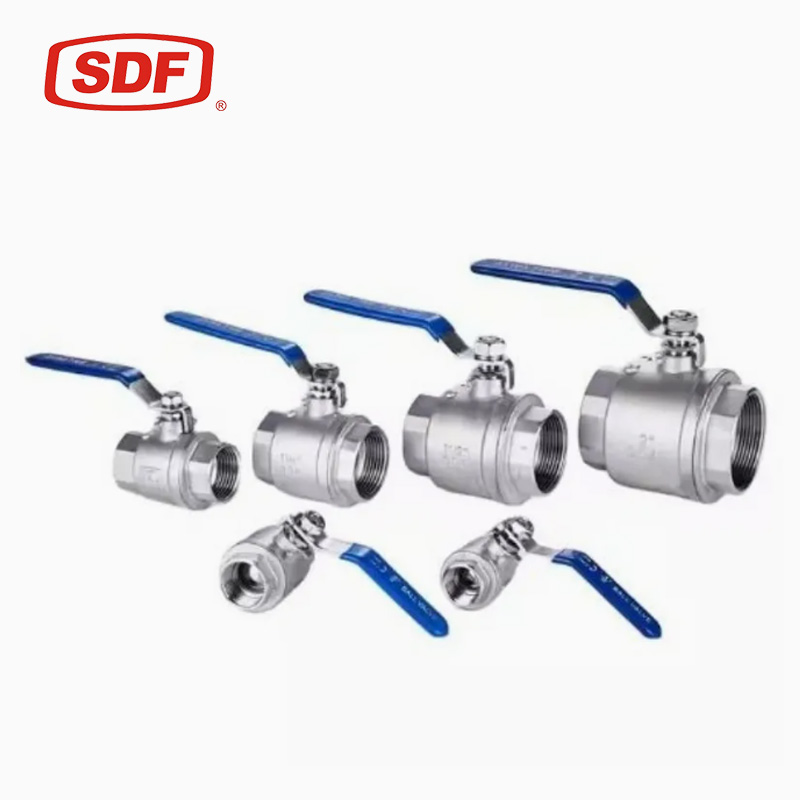

SDF Industrial Stainless Steel 2PC Ball Valve, 1/4" to 4" NPT BSP Threaded Floating Ball Valve for Water Control

1. Comprehensive Technical Specifications

2. Key Features and Engineered Advantages

• 1. High-Precision Investment Cast Body: The valve components are cast utilizing high-fidelity investment molding processes with premium stainless steel. This method ensures uniform wall thicknesses, excellent dimensional tracking, and smooth internal waterways that inhibit particle accumulation.

• 2. Compact and Economical 2-Piece Layout: The two-piece split body design features a generous full-bore diameter that provides an uninterrupted flow path. This structural format maximizes system flow capacity while remaining significantly lighter and more cost-effective than flanged alternatives.

• 3. Dynamic Floating Ball Sealing Configuration: The highly polished stainless steel ball floats slightly between two resilient PTFE seats. When closed, upstream hydraulic force presses the ball into the downstream seat ring, creating a bubble-tight, zero-leakage barrier under low and high pressure conditions.

• 4. Anti-Blowout Stem & Heavy-Duty Packing: The internal valve stem is inserted from the inside of the casing, creating a bottom shoulder that prevents stem blowout even during sudden pressure spikes. The stem assembly is reinforced with adjustable PTFE packing glands to eliminate external stem leakage.

• 5. Heavy-Duty Handle with Locking Safety Device: Manual configurations feature a rugged stainless steel lever handle encased in a protective blue vinyl grip. The handle setup includes an integrated travel stop and can be optioned with a physical padlock latch to prevent unauthorized operator adjustments.

3. Typical Industry Applications

The SDF threaded industrial stainless steel ball valve handles dependable fluid switching across a wide array of utility loops:

• 1. Industrial Water Treatment & Distribution: Plant filtration utility racks, chemical dosing lines, cooling water intake circuits, and reverse osmosis (RO) system drain arrays.

• 2. Factory Automation & OEM Machinery Skids: Integrated fluid control blocks for manufacturing equipment, washing machinery, pneumatic air distribution loops, and specialized printing presses.

• 3. Commercial HVAC & Plumbing Utilities: Chilled and hot water booster lines, building water service mains, boiler room water auxiliary networks, and air conditioning condensate loops.

• 4. Agricultural Irrigation & Civil Engineering: High-pressure spray grids, fluid fertilizer mixing blocks, commercial greenhouse piping networks, and regional water supply manifolds.

4. Quality Assurance and Precision Pre-Shipment Compliance Testing

To guarantee elite reliability across continuous high-volume production lines and ensure true plug-and-play installation, every single SDF threaded ball valve must clear strict factory validation:

1. Pneumatic Shell Structural Diagnostics: Every cast pressure housing undergoes a continuous underwater pneumatic shell test at full rated design pressure to verify casting density and eliminate any micro-porosity issues.

2. Strict Low-Pressure Gas Seat Sealing Inspection: The primary fluid seals undergo high-sensitivity low-pressure air seat checks to ensure absolute zero-bubble closure under nominal working conditions.

3. Thread Alignment and Gauge Profiling: All female NPT and BSP threads are checked using precision calibrated thread plug gauges to guarantee perfect pitch compliance and hassle-free mechanical alignment on the job site.
