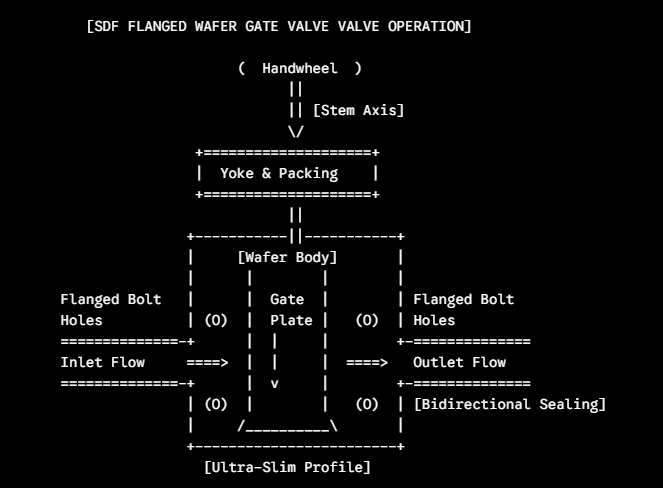

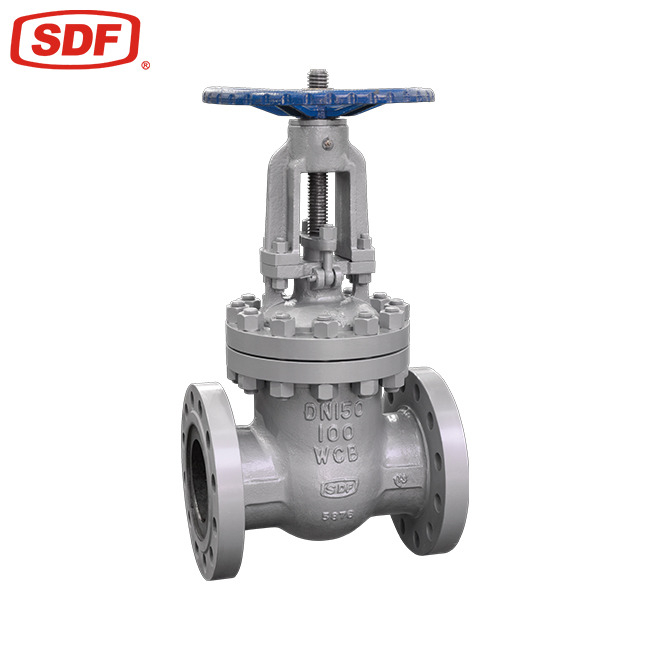

| The SDF High Performance Flanged Wafer Gate Valve represents a revolutionary leap forward in fluid containment technology, specifically developed to deliver space-saving, bubble-tight isolation within pipelines carrying high-density fluids, viscous slurries, or media with high suspended solids. Traditional heavy-duty flanged gate valves feature thick, bulky cast iron or steel bodies with deep internal cavities beneath the seats. In demanding processes, these body cavities act as "settling pockets" where media residues, fibers, crystals, and pipe scale gradually pile up. Over time, this debris accumulation compacts, preventing the gate plate from fully extending to its bottom travel limit, which results in persistent through-seat leakage, mechanical jamming, and extensive maintenance costs. The SDF High Performance Wafer series completely eliminates this design vulnerability by introducing an ultra-slim, compact body layout. It relies on a precision-ground, sharp-edged stainless steel gate plate that acts like a knife to slice through thick fluids, highly viscous media, and compacted solid deposits. As the handwheel turns, the non-rising or rising stem drives the gate plate straight down through the internal flow stream. The lower edge of the gate is carefully machined into a specialized wedge profile, enabling it to push away solid particles or fibrous fragments right before it presses into the seat ring. This self-cleaning mechanical motion guarantees a positive, bubble-tight seal every single time, even in pipelines where standard gate valves fail due to clogging. | |||||||||
The valve body is cast from high-grade carbon steel or premium stainless steel and finished with a durable, anti-corrosive epoxy coating. This robust construction combines excellent structural durability with a sleek, lightweight profile. Unlike conventional wafer valves that are simply squeezed between two pipe flanges using extra-long bolts, this high-performance model includes fully integrated reinforced flange holes cast directly into its face. These threaded and through-bolt holes allow the valve to bolt securely and directly to standard pipe flanges. This design distributes pipeline mechanical stresses evenly across the joint, prevents structural shifting caused by line vibration, and allows the valve to be safely deployed in dead-end service pipelines.
Inside the valve, the seating area can be fitted with a resilient elastomer ring (such as EPDM or Viton) for bubble-tight low-temperature liquid service, or configured with a rugged metal-to-metal seat for abrasive, high-temperature slurries. The stem packing area features a heavy-duty bolted gland follower that applies uniform radial compression against die-formed flexible graphite or PTFE packing rings. This setup forms an unyielding boundary against ambient leakage. It offers modern processing plants a reliable, low-maintenance, and ultra-compact valve option that significantly increases system availability and keeps lines running smoothly.
Ultra-Slim, Space-Saving Footprint: The thin wafer design dramatically shortens the face-to-face installation width compared to bulky conventional gate valves. This reduces total pipeline weight, lowers structural support costs, and makes it ideal for tight modular process skids.
Integrated Flange Bolt Hole Reinforcement: Features cast-in flange holes that align perfectly with adjacent piping. This design simplifies installation, prevents pipe misalignment under heavy thermal expansion, and allows for safe downstream pipeline maintenance.
Sharp-Edged Self-Cleaning Gate: The precision-ground stainless steel gate easily shears through thick fluids, pulp, and packed particulates, ensuring reliable operation and preventing the valve from jamming.
Bi-Directional High-Integrity Sealing: Engineered to handle full pressure differentials from either flow direction. This provides exceptional operational flexibility across complex layout loops.
Technical Parameter | Standard Industrial Specification | Engineering Upgrades / Options |
Nominal Size Range | DN50 to DN600 | Large-bore custom sizes up to DN1200 |
Pressure Ratings | PN10, PN16 / ASME Class 150 | High-pressure configurations up to PN25 |
Body Shell Material | Carbon Steel (WCB) / Stainless Steel (CF8M) | Duplex Stainless Steel / Hastelloy |
Gate Plate Metallurgy | Heavy-Gauge SS304 / SS316 | Hard-Chrome plated or Stellite treated |
Seat Configurations | Resilient EPDM / Viton / PTFE | Hardened Metal-to-Metal (Stellite Overlay) |
End Connections | Flanged Wafer Pattern (Threaded and Through-holes) | Full Flanged Face / Lug Pattern |
Flange Drill Standards | ANSI B16.5 Class 150 / EN 1092-1 PN10-PN16 | JIS 10K / AS 2129 Table E |
Actuation Methods | Manual Handwheel with Non-Rising Stem | Pneumatic Cylinder / Electric Motorized Actuator |
The SDF Flanged Wafer Gate Valve excels in challenging environments where standard full-body gate or ball valves suffer from constant sediment build-up:
Pulp and Paper Processing Lines: Efficiently cuts through and isolates heavy stock pulp fibers, waste-paper slurries, and bleaching chemicals.
Wastewater Treatment & Sewage Infrastructure: Perfect for handling raw sewage sludge, grit chamber discharges, thick scum layers, and municipal digestive processes.
Mining Operations & Tailings Management: Manages high-density mineral ores, coal washing slurries, and abrasive sand discharges when fitted with hardened metal seats.
Chemical & Bulk Solid Handling: Controls the gravity-fed flow of dry powders, granular chemical materials, and thick, sticky manufacturing polymers.
Carefully evaluate your fluid properties before finalizing your selection. For clear liquids, gases, and fine slurries below 120 degrees C, select a resilient seat (EPDM or Viton) to achieve true bubble-tight, zero-leakage performance. However, if your line carries highly abrasive mineral ores, sharp crystals, or operates at high temperatures, always opt for a hardened metal-to-metal seat. While metal seats may allow a small, acceptable trace leakage rate under international standards (such as MSS SP-81), they provide an exponentially longer operating life under severe mechanical wear.
Because the wafer body contains integrated threaded blind holes around the chest area, you must check your bolt lengths before installation. Standard long studs used for regular wafer valves will bottom out inside these blind holes before compressing the gasket. Ensure you use the exact bolt lengths specified in the manual, and lubricate all threads to prevent galling on stainless steel models.
While this valve features a compact, lightweight body, adding a heavy pneumatic cylinder or a large electric motor actuator creates a top-heavy assembly. If you install an automated valve horizontally or at a steep angle, you must place an adjustable structural pipe hanger or support cradle underneath the actuator housing. Leaving heavy actuators unsupported puts a continuous bending load on the valve neck, which can cause stem binding, accelerated packing wear, and uneven gate alignment.
Although the SDF valve is engineered for bidirectional sealing, it performs best when installed with its primary sealing seat facing downstream. This setup allows upstream line pressure to gently push the gate plate directly into the seat ring when closed, using the fluid's natural pressure to optimize seal tightness. Additionally, always flush the pipeline thoroughly before startup to clear out large welding slag or chunks of construction debris that could damage the seat faces during the initial commissioning cycles.
Parameter | Specification |
Connection method | Flange |
Material | Carbon steel, stainless steel, gray cast iron |
Medium | Water, steam, oil products |
Orifice (Size) | DN50 to DN500 |
Pressure | PN16 to PN100 |
Standard | GB |
Temperature | Less than or equal to 425 degrees C |
1. When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2. Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3. What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4. What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5. What pressure, size, and temperature ranges can you supply?
Pressure: Class 150 to Class 3500
Size: DN10 to DN3000
Temperature: -196 degrees C to 610 degrees C
6. What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7. What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8. Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
