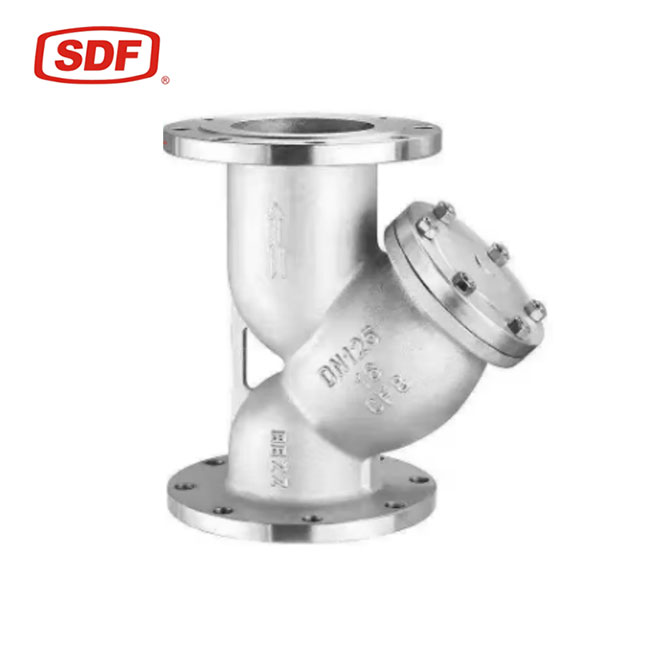

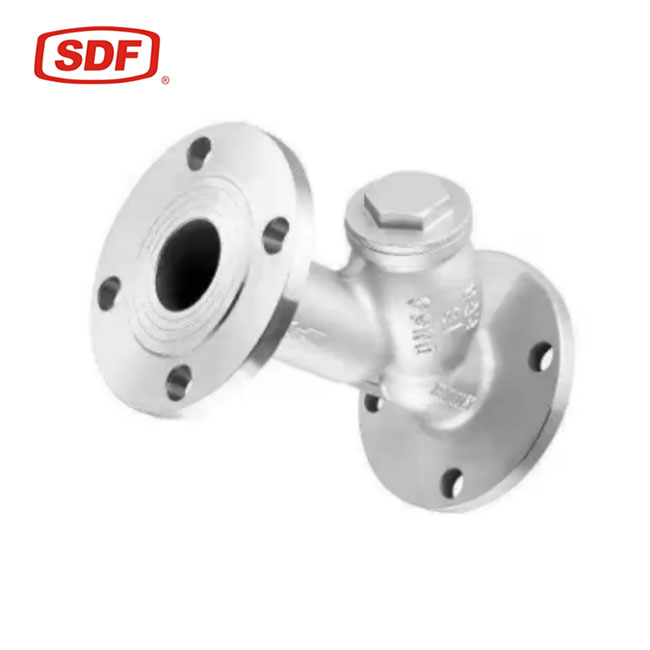

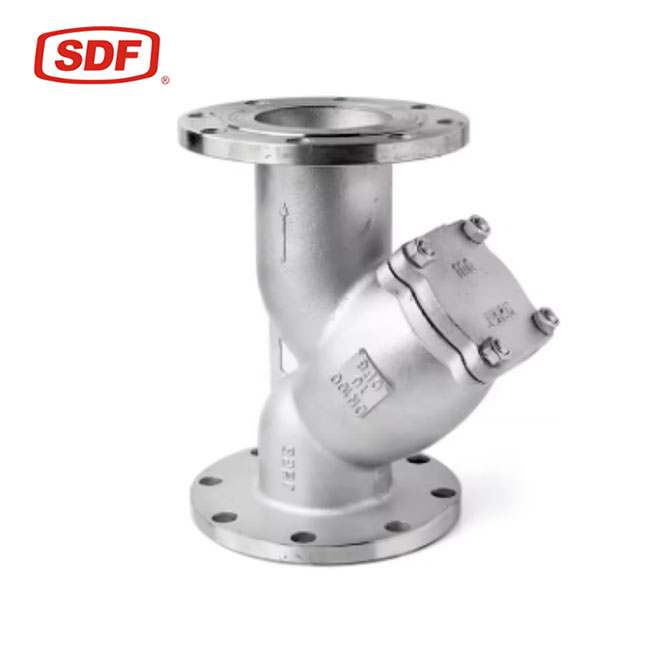

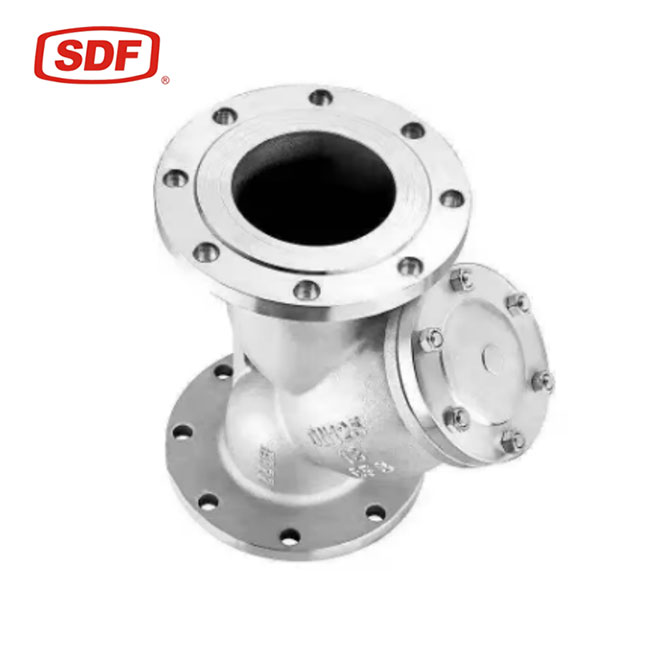

Core Advantages: Engineering Highlights
Sacrificial Downstream Safeguarding: By trapping aggressive macro-particulates before they can enter close-tolerance machinery, the strainer radically extends the Mean Time Between Failures (MTBF) of your entire mechanical asset catalog.
Superior Energy Efficiency (Low Head Loss): The spacious internal geometry and meticulously calculated screen open-area ensure that the initial clean pressure drop remains exceptionally low, maintaining optimum system hydraulics.
Rugged Heavy-Wall Castings: Engineered with thick pressure-retaining walls, the strainer easily handles high-pressure shocks, structural pipe bending loads, and thermal shock cycles without body distortion or micro-cracking.
Rapid Online Blowdown Cleaning: The dedicated drain port on the bolted bonnet allows for instantaneous, hassle-free flushing of the filtration basket, drastically decreasing manual maintenance downtime.
Strategic Application & Working Conditions
The heavy-duty nature of this flanged Y strainer makes it a versatile protective asset across a wide spectrum of industrial systems:
Industrial Sector | Primary Installation Point | Fluid Media / Environment |
Power & Heating | Boiler Feedwater Systems, Steam Lines | High-velocity saturated/superheated steam, hot water |
Water Utilities | Pump Suction Intakes, Cooling Tower Inlets | Raw water, circulating cooling water with suspended solids |
Petrochemical | Crude Oil Transport, Refinery Process Lines | Hydrocarbons, heavy oils, mildly corrosive chemicals |
HVAC / Commercial | Chiller Plant Headers, Condenser Water Loops | Glycol mixes, treated closed-loop water systems |
Marine Engineering | Shipboard Sea Water Cooling, Ballast Lines | Corrosive marine environments, sea water filtration |
Technical Selection & Installation Guidance
To ensure peak filtration efficiency and avoid unnecessary system head losses, use the following engineering selection principles:

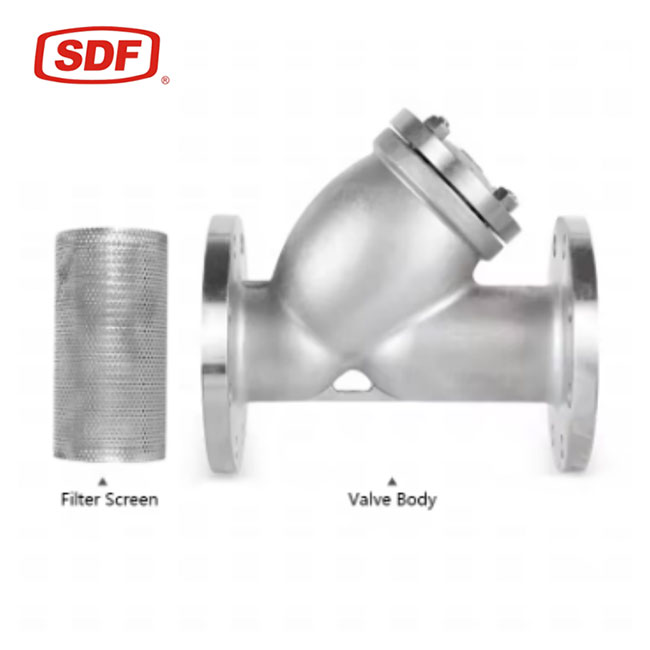

1. Mesh vs. Perforation Selection (The Micron Balance)
Selecting the correct opening size for the internal screen is the most critical step.
Perforated Sheets (e.g., 1mm to 3mm holes): Best utilized for coarse strainers capturing large debris on initial system start-up, or for high-viscosity fluids like heavy oils.
Fine Mesh Screens (e.g., 20 to 200 mesh): Used for fine straining in steam or water lines to protect precise instrumentation. Avoid over-specifying a mesh that is too fine for the process; an excessively tight mesh clogs rapidly, causing the pressure drop to spike and requiring non-stop maintenance.
2. Velocity and Sizing Parameters
Never simply size a Y strainer based on the existing pipeline diameter alone. Always cross-reference the system’s maximum expected volumetric flow rate against the strainer’s manufacturer-rated flow coefficient ($C_v$ or $K_v$). Ensure that the calculated pressure drop across the strainer when 50% clogged remains well within the safety parameters of your downstream pump's Net Positive Suction Head Available (NPSHA).

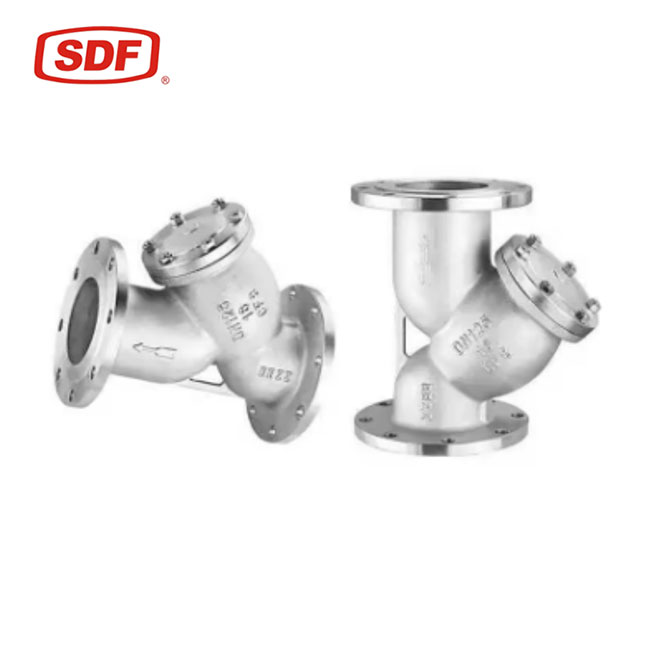

3. Installation Orientation Matters
Horizontal Piping: The Y-leg must point downward. This positions the screen basket as a gravity-assisted pocket that traps solids and prevents them from spilling back into the main stream during maintenance removals.
Vertical Piping: The strainer can only be installed in vertical lines where the fluid flow is downward. If installed in an upward-flowing line, the trapped solids will fall back down into the piping when the flow stops, completely defeating the purpose of the collection pocket.
4. Differential Pressure Monitoring
For optimal maintenance planning, it is highly recommended to install pressure gauges both upstream and downstream of the Y strainer. By tracking the differential pressure ($\Delta P$), operators can precisely identify when the internal screen basket is becoming choked with debris and schedule a blowdown flush before flow starvation occurs.
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
