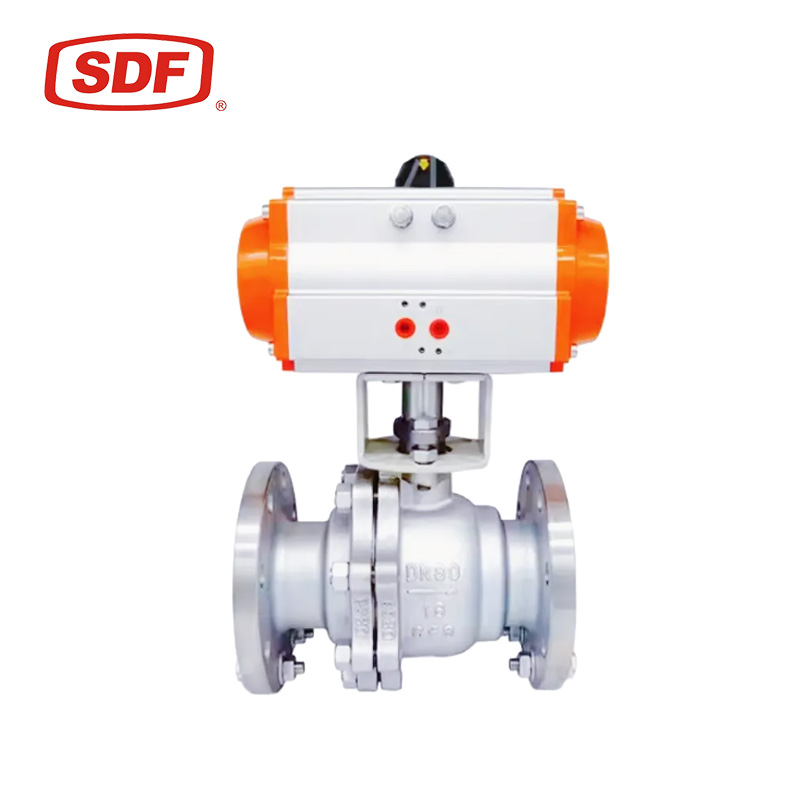

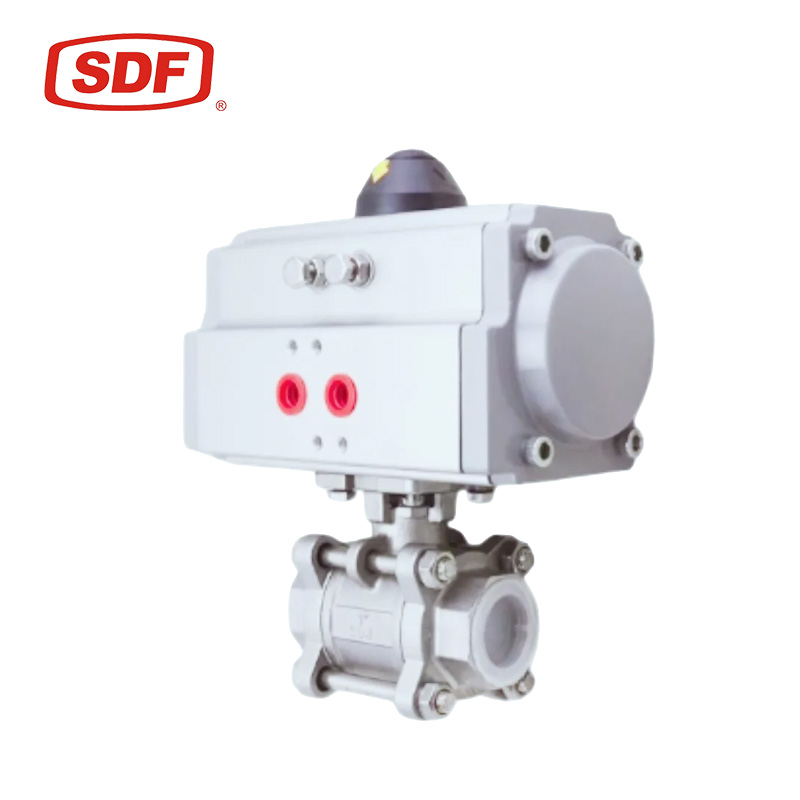

2. Technical Specifications Overview
Technical Parameter | Standard Specification & Options |
Brand / Manufacturer | SDF |
Valve Category | Control Ball Valve / Pneumatic Actuated Floating Ball Valve |
Nominal Diameter | DN100 (4-Inch Port) |
Casting Markings | DN66/16 Pressure Rating Indications |
Actuation Type | High-Torque Pneumatic Actuator (Double-Acting or Spring-Return) |
Design Compliance | ASME, API 6D, ASME B16.34, API 608 |
Nominal Pressure | PN50 / Class 300 Equivalent |
Body & Bonnet Material | Cast CF8 Stainless Steel (ASTM A351 SS304) / Optional CF8M (SS316) |
Ball & Internal Trim | High-Polish SS304 / SS316 (Mirror Finish) |
End Connections | Raised Face Flanged Ends (RF per ASME B16.5 / EN 1092-1) |
Seat & Seal Materials | High-Temp Devlon, PEEK, or Reinforced PTFE (RPTFE) |
Flow Profile | Equal Percentage Throttling / Custom V-Port Profile |
Temperature Rating | Engineered for High-Temperature, Severe-Service Duty |
Certifications | GS, RoHS, CE, ISO 9001 |
B2B / OEM Support | Custom Trims, Mounting Interfaces, and Accessory Packages Available |
3. Key Engineering Highlights & Advantages
1.
Heavy-Duty Cast CF8 Housing: Constructed with a robust two-piece split-body design in CF8 stainless steel, offering superior protection against oxidation, chemical erosion, and fluid velocity wear.
2.
High-Torque Pneumatic Actuation: Driven by a dual-piston rack-and-pinion actuator with an anodized aluminum casing, delivering swift, reliable 90° quarter-turn operation and constant torque output across all pressure drops.
3.
Pressure-Assisted Floating Ball Seal: Upstream fluid pressure gently forces the polished floating ball downstream against the resilient polymer seat, ensuring a dependable, zero-leakage shutoff.
4.
Full ASME & PN50 Compliance: Machined to exact global standards with robust wall thicknesses to safely withstand severe pressure fluctuations and operating pressures up to PN50/Class 300.
5.
High-Temperature Operational Integrity: Outfitted with thermal-resistant seals, stem guides, and packing to guarantee smooth, binding-free performance during extreme temperature shifts.
6.
Tailored B2B Customization: Flexible factory options allow seamless integration of V-port ball trims for fine throttling control, along with smart positioners, limit switches, and solenoid valves.
4. Target Industrial Applications
The SDF DN100 automated control valve is designed for dependable flow modulation and isolation across demanding industrial systems:
Petrochemical & Refining: Crude processing pipelines, hydrocarbon manifolds, blending loops, and non-sour gas lines.
Chemical Processing: Corrosive chemical transfer lines, bulk tank farm isolation, neutralization units, and chemical distribution headers.
Steam & Utility Systems: Boiler feedwater management, main steam distribution loops, heat exchanger modules, and condensate returns.
Water & Wastewater Infrastructure: High-capacity pumping stations, effluent filtration banks, desalination manifolds, and municipal treatment lines.
5. Factory Quality Assurance & Pre-Shipment Testing
Every SDF DN100 valve undergoes strict quality verification prior to dispatch to ensure long-term field reliability:
Hydrostatic Shell Pressure Test: Pressure casings are tested to maximum working pressure to rule out internal porosity or structural defects.
API 598 Bi-Directional Seat Leakage Test: Seals undergo high-pressure hydrostatic and low-pressure pneumatic testing to verify complete bubble-tight shutoff.
Full-Cycle Actuation & Loop Testing: The complete valve-actuator assembly undergoes multi-cycle stroke testing to confirm smooth travel, precise 90° rotation, low hysteresis, and reliable responsiveness.
