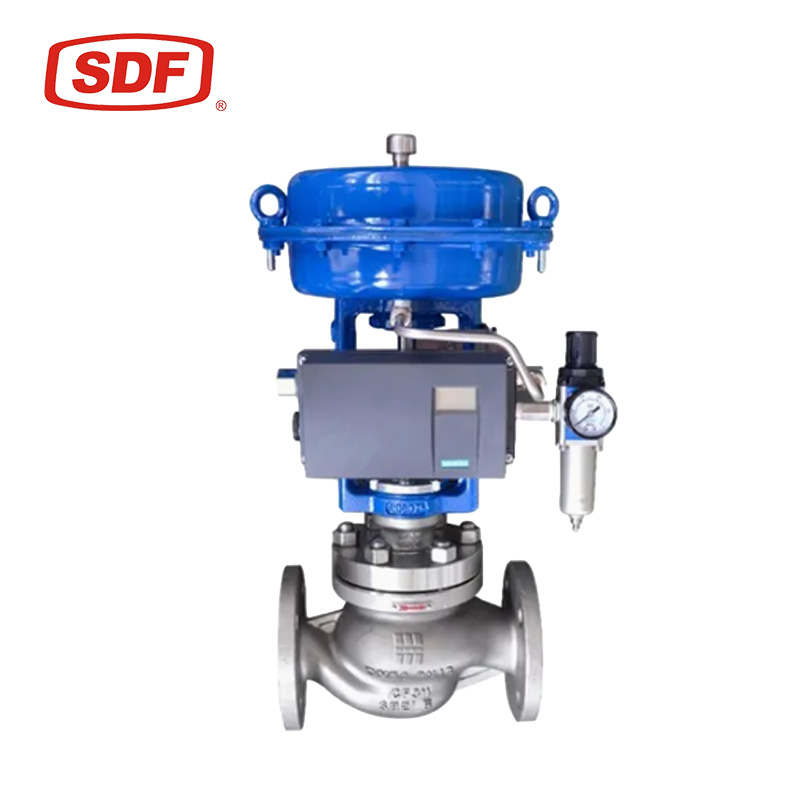

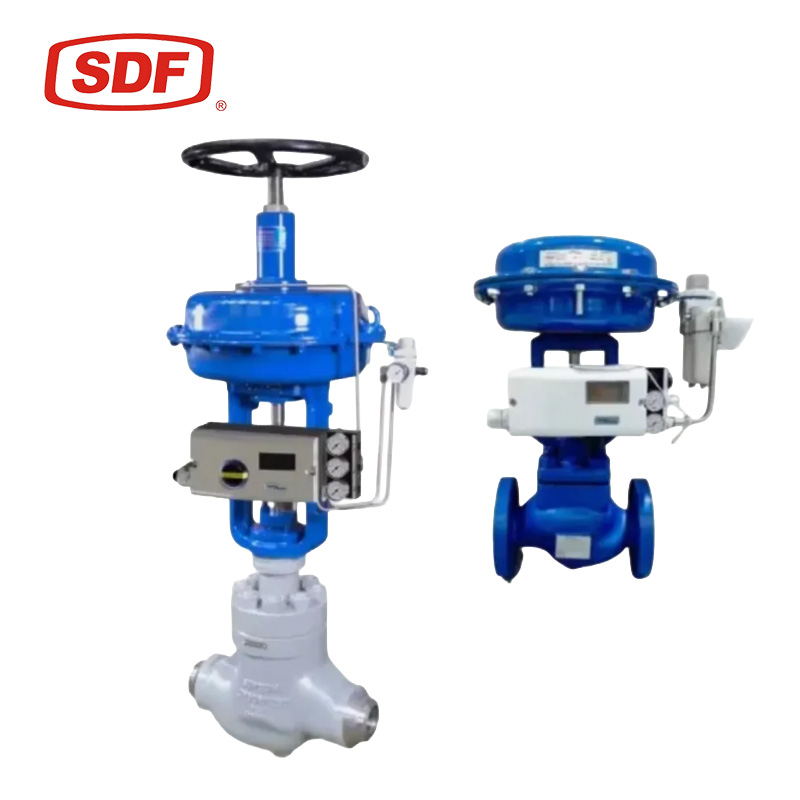

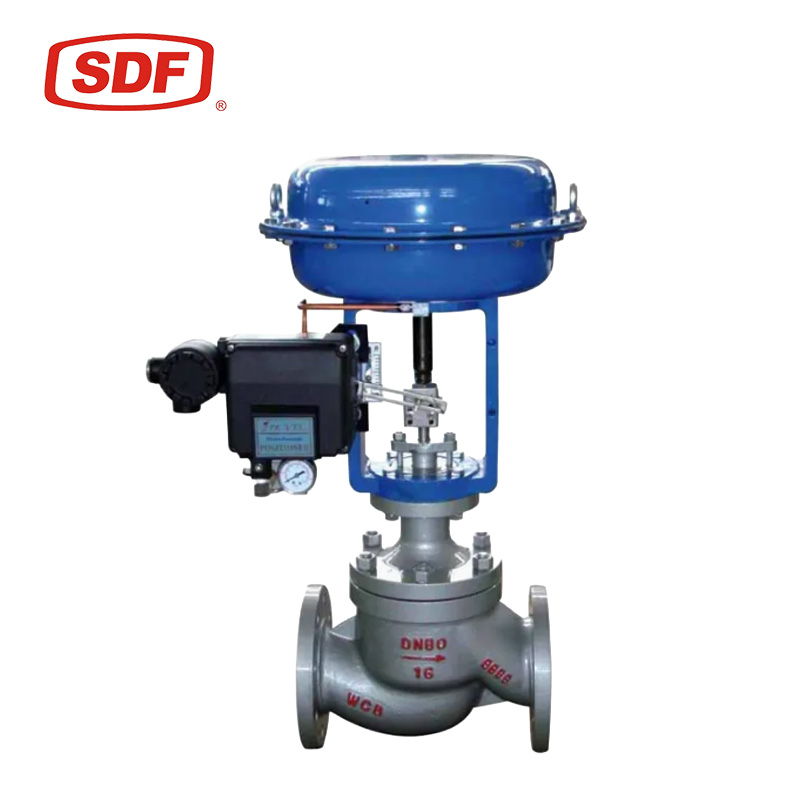

1. Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Control Valve / Pneumatic Throttling Globe Valve |
Nominal Size Diameter | DN40 / 1.5 Inch (1-1/2") Port Profile |
Actuator System Type | Multi-Spring Pneumatic Diaphragm Actuator (Air-to-Open / Air-to-Close) |
Design Standards | IEC 60534, ASME B16.34, GB/T 4213 |
Pressure Ratings | ANSI Class 150, Class 300 / PN16, PN25, PN40 |
Body & Bonnet Metallurgy | ASTM A351 CF8 (SS304) / CF8M (SS316) Severe Service Alloys |
Flow Characteristics | Equal Percentage (Standard for Steam/Gas), Linear, Quick-Opening |
End Connection Interface | Flanged Ends Raised Face (RF to ASME B16.5 / DIN EN 1092-1) |
Applicable Media Profile | High-Temperature Steam, Process Gases, Light Oils, Water |
Control Signal Interface | 4-20 mA DC Analog Input / HART Protocol Digital Feedback |
System Quality Compliance | GS, RoHS, CE, ISO9001 Quality and Environment Certified |
2. Key Features and Engineered Advantages
1. High-Precision Single-Seated Throttling Trim: The internal single-seat plug configuration ensures tight shutoff when the valve loop is closed completely, minimizing internal bypass leakage down to strict FCI 70-2 Class IV or Class V leakage standards. The plug and seat ring are precision-contoured to maintain absolute control linearity even at low opening percentages.
2. Intelligent Field Valve Positioner: Armed with an industrial-grade electro-pneumatic smart positioner, the valve performs real-time stem travel monitoring. The instrument automatically dampens packing friction and compensates for upstream pressure surges, ensuring the valve plug matches the process signal perfectly.
3. Highly Sensitive Multi-Spring Actuation: The low-profile diaphragm casing features an optimized multi-spring array that evenly distributes force across the internal plate. This balanced configuration minimizes mechanical hysteresis and delivers swift, fluid response kinematics under severe throttling pressure drops.
4. Superior Stainless Steel Body Metallurgy: Utilizing high-purity cast stainless steel (CF8/CF8M) ensures excellent structural immunity against thermal shock, line oxidation, and aggressive pitting erosion caused by high-velocity industrial steam or wet process gases.
5. Rugged Heavy-Duty Bonnet Yoke Assembly: The rigid cast iron or steel yoke provides a robust mechanical framework that shields the stem alignment and positioner bracket from plant vibrations, ensuring long-term positioning accuracy under harsh oil and chemical refining field conditions.
3. Typical Industry Applications
The SDF DN40 automated pneumatic steam control valve handles precise temperature and pressure modulation across major global process lines:
1. Oil & Chemical Refining Plants: Fractional distillation heat exchangers, automated fuel gas mixing loops, pressure-reducing utility blocks, and auxiliary blending manifolds.
2. Steam Utility & District Heating Circuits: Main boiler steam pressure regulation stations, steam jacket temperature modulation on chemical reactors, and plant utility headers.
3. Commercial Water & HVAC Distribution: Automated hot/chilled water modulating control nodes for heavy industrial heat exchanges and cooling arrays.
4. Pharmaceutical & Food Processing Utilities: Modulating clean steam delivery lines for sterilization equipment, industrial wash arrays, and automated utility jackets.
4. Quality Assurance and Precision Pre-Shipment Compliance Testing
To guarantee elite reliability inside complex automated processing networks and ensure true plug-and-play setup, every single SDF DN40 control valve must clear strict factory diagnostics:
Hydrostatic Shell Strength Validation: The raw cast valve housing undergoes liquid pressure testing at $1.5 \times$ its nominal design pressure to completely eliminate the risk of subsurface structural micro-porosity.
Strict Leakage Verification: Seating boundaries are tested via high-precision hydrostatic and pneumatic flow metrics to certify absolute compliance with international Class IV/V shutoff standards.
Dynamic Loop Linearity Calibration: The fully assembled positioner and actuator package undergoes automated 5-point calibration testing (cycling through 0%, 25%, 50%, 75%, and 100% stroke states) to ensure minimal dead-band deviation and perfect field linearity.
