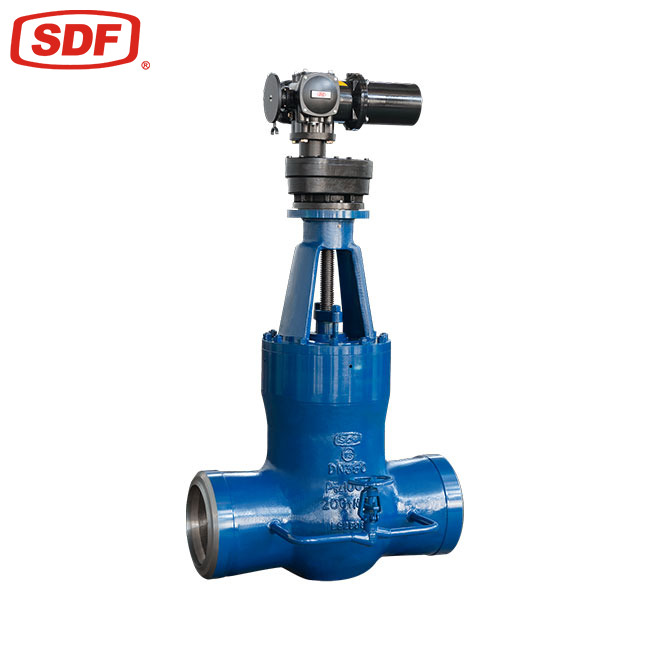

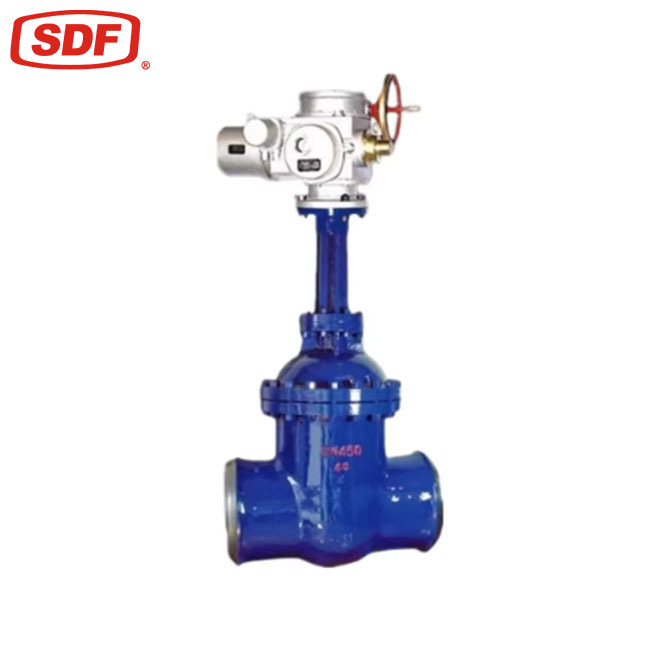

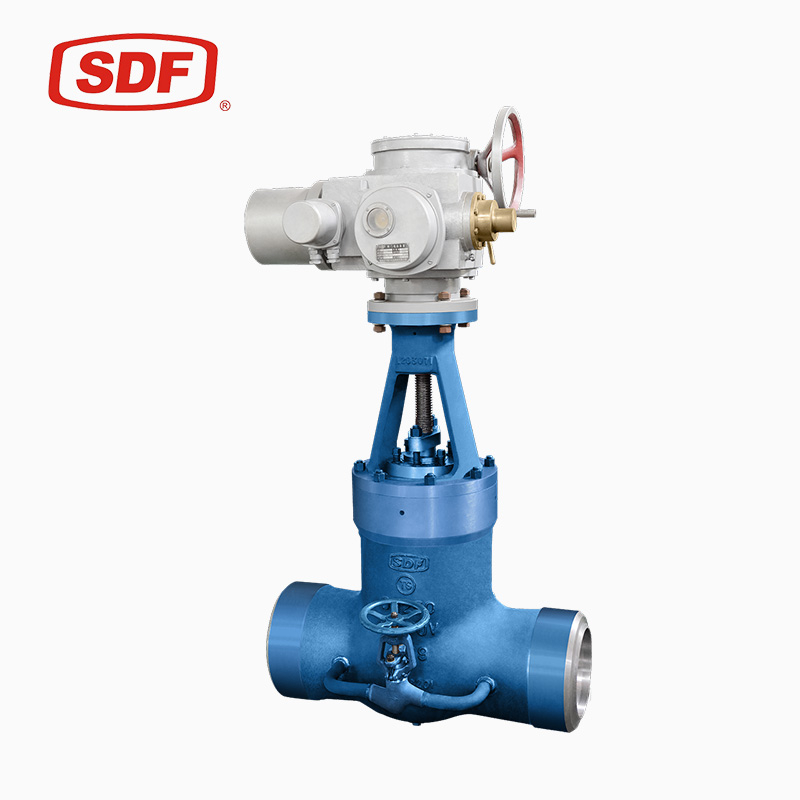

1. Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Gate Valve / Wedge Gate Valve (Sluice Valve) |
Stem & Bonnet Styles | Rising Stem (OS&Y) / Non-Rising Stem; Bolted Bonnet / Pressure Seal |
Design Standards | API 602 (Forged), API 600 (Cast), ASME B16.34 |
Nominal Size Range | DN15 to DN1200 / 0.5 Inch to 48 Inch |
Pressure Ratings | Class 150, Class 300, Class 600, Class 900, Class 1500 / PN16 to PN250 |
Body Metallurgy Options | ASTM A105 (Forged Carbon), A182 F22/F11 (Alloy), A216 WCB (Cast Carbon) |
Wedge Disc Configuration | Solid Wedge, Flexible Wedge, Split Wedge Designs |
Sealing Seat Face Overlay | Stellite Hard Alloy / Premium Stainless Steel API Trim Options |
End Connection Styles | Flanged Ends (RF/RTJ), Socket Weld (SW), Butt Weld (BW), Threaded |
Applicable Fluid Media | High-Pressure Water, Steam, Natural Gas, Crude Oil, Hydrocarbons |
Working Temperature Scope | Wide thermal range depending on selected alloy matrix |
2. Key Features and Engineered Advantages
1. Superior Forged & Heavy-Wall Body Structures: By utilizing high-density forged steel blanks for smaller sizes and rigid, heavy-wall WCB cast steel for larger bores, the valve housings offer unmatched resistance to intense mechanical pipe stress, thermal cycling shocks, and sudden pipeline pressure surges.
2. Excellent Bi-Directional Sealing Performance: The internal wedge gate is precision-machined with a perfect geometric taper and micro-polished to match the body seats seamlessly. This precise metal-to-metal sealing configuration delivers tight, industry-compliant bi-directional isolation, preventing fluid bypass under full pressure drop.
3. Unobstructed High Flow Capacity Channel: When the handwheel or gear operator is fully engaged, the wedge disc rises completely out of the pipe path. This full-bore design creates a straight-through channel that ensures low fluid turbulence and minimizes localized pressure drop ($\Delta P$) across the seat loop.
4. Anti-Blowout Stem & OS&Y Secondary Packing: Built with an Outside Screw & Yoke (OS&Y) layout, the stem threads are entirely isolated from the line fluid, preventing medium-induced thread corrosion. An internal backseat design enables emergency stem packing maintenance even while the line is under full operational pressure.
5. Heavy-Duty Wear-Resistant Stellite Trim: Both the seating surface of the wedge disc and the body seat rings can be optioned with cobalt-base hardalloy (Stellite) overlays. This hard-faced matrix provides superior erosion resistance, entirely eliminating wire-drawing wear caused by high-velocity oil, gas, or steam streams.
3. Typical Industry Applications
The SDF high-pressure forged and cast steel gate valve series delivers dependable on-off control across diverse global process lines:
1. Oil & Gas Upstream & Midstream Loops: Wellhead production manifolds, crude oil transmission pumping stations, storage terminal headers, and high-pressure gas separation plants.
2. Thermal Power & Heavy Steam Utilities: Main steam isolation valves, boiler feed water injection lines, high-pressure steam headers, and turbine isolation circuits.
3. Petrochemical & Chemical Processing Facilities: High-temperature hydrocarbon processing manifolds, thermal oil loops, chemical raw material storage transfer, and utility utility lines.
4. Water Utility & Municipal Distribution: High-pressure reverse osmosis water networks, large industrial wastewater transmission lines, and regional water treatment loops.
4. Quality Assurance and Precision Pre-Shipment Compliance Testing
To guarantee rapid field deployment and ensure elite mechanical safety, every single SDF gate valve must pass our strict multi-layered validation program:
High-Pressure Hydrostatic Shell Verification: Every cast and forged valve structure undergoes a physical shell test at $1.5 \times$ its maximum nominal design rating to ensure zero casting porosity, zero welding defects, and total wall strength.
API 598 Seat and Sealing Diagnostics: Seating interfaces undergo rigid high-pressure hydrostatic wedge checks and low-pressure pneumatic closures to verify bubble-tight sealing performance.
Mechanical Alignment Cycle Calibration: The full stem, wedge, and handwheel assembly is subjected to multiple torque testing rounds to confirm smooth stroke travel, zero binding, and precise closing alignment before packing.
