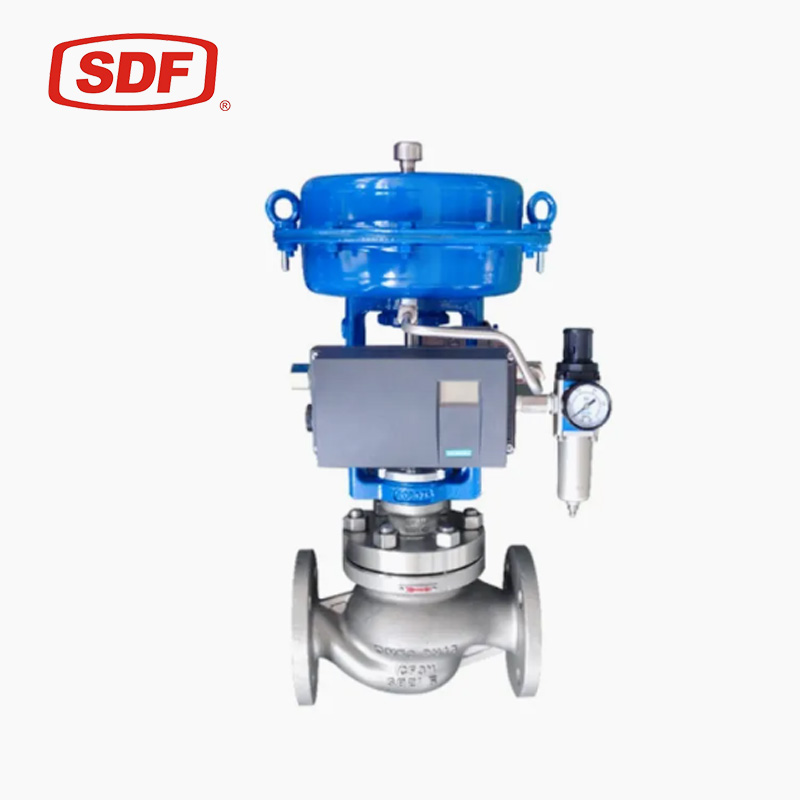

1. Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Control Valve / Pneumatic Regulating Globe Valve |
Body Trim Configuration | Single-Seated / Cage Guided Trim Options Available |
Actuator Type | Multi-Spring Pneumatic Diaphragm Actuator (Air-to-Open / Air-to-Close) |
Design Standards | IEC 60534, ASME B16.34, GB/T 4213 |
Nominal Size Range | DN15 to DN300 / 0.5 Inch to 12 Inch |
Pressure Rating Footprint | ANSI Class 150, Class 300, Class 600 / PN16, PN25, PN40, PN64 |
Body & Bonnet Metallurgy | WCB (Cast Steel), CF8 (SS304), CF8M (SS316), CF3M (SS316L) |
Flow Characteristics | Equal Percentage, Linear, Quick-Opening |
End Connection Interfaces | Flanged Ends Raised Face (RF to ASME B16.5 / EN 1092-1) |
Working Temperature Scope | High Temperature Rating (Up to 450°C with extended cooling bonnet) |
Control Signal Input | 4-20 mA DC / HART / Profibus Control Protocols |
System Quality Certificates | CE, ISO9001 Factory Quality Certified |
2. Key Features and Engineered Advantages
1. Highly Sensitive Multi-Spring Actuation: The low-profile pneumatic diaphragm design provides instantaneous response times and excellent positional repeatability. By distributing multiple heavy-duty internal springs uniformly across the internal diaphragm plate, the valve guarantees balanced, dynamic stability even when combating high pressure differentials across the seat plugging boundary.

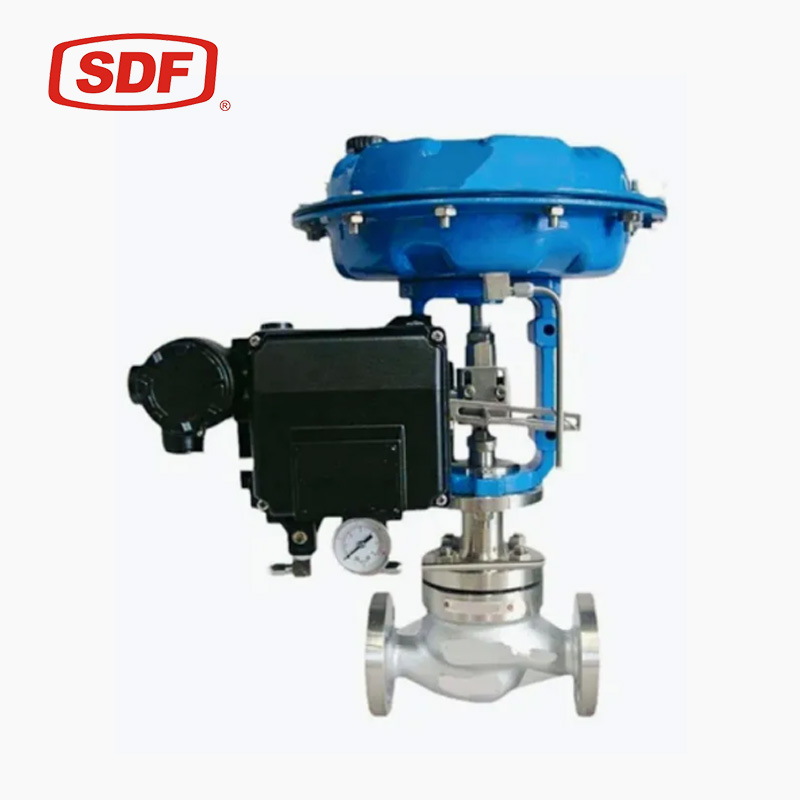

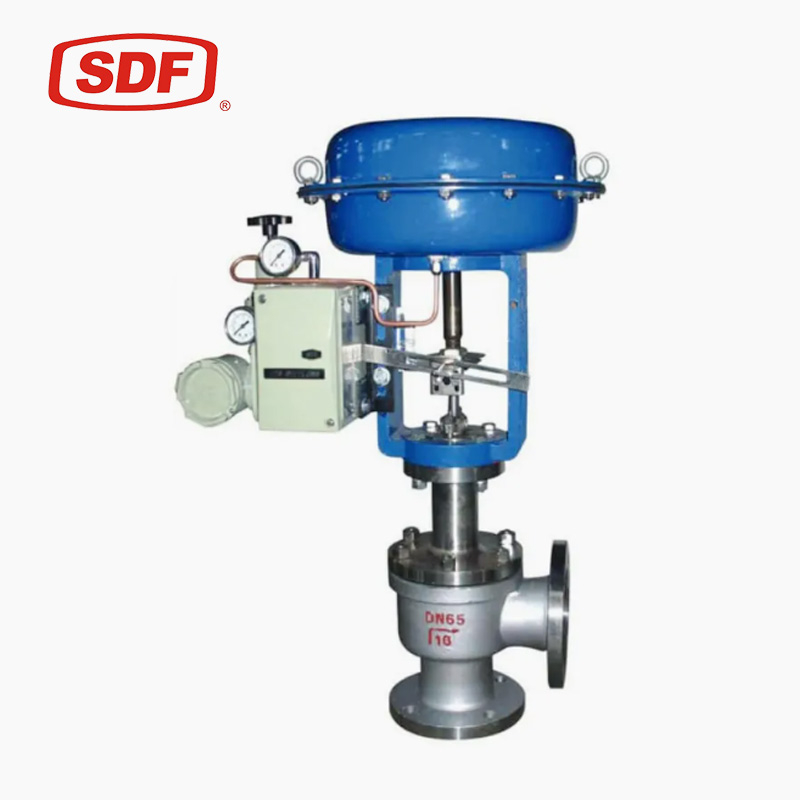

2. Smart Valve Positioner Integration: Equipped with a precision field instrument enclosure as shown in the profile image of "image_d0e282.jpg", the integrated positioner senses actual valve stem position in real-time. This system automatically corrects for localized mechanical friction and stem packing drag, ensuring the valve plug opens or closes precisely to the commanded percentage.
3. High-Performance Single-Seated Trim: The precision-machined single-seat architecture delivers outstanding shutoff capability, minimizing raw fluid leakage down to strict FCI 70-2 Class IV or Class V standards when closed. The plug and seat ring are precision-lapped and can be hard-faced with Stellite alloy coatings to withstand constant high-velocity throttling erosion.
4. Streamlined Cage or Top Guiding: The heavy-duty top guiding layout ensures the valve plug remains firmly centered within the seat orifice under intense fluid turbulence. This structural support prevents internal stem vibration, minimizes mechanical fatigue, and significantly extends the service intervals of the primary soft parts.
5. High Temperature and Severe Service Bonnets: To safeguard the pneumatic actuator and electronics from extreme line heat, the valve body can be optioned with extended finned cooling bonnets or bellows seals, protecting the integrity of the diaphragm casing during high-temperature utility handling.
3. Typical Industry Applications
The SDF automated pneumatic diaphragm control valve serves as the central regulation core across major heavy processing industries:
1. Oil, Gas, & Chemical Refining: Precision temperature control in distillation towers, pressure regulation on separator units, and flow mixing in raw chemical blending lines.
2. Power Generation & Boiler Utilities: Main steam pressure reducing stations, deaerator level control loops, turbine condensate lines, and superheater water spray regulation.
3. Industrial Water Treatment & HVAC: Chill water flow throttling in massive cooling networks, pressure stabilization in municipal pumping grids, and automated dosing loops.
4. Pulp, Paper, & Metallurgy Complexes: Controlling drying steam on paper machine lines, regulating cooling jacket lines in blast furnaces, and handling caustic wash liquors.
4. Quality Assurance and Precision Pre-Shipment Compliance Testing
To ensure absolute field dependability and plug-and-play installation inside critical automation networks, every SDF control valve passes strict pre-shipment diagnostics:
Hydrostatic Body and Shell Testing: The primary casting undergoes pressure validation at $1.5 \times$ its nominal design pressure rating to guarantee flawless casting density and zero structural leaking.
API 598 & FCI 70-2 Seat Leakage Test: Seat assemblies are subjected to high-pressure liquid and pneumatic sealing tests to certify precise compliance with required industrial isolation standards.
Linear Stroke and Hysteresis Calibration: The fully assembled control valve undergoes a digital loop calibration test, stepping from 0% to 100% stroke in precise increments to ensure total accuracy, linearity, and minimal hysteresis deviation before final factory packing.
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
