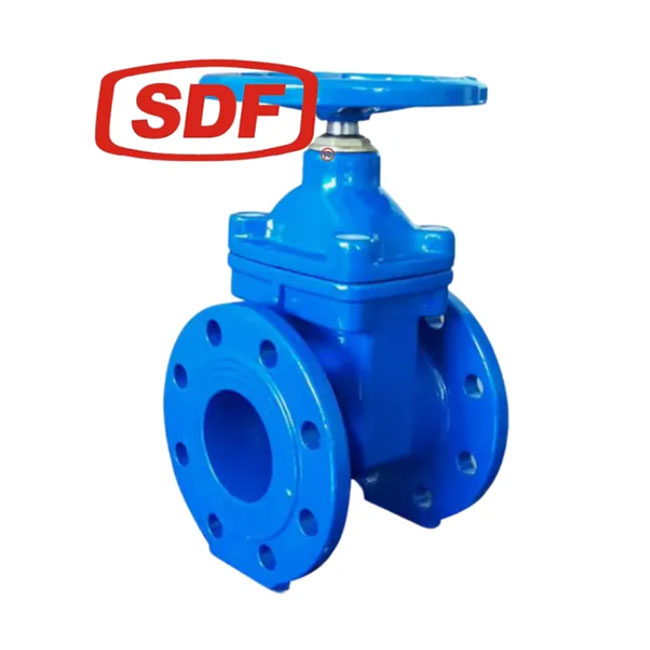

| The SDF High-Performance Flanged and Wafer Gate Valve Series delivers robust, dependable linear fluid isolation solutions engineered specifically to handle water supply infrastructure, wastewater treatment grids, petrochemical processing plants, and severe-service industrial fluid networks. This industrial-grade gate valve family incorporates an advanced wedge block design to ensure structural integrity and zero-leakage performance under continuous cyclic operations. The core mechanical advantage of the SDF gate valve design lies in its optimized flow path geometry and premium seating selection. When fully opened, the internal wedge retracts entirely out of the flow stream, providing a smooth, straight-through full-bore channel that minimizes pressure drop and completely eliminates fluid turbulence. Manufactured under strict global metrics using high-grade ductile iron or cast carbon steel, the SDF-FGV series features a heavy-duty, corrosion-resistant blue epoxy coating, ensuring excellent durability and an extended maintenance-free service life in both above-ground processing skids and direct-buried utility configurations. | |||||||||
SDF
The SDF Industrial Threaded Y-Strainer is an indispensable mechanical component precision-engineered to provide critical protection for expensive downstream pipeline equipment by mechanically removing suspended solids, pipe scale, welding slag, and foreign particulate matter from flowing fluid streams. In any operational process fluid loop—whether transporting steam, water, compressed gases, or chemical petroleum fractions—the unshielded migration of solid debris poses a massive threat to system longevity. Unfiltered debris traveling at high line velocities causes accelerated abrasive wear, scores the polished seats of control valves, blocks the tight orifices of spray nozzles, jams pump impellers, and damages sensitive monitoring instruments. This leads to premature system failures, product contamination, and costly unplanned facility shutdowns.

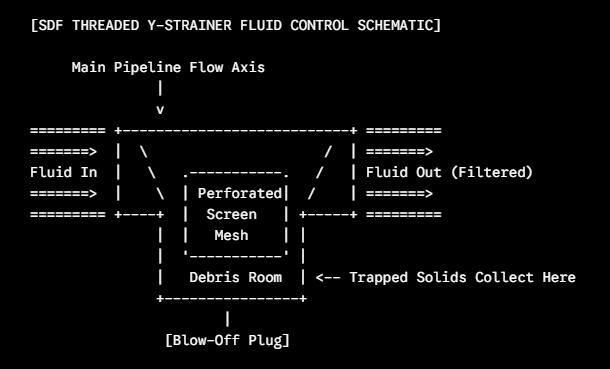

The SDF series addresses these vulnerabilities by introducing a highly optimized Y-pattern geometry. The structural body layout features a slanted cylindrical collection chamber that branches off from the primary horizontal flow path at a precisely calculated angle. This design allows the process fluid to pass smoothly through the strainer with minimal directional disruption when entering the valve body.
Hydrodynamically Streamlined Bore: The advanced Y-pattern cavity guides fluids cleanly through the screen element, offering superior flow coefficients and minimal pressure drop compared to restrictive T-pattern straining designs.
Premium Corrosion-Resistant Mesh: Standard internal screen elements are fabricated from high-grade SS304/SS316 stainless steel, offering high structural collapse resistance and shielding the assembly from chemical oxidation or pitting.
Deep Thread Machining Integrity: Precision-cut female NPT/BSP threads provide easy, tight installation and stop fluid weeping at the pipeline joints.
Simplified Online Maintenance: The compact hex-cap assembly allows maintenance crews to quickly remove, clean, or swap internal mesh elements without removing the main strainer body from the pipeline.
Technical Parameter | Standard Engineering Specification | Options / Upgrades |
Nominal Size Range | DN8 – DN80 ($1/4" \text{ to } 3"$) | Flanged configurations for larger sizes |
Body Shell Metallurgy | Stainless Steel 304 (CF8) / SS316 (CF8M) | Forged Carbon Steel (A105 / WCB) |
Screen Filter Element | Stainless Steel 304 / 316 Double Layer | Monel® / Hastelloy® screen upgrades |
Standard Mesh Options | 20 Mesh / 40 Mesh / 60 Mesh / 80 Mesh | Ultra-fine 100–200 mesh liners or perforated plates |
Nominal Pressure Class | 800 WOG (5.5 MPa / PN64) / Class 300 | 1000 WOG / High-pressure Class 600 iterations |
Thread Standards | NPT (ANSI B1.20.1) / BSP (ISO 228-1) | Socket-Weld (SW) / BSPT / G Threads |
Gasket Compounds | PTFE (Teflon) / Flexible Graphite | Viton (FKM) / High-Temp Spiral Wound |
The SDF Threaded Y-Strainer is highly recommended for pre-filtering duties across commercial utility and industrial process loops:
Pump & Meter Protection Headers: Placed directly upstream of positive-displacement pumps, water meters, and variable-frequency flow sensors to trap destructive particles.
Steam Utility Infrastructure: Installed ahead of steam traps, pressure-reducing valves (PRVs), and heat exchangers to capture highly abrasive iron oxide pipe scale.
Automated Skid-Mounted Modules: Ideal for water treatment skids, fuel oil conditioning modules, and chemical dosing systems where footprint space is limited.
Compressed Air & Gas Loops: Protecting downstream pneumatic control valves, air cylinders, and gas analyzers from pipe rust and welding debris.
Never default to the finest available mesh screen size without calculating the fluid dynamics first. Selecting an overly fine mesh screen (e.g., an 80 or 100 mesh screen on a highly viscous oil line) will cause the filter openings to clog almost instantly, resulting in an immediate pressure drop spike and starving downstream pumps.
Engineering Rule of Thumb: The screen perforation diameter should be sized to trap particles one-half the size of the maximum permissible solid that the downstream equipment can safely handle.
Y-Strainers must be installed with the slanted screen collection branch pointing downward relative to gravity.
Horizontal Pipe Lines: The collection leg must point straight down. This ensures that trapped solid particles naturally slide out of the flow stream and collect in the lower pocket, preventing debris from falling back into the main pipe loop during screen cleanout.
Vertical Pipe Lines: The strainer can only be installed if the process fluid flow direction is downward. If installed on an upward vertical line, gravity will pull trapped debris down into the upstream pipe section rather than collecting it in the filter leg.
To prevent unexpected line choking, it is highly recommended to install differential pressure gauges immediately upstream and downstream of the Y-strainer. When the differential pressure ($\Delta P$) across the strainer doubles relative to its initial clean baseline value, it indicates that the internal screen is 50% blinded by debris and requires immediate offline manual cleaning or an online blow-off flush.
When screwing male pipe fittings into the female threaded ends of the strainer body, use premium PTFE sealing tape or pipe dope. Avoid applying excessive mechanical torque with large pipe wrenches. Over-tightening tapered threads forces the male pipe too deep into the casting, generating massive internal hoop stresses that can crack or warp the metallic strainer shell.
Widely used in pulp and paper manufacturing, wastewater treatment skids, mining slurry disposal, bulk powder handling, and heavy chemical processing facilities.
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
