Core Advantages & Technical Features

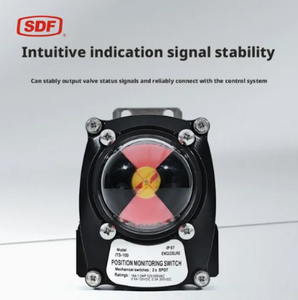

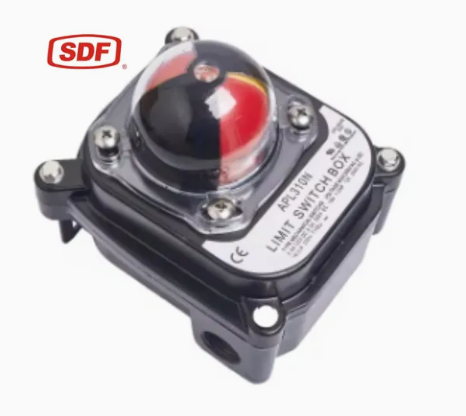

High-Visibility 3D Position Indicator: Features an impact-resistant, UV-stabilized polycarbonate dome window. The clear 360-degree continuous viewing design prevents optical distortion and maintains vivid color contrasts over long-term outdoor solar exposure.
Tool-Free Quick-Set Cam Mechanism: Utilizing an internal splined, spring-loaded cam tracking architecture. Field technicians can manually calibrated the limit switch trip positions within seconds without requiring specialized hand tools during commissioning.

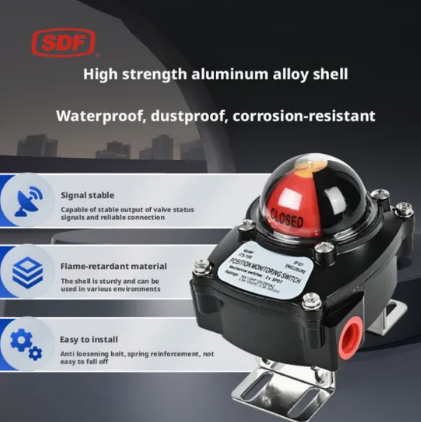

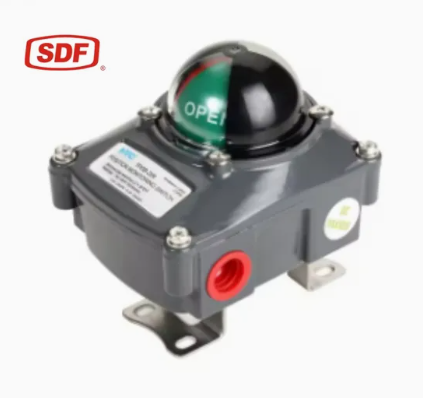

Rugged IP67 Weatherproof Housing: Fabricated from precision investment die-cast aluminum alloy finished with an electrostatically applied polyester powder coating, preventing outer oxidation, chemical corrosion, and heavy environmental degradation.

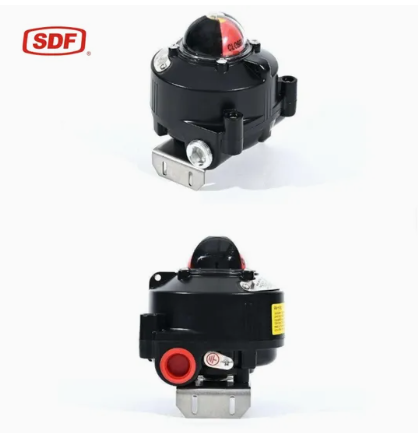

Dual Conduit Entries for Clean Wiring: Supplied with two independent cable routing pathways. This structural separation allows clean segregation between sensor signals and downstream solenoid valve power lines, drastically lowering electromagnetic interference.
Universal NAMUR VDI/VDE 3845 Mount: Integrated with a standardized stainless steel mounting bracket footprint, enabling instant, rigid coupling onto any mainstream industrial pneumatic actuator shaft without custom machining.
3. Target Applications & Operating Conditions
The SDF valve position monitor is purpose-built to operate reliably within automated process loops and heavy machinery configurations:
Automated Process Utility Piping Headers: Provides position tracking for automated flanged ball valves, lug butterfly valves, and dampening systems within factory water and air rings.
Water Treatment & Environmental Engineering: Widely applied in automated filtration systems, municipal wastewater plants, sewage processing skids, and reverse osmosis desalination facilities.
Chemical Processing & Utility Distribution: Manages position verification loops for non-aggressive chemical distribution lines, fluid mixing tanks, and solvent handling automated systems.
HVAC & Industrial Boiler Automation Controls: Monitors automated control dampeners, cooling tower circulation feed loops, and low-pressure steam utility water distribution paths.
Selection & Engineering Guidelines
When deploying the SDF limit switch box onto field actuators, engineering teams should evaluate the following selection parameters:
Switch Contact Element Mapping: Determine the electrical requirements of your controller interface. For standard utility loops, mechanical micro-switches (SPDT) offer cost-effective, high-amperage switching capacity. For low-current PLC inputs or highly repetitive cycling, specify proximity sensors to avoid mechanical contact fatigue.
Conduit Thread Form Standardization: Cross-reference local factory electrical wiring specifications before installation. Specify standard $G~1/2"$ parallel threads for European and Asian regional networks, or $1/2"~\text{NPT}$ tapered conduit threads to ensure airtight sealing with North American flexible conduit connectors.
Environmental and Hazardous Zone Verification: While the standard enclosure provides excellent IP67 weather protection for general industrial environments, systems handling volatile hydrocarbon gases or explosive dust environments must explicitly specify an explosion-proof (Ex-d or intrinsically safe Ex-i) certified enclosure alternative.
Standard Technical Specifications
Technical Parameter | Standard Specification Value / Compliance |
Manufacturing & Safety Standards | VDI/VDE 3845 (NAMUR), IEC 60529, CE, ISO9001 |
Enclosure Protection Rating | Weatherproof IP67, NEMA 4 & 4X (Dust-tight, water-jet resistant) |
Internal Switch Configuration | 2 × SPDT Mechanical Micro-switches (Form C contacts) |
Electrical Contact Ratings | 250V AC / 16A, 125V AC / 16A, 30V DC / 2A |
Conduit Entry Specifications | Dual $G~1/2"$ Threads (Standard) or $1/2"~\text{NPT}$ (Optional) |
Terminal Strip Capacity | 8 points screw terminals (Accepts 0.2 to $2.5~\text{mm}^2$ wire gauges) |
Housing & Cover Metallurgy | Die-Cast Aluminum Alloy with anti-corrosive powder coating |
Visual Indicator Material | Polycarbonate (UV resistant, High-impact transparent dome) |
Operating Temperature Envelope | $-20^{\circ}\text{C}$ to $+80^{\circ}\text{C}$ (High/Low temp configurations available) |
Mounting Bracket Standard | Stainless Steel (SUS304) NAMUR size $80 \times 30 \times 20~\text{mm} / 30~\text{mm}$ |
