1. Core Advantages & Technical Features

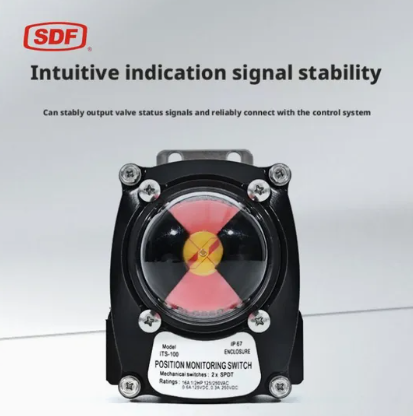

High-Visibility Visual Position Indicator: Features a clear, impact-resistant 3D dome beacon displaying color-coded status confirmation (e.g., YELLOW/RED for "CLOSED" and GREEN/BLACK for "OPEN"). This design allows factory floor operators to instantly verify valve positions from a distance or under low-light configurations.
Quick-Set Spline Cams: Incorporates an intuitive, spring-loaded serrated cam mechanism. Field calibration requires no specialized tools; engineers can adjust the operating switch trip points manually within seconds, ensuring long-term resistance to vibration-induced slipping.
Dual Conduit Entries & Clean Wire Layout: Equipped with dual threaded cable conduit ports , separating input and output loops to eliminate electromagnetic interference and streamline clean instrument wiring loops.
Universal NAMUR VDI/VDE 3845 Mounting: The heavy-duty stainless steel adjustment bracket conforms strictly to standard industry dimensions with pinion heights, eliminating the need for expensive proprietary alignment brackets.
Robust Weatherproof Enclosure Geometry: Precision-cast with high-density aluminum alloy or structural polymers finished with a corrosion-resistant powder coating. The internal joints are sealed with captive O-rings, providing definitive IP67 fluid and dust protection.
2. Target Applications & Operating Conditions
The SDF valve position monitor excels in tracking automated execution sequences across diverse industrial piping networks:
Pneumatic Control Loops & Automated Process Headers: Mounts directly to quarter-turn automated ball, butterfly, and plug valves within factory air rings, bulk handling loops, and chemical processing networks.
Water & Wastewater Treatment Automation: Monitors critical filtration sequences, reverse osmosis (RO) backwash lines, sludge diversion points, and pump station isolation valves.
Petrochemical Utilities & Industrial Gas Logistics: Tracks the open/close compliance states of volatile gas headers, nitrogen blanketing lines, fuel gas grids, and non-hazardous chemical batching paths.
Power Plant Cooling Circuits & Utilities: Applied to water treatment headers, low-pressure condensate line boundaries, cooling tower bypass networks, and automated plant air distribution lines.
3. Selection & Engineering Guidelines
When specifying the SDF safety limit switch box on engineering blueprints, instrument engineers should observe the following technical protocols:
Internal Switch Type Alignment: Select high-quality mechanical micro-switches (SPDT/DPDT) for standard AC/DC control loops due to their high breaking capacities and reliable operation. For explosive or highly corrosive chemical atmospheres, non-contact inductive proximity sensors (e.g., P+F sensors complying with NAMUR/Intrinsically Safe guidelines) must be specified.
Environmental Protection Grading: The standard enclosure offers IP67 protection, which is ideal for standard outdoor rain and dust exposure. If the installation environment involves coastal marine environments, continuous washdowns, or corrosive vapors, verify that the housing material specification is upgraded to CF8M (Stainless Steel 316) or coated with premium epoxy.
Conduit Thread Form Matching: Match the limit switch box conduit entry threads precisely with the plant gland specification to avoid cross-threading. Ensure that unused conduit entries are sealed using accredited, weatherproof blind plugs during field commission to prevent moisture ingress.
5.Standard Technical Specifications
Technical Parameter | Standard Specification Value / Compliance |
Design & Manufacturing Standards | IEC 60947-5-1, VDI/VDE 3845 (NAMUR), UL 508 |
Ingress Protection (IP Rating) | IP67 (Standard), IP68 Optional (Dust-tight and water immersion protection) |
Enclosure Material Options | Die-Cast Aluminum (Powder Coated Black), Stainless Steel 316, Polycarbonate |
Electrical Switch Rating | 250V AC / 16A, 125V AC / 16A, 24V DC / 0.6A (Mechanical) |
Terminal Strip Capacity | 8 Multi-point screw terminal blocks (Standard 0.5 to $2.5 \text{ mm}^2$ wire) |
Mounting Bracket Specification | Stainless Steel (SUS304) NAMUR Bracket ($80 \times 30 \times 20 / 30 \text{mm}$) |
Product Compliance Certifications | CE, ISO9001 |
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
