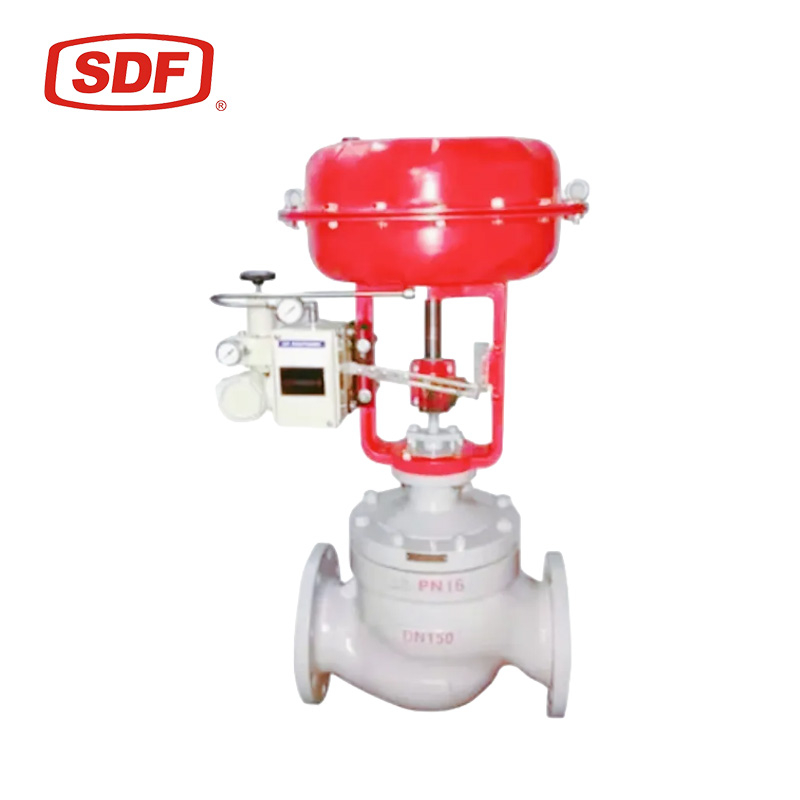

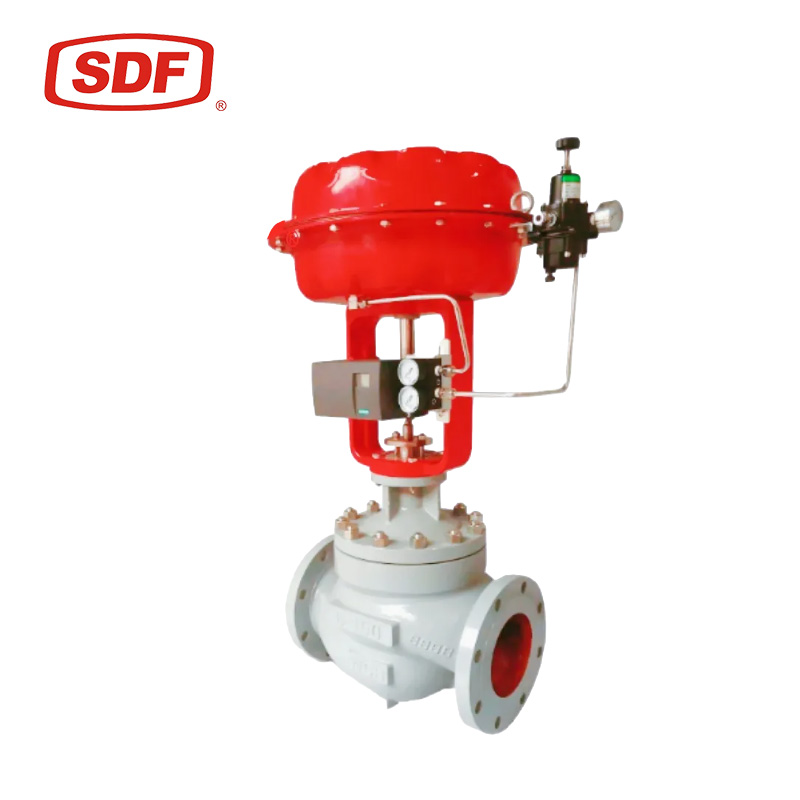

| The SDF Pneumatic Diaphragm Actuated Steam Control Valve is an industrial-grade, heavy-duty automated fluid control solution engineered specifically for high-accuracy modulating service within aggressive industrial process piping networks. As illustrated in the product profile, this premium configuration features a robust single-seated globe valve body paired with a multi-spring diaphragm pneumatic actuator and intelligent positioner, delivering precise control over flow, pressure, and temperature parameters. The SDF durable control valve SDF-16B is designed to handle a wide spectrum of industrial media including water, steam, oil, and gas. Its straight-through flow path minimizes pressure drop while maintaining excellent throttling characteristics. The pneumatic diaphragm actuator converts instrument air pressure into proportional valve stem movement, ensuring smooth and responsive control action. The multi-spring design provides consistent actuation force across the full stroke range, while the rolling diaphragm construction delivers excellent linearity and minimal hysteresis for precise modulation. Material selection for the SDF steam control valve follows rigorous industrial standards. The valve body is available in carbon steel WCB and stainless steel grades, selected based on operating temperature and corrosion resistance requirements. The internal trim components are manufactured from hardened stainless steel or specialty alloys, with optional surface treatments to extend service life in erosive conditions. The diaphragm actuator housing is fabricated from corrosion-resistant materials suitable for harsh industrial atmospheres. The packing system incorporates adjustable configurations designed to maintain emission compliance while accommodating thermal expansion and contraction cycles inherent in steam service. The valve can be equipped with extended bonnet designs for high-temperature applications, protecting the actuator from radiant heat and ensuring reliable operation across the full -50°C to 400°C temperature range. Control flexibility is achieved through intelligent positioner compatibility. The SDF steam control valve readily accepts smart digital positioners and electro-pneumatic converters from major automation suppliers. Standard 4-20 mA control signal interfaces enable seamless integration into distributed control systems and programmable logic controller architectures. Optional accessories include solenoid valves for fail-safe operation, volume boosters for accelerated stroke speed, and limit switches for position indication. The SDF steam control valve undergoes comprehensive factory testing including hydrostatic shell testing, seat leakage verification, and functional stroke calibration. Quality management systems are certified to ISO 9001 standards, with material traceability maintained throughout the manufacturing process. Pressure-containing components are designed in accordance with GB/T 12237 and applicable international standards, ensuring structural integrity at elevated pressure-temperature ratings up to PN40. For steam conditioning applications, the valve provides reliable modulating control that reduces thermal stress and manages pressure drop distribution effectively. The single-seated design offers tight shutoff capability while the straight-through body configuration ensures minimal flow resistance during full-open operation. Whisper trim options are available for installations with acoustic emission requirements. | |||||||||
