Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |
Valve Classification | Double-Eccentric Half-Ball Valve / Bi-Eccentric Semi-Ball Valve |
Body Structural Type | Single-Piece Cast or Forged Flanged Body, Half-Ball Plug |
Nominal Diameter Span | DN40 to DN1200 (DN500 model highlighted in reference image) |
Pressure Rating Options | PN10, PN16, PN25, PN40 / ASME Class 150, Class 300 |
Body Material Options | Carbon Steel (WCB/A105), Stainless Steel (CF8/CF8M), Alloy Steel |
Half-Ball Core Metallurgy | Stainless Steel SS304/SS316, or Carbon Steel with Hard Chrome Overlay |
Seat Sealing Ring Lining | Resilient EPDM/NBR, Hardened Metal-to-Metal Seat (Stellite Options) |
Applicable Fluid Media | Clean Water, Sewage/Sludge, Natural Gas, Petroleum Oils, Corrosive Liquids |
End Connection Style | Flanged Ends Conforming to ASME B16.5, EN 1092-1, or GOST Standards |
Actuation Configuration | Industrial Heavy-Duty Worm Gearbox with Handwheel (Bare-stem/Actuator ready) |
Design Standards | API 6D, ASME B16.34, JB/T 13517 |
Testing Compliance | API 598 Shell & Seat Leakage, ISO 5208 Rate A (Bubble Tight) |
Key Features and Engineered Advantages
Friction-Free Eccentric Cam Sealing Dynamics: The rotational stem centerline is deliberately offset from both the valve body center and the face seat centerline. This double eccentricity guarantees that the semi-ball hemisphere contacts the seal ring only at the definitive point of closure. During operation, mechanical friction between the ball and seat is completely avoided, resulting in a low operational torque curve that permits smaller, more cost-effective actuator selections.
Non-Clogging, Self-Cleaning Linear Flow Path: Unlike conventional full-bore balls which contain internal cavities that trap stagnant media, the half-ball architecture features an open, cavity-free bottom profile. When the valve is opened, high-velocity pipeline fluid sweeps straight through the flow bore, clearing accumulated silt, scaling deposits, and fibrous stringy matter. This self-cleaning action renders the valve nearly immune to jam-ups in sewage treatment and paper pulp applications.
Dual Resilient and Metal Sealing Versatility: Depending on site requirements, the SDF series can be configured with highly elastic elastomers (like EPDM or NBR) for absolute bubble-tight closure in gas and water utilities, or fitted with a hard metal-to-metal seating profile. The metal seat variants are layered with premium hard alloys to resist erosion when throttling abrasive process lines.

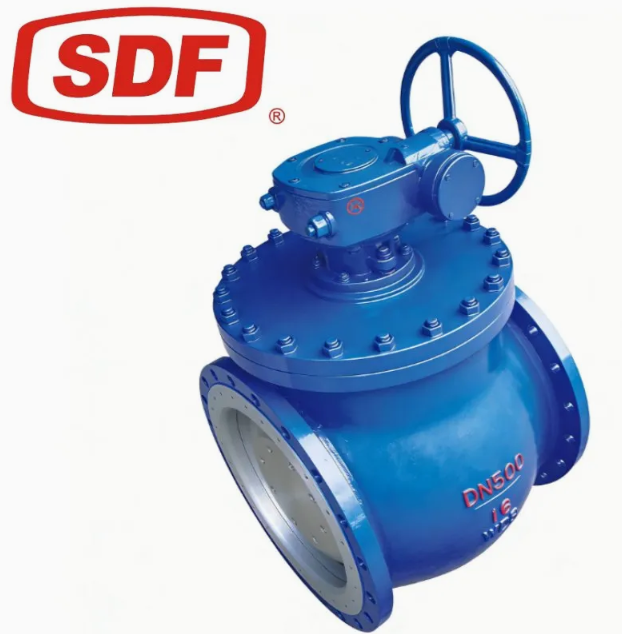

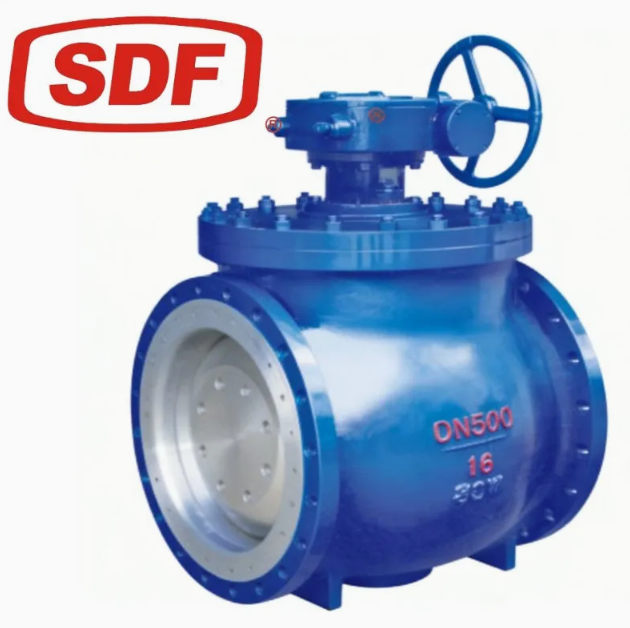

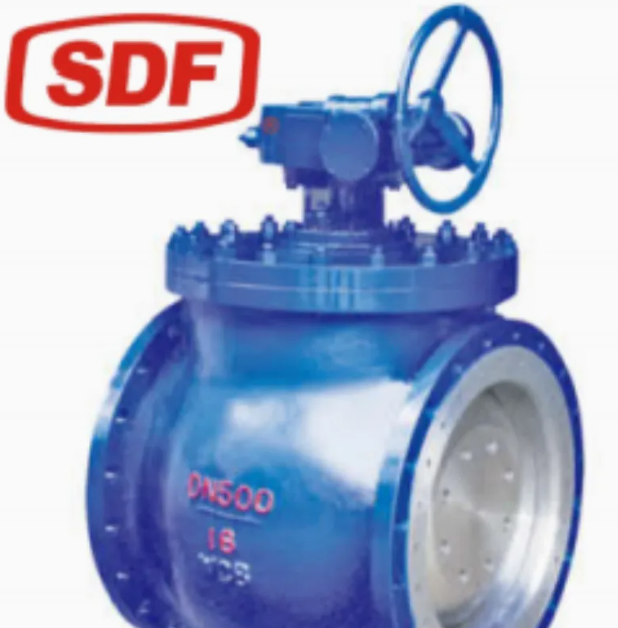

Robust Flanged Body Profile with Structural Feet: As shown in the reference file "image_a9725f.jpg", the valve is coated in a durable, high-build anti-corrosive epoxy lining, safeguarding the underlying metal against soil chemistry and harsh marine ambient environments. The robust flanged ends provide excellent structural stability under heavy pipe bending strains.
Field-Replaceable Sealing Elements: To lower long-term infrastructure maintenance costs, the valve seat ring is held in place by an accessible retaining ring. This allows service crews to inspect or replace the sealing element on-site without needing specialized grinding machinery or complete valve replacements.
Typical Industry Applications
The SDF double-eccentric semi-ball valve series is heavily utilized across diverse civil infrastructure and heavy-processing utilities:
Municipal Water & Wastewater Grids: Raw sewage isolation, pump station discharge manifolds, sludge drainage lines, and water treatment plant backwash networks.
Industrial Cooling Water Systems: Sea water cooling loops in power stations, chemical refinery water intake lines, and metallurgy processing lines.
Oil & Gas Gathering Utilities: Low-to-medium pressure unrefined gas lines, crude oil handling pipelines, and petroleum storage tank terminal manifolds.
Chemical & Paper Pulp Processing: Corrosive wash lines, low-consistency pulp stock transport, and slurry handling loops.
Quality Assurance and Operational Testing Protocols
To ensure reliable operation under unpredictable pipeline stresses, every SDF half-ball valve undergoes strict quality assurance procedures:
Pressure Testing Validation: Hydrostatic shell tests are conducted at $1.5 \times$ the nominal pressure rating, accompanied by dual-direction seat isolation checks per API 598 and EN 12266-1 benchmarks.
Epoxy Integrity Controls: Spark testing (holiday detection) is regularly applied over the thick internal and external epoxy coatings to confirm a pinhole-free barrier against electrochemical corrosion.
Torque & Cycle Profiling: Each assembly undergoes automated stroke calibration cycles prior to final packaging, verifying smooth stem travel throughout the full 90-degree movement range.
