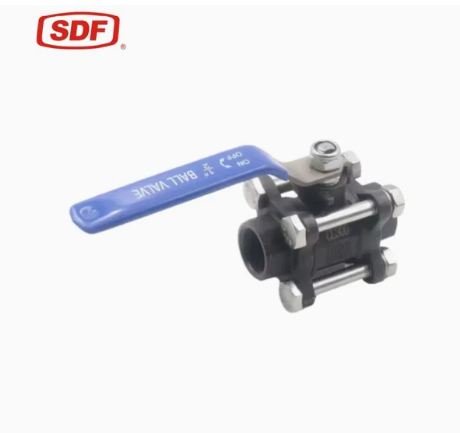

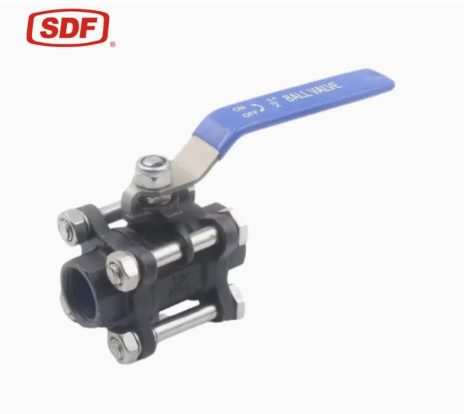

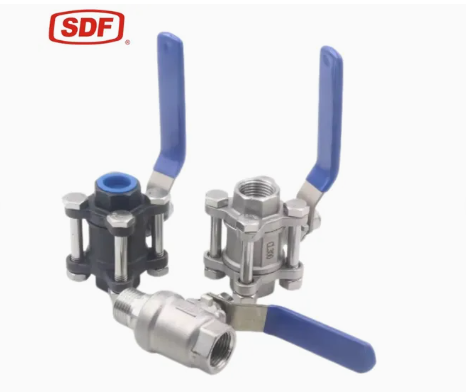

| The SDF Durable Carbon Steel 3-Piece Manual Ball Valve series (as featured in image_6018c6.png) is an industrial-grade fluid isolation solution engineered to deliver superior durability, high structural pressure retention, and exceptional ease of maintenance. Utilizing a high-strength WCB carbon steel investment-cast body architecture, this valve family features a distinct three-piece design consisting of a central body housing and two separate end connectors secured firmly by heavy-duty assembly bolts. This modular geometry allows for straightforward inline swing-out servicing, making it a preferred choice for heavy-duty piping systems where localized process disruptions must be minimized.The full-port or standard-port internal bore matching options guarantee unrestricted fluid dynamics, high flow coefficients ($C_v$), and minimal parasitic pressure drop. Equipped with a precision-machined floating ball design, the valve shifts under differential upstream pressure to compress directly into downstream seats, creating a dependable, bubble-tight seal. It features a quarters-turn operation lever with a heavy-duty locking mechanism and a blowout-proof stem configuration, making this series highly suited for automated or manual flow configuration in processing networks globally. | |||||||||
SDF
Core Advantages & Technical Features
Swing-Out Inline Maintenance Geometry: The innovative 3-piece design allows the center body section containing the ball, seats, and stem to be easily swung out or removed by loosening the body bolts. Maintenance teams can replace worn seals without unscrewing or cutting the end connectors away from the pipeline.
Rugged WCB Carbon Steel Casting: Manufactured from high-tensile ASTM A126 WCB carbon steel with advanced lost-wax investment casting, ensuring thick, uniform pressure boundary walls free of internal structural macro-porosity.
Blowout-Proof Stem System: The stem is mechanically inserted from inside the valve body with an integral bottom shoulder. This design feature prevents stem ejection or packing blowout under aggressive internal line pressure surges.
Bidirectional Bubble-Tight Sealing: Equipped with premium grade Virgin PTFE or Reinforced PTFE (RPTFE) seats. The elastic profile provides zero-leakage bidirectional sealing from low-vacuum environments up to full ASME rated system pressures.
Standard ISO 5211 Direct Mounting Pad (Optional): Many configurations feature an integrated mounting pad, allowing immediate automation upgrade with pneumatic or electric actuators without completely replacing the existing manual valve body.
The SDF 3-piece carbon steel ball valve is specifically built to manage fluids, gases, and industrial utilities across robust operational loops:
Industrial Manufacturing Processing & Lubricants: Regulates fuel oils, non-corrosive lubricants, hydraulic oils, and hydrocarbon transfer headers within mechanical assembly lines.
Compressed Air & High-Pressure Pneumatics: Acts as a primary isolation valve for industrial compressor air distribution networks, drying installations, and plant pneumatic machinery air rings.
Municipal Infrastructure & Water Utility Circuits: Suitable for handling non-potable processing water, cooling water loop feeds, cooling tower bypasses, and wastewater treatment discharge headers.
High-Pressure Non-Corrosive Processing Utilities: Extensively used in steam condensate return loops, paint processing networks, and bulk handling systems handling mild slurry compositions.
When selecting and sizing the SDF carbon steel three-piece ball valve for pipeline deployment, procurement teams should adhere to the following selection parameters:
End Connection and Alignment Verification: Cross-reference regional piping standards before ordering. Specify female NPT threads per ASME B1.20.1 for North American facilities, or BSPT / BSPP per ISO 7-1 for European/Asian layouts. Socket weld (SW) or butt-weld (BW) connections can be specified for high-vibration systems.
Thermal Cycle Mapping for Seats: Standard PTFE seats operate optimally up to 150°C. For applications approaching 180°C to 200°C (such as saturated steam or hot thermal oil transfer), carbon-filled PTFE or TFM1600 seat configurations must be specified to prevent thermal deformation and leakage.
Corrosion Allowance Consideration: Because WCB carbon steel is prone to surface oxidation when exposed to highly humid open atmospheres or aggressive chemical media, choose stainless steel (CF8M) if outer line corrosion is a key factor, or verify that the external surface anti-rust phosphate coating matches your plant engineering specs.
Technical Parameter | Standard Specification Value / Compliance |
Design & Testing Standards | ASME B16.34, API 608, API 598, MSS SP-110 |
Nominal Size Range (NPS / DN) | NPS 1/4" to NPS 4" / DN8 to DN100 |
Pressure Ratings & Working Pressure | 1000 PSI WOG (63 Bar) / Supports Class 150 to Class 600 systems |
End Connection Options | Threaded NPT (ASME B1.20.1), BSPT, Socket Weld (ASME B16.11) |
Main Body Material | Cast Carbon Steel ASTM A351 WCB / WCC |
Ball & Stem Metallurgy | Stainless Steel 304 (SS304) / Stainless Steel 316 (SS316) |
Seat & Body Seal Compounds | PTFE, RPTFE (Glass-Fiber Reinforced), Carbon-Filled PTFE |
Operator Configuration | Heavy-Duty Manual Lever Handle with Blue Vinyl Sleeve & Locking Mechanism |
Anti-Static Safety Device | Optional built-in structural grounding spring mechanism |
Pressure Inspection & Testing | API 598 Shell & Seat Hydrostatic Test, ISO 5208 Rate A |
