Comprehensive Technical Specifications
Component / Parameter | Standard Specification & Field Options |
Brand / Manufacturer | SDF |
Valve System Type | Pneumatic Actuated Ball Valve Assembly with Manual Override |
Body Configuration | 3-Piece Split Body, Full Bore (FB) for Unrestricted Flow |
Valve Body Material | ASTM A351 CF8 (SS304) / CF8M (SS316) / Premium Stainless Steel |
Ball & Trim Metallurgy | Stainless Steel SS304 / SS316 with Mirror Polish Finish |
Seat Sealing Material | Reinforced PTFE (RPTFE) / PEEK / Devlon (Bubble-Tight Shutoff) |
Actuator Design | Pneumatic Rack & Pinion Actuator (Anodized Aluminum Body) |
Actuation Mode | Double-Acting (Air-to-Open, Air-to-Close) or Spring-Return (Fail-Safe) |
Manual Override System | Heavy-Duty Declutchable Sandwich-Type Manual Handwheel |
Position Feedback | Weatherproof Limit Switch Box (2x SPDT Switches for Open/Close) |
Air Preparation Unit | Filter Regulator with Clear Dial Pressure Gauge |
End Connections | Butt-Weld Flanged Connection System (Flanged Core with Weld Necks) |
Design Compliance | API 6D, ASME B16.34, ASME B16.5, API 598 |
Key Features and Engineered Advantages
Premium Stainless Steel Construction: Fabricated utilizing high-grade cast stainless steel (CF8M/SS316), the pressure-containing valve shell offers exceptional protection against pitting, chemical corrosion, and oxidizing media. The full-bore internal path provides an uninterrupted flow profile, minimizing pressure drop ($\Delta P$) and friction loss while completely eliminating product stagnation areas.

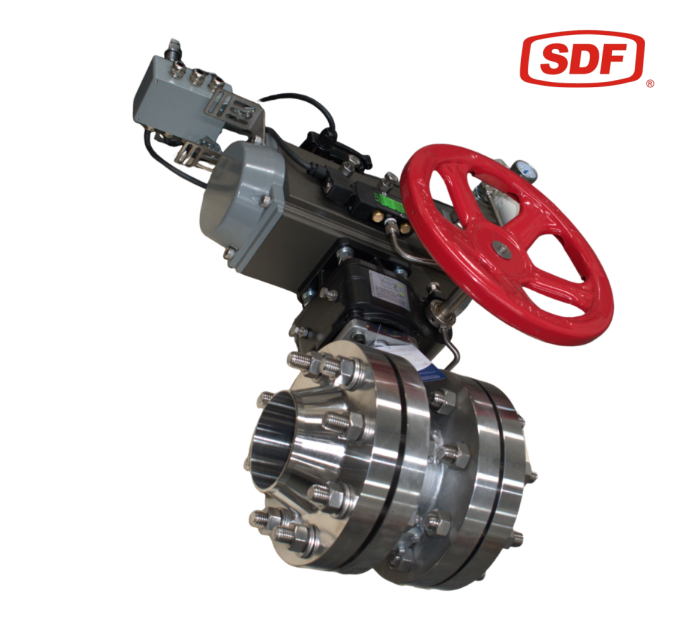

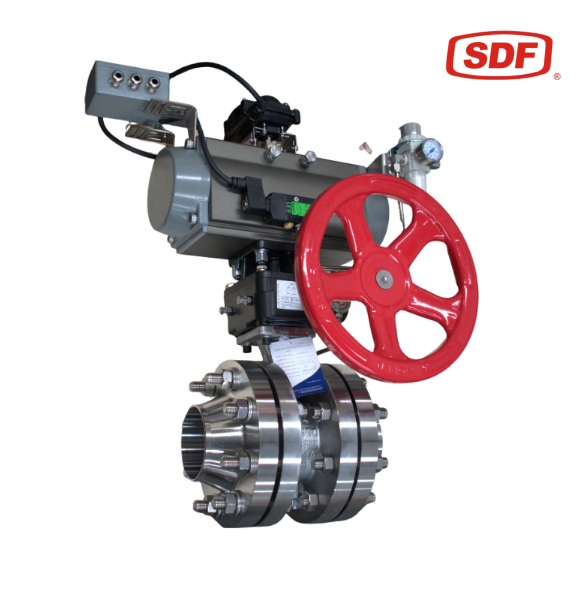

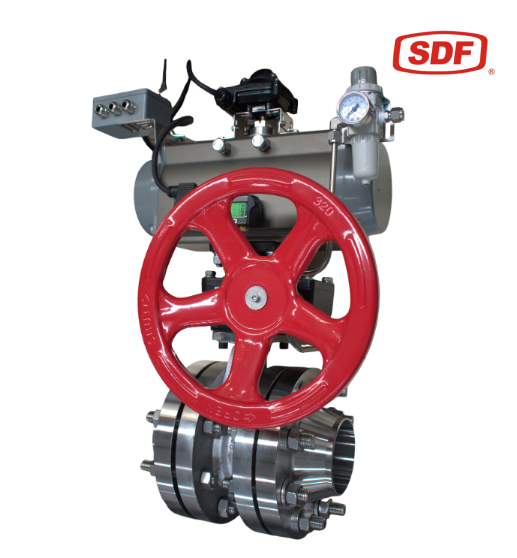

Dual-Mode Control with Declutchable Manual Override: The standout red handwheel features a declutchable sandwich gearbox situated between the valve body and the pneumatic actuator. Under standard operating states, the clutch is disengaged, allowing the pneumatic actuator to stroke the valve smoothly. In the event of a plant power blackout or loss of instrument air, operators can easily pull the engagement pin to manually isolate or open the pipeline, ensuring process security.

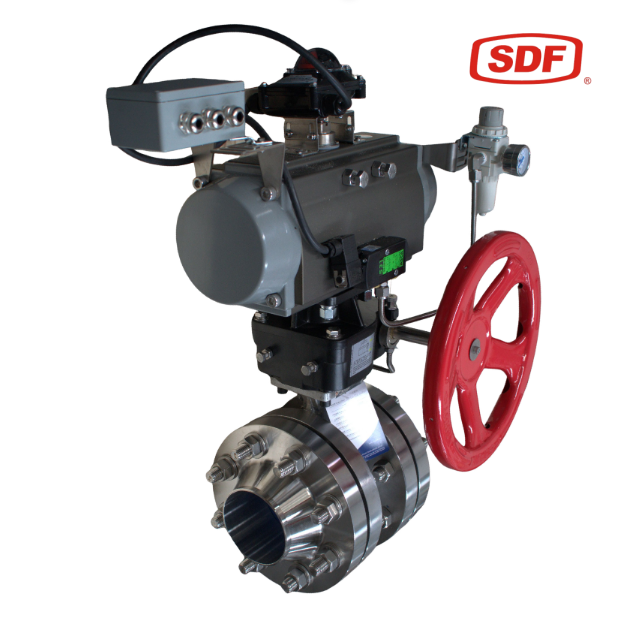

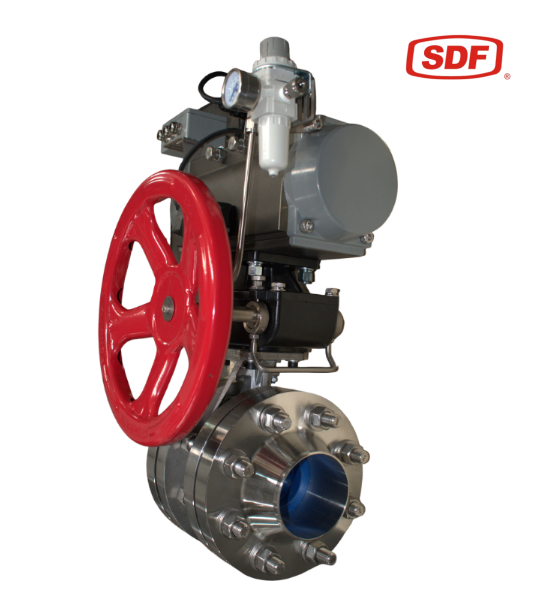

Comprehensive Turnkey Accessory Package: The top-mounted limit switch box provides precise visual and electrical signals back to a centralized control room (DCS/PLC). Accompanying the control loops is a side-mounted air filter regulator that traps ambient condensation, protecting internal pneumatic pistons from premature oxidation or clogging.
Streamlined Butt-Weld Companion Flanges: The valve body is designed with heavy-duty flanged faces bolted directly to matching butt-weld companion pieces. This structural combination yields structural flexibility: it allows the valve core to be unbolted and serviced inline without demanding aggressive pipe cutting, while the outer butt-weld ends provide a seamless, leak-proof weld interface to main run lines.
Blow-out Proof Stem & Fire-Safe Design Architecture: Stems are structurally inserted from the inside cavity of the valve body to avoid pressure-induced stem blowouts. Redundant multi-layered packing configurations combined with anti-static earthing elements ensure tight sealing performance and mitigate hazardous spark risks.
Typical Industry Applications
The SDF integrated pneumatic ball valve assembly is widely trusted across automated heavy-utility and severe chemical flow pathways:
Chemical & Petrochemical Systems: Automated routing of aggressive process liquids, acid/alkali distribution, and organic solvent dosing lines.
Water Treatment & Desalination: High-volume raw seawater intake, reverse osmosis membrane isolation skids, and automated filtration backwash headers.
Food, Beverage & Pharmaceutical Processing: Handling clean utilities, cooling towers, industrial steam supply, and CIP (Clean-in-Place) supply lines.
Pulp, Paper & Mining Utilities: Governing low-viscosity slurries, process chemical bleaching, and localized wastewater discharge systems.
Quality Assurance and Testing Framework
To maximize reliability before shipment, every single SDF automated valve package undergoes rigorous validation tests:
Pressure Integrity Verification: Hydrostatic shell tests and high-pressure resilient seat closure examinations conform strictly to API 598 benchmarks, achieving zero bubble leakage (Class VI shutoff).
Actuation Cycle Diagnostics: Every automated assembly goes through multiple continuous operational cycles under load to test actuator stroke speeds, limit switch feedback alignment, and handwheel override ease-of-engagement.
Material Certification Support: Full chemical composition analysis and physical strength testing records (MTC per EN 10204 3.1) are bundled with every delivery to verify stainless steel purity.
FAQ
1.When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2.Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3.What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4.What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5.What pressure, size, and temperature ranges can you supply?
Pressure: Class 150-3500 Size: DN10-DN3000 Temperature: -196ºC to 610ºC
6.What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7.What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8.Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
