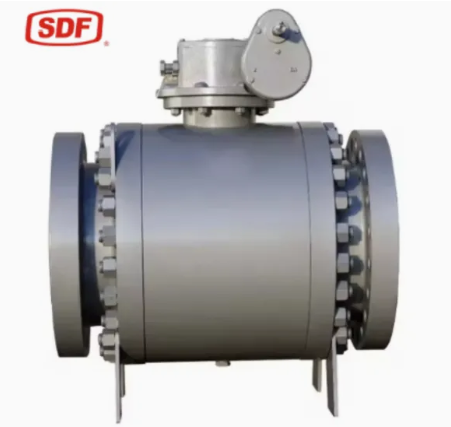

Core Advantages & Technical Features
Full-Port, High-Flow Geometry: The internal flow path matches the line's diameter, facilitating unrestricted product passage, pigging operations, and zero structural fluid resistance or pressure drop.
Fugitive Emission & Low-Leakage Sealing: Engineered with an advanced multi-layered stem sealing system, featuring die-formed flexible graphite rings and live-loaded Belleville springs. This configuration continuously self-adjusts for thermal expansion and mechanical wear, ensuring compliance with strict international low-leakage standards.

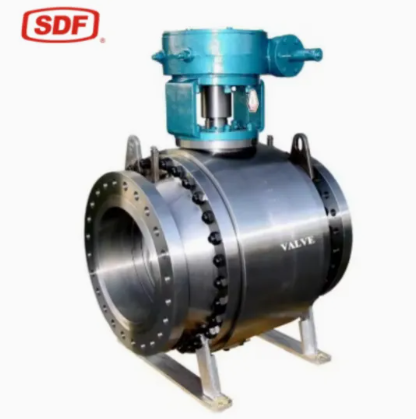

Mechanical Gear Operator Advantage: The integrated heavy-duty, weatherproof worm gear operator dramatically reduces the manual handwheel torque required to break or seat the valve, preventing line shock and ensuring ergonomic operator control under high working pressures.
Blowout-Proof Stem & Anti-Static Design: The stem is mechanically retained with an internal shoulder to prevent accidental blowout under system pressure surges. Concurrently, built-in grounding springs maintain continuous electrical continuity between the ball, stem, and body to eliminate static discharge hazards in explosive areas.
Certified Fire-Safe Protection: Designed and tested to meet industry fire safety standards. In the event of an external plant fire that destroys primary soft seats, a secondary machined metal seat lip automatically interfaces with the floating or trunnion ball to prevent catastrophic downstream product migration.
Target Applications & Operating Conditions
The SDF full-port industrial ball valve is engineered to regulate a broad catalog of volatile, corrosive, and high-temperature process mediums:
Oil, Natural Gas & Petrochemical Logistics: Safely handles crude oil transport lines, natural gas pressure-reduction manifolds, refined fuel distribution systems, and volatile hydrocarbon processing headers.
Chemical Processing & Corrosive Media Transfer: Ideally suited for aggressive chemical media, organic solvents, dilute acids, alkaline solutions, and complex process polymers.
High-Pressure Steam & Thermal Utility Infrastructure: Manages superheated steam distribution, boiler feedwater loops, thermal oil systems, and industrial plant condensate return networks.
Water Treatment & Desalination Infrastructure: Excels in high-pressure reverse osmosis (RO) feed lines, municipal water filtration plants, and wastewater sludge isolation points.
Selection & Engineering Guidelines
When specifying the SDF heavy-duty flanged ball valve for engineering blueprints, design teams should follow these technical criteria:
Seat & Seal Composition Mapping: Select reinforced PTFE (RPTFE) or Devlon for standard liquid and gas applications up to 150°C to achieve optimal low-torque sealing. For severe utility steam or high-temperature chemical process streams exceeding 250°C, a metal-to-metal seat configuration with Stellite hard-facing must be specified.
Flange Class & Rating Validation: Cross-reference operational system pressures and maximum thermal thresholds with ASME B16.5 tables. Ensure the valve's body class rating (e.g., Class 150, Class 300, or Class 600) fully matches the connecting piping flange specification.

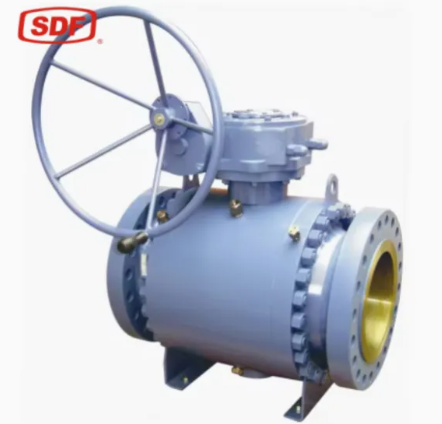

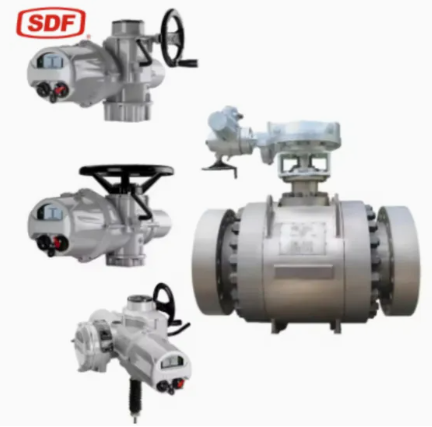

Actuation Flexibility Planning: While the gear operator (shown in image_616318.png) offers dependable manual control, the top flange complies with standard ISO 5211 dimensions. This allows field engineers to seamlessly replace the gear box with automated pneumatic, electric, or electro-hydraulic actuators in the future without modifying the underlying valve stem assembly.
Standard Technical Specifications
Technical Parameter | Standard Specification Value / Compliance |
Design & Manufacturing Standards | API 6D, ASME B16.34, BS 5351, EN 13942 |
Nominal Size Range (NPS / DN) | NPS 2" to NPS 24" / DN50 to DN600 |
Pressure Classes & Ratings | ASME Class 150, Class 300, Class 600 / PN16, PN25, PN40, PN63 |
End Connection Specification | Raised Face (RF), Ring Type Joint (RTJ) Flanged per ASME B16.5 / EN 1092-1 |
Face-to-Face Dimensions | According to API 6D / ASME B16.10 Long or Short Series |
Main Body Materials | Stainless Steel ASTM A351 CF8M / CF8, Carbon Steel ASTM A216 WCB / LCB |
Ball & Trim Metallurgy | Stainless Steel 316 (SS316), SS304, F316 / EN 10222-5 |
Seat & Insert Compound Options | Peek, Devlon, Metal-to-Metal (Stellite overlay) |
Fire Safety Certification | API 607, API 6FA, ISO 10497 |
Fugitive Emissions Compliance | ISO 15848-1 Class A/B, TA-Luft |
Operator Configuration | Weatherproof Manual Worm Gear Box with Handwheel (ISO 5211 Mounting) |
Pressure Inspection & Testing | API 6D, API 598, ISO 5208 Rate A (Zero visible leakage) |
