2. Comprehensive Technical Specifications
Component & System Parameter | Standard Industrial Specification & Field Options |
Brand / Manufacturer | SDF |

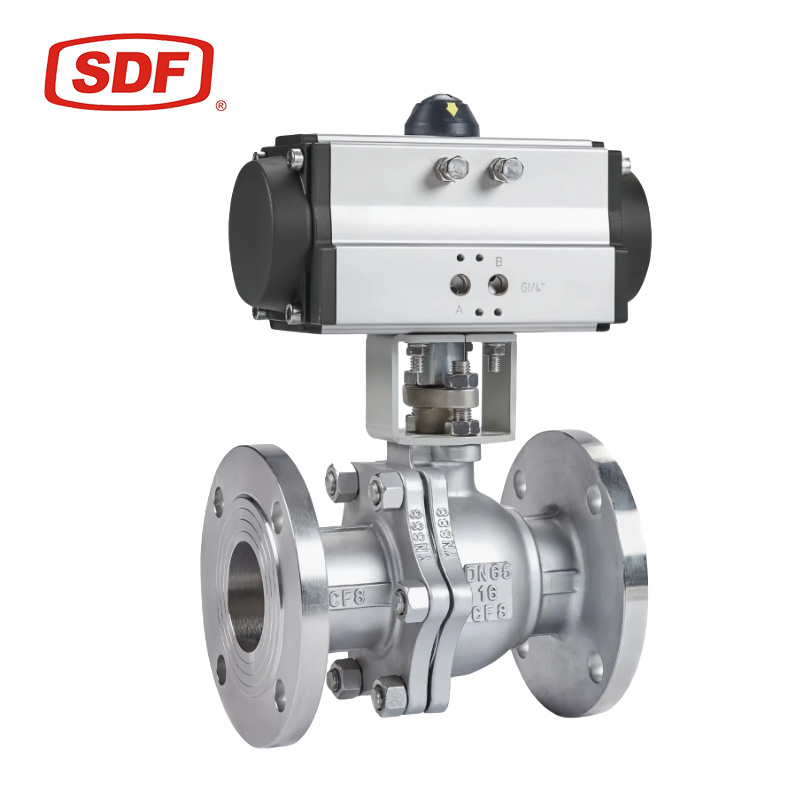

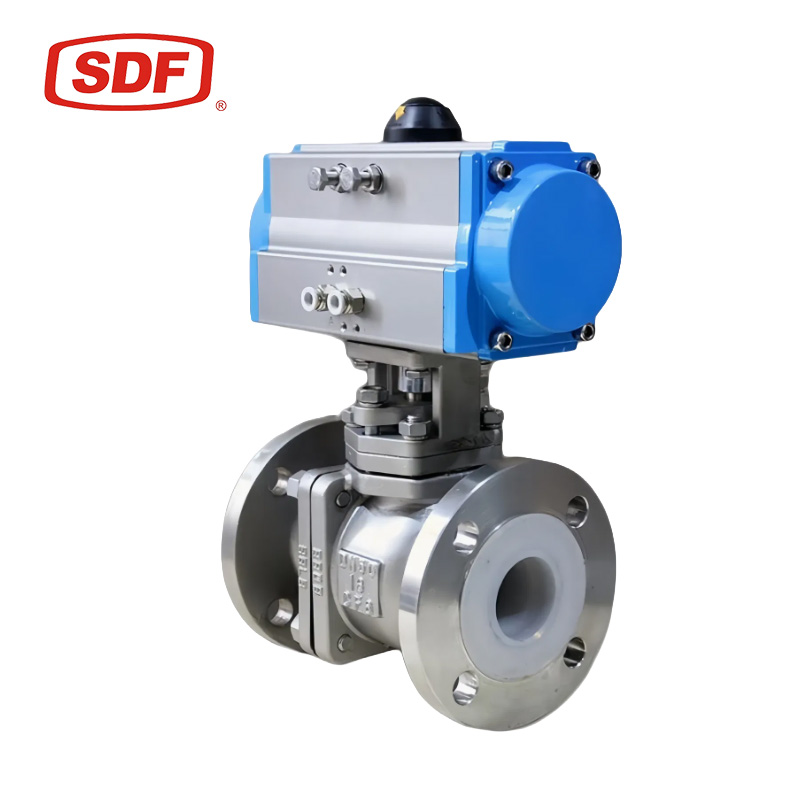

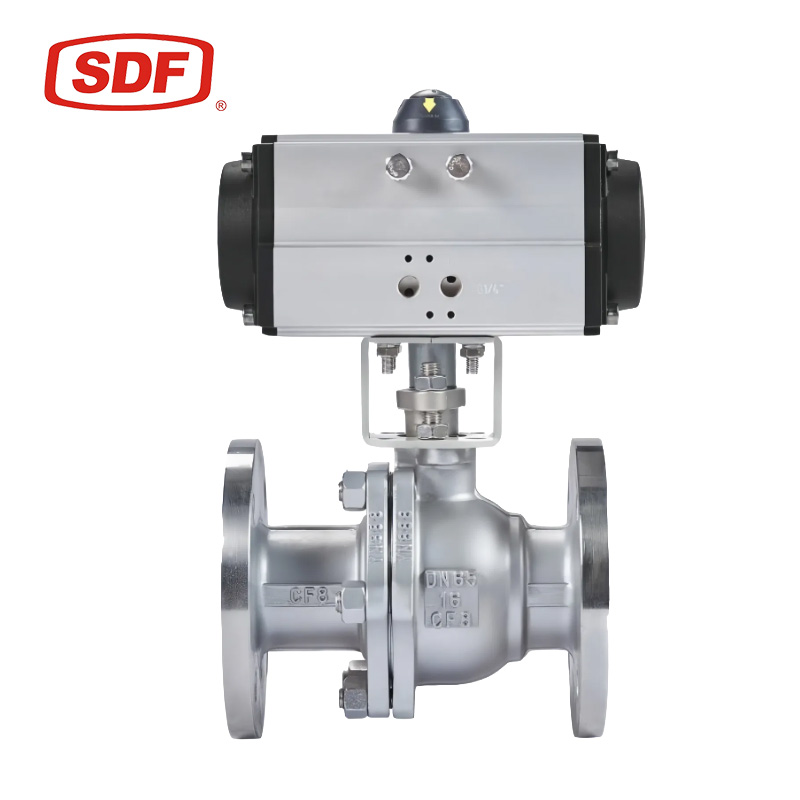

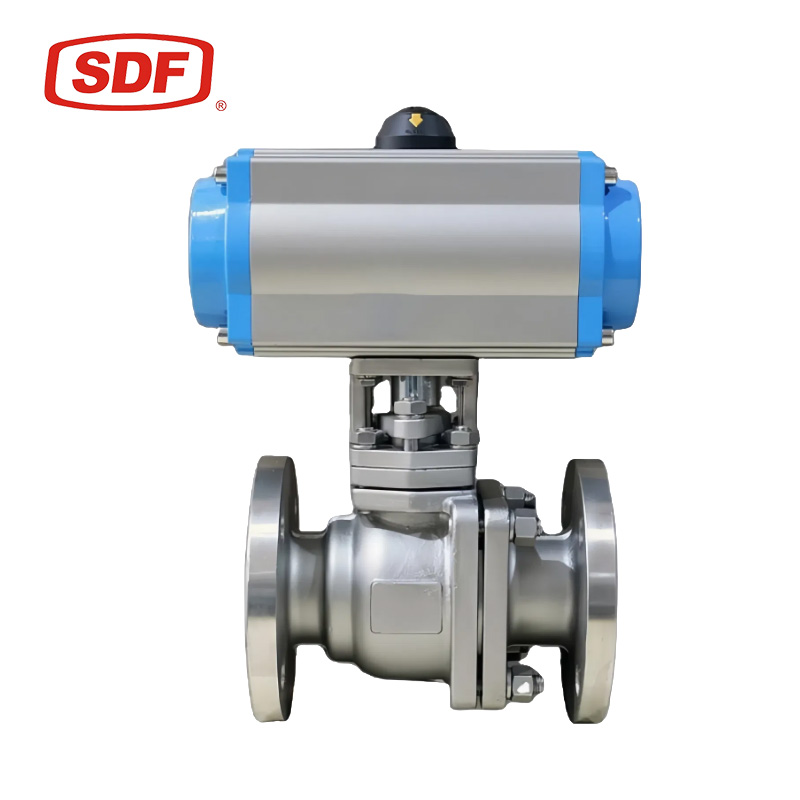

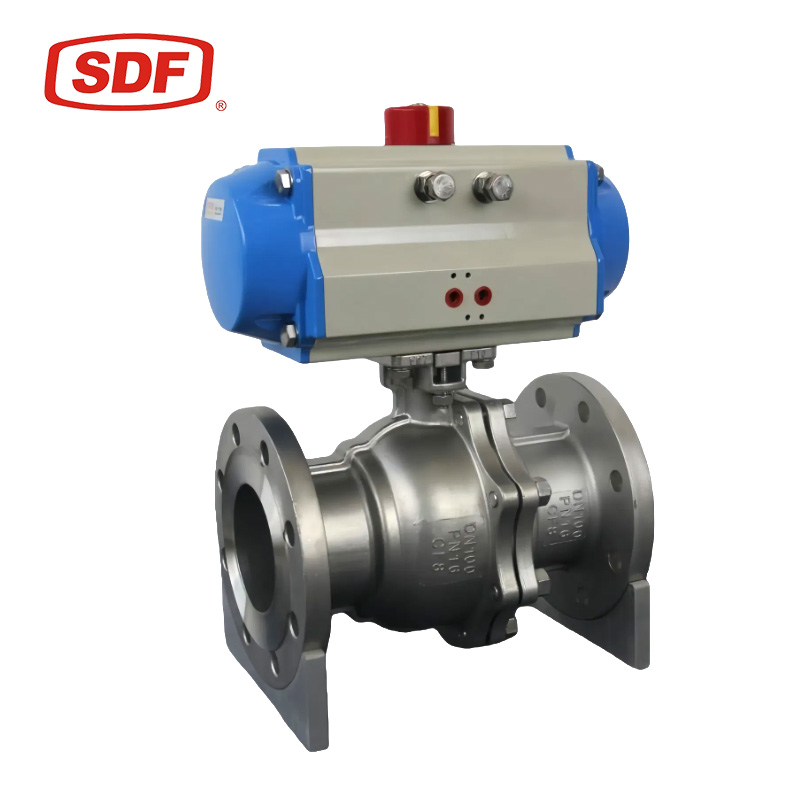

Valve Classification | Ball Valve / 2-Piece (2PC) Flanged Ball Valve |
Actuation Mode | High-Torque Pneumatic Actuator (Double Acting or Spring Return Fail-Safe) |
Design Standards | API 6D, ASME B16.34, API 608, ISO 17292 |
Global Standards Compliance | Meets GB, ANSI, API, JIS, DIN, and BS international standards |
Nominal Size Range | Available in sizes ranging from DN10 to DN3000 to fit various pipelines |
Pressure Ratings | PN16, PN25, PN40 / ASME Class 150, Class 300 |
Body & Cap Metallurgy | ASTM A351 CF8 (SS304) / ASTM A351 CF8M (SS316) / Low-Temp Carbon Steel |
Ball & Stem Metallurgy | ASTM A182 F304 / F316 Stainless Steel (Mirror Polished) |
Sealing Seat Matrix | Gas-Grade Devlon, Nylon, PEEK, or Fire-Safe Reinforced PTFE (RPTFE) |
Applicable Media Profile | Natural Gas, Liquefied Petroleum Gas (LPG), LNG, Methane, Air, Light Oils |
Working Temperature Scope | -29°C to 180°C (Special low-temperature options available for cryogenic LNG) |
Control Accessory Options | Electro-Pneumatic Solenoid Valves, Limit Switch Boxes, Air Filter Regulators |
3. Key Features and Engineered Advantages
1. High-Density Cast Stainless Steel (CF8/CF8M) Body: Cast from premium-grade CF8 or CF8M stainless steel, the pressure-retaining valve body possesses outstanding structural strength and chemical resistance. This metallurgy prevents internal pipeline corrosion when conveying slightly sour, wet, or untreated fuel gases.
2. Compact, Fast-Acting Pneumatic Actuation: The top-mounted rack-and-pinion actuator delivers a balanced, linear torque curve optimized for the breakaway friction profile of polymer seats. Powered by clean utility air, it opens or closes fully in under a second, making it ideal for safety shutdown or automated process sequencing.
3. Zero-Leakage Gas-Grade Polymer Sealing: The high-precision floating ball is paired with specialized resilient polymer seat rings. This interface achieves absolute bubble-tight, zero-leakage shutoff (FCI 70-2 Class VI standard), ensuring highly volatile gases are safely contained without atmospheric or downstream leakage.
4. Anti-Blowout Stem & Anti-Static Safety Integration: The valve stem is engineered with an internal shoulder that cannot blow out under extreme pipeline pressure. Built-in electrostatic grounding springs maintain permanent electrical path continuity between the ball, stem, and body, safely discharging static build-up and preventing dangerous spark hazards.
5. Customizable OEM Configurations: Backed by comprehensive OEM support, the SDF series can be fully customized based on customer-provided engineering drawings, material specifications, and unique field conditions, offering custom trim layers or custom low-temperature extensions.
4. Typical Industry Applications
The SDF flanged automated pneumatic ball valve serves as a reliable isolation node across critical gas distribution and utility systems:
1. Natural Gas & LPG Pipeline Distribution: Regulating pressure-reducing skids, distribution headers, town gas intake lines, and bulk loading/unloading terminals.
2. Industrial Combustion & Burner Systems: Automated fuel gas shutoff valves for large-scale boiler systems, steel reheating furnaces, and asphalt drying kilns.
3. Chemical and Petrochemical Feedstocks: Safe isolation of volatile hydrocarbons, methane processing loops, hydrogen distribution lines, and reactive process gases.
4. Power Generation Utilities: Gas turbine fuel injection feeds, emergency shutdown valves (ESD), and auxiliary heating gas regulation stations.
5. Quality Assurance and Precision Pre-Shipment Compliance Testing
To guarantee exceptional safety in hazardous gas areas and ensure a fast, hassle-free field installation, every SDF pneumatic gas ball valve passes strict validation:
Hydrostatic Body and Shell Pressure Test: The primary split casing is hydrostatically pressure-tested at $1.5 \times$ its maximum rated design pressure to guarantee material density and zero structural micro-porosity.
API 6D/API 598 Double-Direction Gas Seat Sealing Test: Every valve undergoes low-pressure nitrogen/air seat testing to ensure there is zero bubble leakage across the seal boundary before shipment.
Complete Actuator Cycle and Accessory Calibration: The fully assembled package undergoes dynamic cycle testing at the factory to confirm correct actuator stroke travel, limit switch signal feedback, and solenoid valve responsive actions, ensuring true plug-and-play field deployment.
