Core Advantages & Technical Features
Intelligent Modulating Actuation: Equipped with a state-of-the-art electric actuator containing a built-in positioner. It directly accepts 4-20mA DC or 1-5V DC analog control signals, featuring self-calibration, diagnostic feedback, and digital bus communication capabilities.
Flow-Optimized Single-Seat Geometry: The single-seated trim design ensures a tight seal and minimizes seat leakage, achieving ANSI/FCI 70-2 Class IV or Class V shut-off ratings, which is crucial for preventing energy loss during shutdown states.
Excellent Dynamic Stability: The plug guide layout provides precise alignment, minimizing lateral vibrations and stem deflection induced by high-velocity fluid shears or turbulent cavitation zones.
Extended High-Temperature Resilience: Fitted with an elongated yoke and cooling fin bonnet extension, the valve structure isolates the electronic control housing from intense pipeline thermal radiation, enabling reliable high-temperature media regulation.
Customizable Flow Characteristics: The internal trim components can be custom-machined into linear, equal-percentage, or quick-opening profiles to seamlessly match the specific fluid-dynamic requirements of your processing loop.
Target Applications & Operating Conditions

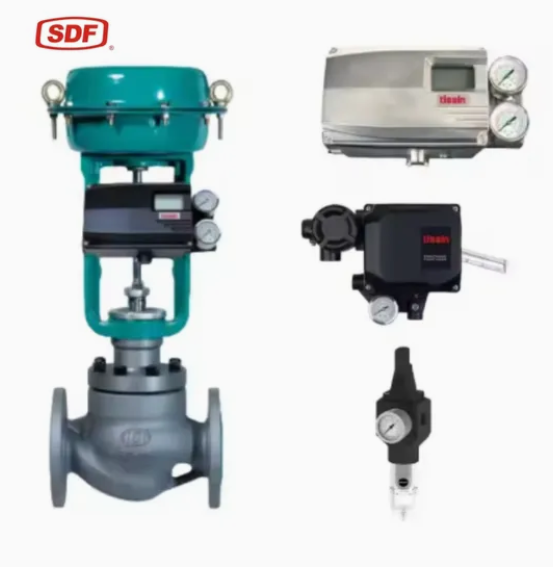

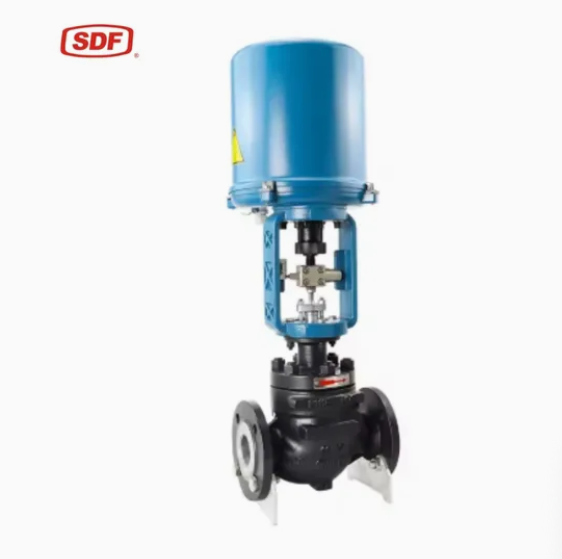

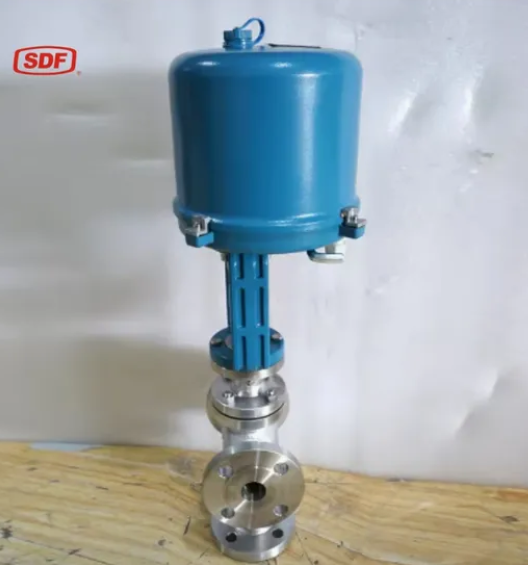

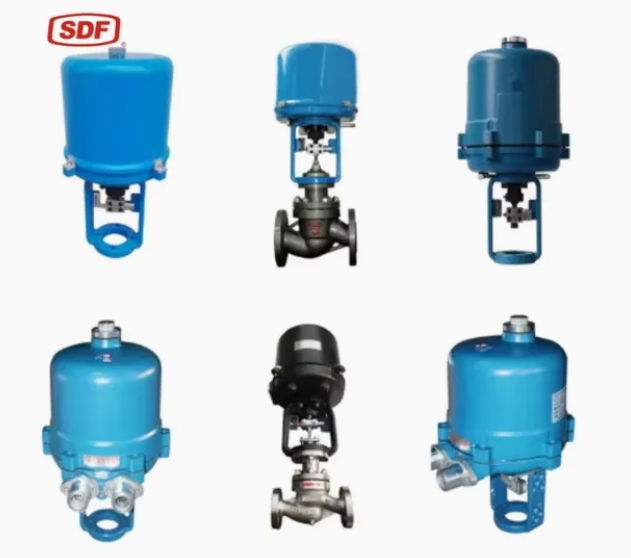

The SDF electric control valve series excels in regulating liquids, non-viscous gases, and steam utility flows across demanding thermal and chemical loops:
HVAC & District Energy Management: Regulates hot water loops, chilled water circulation lines, and climate-control heat exchangers in large-scale commercial and industrial properties.
Industrial Boiler Feedwater & Steam Loops: Controls saturated or superheated steam distribution lines, condensate return lines, and automated boiler drum water feed subsystems.
Chemical Processing & Industrial Utilities: Manages process water headers, cooling tower bypass flows, and non-corrosive chemical solutions in manufacturing facilities.
Water Distribution & Advanced Irrigation Loops: Regulates fluid pressures and blending ratios within large municipal or commercial pumping systems and fluid transport mainlines.
4. Selection & Engineering Guidelines
When selecting and sizing the SDF electric control valve, project engineers must carefully evaluate the following process parameters to maximize field longevity:
Flow Characteristics Sizing: Never size the valve based solely on nominal pipe size. Calculate the required Flow Coefficient using minimum, normal, and maximum flow rate margins alongside actual differential pressure metrics to prevent improper control response or hunting.
Media Temperature & Packing Material Selection: For standard thermal loops up to 200°C, a standard PTFE V-ring packing assembly provides an excellent low-friction seal. For high-temperature utility systems exceeding 250°C, a graphite or carbon-filled packing set combined with an extended cooling bonnet configuration must be specified.
Fail-Safe Mode Configuration: Determine the safety configuration required during a primary power loss event. The electric actuator can be specified with internal mechanical spring returns or emergency battery backups to enforce a Fail-Close, Fail-Open, or Fail-In-Last-Position protocol.
Standard Technical Specifications
Technical Parameter | Standard Specification Value / Compliance |
Design & Testing Standards | IEC 60534, ASME B16.34, GB/T 4213, ISA-75 |
Nominal Size Range (DN / NPS) | NPS 1/2" to NPS 12" / DN15 to DN300 |
Flange Rating & Class | ASME Class 150, Class 300 / PN16, PN25, PN40 |
End Connection Specification | Raised Face (RF) Flange according to ASME B16.5 / EN 1092-1 |
Valve Body Materials | Cast Carbon Steel (WCB), Stainless Steel 304 (CF8), SS316 (CF8M) |
Trim & Valve Plug Metallurgy | Stainless Steel 304 / 316, Stellite Hard-Facing (Optional) |
Flow Characteristics | Linear, Equal Percentage , Quick Opening |
Seat Leakage Classification | ANSI/FCI 70-2 Class IV (Standard), Class V / VI (Resilient Seat) |
Actuator Input / Output Signals | 4-20mA DC, 1-5V DC, Modbus RTU / Profibus (Optional) |
Power Supply Voltage | 220V AC, 110V AC, 24V DC (Single-phase / Three-phase optional) |
Working Temperature Range | -20°C to +450°C (Depending on bonnet and packing configuration) |
