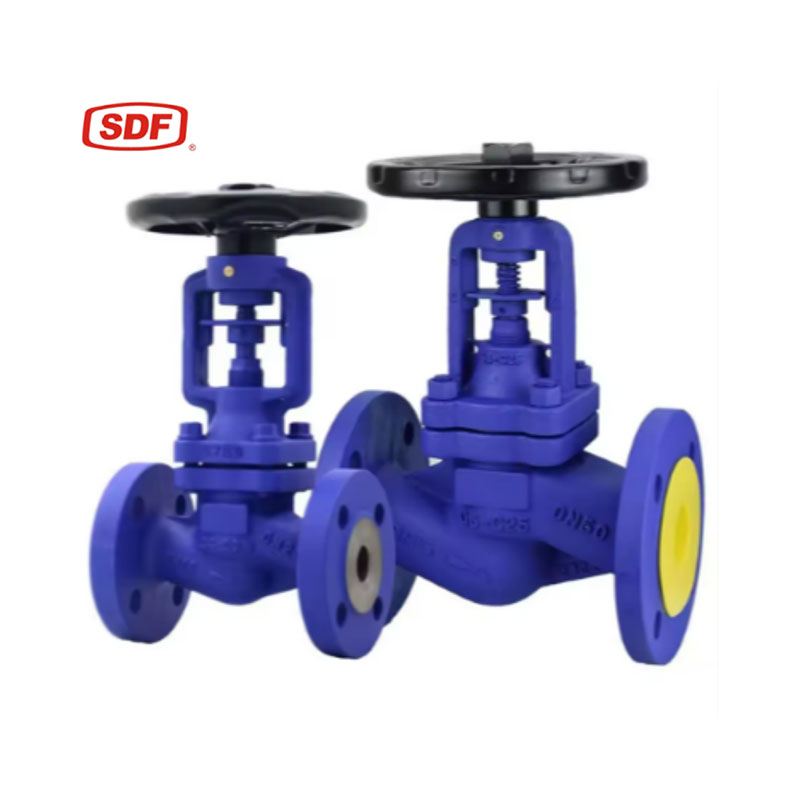

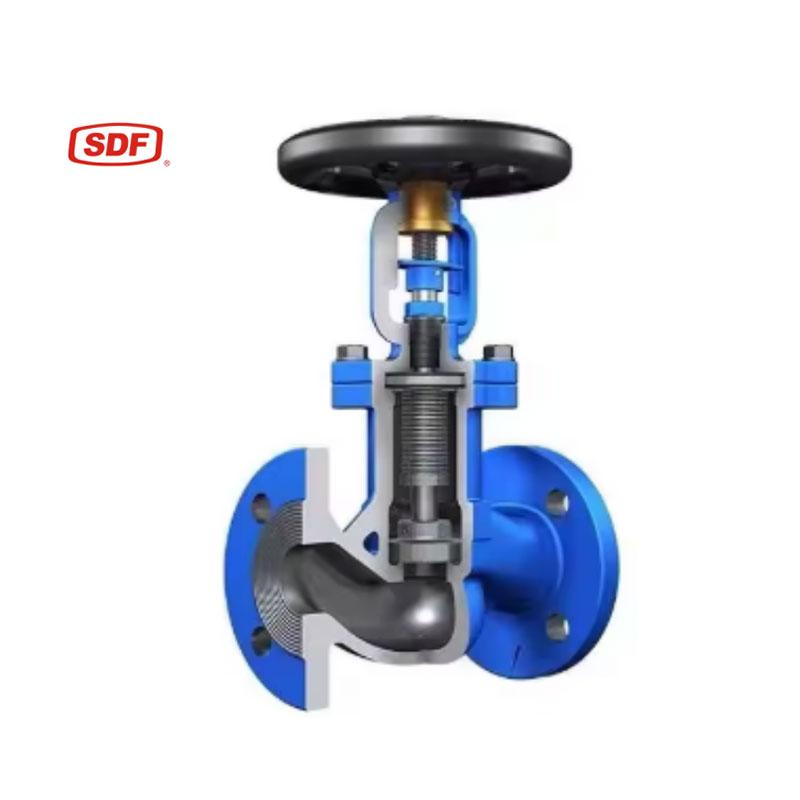

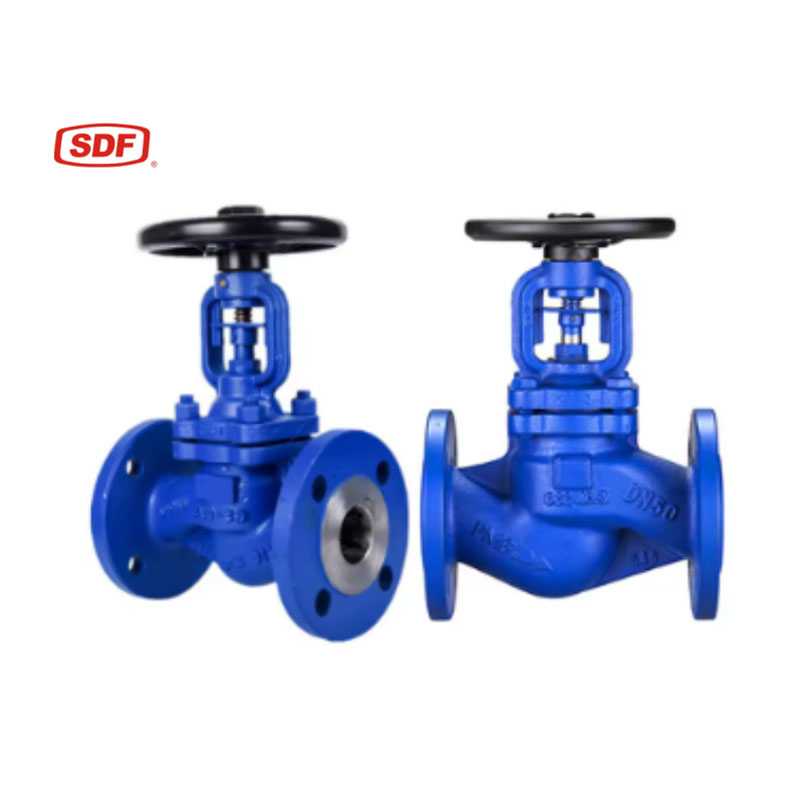

SDF Zero Leakage Bellow Seal Globe Valve 1 Year Warranty

Share to:

SDF Zero Leakage Bellow Seal Globe Valve with 1-Year Warranty

Availability:

Quantity:

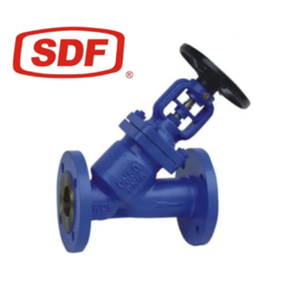

The SDF Heavy Duty Y-Type Globe Valve (also globally recognized as a Y-Pattern Globe Valve) represents a pinnacle of high-integrity engineering designed to conquer severe-service industrial piping loops where traditional fluid control methods fall short. In standard T-pattern (or straight-through) globe valves, the internal fluid medium is subjected to sharp, asymmetric 180-degree directional changes within the body cavity. This restrictive path creates extreme localized fluid turbulence, rapid cavitation erosion, and a steep pressure drop penalty. The SDF Y-Type configuration directly solves these operational bottlenecks by aligning the valve stem, packing bonnet, and modulating plug at an oblique, mathematically optimized angle relative to the main horizontal axis of the pipeline. This specialized orientation straightens the fluid flow path substantially, allowing the process medium to pass through the valve body with minimal directional obstruction. Consequently, fluid resistance and flow turbulence are significantly reduced. It offers excellent high-flow efficiency that closely approaches that of a full-bore gate or ball valve while maintaining the flawless, micrometer-accurate throttling performance unique to a globe valve. Specifically engineered for high-risk environmental protection and media containment, the Bellows Sealed Globe Valve features a dual-wall metallic bellows mechanism that forms an impenetrable mechanical barrier around the valve stem.
Inquire Add to Basket

Brand:
SDF

Product Description

1. Core Engineering Advantages

Optimized Low-Turbulence Flow: The slanted Y-pattern flow channel significantly straightens the fluid path, dropping internal resistance coefficients by up to 50% compared to traditional T-pattern valves. This directly improves plant energy efficiency and cuts down on system head loss.
Premium Wear-Resistant Trim: The seat and plug feature a heavy-duty metal-to-metal configuration treated with hard-faced metallurgical overlays. This provides flawless modulating control and an incredibly reliable seal even when exposed to abrasive particulate slurries or high-velocity steam.
Zero-Leakage Fugitive Emission Stem Seals: Equipped with a deep stuffing box utilizing live-loaded die-formed graphite chevron rings and an adjustable bolted gland follower. This setup maintains constant radial compression against the stem, meeting the strict requirements of international low-emission clean-air standards.
Rugged, Built-to-Last Shell: Features enhanced wall thicknesses that easily absorb high thermal shocks, heavy pipeline stresses, and transient water hammer spikes typical of severe industrial processing.

2. Universal Technical Specifications Matrix

Technical Parameter	Standard Specification (DIN / ASME Compliance)	Available Engineering Upgrades
Nominal Size Range	DN50 to DN400 (2 inch to 16 inch)	Custom large-bore sizes up to DN600
Pressure Ratings	PN16, PN40, PN63 / Class 150, Class 300, Class 600	Ultra-high pressure Class 900 / Class 1500
Body and Bonnet Materials	ASTM A216 WCB (Carbon Steel) / A351 CF8M (SS316)	Super Duplex SS, Hastelloy C276, Monel
Trim Design Type	Regulating / Throttling Plug with Guided Stem	Balanced plug design for large sizes
Seat and Face Hardening	Stainless Steel 316 + Stellite Overlaid	Solid Stellite / Tungsten Carbide Coated
End Connections	Raised Face Flanged (RF) to ASME B16.5 / DIN EN 1092-1	Butt-Weld (BW) Ends to ASME B16.25
Stem Sealing Method	Die-formed Flexible Graphite with Braided Anti-Extrusion Rings	Live-loaded springs / Dual-wall Bellows seal

3. Strategic Applications & Working Conditions

The SDF Heavy Duty Y-Type Globe Valve is specifically engineered for severe-service industrial piping systems characterized by extreme velocities, thermal fluctuations, and harsh media:

High-Velocity Thermal Steam Networks: Effortlessly handles main steam line insulation, continuous boiler blowdown bypass loops, superheater drains, and high-pressure steam distribution headers.
Petrochemical & Refinery Heavy Oil Processes: Ideal for managing high-temperature cracking products, vacuum distillation bottoms, heavy hydrocarbon fractions, and catalyst slurry lines.
High-Pressure Boiler Feedwater Isolation: Serves as a rugged flow regulation and isolation node on main feedwater pumps, economizers, and water treatment loops.
Aggressive Chemical Processing: Deployed in high-pressure loops processing volatile acids, chemical reagents, and polymer solutions where tight shut-off and erosion resistance are non-negotiable.

4. Engineering Selection & Field Installation Guidelines

1. Media Orientation & Flow Direction

Always align the valve with the structural arrow permanently cast onto the valve body shell. For standard liquid throttling applications, the valve must be installed so that the medium flows from under the plug. This design utilizes upstream system pressure to assist in opening the valve, prevents water hammer shocks during closing, and completely isolates the stem packing from line pressure when the valve is tightly shut. For high-pressure steam services over 4 inches, a pressure-balanced plug design should be selected if flowing from over the plug to assist with manual closure.

2. Sizing for Throttling Services

Never size a Y-type globe valve based solely on the nominal size of the matching pipe. Instead, calculate the exact minimum and maximum flow coefficients based on the fluid's specific gravity, inlet pressure, and desired pressure drop (Delta P). Operating a globe valve continuously at a stroke position below 10% open can cause intense high-velocity fluid concentration, leading to accelerated trim wear and premature wire-drawing.

3. Piping Stress & Physical Orientation

Due to the slanted architecture of the Y-type bonnet and stem assembly, the valve exhibits a unique center of gravity. When installing larger sizes (DN150 and above) horizontally or at an angle, ensure that adjustable heavy-duty pipe supports or hangers are placed immediately adjacent to the valve flanges. This neutralizes external bending moments, preventing stem misalignment, packing binding, or uneven seat wear.

4. Flange Torquing & Gasket Integrity

When installing flanged variants, utilize high-tensile fasteners and a calibrated torque wrench to tighten bolts in a cross-star pattern. Uneven or sudden torque distribution can strain the body flanges and introduce microscopic gaps, compromising the tightness of the main spiral-wound pipeline gasket.

Applications

Crucial for chemical plant thermal oil circuits, toxic/hazardous gas lines, high-purity hydrogen networks, and high-temperature steam lines in residential and industrial zones.
