1. Product Introduction & Overview
Manufactured under strict international quality management standards, the internal architecture of this valve is explicitly designed to handle extreme pressure drops across the seat without generating destructive structural vibrations, acoustic screaming, or rapid trim erosion. The valve body is constructed from premium-grade stainless steel or forged alloy steel, ensuring maximum mechanical strength and a robust thermal envelope. The product features an integrated top-mounted, single-acting or double-acting pneumatic piston actuator. This robust automation package responds seamlessly to instrument signals via electro-pneumatic positioners, allowing for highly linear, infinite micro-adjustments of the valve plug position.
Furthermore, the valve plug and seat matching faces are precision-ground and treated with proprietary hard-facing alloys to combat the effects of flashing and wire-drawing. The stem sealing area utilizes a specialized live-loaded chevron packing design that exerts continuous, controlled radial pressure against the polished stem. This arrangement compensates for seal wear during rapid, high-frequency modulation cycles and ensures zero ambient fugitive emissions. It represents an eco-friendly and process-safe solution for modern smart factories.
2. Core Advantages: Engineering Highlights
Space-Saving Dual-Function Geometry: Functions simultaneously as an adjustable throttling control valve and a 90-degree directional pipe elbow. This dual-capability significantly lowers hardware procurement costs, shortens installation times, and maximizes space within tight modular process skids.
High-Precision Linear Throttling: Equipped with an optimized parabolic or needle-profiled plug, enabling incredibly repeatable, fractional volumetric flow regulation across its entire stroke.
Heavy-Duty Pneumatic Automation: The integrated top-works actuator delivers fast stroke speeds, high positioning accuracy, and a reliable fail-safe function (Fail-Close or Fail-Open via internal spring return).
Superior Erosion Resistance: The hardened metal-to-metal trim surfaces effectively handle high-velocity fluids, ensuring long-term seat tightness and structural integrity even under severe cyclic thermal stress.
3. Universal Technical Specifications Matrix
Technical Parameter | Standard Specification | Options / Customizations |
Nominal Size Range | DN15 to DN50 | Custom large-bore sizes upon request |
Body Material | Stainless Steel 304 / 316 (CF8 / CF8M) | Forged Carbon Steel (WCB) / Alloy Steel |
Actuator Type | Pneumatic Piston / Cylinder Type | Manual Handwheel / Double-acting Cylinder |
Pressure Rating | PN16, PN25, PN40, PN64 / Class 150, Class 300 | High-pressure designs up to PN160 |
End Connections | Female Threaded (NPT / BSP) or Socket Weld | Butt-Weld (BW) / Flanged Ends (ANSI / DIN) |
Trim Material | Hardened Stainless Steel 316 | Stellite Cobalt-Alloy Overlaid |
Air Supply Pressure | 0.4 to 0.6 MPa (4 to 6 bar) | High-pressure instrument air configurations |
4. Strategic Applications & Working Conditions
The SDF Pneumatic Angle Globe Valve is engineered to thrive in punishing operational environments that rapidly degrade standard inline control valves:
High-Pressure Utility Steam Throttling: Perfect for auxiliary steam lines, clean steam sampling stations, and high-temperature condensate return manifolds.
Chemical Dosing & Injection Skids: Ideal for managing precise volumetric injection of chemical reagents, solvents, polymers, and mildly corrosive liquid media.
Industrial Gas Supply Control: Deployed widely in high-pressure nitrogen, oxygen, argon, and compressed air distribution loops requiring fast pneumatic responses.
Refinery and Petrochemical Drains: Excellently suited for high-differential-pressure blowdown, sample extraction, and multi-phase liquid drain systems.
5. Technical Selection & Field Installation Advice
1. Actuator Sizing & Fail-Safe Modes
When selecting the valve configuration, clearly identify the required process safety state. Choose a Fail-Close (Air-to-Open) configuration for lines where a power or pneumatic failure requires immediate flow shut-off to prevent downstream over-pressurization. For automated loops, always ensure the instrument air supply matches the 0.4 to 0.6 MPa technical requirement to ensure full actuator travel.
2. Thread Selection and Structural Loading
When choosing the Threaded Connection style, ensure the thread standard (NPT or BSP) aligns perfectly with the matching male fittings. Because the pneumatic actuator adds significant top-heavy weight to the valve assembly, avoid long lengths of unsupported horizontal piping directly adjacent to the valve. Install pipe anchors or hangers near the inlet and outlet ports to neutralize vibration from fast-acting pneumatic cycles.
3. Flow Direction Optimization
Always install the valve in accordance with the cast flow arrow indicator on the body shell. For typical liquid throttling configurations, the medium must flow from under the plug. This design utilizes upstream line pressure to assist the actuator in lifting the plug, reduces closing shock (preventing water hammer), and isolates the stem packing from full system pressure when the valve is tightly closed.
Although the 90-degree angle body layout provides an inherent self-cleaning flow path, highly abrasive particulates or metallic welding slag traveling at high speeds can still cause micro-pitting on the precision-ground seating surface. For automated micro-throttling applications, it is highly recommended to install an upstream Y-Strainer to capture particulates and protect the hardened trim.

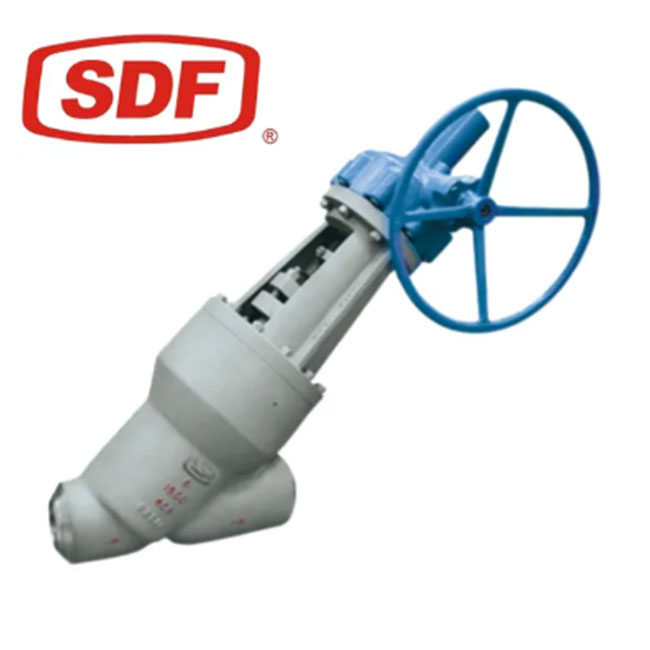

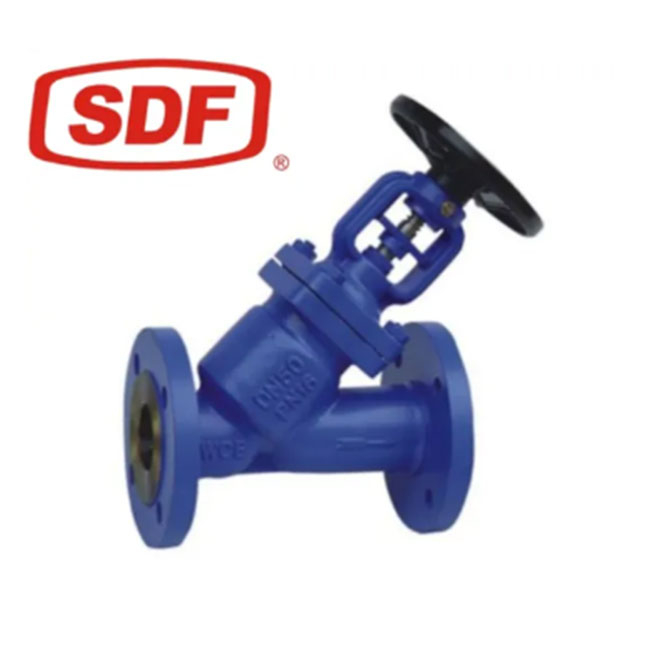

Key Advantages Summary
Optimized Low Flow Resistance: The straight-through internal geometry reduces pressure drop and fluid turbulence, protecting the pipeline from severe erosion.
Exceptional Throttling Control: Designed with specialized parabolic or needle-type plugs for highly precise, repeatable manual flow regulation.
Extended Dynamic Lifecycle: Stellite hard-faced seating faces protect the critical sealing zones against wire-drawing and cavitation damage.
Easy Inline Service: Removable bonnet design allows for fast online inspection, repacking, and maintenance without removing the valve body from the pipe.
Applications
Perfectly suited for high-pressure boiler feed-water loops, steam distribution networks, thermal oil systems, and high-velocity gas lines.
Frequently Asked Questions (FAQ)
1. When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2. Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3. What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4. What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5. What pressure, size, and temperature ranges can you supply?
6. What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7. What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8. Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
