1. Core Advantages: Engineering Highlights
Dual-Function Geometry: Seamlessly combines a high-efficiency throttling device and a durable 90-degree piping elbow into a single physical unit. This compact footprint lowers overall structural weight by up to 35% compared to separate valve-and-fitting configurations, maximizing space utilization in tight modular skids.
Premium Hardened Trim Matrix: The valve plug and seat ring are hard-faced with premium cobalt-base alloys (such as Stellite) to prevent wire-drawing, cavitation pitting, and premature wear, ensuring tight shut-off characteristics even after hundreds of high-differential modulation cycles.
Superior Pressure-Drop Performance: The optimized 90-degree internal profile guides fluid media with minimal turbulence, decreasing the overall localized head loss during full-flow conditions compared to standard inline globe designs.
Zero-Leakage Packing Sealing: Utilizing an advanced live-loaded packing configuration with a bolted gland follower, the valve guarantees maximum protection against fugitive emissions, safeguarding both operators and the environment.
2. Standard Technical Specifications
Technical Parameter | Standard Configuration | Options / Available Upgrades |
Nominal Diameter Range | DN15 to DN100 | Custom large-bore sizes up to DN250 |
Pressure Ratings | PN16, PN40, PN63 / Class 150, Class 300 | High-pressure Class 600 / Class 900 designs |
Body and Bonnet Metallurgy | ASTM A216 WCB (Carbon Steel) / A351 CF8M | Super Duplex, Alloy 20 |
Trim Hardfacing Material | Stainless Steel 316 + Stellite Overlaid | Solid Stellite / Tungsten Carbide Coated |

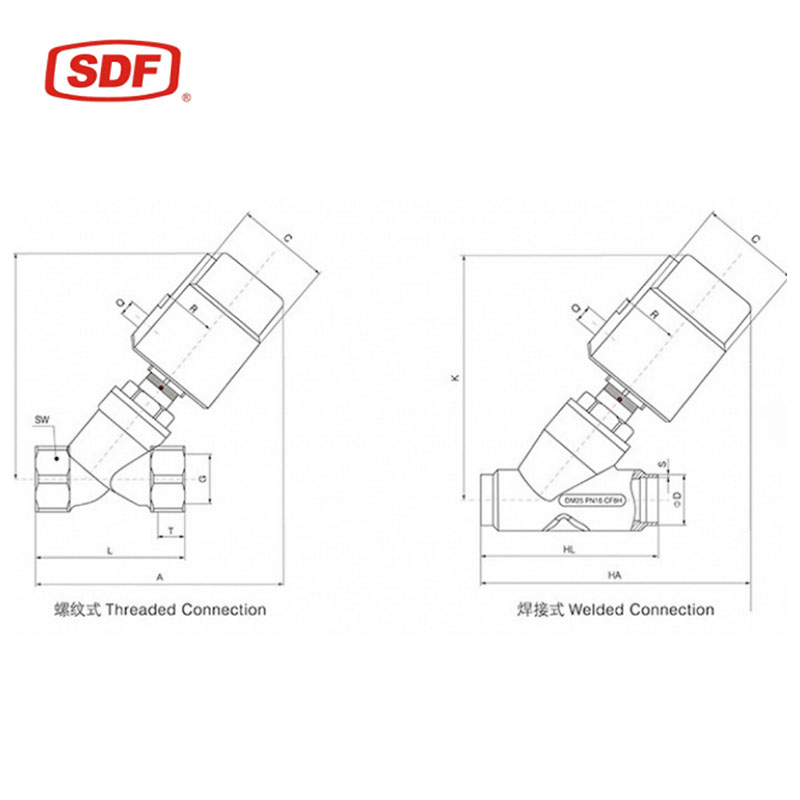

End Connection Styles | Female Threaded (NPT / BSP) and Socket Weld | Butt-Weld (BW) / Raised Face Flanged (RF) |
Sealing / Seat Style | Metal-to-Metal Precision Ground Seating | Soft PTFE/PEEK insert for absolute zero gas leak |
3. Strategic Applications & Working Conditions

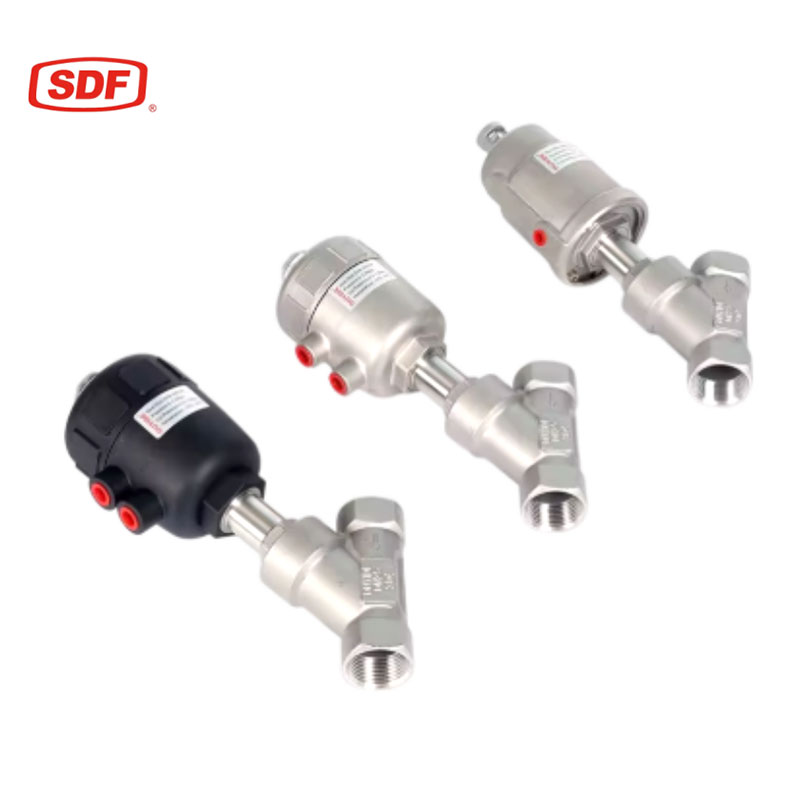

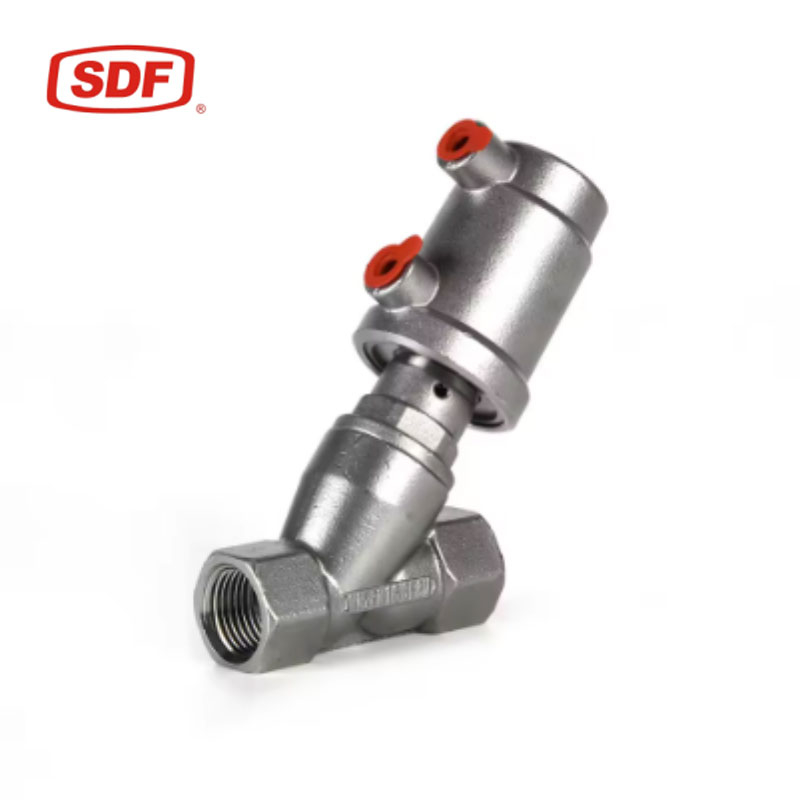

The SDF Angle Globe Valve is uniquely engineered to thrive in punishing operational environments that rapidly degrade standard inline isolation valves:
High-Pressure Steam Boiler Blowdown: Effortlessly handles the severe thermal shocks, aggressive flashing, and high velocity associated with boiler bottom blowdown and continuous skimming lines.
Chemical Dosing & Injection Skids: Serves as the primary control node for regulating the precise injection of mildly corrosive process additives, chemical reagents, and polymer fluids.
Refinery Product Throttling: Deployed in high-differential-pressure drain loops handling heavy hydrocarbons, bypass systems, and multi-phase fluid separators.
Industrial Utility Air & Gas Controls: Delivers precise volumetric flow adjustment for high-pressure pneumatic supplies, nitrogen headers, and boiler feed water regulation.
4. Engineering Selection & Field Installation Advice
1. Velocity and Cavitation Limitations
When selecting a valve size for liquid service characterized by high differential pressures (where differential pressure Delta P = P_in - P_out > 1.5 MPa), always calculate the cavitation index of the system. If the system parameters indicate severe cavitation risks, opt for a hardened tungsten carbide trim upgrade rather than standard metal seats to prevent localized shockwave erosion from damaging the body walls.
2. Structural Orientation & Flow Arrow
Ensure the valve is installed with the process flow direction matching the body arrow emblem (typically flowing from under the plug). This structural choice maintains upstream line pressure beneath the disk, assisting the operator during manual opening and allowing the stem packing to be safely isolated from full process line pressure when the valve is in its tightly closed position.
3. Piping Support Near Right Angles
Because the valve redirects the fluid medium at a sharp 90-degree angle, it experiences localized hydrodynamic reaction forces during rapid closing or high-velocity throttling. Ensure that the adjoining pipeline is anchored securely with robust pipe hangers or structural steel supports near both the inlet and outlet ports to neutralize vibration and prevent stem bending moments.
4. Actuator Torque Considerations
When adapting automated multi-spring pneumatic or electric actuators to the top works, always factor in a minimum 25% torque safety margin over the valve's standard break-away torque rating. This safety buffer compensates for packing friction variations over time and ensures reliable stem modulation under peak pipeline pressure drops.
Applications
Commonly specified in power generation facilities, boiler blowdown systems, high-pressure steam headers, and chemical processing networks.
Frequently Asked Questions (FAQ)
1. When can I get a quotation?
We typically provide a quotation within 4 hours of receiving your inquiry. Urgent requests are given priority.
2. Do you support customized valves?
Yes. We support OEM and customized valves according to drawings, specifications, and special working conditions.
3. What is the production lead time?
Normally, production can be completed within 15 working days after order confirmation, depending on product type and quantity.
4. What standards do your valves comply with?
Our products comply with GB, ANSI, API, JIS, DIN, BS, and other international standards.
5. What pressure, size, and temperature ranges can you supply?
6. What certifications do you have?
We are certified with ISO 9001, CE, and provide third-party inspection and test reports upon request.
7. What delivery and payment terms do you offer?
Delivery terms: EXW, FOB, CFR, CIF
Payment terms: T/T (30% deposit + 70% balance), L/C, and other terms by agreement.
8. Do you provide technical support and spare parts?
Yes. We offer 24/7 technical support and supply spare and consumable parts for long-term service.
