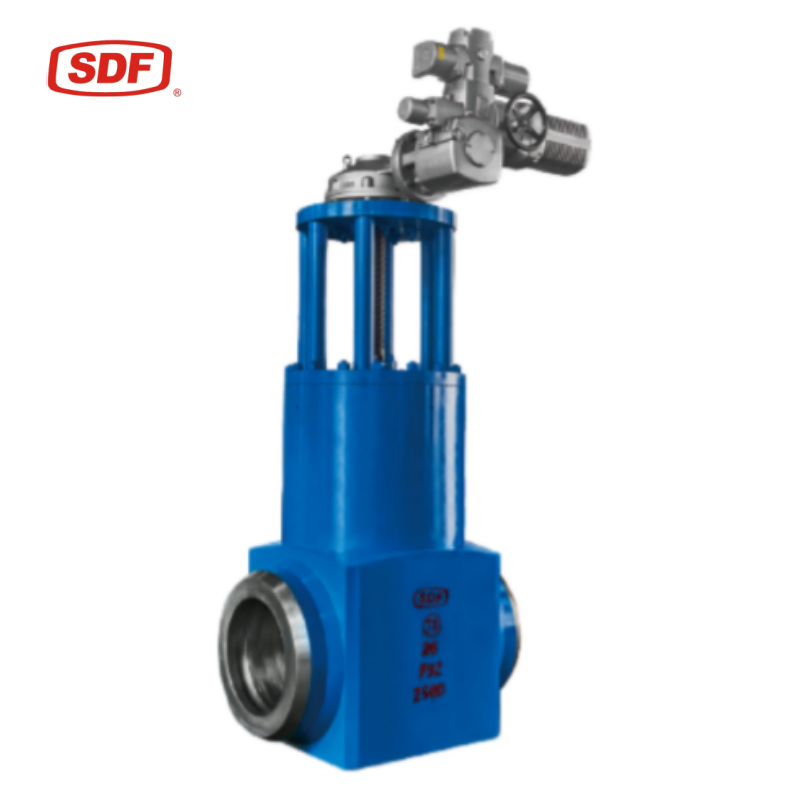

Main Steam Forged Steel Electric Gate Valve

Core Advantages & Technical Features

• Premium Forged Integrity & Grain Flow: Fabricated via multi-directional die forging processes, ensuring optimal grain orientation matching the structural stress layout. This provides unmatched resistance to high-pressure thermal fatigue and sudden pressure surges.

• Advanced Seat & Wedge Hardfacing: Sealing surfaces of both the flexible wedge and body seats are precision-overlaid with Stellite 6 (Co-Cr alloy) or specialized cobalt-free hardfacing alloys. The resulting layer delivers superior erosion resistance, anti-galling performance, and excellent hardness recovery at red-heat temperatures.

• Pressure Seal Bonnet Design: Utilizes a high-integrity pressure seal structure where internal line pressure tightens the sealing gasket. Higher operational pressure yields tighter bonnet sealing, completely mitigating potential body-bonnet leakage common in conventional bolted bonnets under extreme thermal cycles.

• High-Torque Intelligent Actuation: Integrated with top-tier industrial multi-turn electric actuators featuring precise torque switches, limit indicators, and electronic positioners. It ensures zero-leakage tight shutoff and supports safe emergency shutdown (ESD) protocols.

• Minimized Flow Resistance & Pressure Drop: Designed with a full-port straight-through flow configuration. The internal flow path minimizes turbulence, velocity spikes, and fluid friction, effectively reducing parasitic energy losses across high-pressure main steam paths.

 Target Applications & Operating Conditions

This heavy-duty forged electric gate valve is explicitly tailored to handle high-temperature high-pressure steam, subcritical/supercritical fluids, and boiler feedwater within heavy engineering environments:

• Supercritical Power Generation: Main steam lines, reheat systems, hot-reheat piping networks, and high-pressure steam extraction lines in 600MW to 1000MW coal-fired and gas-fired thermal plants.

• Boiler Interconnections: Superheater outlet headers, reheater isolation loops, and high-pressure startup bypass systems.

• Petrochemical Refining: High-pressure hydrocracking units, hydrogen modification headers, and high-temperature thermal cracking gas systems where medium leakage must be absolutely prevented.

4. Selection & Engineering Guidelines

When selecting the optimum configuration for main steam forged steel electric gate valves, EPC contractors and plant operators should strictly adhere to the following technical considerations:

1. Material Selection Mapping: Match the forged body grade precisely to the piping design temperature. For operating temperatures between 566°C and 620°C, ASTM A182 F92 or F91 must be specified to prevent graphitization and guarantee creep strength. For temperatures up to 538°C, F22 or F11 is acceptable.

2. End Connection Configurations: Butt-welded (BW) ends according to ASME B16.25 are mandatory for main steam applications to ensure zero-leakage permanent pipe-to-valve integration. Butt-welded dimensions must accurately state the matching pipe schedule (e.g., Sch 160, XXS, or specific minimum wall thickness).

3. Actuator Sizing Margin: The chosen electric actuator torque output must incorporate a minimum safety factor of 1.3 to 1.5 times the maximum theoretical dynamic operating torque under full differential shutoff pressure.

 Standard Technical Specifications
