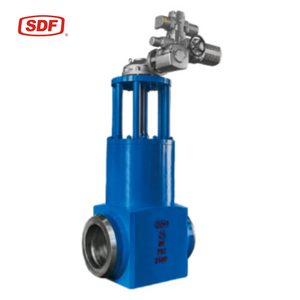

Comprehensive Technical Specifications
Component / Parameter | Standard Specification & Technical Value |
Brand / Manufacturer | SDF |
Valve Type | Pressure Seal Gate Valve (Flexible Wedge / Parallel Slide) |
Body Structure | Forged Block Body with Extended Yoke Frame |
Nominal Diameter | DN350 / 14 Inch |
Nominal Pressure | PN63 (High Pressure / ASME Class 400 Equivalent) |
Body & Bonnet Material | ASTM A182 F92 (9Cr-2W-V-Nb Forged Alloy Steel) |
Wedge / Disc Material | Forged F92 with Stellite 6 Hard-Facing Overlay |
Seat Ring Material | Integral or Welded Seat with Stellite 12 / CoCr Alloy |
Stem Material | ASTM A182 F91 / High-Tensile Martensitic Stainless Steel |
Connection Type | Butt-Weld Ends (BW) to ASME B16.25 / EN 12627 |
Design Standards | ASME B16.34, API 600, EN 12516 |
Testing & Inspection | API 598, EN 12266-1 (100% Radiographic/Ultrasonic Tested) |

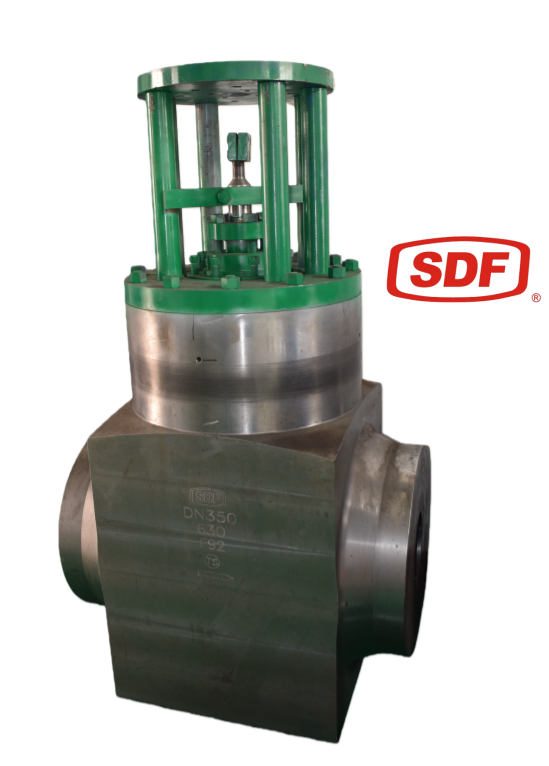

Actuation Options | Bare Stem (as shown), Electric Actuator, or Bevel Gearbox |
Key Features and Engineered Advantages
Advanced F92 Forged Steel Construction: The entire pressure-retaining block is forged from ASTM A182 F92 alloy steel. This specialized metallurgy delivers significantly higher creep-rupture strength and allowable stress at temperatures reaching up to 620°C (1150°F) compared to traditional F22 or F91 steels. Forging eliminates any risks of sub-surface casting porosity, providing uniform grain alignment capable of withstanding violent thermal shocks.
Self-Tightening Pressure Seal Bonnet: As pressure rises within the pipeline, it forces the internal bonnet assembly upward against the sealing wedge gasket. This converting of internal line pressure into a tight mechanical sealing force ensures absolute zero-leakage performance, drastically reducing the field maintenance costs typically associated with retorquing traditional bolted gaskets.
Stellite-Faced Severe Service Sealing: To prevent premature erosion, galling, and wire-drawing under high-velocity steam flows, the seating surfaces of both the wedge and the body seats are overlaid with premium Cobalt-Chromium hard-facing alloys (Stellite). This preserves tight shut-off integrity over thousands of operational cycles.

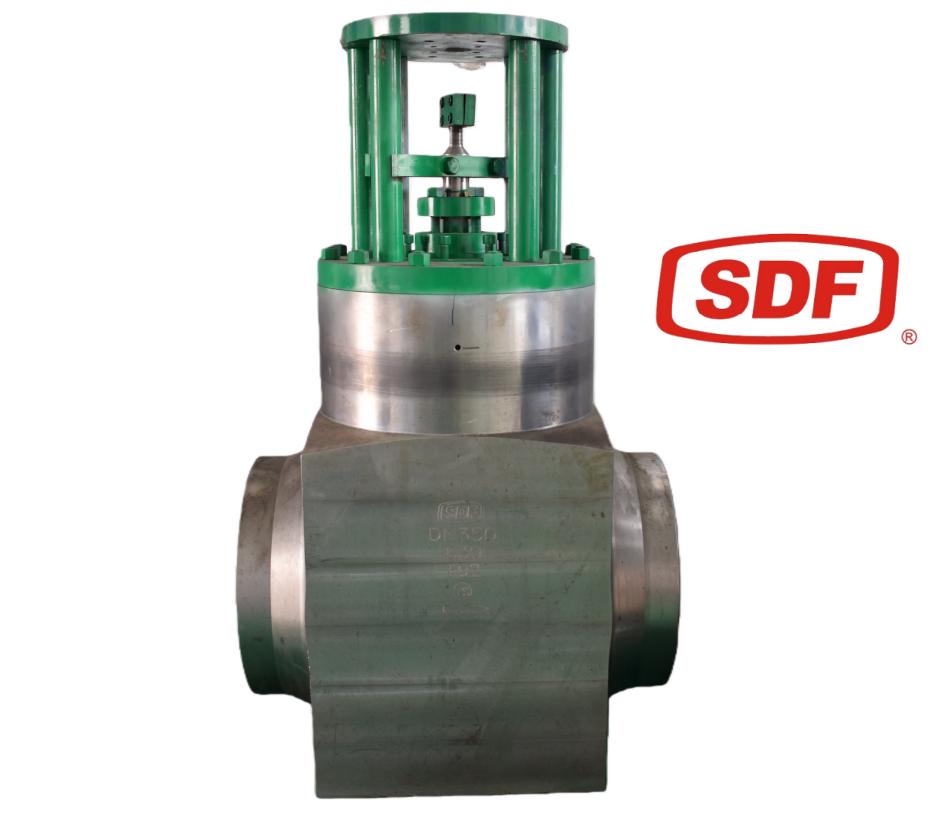

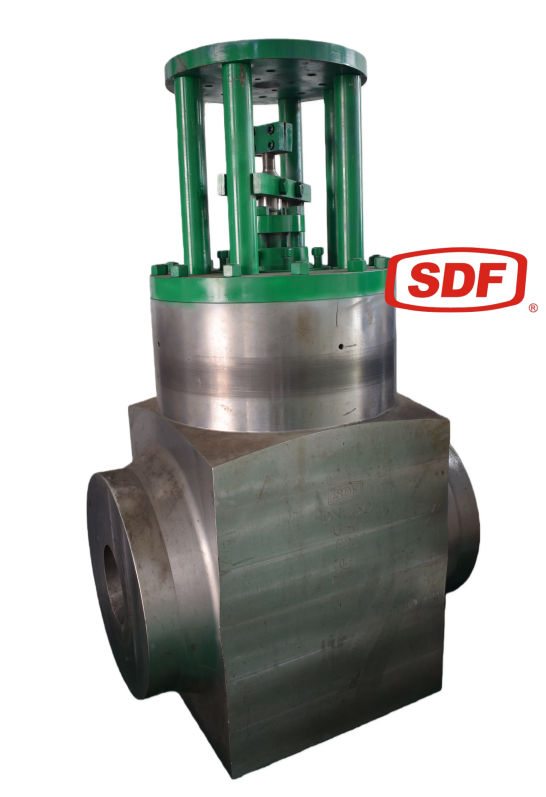

Heavy-Duty Extended Yoke Structure: The green-finished open yoke frame is rigidly bolted to the bonnet assembly, isolating the actuator mount from direct high-temperature conduction. Its universal top-flange drilling is optimized for seamless direct mounting of heavy-duty electric actuators (e.g., Rotork, Auma) or manual bevel gear overrides.
Streamlined Butt-Weld Configuration: Eliminates heavy, bulky end flanges, reducing the overall dead weight of the piping loop. This butt-weld design facilitates smooth stress transition profiles, perfectly matching the schedule of the high-pressure steam headers.
Typical Industry Applications
The SDF F92 pressure seal gate valve is engineered predominantly for severe-service utilities where high-temperature steam and immense pressures coexist:
Main Steam Piping Loops: Isolating supercritical and ultra-supercritical turbine main steam inlets.
Power Generation Utilities: Boiler feedwater isolation, high-pressure heater bypass lines, and main steam headers in coal-fired or thermal power stations.
Petrochemical Refining: High-temperature hydrocracking, delayed coking units, and severe catalytic reforming processes.
Superheated Steam Utilities: Large-scale industrial steam distribution networks in heavy manufacturing plants.
Quality Control and Compliance Verification
Because this valve operates under hazardous high-pressure, high-temperature baseloads, SDF enforces uncompromised quality assurance tracking for every unit:
Non-Destructive Testing (NDT): 100% Liquid Penetrant (PT), Magnetic Particle (MT), and Ultrasonic (UT) examinations are executed across all forged pressure-containing boundaries to guarantee zero micro-fractures.
Pressure Containment Calibration: Every valve passes strict hydrostatic shell tests and high-pressure pneumatic seat closure testing per API 598 prior to protective coating and shipment.
Material Traceability: Full Mill Test Certificates (MTC) according to EN 10204 3.1/3.2 are provided, proving exact chemical composition and mechanical stress limits for the F92 alloy.
