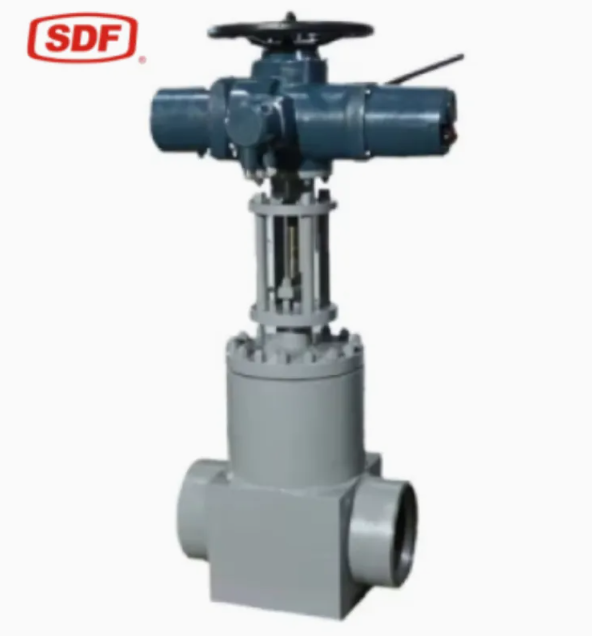

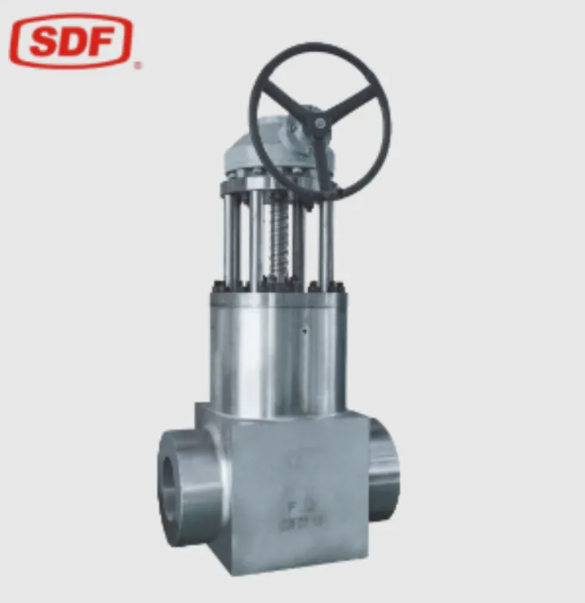

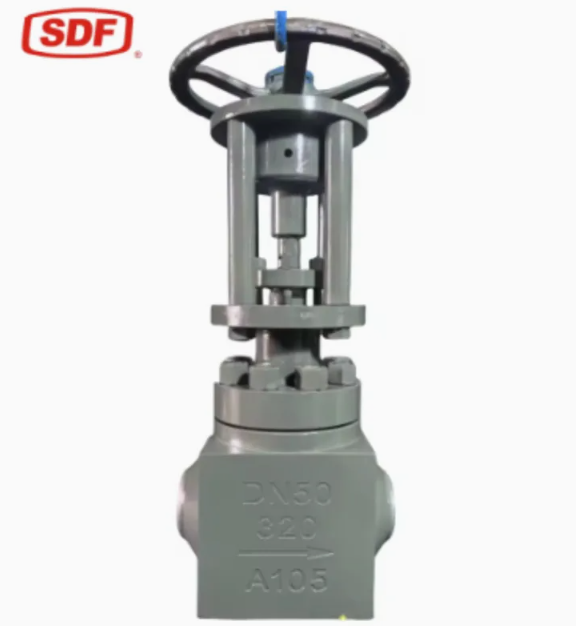

SDF Motorized Pressure Seal Gate Valve, Class 1500 Forged Steel Butt-Weld Electric Gate Valve

Comprehensive Technical Specifications

Key Features and Engineered Advantages

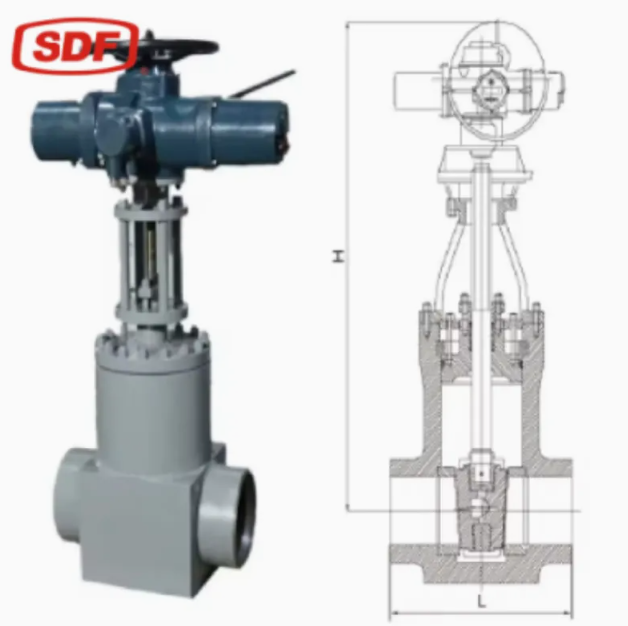

• Premium Forged Steel Structural Integrity: As detailed in the blueprint schematics of "image_9e1920.png", the valve body is sculpted entirely from specialized forged steel block matrices. Unlike standard sand-casting methods which can retain hidden air pockets, shrink cavities, or grain boundaries susceptible to micro-fracturing, forging imparts a uniform structural grain refinement. This ensures maximum resistance against catastrophic piping loads, thermal expansion shocks, and hydraulic pressure spikes.

• Self-Tightening Pressure Seal Bonnet Joint: Optimized for high-pressure installations ($ \ge \text{ASME Class 600} $), the pressure-seal architecture features an internal configuration where the system fluid pressure forces the bonnet upward against a flexible graphite or metal sealing gasket. As the internal line pressure intensifies, the compressive sealing force on the gasket increases proportionally. This self-sealing mechanism achieves true maintenance-free operation and zero external fugitive emissions during severe thermal cycling.

• Metal-to-Metal Hard Sealed Seat Interface: To ensure gas-tight closure profiles in extreme media, the seating surfaces of both the flexible wedge disc and the integral body seats are hard-faced with premium Cobalt-Chromium-Tungsten alloys (such as Stellite). This hard-surfaced layer exhibits exceptional hot hardness, minimizing damage from wire-drawing, cavitation, slurry erosion, and physical gauling during high-differential-pressure cycles.

• High-Fidelity Automated Electric Actuation: The top-mounted motorized operator is engineered for demanding modulating or on-off automation tasks. Featuring built-in torque limiters, electronic stroke position switches, and a weatherproof IP67/IP68 dust and water enclosure, the actuator ensures reliable valve travel movement. A mechanical declutch mechanism permits immediate manual handwheel engagement during electrical power blackouts.

• Flexible Wedge Disc Geometry: The gate disc is machined as a flexible wedge with a built-in structural groove around its central perimeter. This intentional flexibility allows the sealing faces to self-align and conform perfectly to the body seats, compensating for any thermal pipeline distortions or body seat deflections caused by excessive pipe stresses.

Typical Industry Applications

The SDF motorized pressure seal gate valve series serves as a critical isolation link across cross-industry automated utility grids:

• Fossil Fuel & Thermal Power Stations: Main steam isolation valves (MSIV), turbine stop valves, boiler feed pump isolation, and superheater header drains.

• Petrochemical Plants & Oil Refineries: High-temperature hydrocracking units, catalytic reforming loops, delayed coking plants, and hydrogen processing skids.

• Superheated Industrial Utilities: Multi-facility high-pressure steam distribution headers and large-scale district heating plant isolation fields.

• Offshore Oil Platforms & LNG Skids: High-pressure automated gas treatment facilities and severe-service pipeline processing applications.

Quality Control Testing and Manufacturing Compliance

To maintain operational confidence inside international power generation and refining loops, SDF implements strict testing tracking:

1. Non-Destructive Testing (NDT) Logs: All raw forged bodies undergo rigorous 100% Magnetic Particle Inspection (MPI) and Ultrasonic Testing (UT) to verify absolute homogeneity within the steel matrices before final machining.

2. Pressure Boundary Verification: Hydrostatic shell tests are performed at $1.5 \times$ the nominal design pressure, alongside high-pressure metal seat closure tests conforming strictly to API 598 and ASME B16.34 criteria.

3. Actuator Load Calibration: Every motorized valve unit goes through complete cycle stroke calibration tests under simulated pipeline torque parameters to adjust the electronic limit switches and mechanical stop bolts, delivering plug-and-play installation for end-users.
